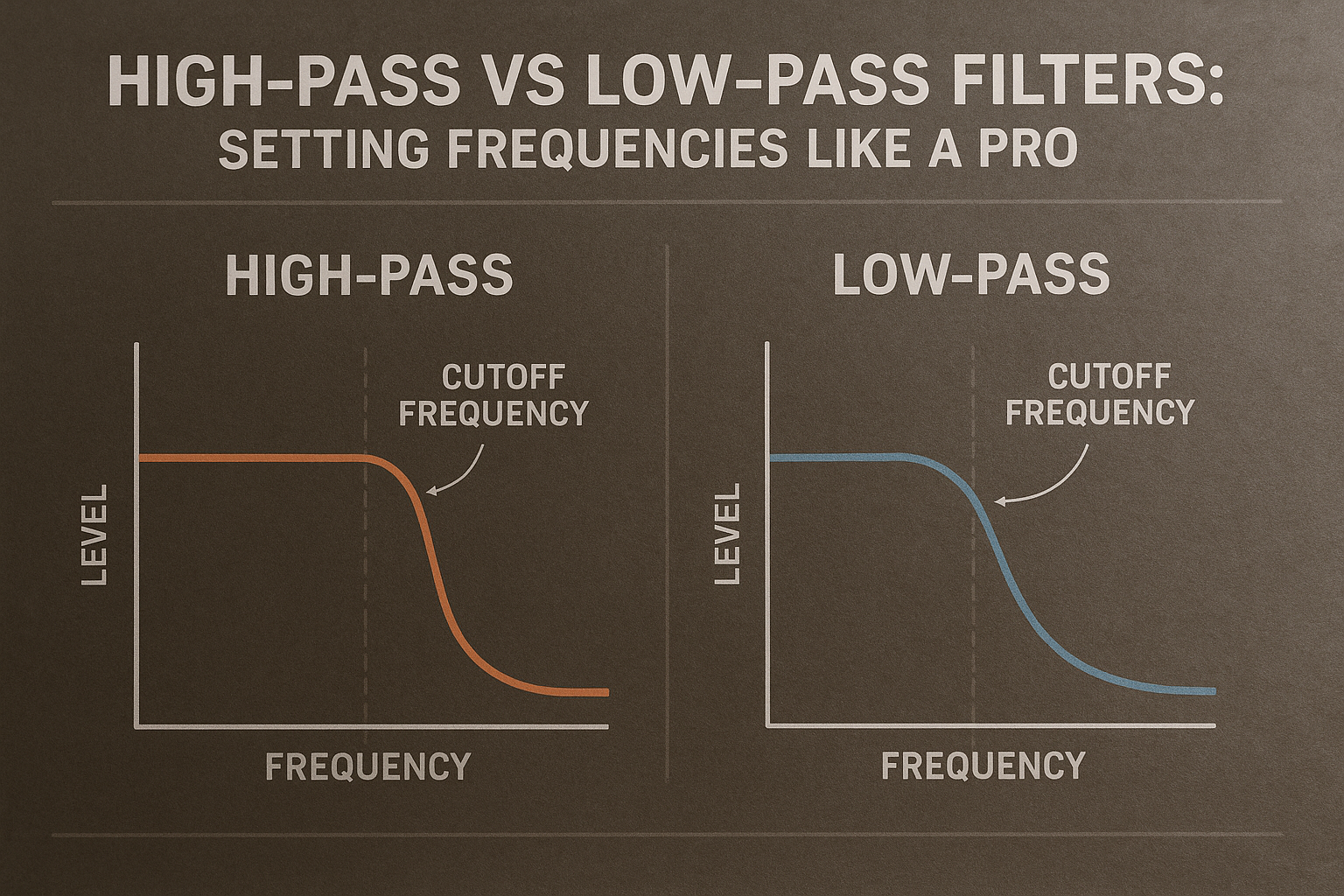

High-Pass vs Low-Pass Filters: Setting Frequencies Like a Pro

Car audio tuning is not only installing a pair of amazing speakers or an amp, but it is making everything blend. One tool that is easily ignored at the epicenter of the great sound is the audio filters. In particular, the use of both high-pass and low-pass filters allows making sure that each speaker reproduces what it should play. When you get the right ones and everything starts making sense, your system will be in proper balance and punchy. Miscalculate and you end up with muddy mids, confused bass or exploded tweeters.

No matter whether you are on the basic head unit or the high-end DSP, learning how to set high pass and low-pass filters is the thing that you need to know how to do in case you are on the hunt for the premium car audio sound.

What Are Audio Crossover Filters?

Crossover filters divide the full range of music into smaller sections, so different types of speakers (subwoofers, midrange drivers, tweeters) only play the frequencies they’re built for.

Learning the car audio crossover filters can be done to eliminate distortion and enhance sound accuracy of all speakers of your car.

High-Pass Filters Explained

A high-pass filter (HPF) lets pass through frequencies that are above a specific point to the speaker. Anything below that cutout is deleted, assuring delicate speakers of low-frequency damage, as well as keeping the sound clear.

Where to Use High-Pass Filters:

• Tweeters: Prevents low frequencies from damaging delicate cones

• Midrange speakers: Removes deep bass that can muddy vocals

• Coaxial speakers: If paired with subwoofers

Example Setting:

• HPF @ 80Hz on door speakers means anything under 80Hz is cut, allowing clean mids and highs to play without distortion or speaker strain.

This becomes crucial in DSP frequency tuning, where precision means everything. Set the HPF too low, and small speakers will try to play bass they can’t handle. Set it too high, and you’ll lose body from your mids.

Low-Pass Filters Explained

A low-pass filter (LPF) does the opposite: it only allows frequencies below a certain point to reach the speaker. Everything above that is blocked.

Where to Use Low-Pass Filters:

• Subwoofers: Keeps vocals and treble out of the sub, avoiding muddiness

• Midbass drivers: In some 3-way systems where sub duties are shared

Example Setting:

• LPF @ 80Hz on a subwoofer ensures it only plays the deep bass, staying tight and clean without overlapping the mids.

LPFs are essential when you're pairing a subwoofer with full-range speakers. Without it, your sub may compete with mids or create harsh overlaps.

Setting Frequencies Like a Pro

The filter settings are dependent on how your system is set up. This will be a rough tuning guide to high-pass / low-pass dialing.

Common Starting Points:

Always fine-tune by ear after using these ranges as a baseline.

Slope Consideration:

Values of slope such as 12dB/oct or 24dB/oct will usually be found when adjusting filters. This explains the sharpness with which the filter attenuates the frequencies that are beyond the determined point.

• 12dB/octave: Smooth roll-off

• 24dB/octave: Sharper cutoff, more precise

Sharper slopes help eliminate frequency overlap and reduce distortion, especially in active systems.

The Role of DSP in Frequency Tuning

Contemporary Digital Signal Processors (DSPs) move filter control one step further. DSPs give you absolute control over the soundstage you are hearing with the option to precision tune, time align and control your EQ as you desire.

Benefits of DSP for Crossover Tuning:

• Adjust HPF/LPF points per speaker channel

• Match crossover slopes for cleaner transitions

• Prevent frequency overlaps between drivers

• Control gain levels for balanced output

With DSP, you’re not just setting filters — you’re creating a seamless blend between low, mid, and high frequencies across every corner of your vehicle.

Avoiding Common Filter Mistakes

Even experienced tuners make errors that can ruin a system’s potential. Here are a few to watch for when dialing in car audio crossover filters:

1. Overlapping Frequency Ranges

If your sub is set to LPF at 120Hz and your door speakers are HPF at 50Hz, you're creating a frequency overlap (50–120Hz) where both speakers are fighting to play the same sounds. This leads to muddiness.

Fix: Match your crossover points — e.g., both LPF and HPF at 80Hz for a cleaner handoff.

2. Gaps in Frequency

Setting the HPF at 100Hz and the LPF at 60Hz means no speaker is handling 60–100Hz. That results in a noticeable dip in sound, especially in hard-hitting bass.

Fix: Ensure crossover points meet or slightly overlap if slopes are gentle.

3. Too Steep for the Wrong Speaker

Applying a 24dB/octave slope on midrange speakers might cut too much too fast, making the transition sound abrupt.

Fix: Use gentler slopes (12dB/oct) where smoother blending is needed.

How to Tune Filters by Ear?

Your ears are still your best tuning tool. Even if you're working with a DSP or advanced head unit, always listen critically after making adjustments.

Here’s what to listen for:

• Sub too boomy? Lower the LPF.

• Vocals sound muffled? Raise the HPF on midrange.

• Tweeters sound harsh? Increase HPF or check crossover slope.

• Missing punch? Adjust overlap between midbass and sub.

It’s all about finding that balance where no one speaker overpowers another — and everything sounds like a single, unified system.

Band-Pass Filters for 3-Way Setups

In more advanced systems, you’ll see band-pass filters, where a speaker has both a high-pass and a low-pass filter. This is common for midbass or midrange drivers in a 3-way configuration.

Example:

A midbass driver with:

• HPF @ 80Hz (to avoid sub frequencies)

• LPF @ 300Hz (to avoid higher mids)

This narrows the speaker’s job to just punchy mid-lows — ideal for maximum clarity and impact.

Final Sound Check: Tuning in Real-Time

Once filters are set, test your system with varied music:

• Tracks with deep bass and punch (hip hop, EDM)

• Acoustic or vocal-heavy songs (jazz, folk)

• Songs with wide dynamic range (orchestral, live recordings)

Make small adjustments. Let each speaker shine in its own zone. The goal is natural flow, not forced loudness.

Wrap-Up: Control the Sound, Don’t Just Play It

It is not optional but a possibility to reveal the whole potential of the car audio system through proper filter tuning. It can be either a plain 2-way or a full DSP-enabled 3-way stage but without high-pass and low-pass filters in use, how each speaker sounds is all but defined.

With a little bit of knowledge of how crossover filters are applied, how to use them the right way and leveraging information, you will tune it like a probe and enjoy your music as intended.
