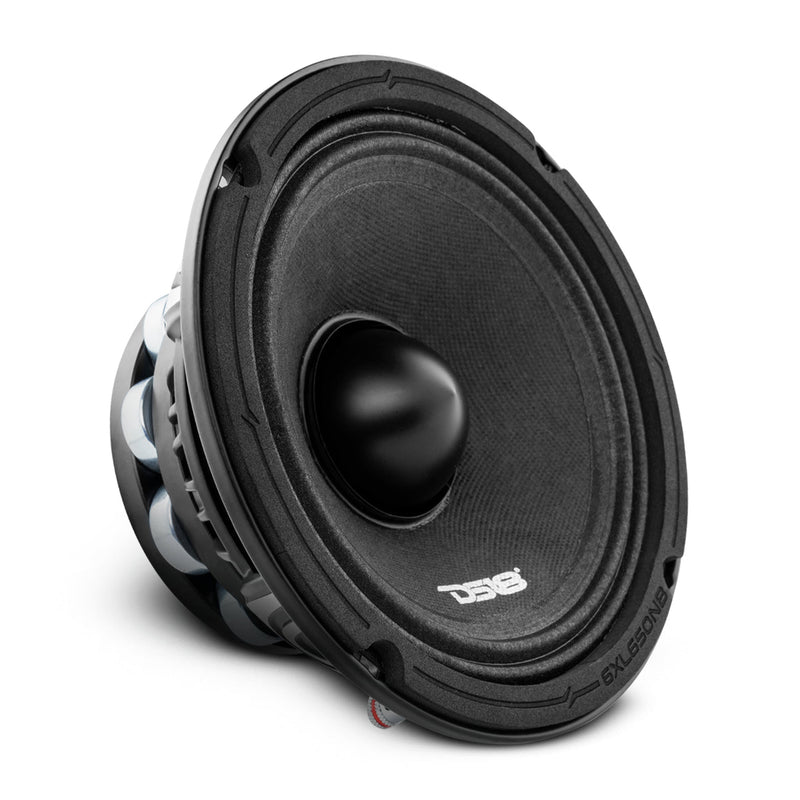

DS18 6XL650NB-4 XL 6.5" Neodymium Mid-Range Loudspeaker With Bullet 325 Watts Rms 4-Ohm

In stock
SKU: DS-6XL650NB-4
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $169.95 USD
  • 6.5" Mid-Range w/Bullet
  • MAX Power: 650 Watts
  • RMS Power: 325 Watts
  • Impedance: 4 Ohm
  • Neodymium Magnet
  • 97dB



DS18 PRO 6.5" NEODYMIUM MID-RANGE LOUDSPEAKER WITH BULLET 650 WATTS 4-OHM
DS18’s 6XL650NB-4 is a game-changer in the world of car audio. Exceptional sound has never been easier than with this speaker.

This 6.5” 4-ohm loudspeaker has a RMS power handling of 325W and MAX power handling of 650W guaranteeing powerful performance and optimal compatibility with a wide range of audio systems, for an immersive and dynamic sound experience.

DS18’s 6XL650NB-4 has a remarkable sensitivity of 97 dB and a frequency response of 80Hz-12.5KHz, allowing you to enjoy every nuanced detail of your favorite tracks in crystal-clear quality across a wide range of frequencies.

Designed with precision and expertise, DS18’s 6XL650NB-4 has a 2" voice coil and a non-pressed paper cone. The 6XL650NB-4 is equipped with a neodymium magnet weighing 11.4 Oz, offering superior magnetic strength for enhanced audio performance. The aluminum bullet adds a touch of style and sophistication to the overall design, while expanding and dispersing the available frequency response. The cloth surround and satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity.

Upgrade your audio system with the DS18 6XL650NB-4 and experience a new level of sonic excellence.

SPECS

SKU
6XL650NB-4
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohm / 8 Ohm
RMS Power Handling
325 watts
MAX Power Handling
650 watts
Sensitivity (1w/1m)
97dB
Frequency Response
80Hz-12.5KHz
Recommended HI Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No


MOTOR

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
N/A
Bullet Material
Aluminum
Bullet Color/Finish
Black
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Neodymium Rings
Magnet Weight
11.4 Oz
Displacement Volume
0.34L / 0.012ft3


THIELE & SMALL PARAMETERS

Equivalent Volume
5.07L / 0.17ft3
Excursion (one way)
3.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.16
Electrical Factor
0.28
Total Factor
0.26
Mechanical Mass
9.11g
Mechanical Compliance
0.19mm/N
BL Factor
9.41
Voice Coil Inductance
0.05mH
Cone Area
136.85cm2
DC Resistance
3.5 ohm
Mechanical Mass w/o air
8.2g


MEASUREMENT

Overall Diameter
6.7" / 170mm
Overall Depth
3.19" / 81mm
Front Mount Baffle Cutout
5.9" / 150mm
Mounting Depth
2.83" / 72mm
Motor Diameter
4.13" / 105mm
