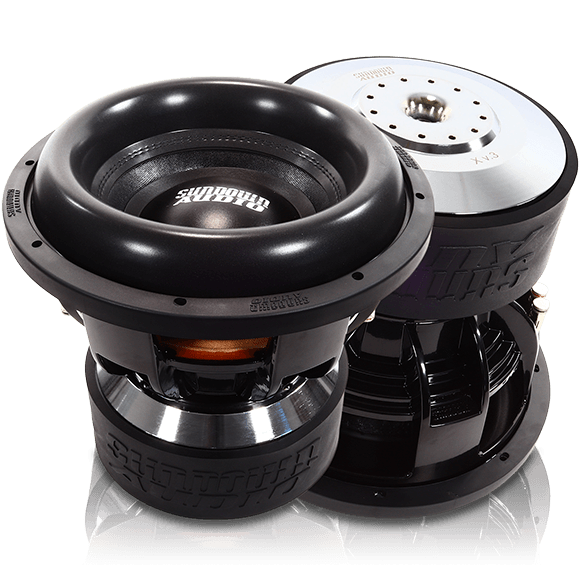

Sundown Audio XV312D2 X-Series 12" 2000W X-12 Subwoofer 2 Ohm

In stock
SKU: SUN-XV312D2
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $649.99 USD

The X v.3 series is the entry into the Sundown Audio “ultra-high excursion” suspension and frame designs. They all feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841).
We mate these new platforms to a triple stacked 225mm (8.86”) diameter motor structure featuring a hyper-extended pole and extreme clearances (allowing up to 4? p-p travel before mechanical bottom). This motor drives a 3? diameter 4-layer flat aluminum coil wound on a thick aluminum former to incredible levels of excursion. This is the same coil design utilized in the NS v.3 and Z v.5 series in the past. It is a proven coil with monstrous power handling potential. The combination of coil and updated motor for the X v.3 series brings its performance in terms of motor force to about 85% of the level of the previous generation Z v.5 series! So this makes the X v.3 an incredible value.
The X v.3 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that you are used to using for Sundown Audio subwoofers, although, the will tolerate enclosures up to about 50% larger than those if you desire even more low-end extension.
The X v.3 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.

SPECIFICATIONS:
T/S SPECS X V.3 12″ D1 X V.3 12″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 37.098 37.235
VAS (L) 12.986 17.077
Qes 0.486 0.543
Qms 2.597 2.779
Qts 0.409 0.454
Le (mH)
BL (NA) 15.943 19.857
Mms (Grams) 378.626 285.817
Cms (uM/N) 48.611 63.922
Sens (dB @ 1w/1m) 83.2dB

84.0dB

 ENCLOSURE SPECIFICATIONS:
  X v.3 12
Sealed Enclosure N/A
Ported Enclosure 2.5 cu ft
Recommended Tuning 32hz
Recommended Port Area 40 sq in
Displacement 0.2 cu ft
Depth 10.4"
Outside Diam. 12.68"
Cutout 11.09"
