Pride M12.12D18 Subwoofer Pride M12.12 RMS 1200W Size 12 D1,8

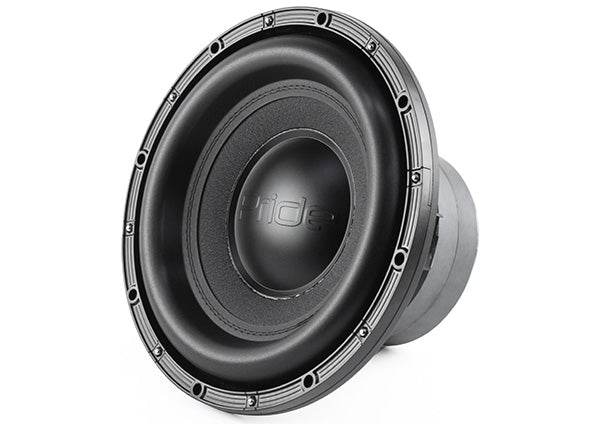

Subwoofer Pride M12.12
Buy a Pride M12.12 car subwoofer from a well-known car audio manufacturer and enjoy high-quality sound in your car! The Pride M12.12 subwoofer is capable of delivering a rated power (RMS) of 1200 W, allowing you to enjoy deep and powerful bass.
The voice coil of the Pride M12 12 speaker is made of 2.8″ round copper, and the coil insulation is made of polyimide. This guarantees stable operation of the subwoofer for a long time and high-quality sound without distortion. The supporting frame material is steel, ensures rigidity and strength the entire structure.
The subwoofer impedance is 1.8+1.8 Ohms, which makes it possible to select the most suitable amplifier configuration for optimal use of power and obtaining the best sound.
The Pride M12.12 subwoofer has an outer diameter of 316 mm, an installation diameter of 280 mm and an installation depth of 161 mm. The volume displaced by the subwoofer is 2.5 liters, and the weight is only 10.3 kg.
RMS – 1200W
Size – 12”
Enjoy deep and powerful bass during your trips to make your trips more enjoyable and comfortable.
Subwoofer available in the USA! General feature
Power Handling (RMS) 1200 W
VC diameter / material 2,8" round copper
VC wire insulation Polyimide
Frame material Steel
Magnet size and q-ty 170*26mm x 2 pcs / 6,69*1,02" x 2 pc
Spider diameter and q-ty 193mm x 4 pcs / 7,6" x 4 pcs
Cone material Paper with glass fiber
Dust cap material Hi-temp ABS
Parameters
DC Resistance (Re) 1,8+1,8 Ω
Free Air Resonance (Fs) Hz 33,5
Moving Mass (Mms) g 278
BL Tm 18,6
Total Speaker “Q” (Qts) 0,5
Electrical Q (Qes) 0,56
Mechanical Q (Qms) 5,1
Equivalent Compliance (Vas) L 27,5
One-Way Linear Excursion (Xmax) (BL 50%) mm 19
Sensitivity (1 W / 1 m) dB 84,8
Effective Piston Area (Sd) cm² 465
Physical Specifications
Overall Diameter 316mm / 12,44"
Mounting Hole Diameter 280mm / 11,02"
Mounting Depth 161mm / 6,34"
Driver Displacement 2,5 l / 0,66 Gal
Net Weight 10,3 kg / 22,71 lbs
