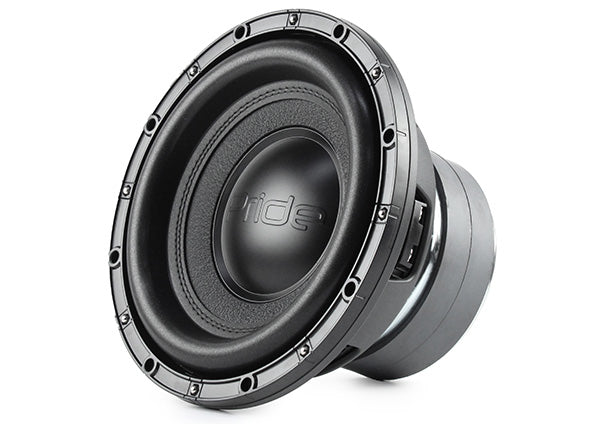

Pride M12.10S04 Subwoofer Pride M12.10 RMS 1200W Size 10 S0,4
Subwoofer Pride M.12 10” is a new modular system from the famous audio equipment manufacturer Pride, designed to reproduce deep and rich bass. This subwoofer features a 1.8-inch voice coil and a powerful magnetic system to deliver high power and clear sound.
Features:
Hot pressing of the washers and the use of woven material for the centering washers allows you to realize the full potential of the speaker under various operating conditions.
Automated gluing of magnetic systems to test the magnetic system according to all characteristics.
Special glue for each unit of the Pride acoustics allows for maximum strength and elasticity of the moving units.
Acoustic meshes are designed individually for the entire model range, therefore they effectively protect diffusers from mechanical damage
Specifications:
Power Handling (RMS): 1200 W
VC diameter / material: 2,8" round copper
VC wire insulation Polyimide
Frame material: Steel
Magnet size and qty: 170*26mm x 2 pcs / 6,69*1,02" x 2 pc
Spider diameter and qty: 193mm x 4 pcs / 7,6" x 4 pcs
Cone material: Paper with glass fiber
Dust cap material: Hi-temp ABS
Parameters
DC Resistance: (Re) 0,4 Ω
Free Air Resonance: (Fs) Hz 32,6
Moving Mass (Mms): g 249
BL Tm 6,2
Total Speaker “Q” (Qts) 0,49
Electrical Q (Qes): 0,54
Mechanical Q (Qms): 5,1
Equivalent Compliance (Vas): L 16,1
One-Way Linear Excursion (Xmax) (BL 50%) mm 19
Sensitivity (1 W / 1 m) dB 83,5
Effective Piston Area (Sd) cm² 337
Physical Specifications
Overall Diameter: 275mm / 10,83"
Mounting Hole Diameter: 242mm / 9,53"
Mounting Depth: 157mm / 6,18"
Driver Displacement: 2 l / 0,53 Gal
Net Weight: 10 kg / 22,05 lbs
