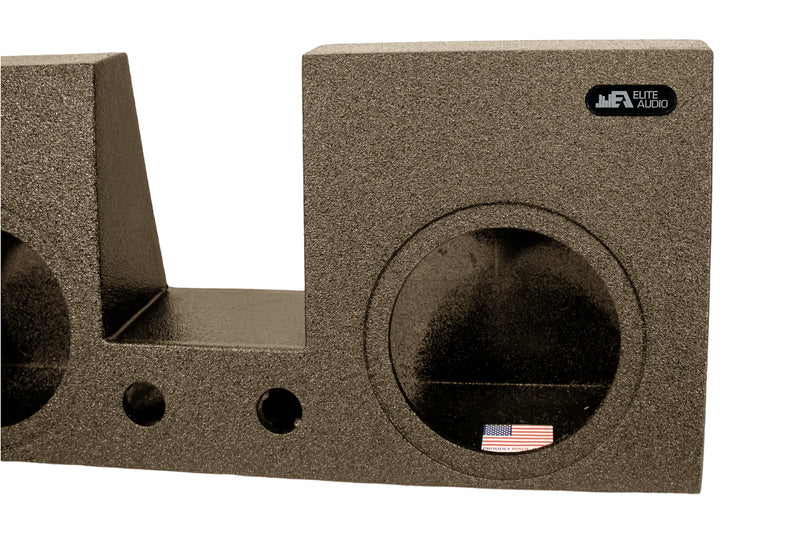

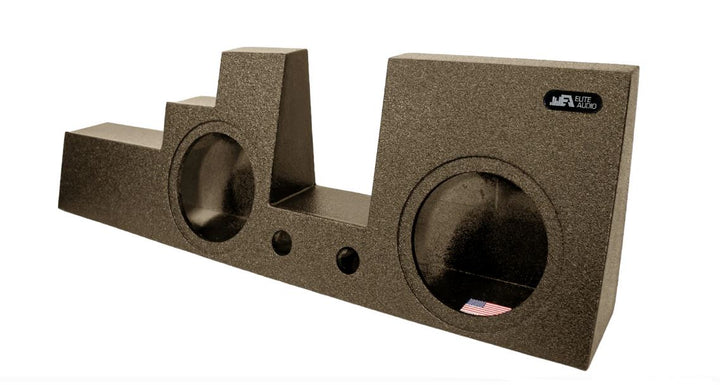

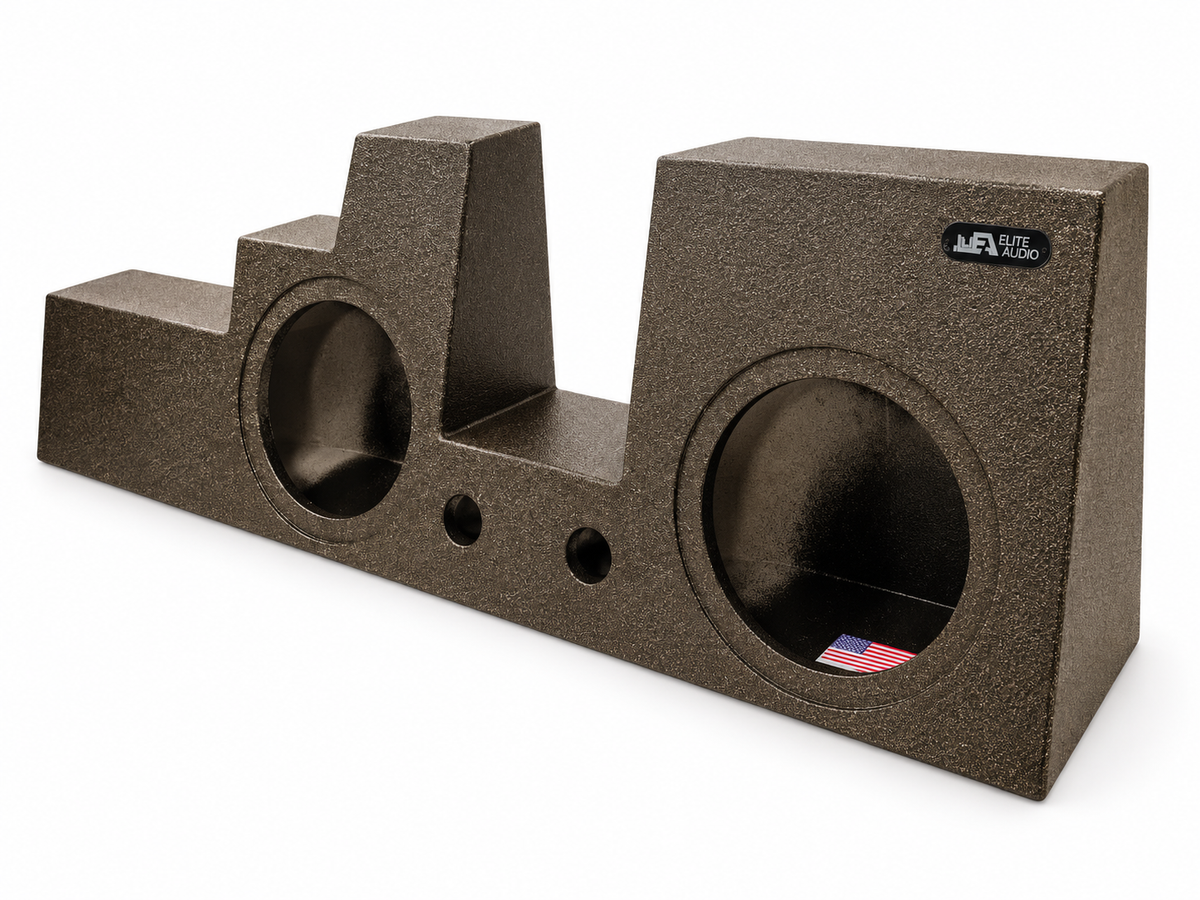

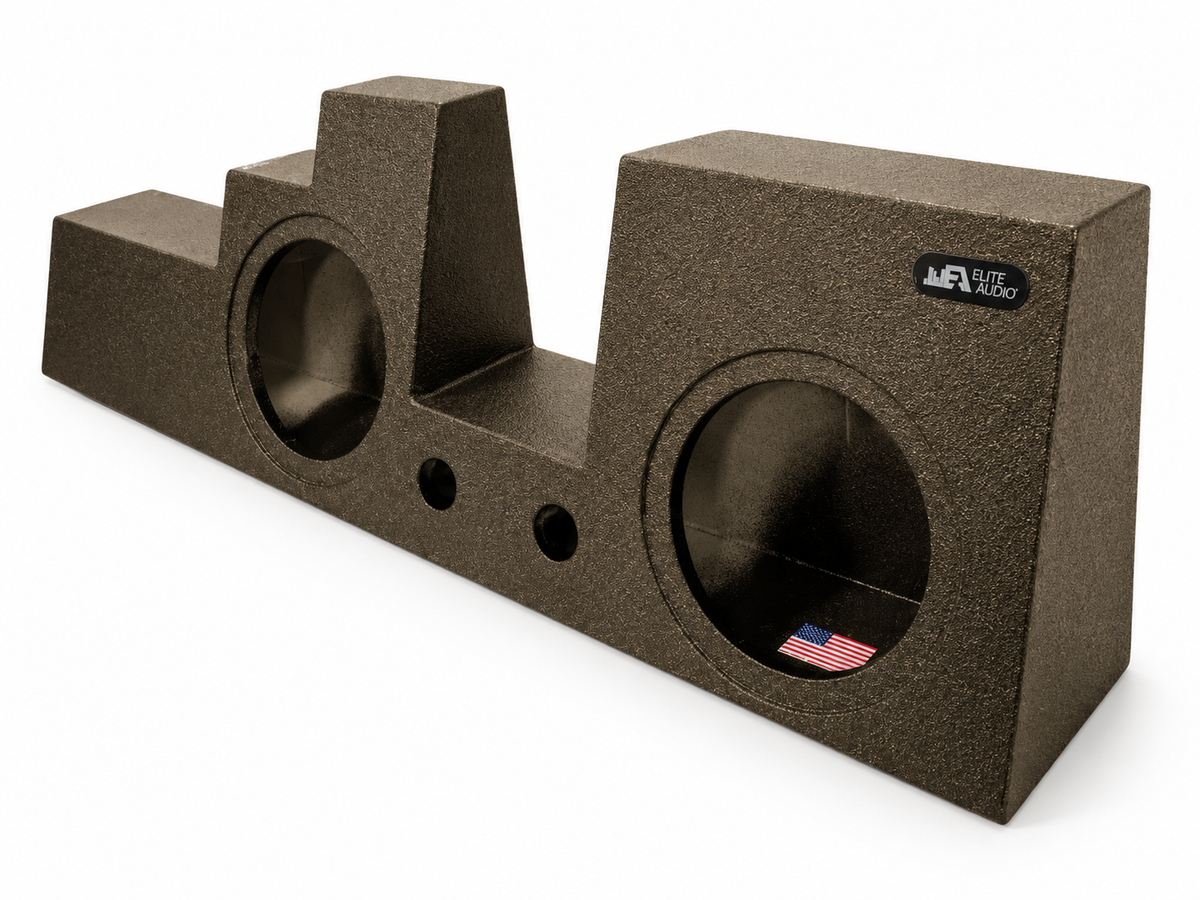

Elite Audio Enclosures | Ford F-250 / F-350 / F-450 Super Duty 2000-2016 Dual 10" - USA Made Subwoofer Box with Bed Liner Spray Finish
Elite Audio Dual 10” Sealed and Ported Ford Enclosures fit Super Duties 2000-2016 behind the back seat with motor window cut out. Available in Kicker specific options. Each Elite Audio box is coated with a durable bed liner polymer spray to enhance its longevity. These USA-made enclosures are constructed from high-grade, full 3/4" MDF, ensuring robustness and exceptional sound quality.
EAG-P210SFB2C Dimensions: Width: 54", Front Height: 17.5", Rear Height: 16.75", Height: 17", Bottom Depth: 3", Top Depth: 3", Depth: 7.75", Mounting Depth: 4.5", Cutout Diameter: 9.25", Weight: 36.75 LBS, Air Space per Cubic Foot: 1
EAG-P210SFB2CK Dimensions: Width: 54", Front Height: 17.75", Rear Height: 16.75", Height: 16.75", Bottom Depth: 3", Top Depth: 3", Depth: 7.75", Mounting Depth: 3.75", Cutout Diameter: 9.25", Weight: 32 LBS, Air Space per Cubic Foot: 1
EAG-P210PFB2C Dimensions: Width: 54", Front Height: 17.75", Rear Height: 16.75", Height: 16.75", Bottom Depth: 3", Top Depth: 3", Depth: 7.75", Mounting Depth: 4.5", Cutout Diameter: 9.25", Weight: 37.75 LBS, Air Space per Cubic Foot: 1, Tuning Frequency: 38Hz
EAG-P210PFB2CK Dimensions: Width: 54", Front Height: 17.75", Rear Height: 16.75", Height: 16.75", Bottom Depth: 3", Top Depth: 3", Depth: 7.75", Mounting Depth: 3.5", Cutout Diameter: 9.25", Weight: 34.15 LBS, Air Space per Cubic Foot: 1, Tuning Frequency: 38Hz
DISCLAIMER: All Elite Audio Enclosures are custom-made. Enclosure orders cannot be discounted, canceled, or modified once placed. ALL SALES ARE FINAL. Please double-check dimensions to ensure fitment for your vehicle and subwoofers before purchasing. You have 30 days to claim any shipping damages. Subwoofers not included.
Specification | EAG-P210SFB2C | EAG-P210SFB2CK | EAG-P210PFB2C | EAG-P210PFB2CK |
---|---|---|---|---|
Subwoofer Size | Dual 10" | Dual 10" | Dual 10" | Dual 10" |
Enclosure Type | Sealed | Sealed | Ported | Ported |
Mount Location | Behind Back Seat | Behind Back Seat | Behind Back Seat | Behind Back Seat |
Width | 54″ | 54″ | 54″ | 54″ |
Front Height | 17.5″ | 17.75″ | 17.75″ | 17.75″ |
Rear Height | 16.75″ | 16.75″ | 16.75″ | 16.75″ |
Total Height | 17″ | 16.75″ | 16.75″ | 16.75″ |
Bottom Depth | 3″ | 3″ | 3″ | 3″ |
Top Depth | 3″ | 3″ | 3″ | 3″ |
Total Depth | 7.75″ | 7.75″ | 7.75″ | 7.75″ |
Mounting Depth | 4.5″ | 3.75″ | 4.5″ | 3.5″ |
Cutout Diameter | 9.25″ | 9.25″ | 9.25″ | 9.25″ |
Weight | 36.75 LBS | 32 LBS | 37.75 LBS | 34.15 LBS |
Air Space (ft³) | 1.0 | 1.0 | 1.0 | 1.0 |
Tuning Frequency | N/A | N/A | 38Hz | 38Hz |
Material | 3/4" MDF | 3/4" MDF | 3/4" MDF | 3/4" MDF |
Finish | Bed Liner Spray | Bed Liner Spray | Bed Liner Spray | Bed Liner Spray |
UPC | N/A | N/A | N/A | N/A |
