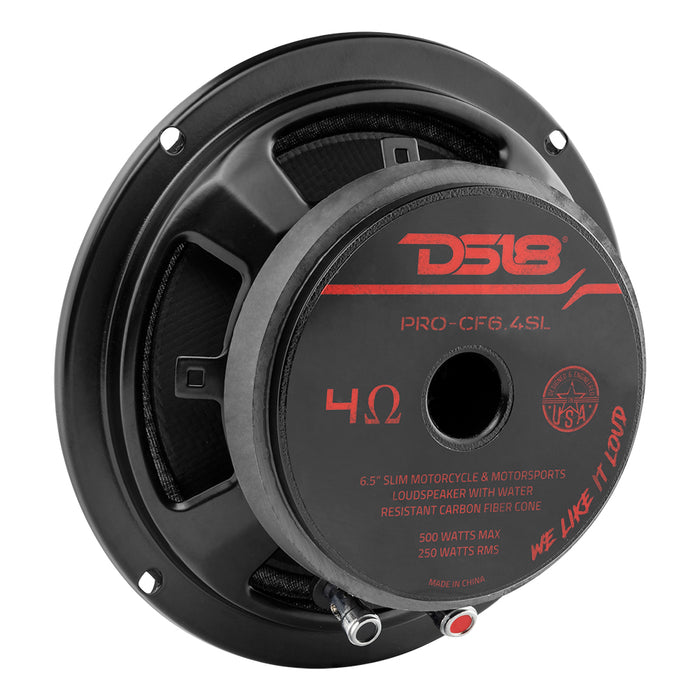

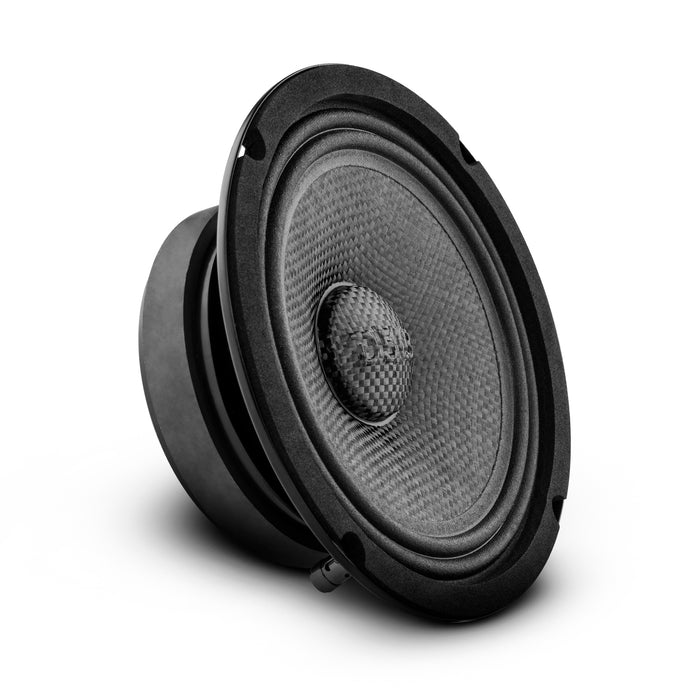

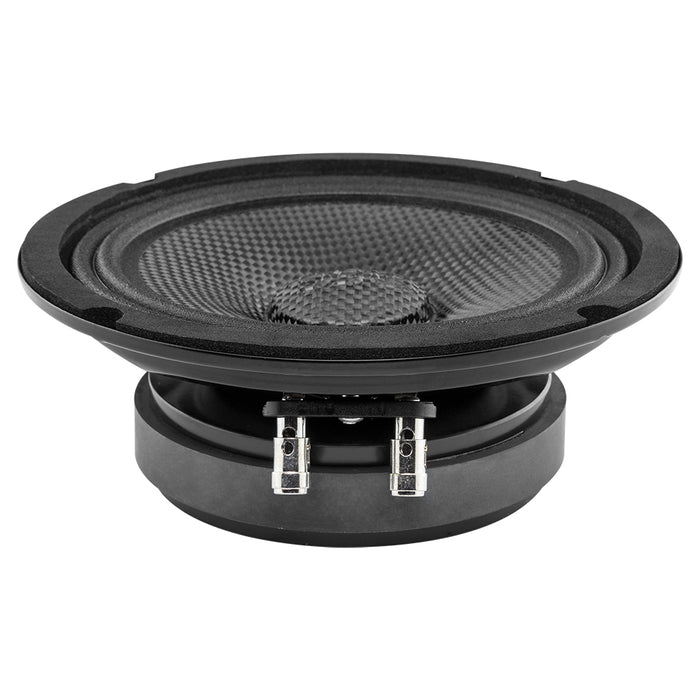

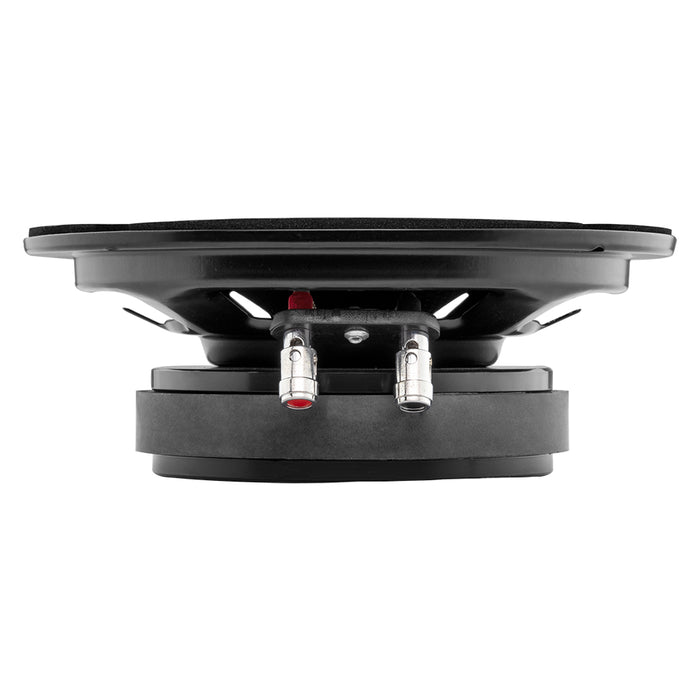

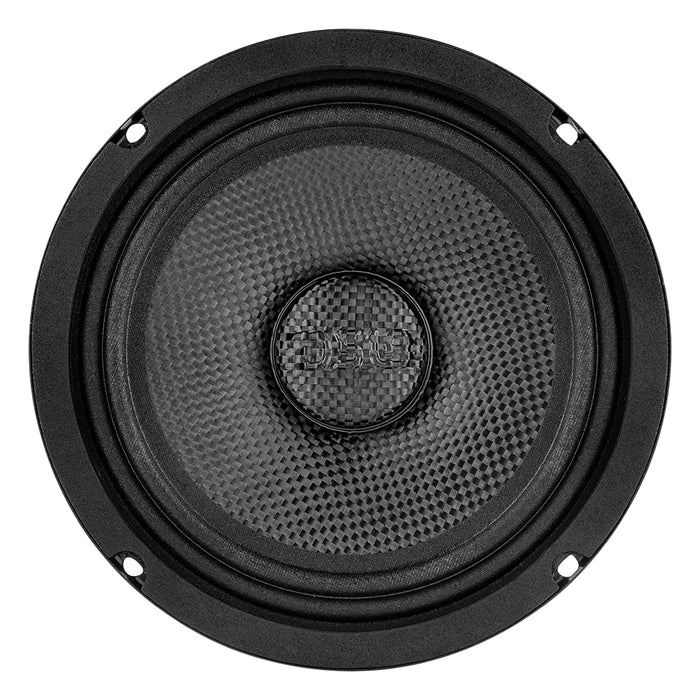

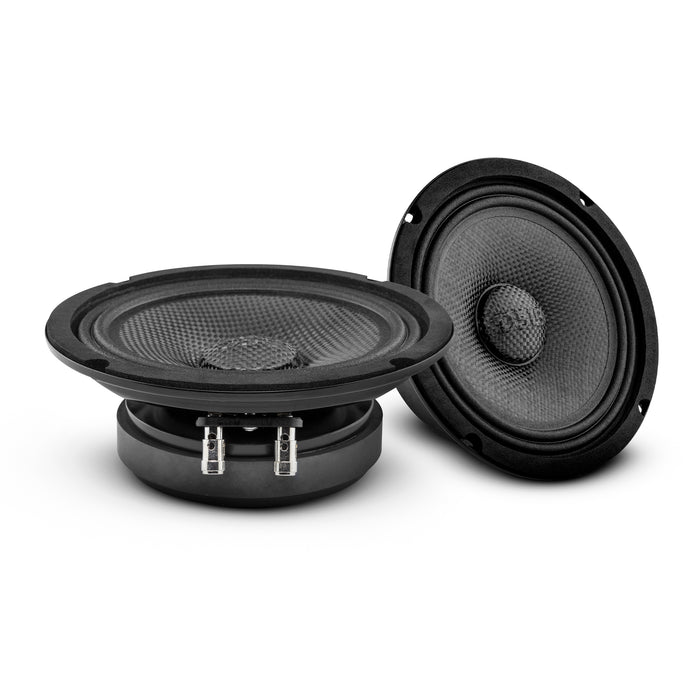

DS18 PRO-CF6.4SL PRO 6.5" Shallow Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 250 Watts Rms 4-Ohm

PRO 6.5” Slim Carbon Fiber Water Resistant Cone Mid-Bass Loudspeaker 500W MAX 4-Ohm

The PRO-CF6.4SL effortlessly blends incredible highs with a thunderous low mid-bass response. Its unparalleled versatility allows it to deliver frequencies ranging from a piercing 12.5KHz to a deep and resonating 80Hz.
Designed for performance and reliability, the PRO-CF6.4SL features a water-resistant design that guarantees exceptional audio even in the harshest conditions.

With its size reduction, the PRO-CF6.4SL can seamlessly be integrated into any setup, adapting to your unique needs with ease. The inclusion of user-friendly push terminals not only ensures a secure and protected wiring connection but also simplifies installation, saving you precious time and effort.

Features:

• 6.5" Shallow Mid-Bass
• Water Resistant Carbon Fiber Cone
• RMS Power: 250 Watts(500 Watts Peak)
• Impedance: 4-Ohm
• Ferrite Magnet
• 95dB

Specs:

SKU
PRO-CF6.4SL
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 OHMS
RMS Power Handing
250 Watts
Maximum Power Handing
500 Watts
Sensitivity (1w/1m)
95 dB
Frequency Response
80Hz-12.5KHz
Recommended Hi Pass Crossover
100 Hz

Voice Coil Diameter
1.5" / 38.5 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
20Oz

Thiele & Small Parameters:

Vas
9L / 0.317 ft3
Xmax
2.5 mm
Fs
128Hz
Qms
15.55
Qes
0.891
Qts
0.842
Re
3.6 OHMS

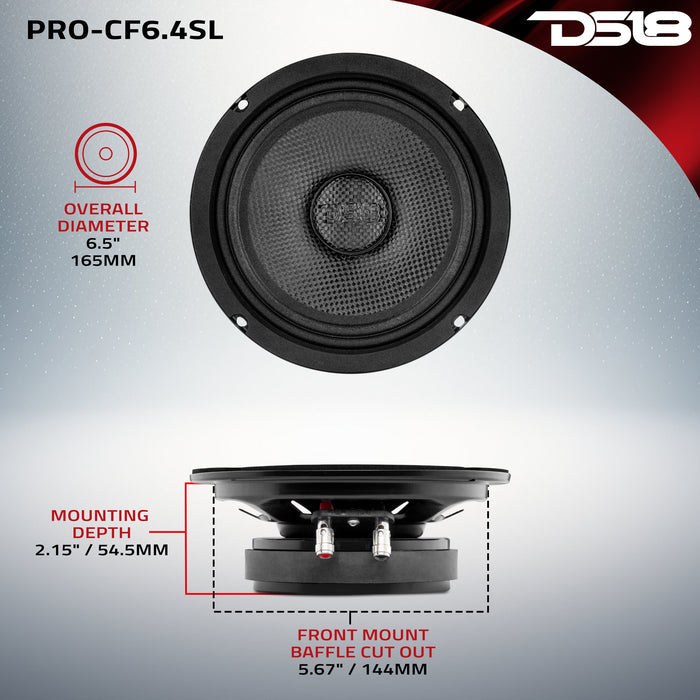

Measurements:

Overall Diameter
6.5" / 165 mm
Front Mount Baffle Cutout
5.67" / 144 mm
Mounting Depth
2.15" / 54.5 mm
Overall Depth
2.38" / 60.5 mm
Product Weight
3.5 lbs
Product Dimensions
7 x 7 x 3
M/C Weight
30 lbs
M/C Dimensions
14.8 x 14.5 x 7
M/C QTY
8
Sold In
Piece
