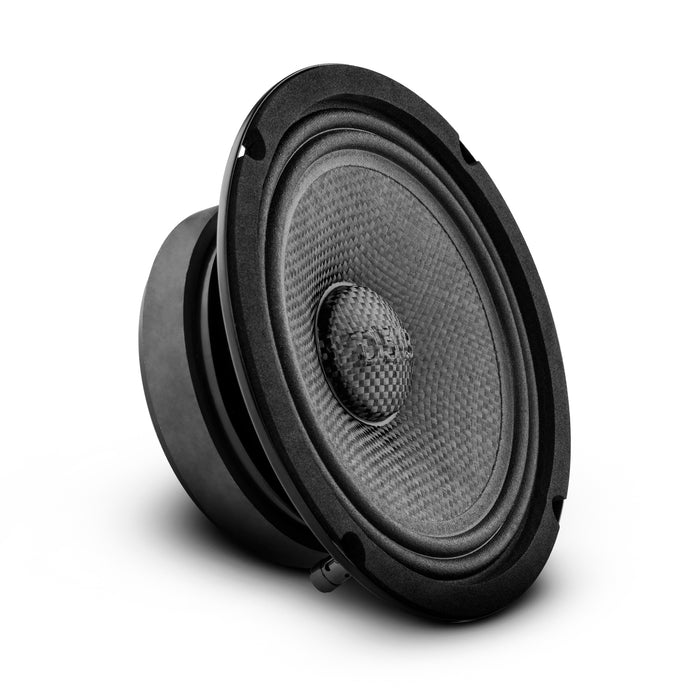

DS18 PRO-CF6.4SL PRO 6.5" Shallow Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 250 Watts Rms 4-Ohm
PRO 6.5” Slim Carbon Fiber Water Resistant Cone Mid-Bass Loudspeaker 500W MAX 4-Ohm
The PRO-CF6.4SL effortlessly blends incredible highs with a thunderous low mid-bass response. Its unparalleled versatility allows it to deliver frequencies ranging from a piercing 12.5KHz to a deep and resonating 80Hz.
Designed for performance and reliability, the PRO-CF6.4SL features a water-resistant design that guarantees exceptional audio even in the harshest conditions.
With its size reduction, the PRO-CF6.4SL can seamlessly be integrated into any setup, adapting to your unique needs with ease. The inclusion of user-friendly push terminals not only ensures a secure and protected wiring connection but also simplifies installation, saving you precious time and effort.
Features:
- 6.5" Shallow Mid-Bass
- Water Resistant Carbon Fiber Cone
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite Magnet
- 95dB
| Specification | Details |
|---|
| Product Name | DS18 PRO-CF6.4SL 6.5" Shallow Mid-Bass Loudspeaker |
| UPC | 810097261273 |
| Nominal Diameter | 6.5" / 165 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 250 Watts |
| Max Power Handling | 500 Watts |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 80Hz – 12.5KHz |
| Recommended Hi-Pass Crossover | 100 Hz |
| Voice Coil Diameter | 1.5" / 38.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW (Copper-Clad Aluminum Wire) |
| Basket Material | Steel |
| Cone Material | Water-Resistant Carbon Fiber |
| Magnet Type / Weight | Ferrite / 20 Oz |
| Thiele & Small Parameters |
| - Vas | 9L / 0.317 ft³ |
| - Xmax | 2.5 mm |
| - Fs | 128 Hz |
| - Qms | 15.55 |
| - Qes | 0.891 |
| - Qts | 0.842 |
| - Re | 3.6 Ohm |
| Mounting Depth | 2.15" / 54.5 mm |
| Overall Depth | 2.38" / 60.5 mm |
| Front Mount Baffle Cutout | 5.67" / 144 mm |
| Overall Diameter | 6.5" / 165 mm |
| Product Dimensions | 7 x 7 x 3 in |
| Product Weight | 3.5 lbs |
| Master Carton Weight | 30 lbs |
| Master Carton Dimensions | 14.8 x 14.5 x 7 in |
| Master Carton Quantity | 8 pieces |
| Sold In | Single Piece |
