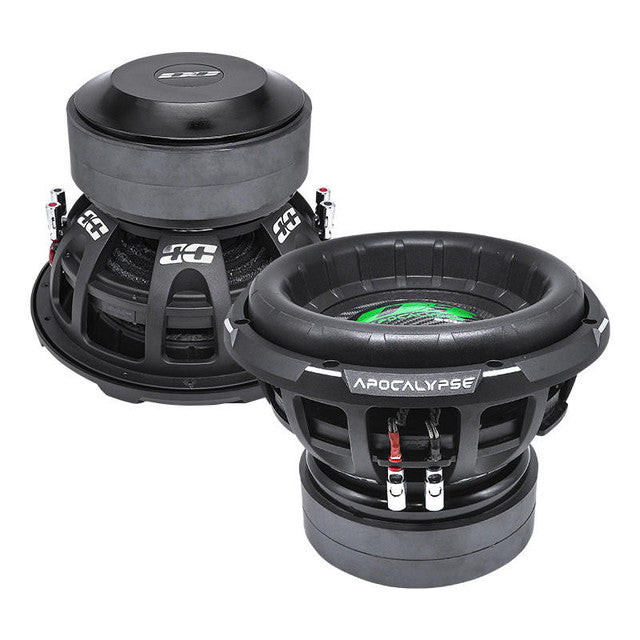

Deaf Bonce DB-3012RD1 12" inch Subwoofer 5600 Watts 1+1 Ohm
Apocalypse DB-3012D1 12-inch Subwoofer
The Apocalypse DB-3012D1 subwoofer series from Deaf Bonce is a powerhouse designed to elevate your car audio experience. Whether you’re cruising down the highway or parked at a car meet, these subwoofers deliver heart-pounding bass that resonates with precision.
Features:
- Raw Power: With a staggering 5600 watts MAX power, these subwoofers can handle the most demanding bass tracks.
- Precision Engineering: The aluminum frame ensures durability and minimizes distortion, while the paper cone delivers accurate sound reproduction.
- Dual Voice Coil Options: Choose between DB-3012R D1 (1+1 Ohm) or DB-3012R D2 (2+2 Ohm) to match your amplifier setup.
- Foam Surround: The foam surround allows for controlled cone movement, resulting in cleaner bass output.
- Easy Installation: The provided cut-out dimensions make installation hassle-free.
Specifications:
Size: 12 inches
Voice Coil Size: 3.00 inches
Cone Material: Paper
Magnet Type: Ferrite
Surround Material: Foam
Frame: Aluminum (Alu)
Impedance Options: 1+1 Ohm (DB-3012R D1)
UPC: 795958004162
Power Handling:
RMS Power: 2800 watts
MAX Power: 5600 watts
Sensitivity (SPL): 86.50 dB (DB-3012R D1)
Frequency Response (Fs): 33.80 Hz
Qts (Total Q Factor): 0.43
BL (Force Factor): 26.00
Vas (Equivalent Volume): 30.20 liters
Xmeh (Mechanical Excursion): 38.00 mm
Xmax (Maximum Linear Excursion): 19.00 mm
Mounting Depth: 8.82 inches (224.0 mm)
Cut-Out Dimension: 11.18 inches (284.0 mm)
Gross Weight: 61.51 lbs (27.90 kg)
