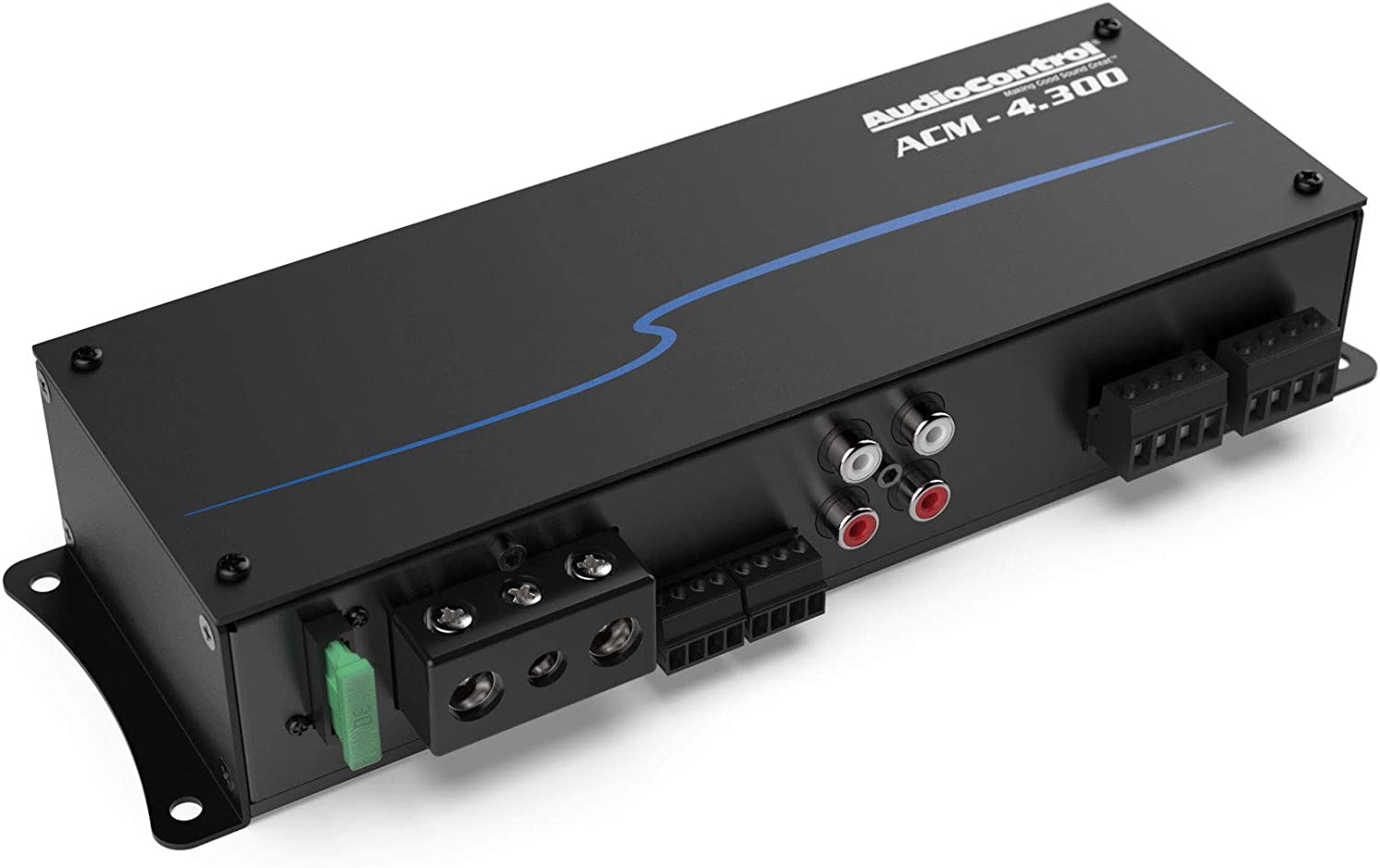

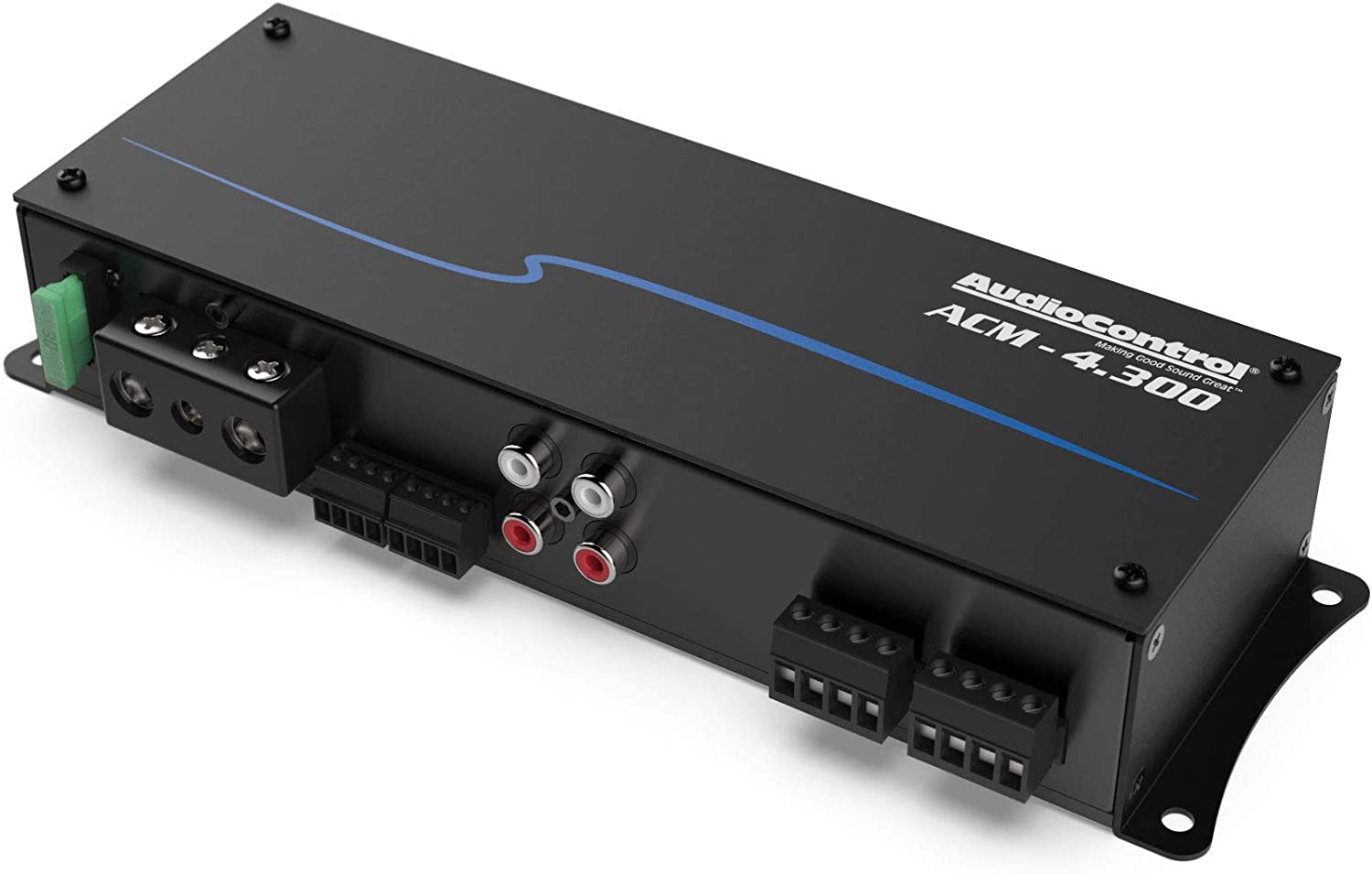

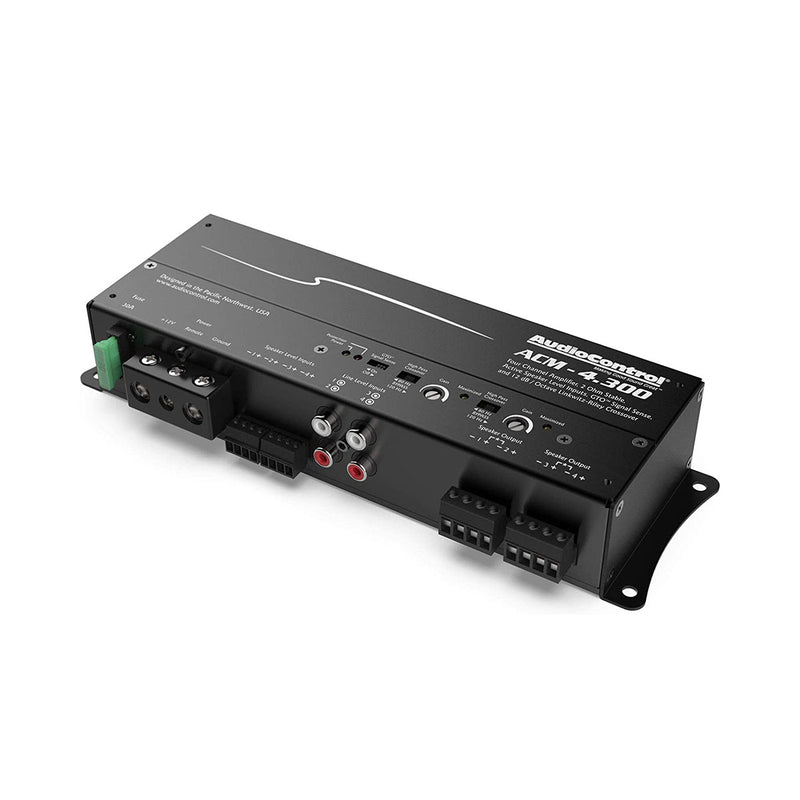

AudioControl ACM-4.300 4-Channel Micro Amplifier

The AudioControl ACM-4.300 4-Channel Micro Amplifier is the ultimate solution for car audio enthusiasts who demand superior sound quality and exceptional performance. With its powerful output of 50-Watts RMS x 2 at 4 ohms and an impressive 75-Watts RMS x 2 at 2 ohms, this amplifier delivers a crisp and clear sound that is unmatched by its competitors.

Equipped with state-of-the-art Class D amplifier technology, the ACM-4.300 produces a precise and detailed sound that will take your music experience to a whole new level. Its compact design and easy installation make it the perfect addition to any car audio setup, providing a powerful boost to your music wherever you go.

The GTO™ signal-sensing turn-on with speaker-level input is one of the most innovative features of the ACM-4.300. This feature automatically turns the amplifier on and off based on the presence of an audio signal, eliminating the need for a remote turn-on wire. This makes installation even easier, saving you time and effort.

Overall, the AudioControl ACM-4.300 2-Channel Micro Amplifier is an exceptional choice for anyone who values high-quality sound in their car audio setup. With its advanced Class D amplifier technology, impressive power output, and GTO™ signal-sensing turn-on with speaker-level input, this amplifier delivers an outstanding sound quality that will enhance your music experience. So why settle for anything less when you can have the best with the ACM-4.300 from AudioControl?

FEATURES:

• Crossovers: The ACM-4.300 includes two 12 dB/octave Linkwitz-Riley High pass filters, one for Channels 1 & 2 and one for Cannels 3 & 4. Both use a 3-position switch to change the crossover point with a choice of 80 Hz, 100 Hz, or Bypass. The amp also incorporates a built-in PFM subsonic crossover at 32 Hz.

• Gain Maximized LEDs: Each pair of channels on the amp include their own Gain control to the properly set the input level. A Maximized LED indicator is provided for each that lights to let you know when the input signal has reached its optimum performance level, helping to avoid running a distorted signal through the amp.

• GTO (Great Turn On) Signal Sense: If you are connecting the amplifier to a factory stereo, or an aftermarket unit without preamp outputs and a remote turn-on lead, the GTO Signal Sense circuitry can turn on the amplifier when an audio signal is detected on either the line-level or speaker-level inputs. After a period of time with no signal input, the amp will turn itself off.

• Cover Plate: The ACM-4.300 amp includes a removable top plate that covers the controls and LED indicators. The cover is also reversible if  a "plain" look is desired.

What's in the Box:

• 4-Channel amplifier

• 30A fuse (installed on amp)

• Two 4-pin speaker input connectors (installed on amp)

• Two 4-pin speaker output connectors (installed on amp)

• User Guide

UPC: 851523007485
