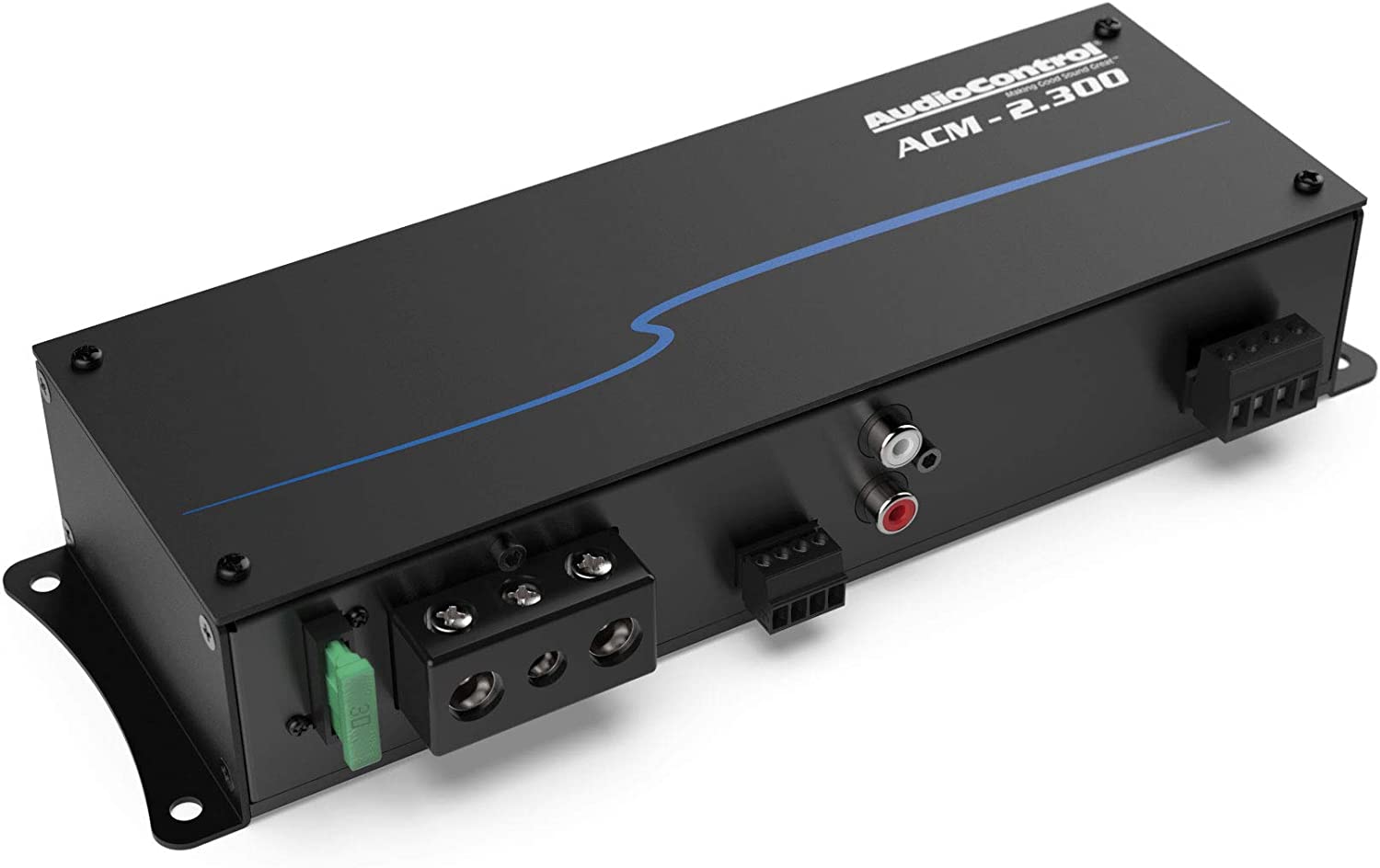

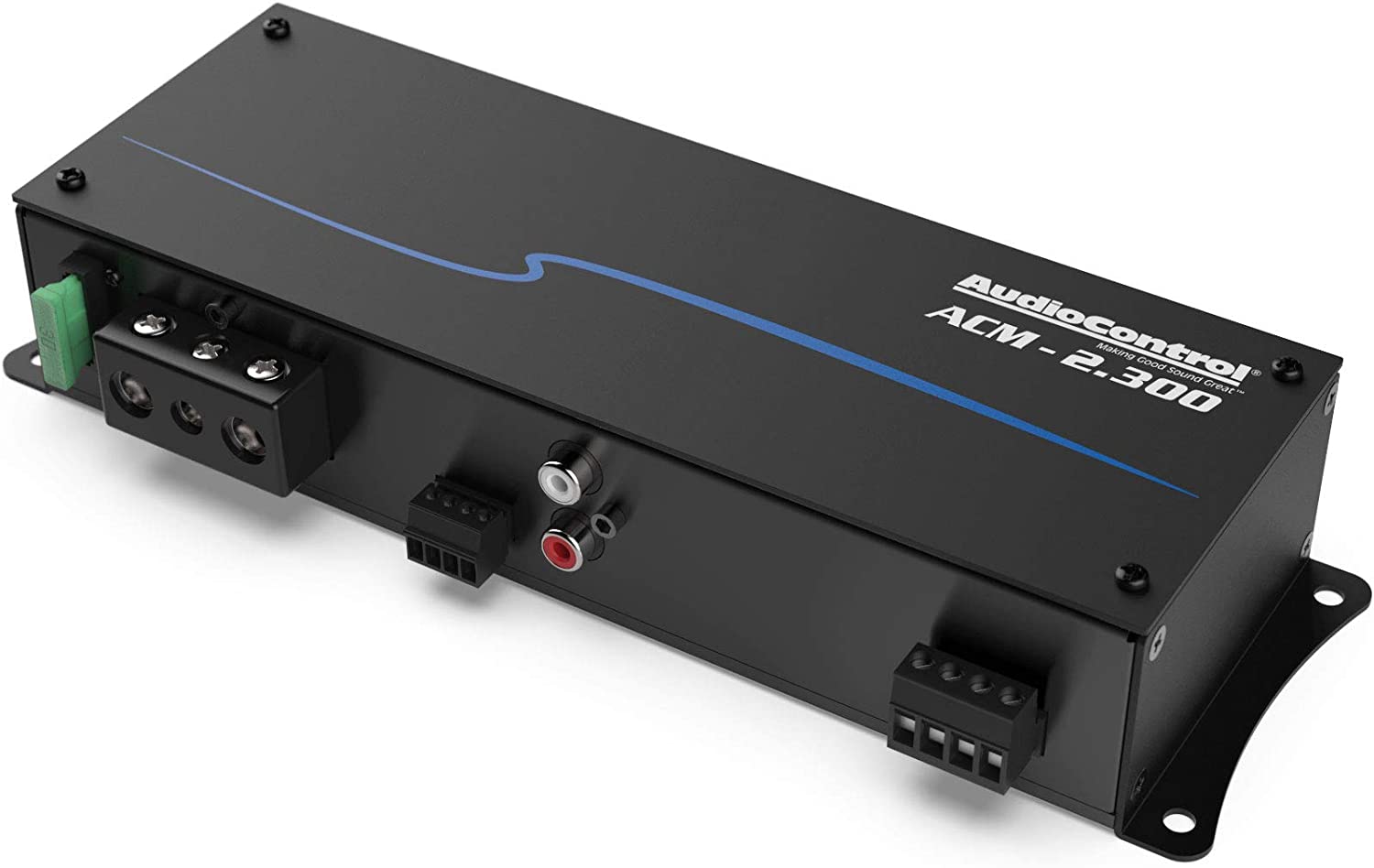

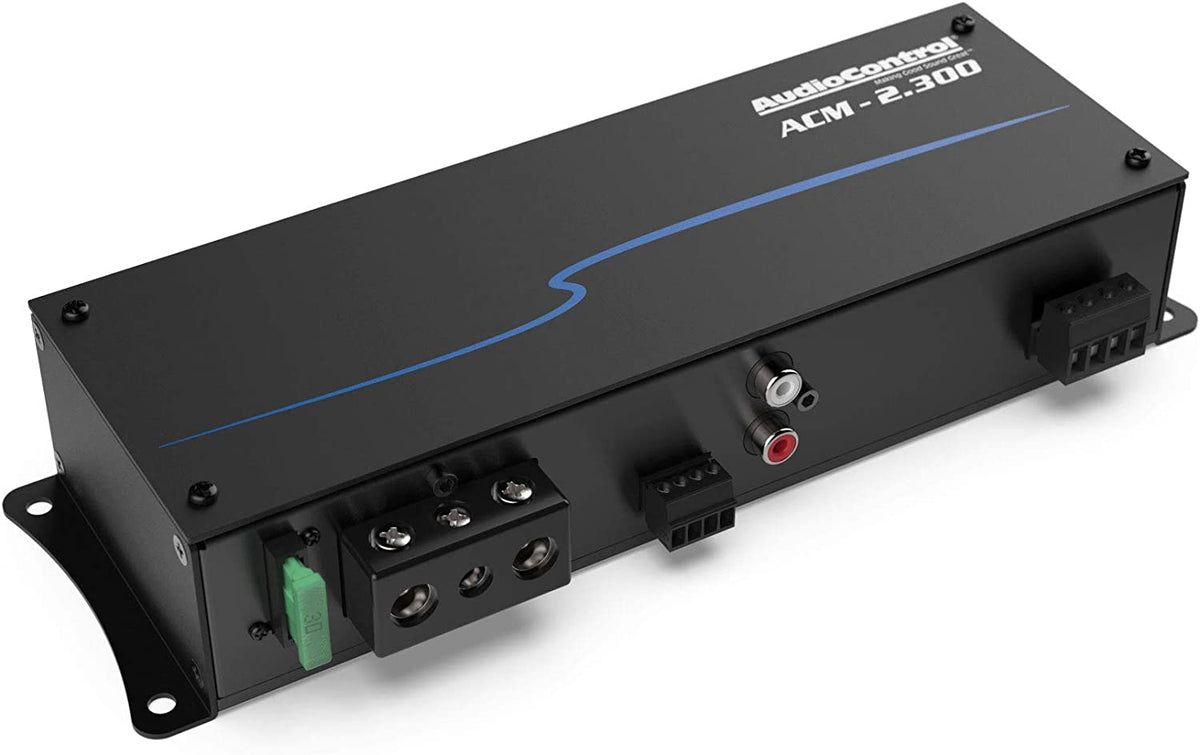

AudioControl ACM-2.300 2-Channel Micro Amplifier

The AudioControl ACM-2.300 2-Channel Micro Amplifier is the ultimate solution for car audio enthusiasts who demand superior sound quality and exceptional performance. With its powerful output of 75-Watts RMS x 2 at 4 ohms and an impressive 150-Watts RMS x 2 at 2 ohms, this amplifier delivers a crisp and clear sound that is unmatched by its competitors.

Equipped with state-of-the-art Class D amplifier technology, the ACM-2.300 produces a precise and detailed sound that will take your music experience to a whole new level. Its compact design and easy installation make it the perfect addition to any car audio setup, providing a powerful boost to your music wherever you go.

The GTO™ signal-sensing turn-on with speaker-level input is one of the most innovative features of the ACM-2.300. This feature automatically turns the amplifier on and off based on the presence of an audio signal, eliminating the need for a remote turn-on wire. This makes installation even easier, saving you time and effort.

Overall, the AudioControl ACM-2.300 2-Channel Micro Amplifier is an exceptional choice for anyone who values high-quality sound in their car audio setup. With its advanced Class D amplifier technology, impressive power output, and GTO™ signal-sensing turn-on with speaker-level input, this amplifier delivers an outstanding sound quality that will enhance your music experience. So why settle for anything less when you can have the best with the ACM-2.300 from AudioControl?

FEATURES:

• Power Output: The ACM-2.300 has the following output:

  • 75 watts RMS x 2 at 4Ω
  • 150 watts RMS x 2 at 2Ω
  • 300 watts RMS x 1 at 4Ω bridged

• Subsonic Filter: The AudioControl ACM-2.300 has a full-time 32 Hz subsonic filter. Filtering out super-low frequencies that typically cannot be cleanly reproduced by car speakers saves amplifier power and reduces distortion.

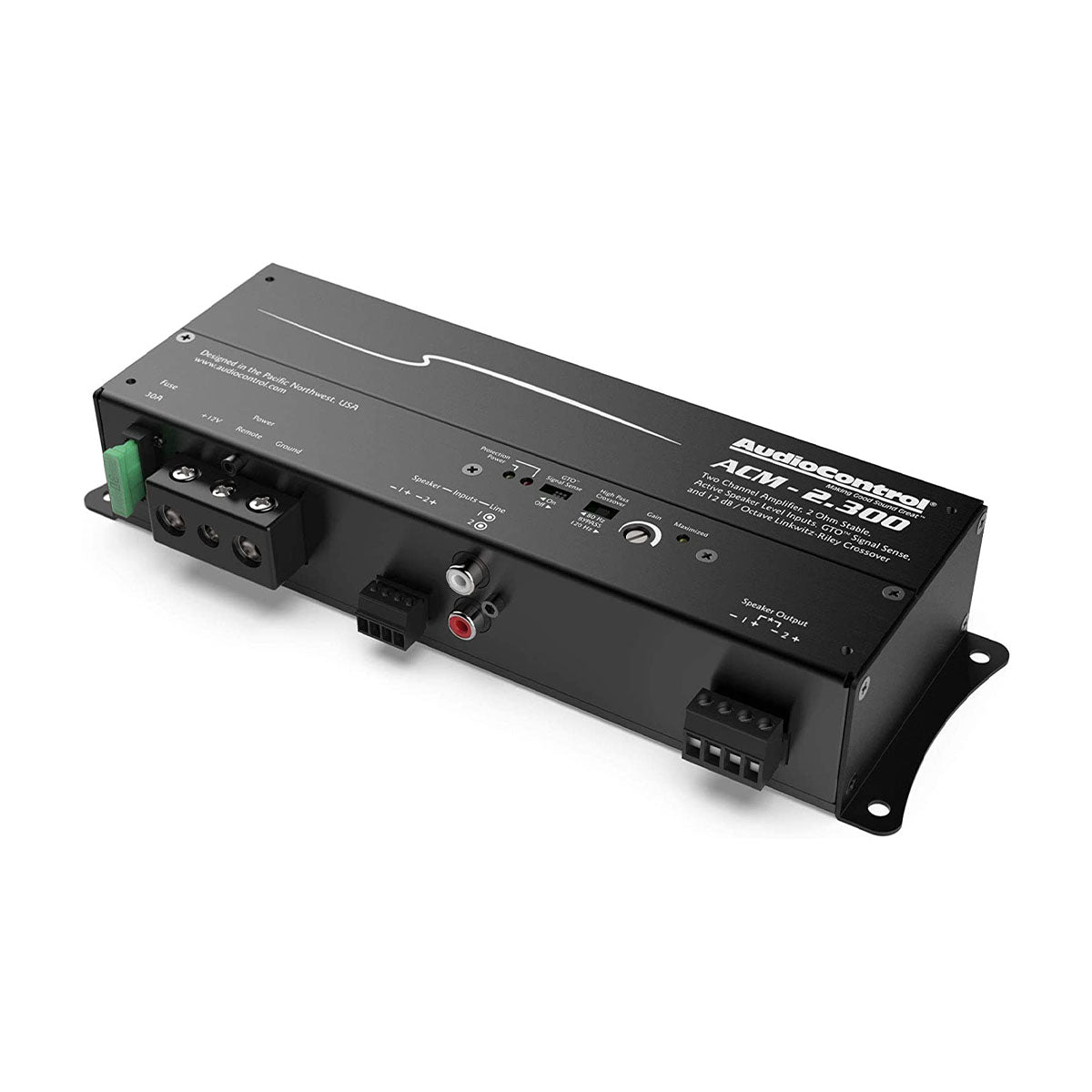

• Controls: The ACM-2.300's controls are located under a removable protective panel. A small Phillips screwdriver (not supplied) is needed for removing the panel during setup. A slot-head screwdriver (not included) is needed to adjust the rotary controls. The amp's controls are as follows:

  • GTO (Great Turn On) Signal Sense: If you are connecting the amplifier to a factory stereo, or an aftermarket unit without preamp outputs and a remote turn-on lead, you can set the GTO Signal Sense to "On" and the amplifier will turn on when an audio signal is detected on the line-level or speaker-level inputs. After a period of time with no signal input, the amp will turn itself off.
  • High Pass Crossover Frequency: A 3-way switch lets you set the cutoff frequency of the Linkwitz-Riley High Pass Crossover: 80Hz, Bypass, or 120Hz.
  • Gain: This rotary gain control adjusts the overall output of the amplifier. An LED next to the dial will glow when the gain has been maximized for optimum performance.

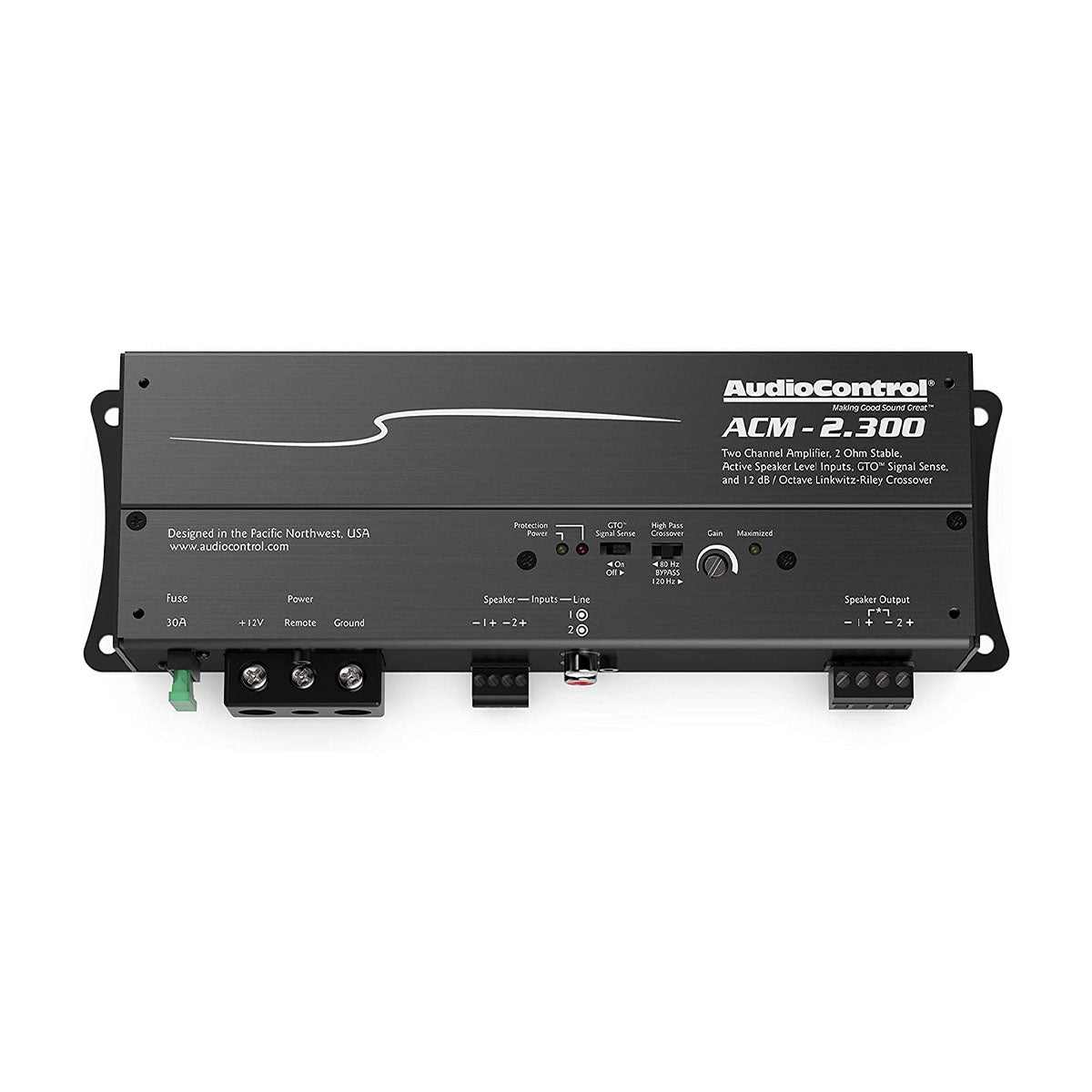

• Connections: The ACM-2.300's connections are aligned along the front of the amplifier for ease of installation. The amp's connections include:

  • Fuse: One 30A ATO blade-type fuse is installed in the amplifier.
  • Power: Set-screw terminals are provided for connecting +12V Power, Ground, and Remote In. The set screws can be tightened/loosened with a Phillips-head screwdriver (not included). The Power and Ground terminals will accept up to 8-gauge wire, while the Remote In terminal accepts up to 6-gauge. A 30A fuse should be placed in-line on the power wire, no more than 18" from the battery.
  • Line Level Inputs: One pair of RCA jacks is provided for connecting the amp to the source unit via an RCA cable.
  • Speaker Level Input: One removable Phoenix (or Euroblock) connector is provided for connecting the source unit via speaker-level input. The speaker wires are inserted into the connector and tightened with a screwdriver (5/64" Precision Phillips-head, not supplied).
  • Speaker Output: A removable Phoenix connector is provided for connecting speaker wire up to 12 gauge. The amplifier will accept a load impedance of 2Ω or higher, (or 4Ω if bridging). The speaker wires can be inserted into the connector and tightened with a screwdriver (9/64" Precision Phillips-head, not supplied).

What's in the Box:

• 2-Channel amplifier with 30A ATO fuse installed
• User Guide
