Jeep Audio Builds: Sound Bars, Roll Bar Pods and Open-Top Problems

A Jeep Wrangler is the hardest vehicle on the road to build a good audio system in, and most owners find that out the first time they drop the top on a highway run and realise the music has vanished. Every acoustic advantage a normal car gives you disappears the moment the roof, doors and rear window come off. There is no sealed cabin to hold bass, no hard surfaces to reflect midrange back toward your ears, and a wall of wind noise sitting on top of everything you are trying to hear.

That is the real reason a factory Jeep system sounds thin, and it explains why a straight speaker swap so often disappoints owners who spent good money on it. Jeep builds fail or succeed at the planning stage, not the shopping stage. Location, power, sensitivity, weather rating and bass loading all have to be decided together, because the open cabin exposes every weak link the moment you hit 60 mph with the doors off.

Why Factory Jeep Audio Falls Short

Jeep designs the Wrangler to be taken apart, and the audio system reflects that priority rather than any sound quality goal. The factory setup runs into four limits at once:

• Sound bar speakers usually sit in the 4 inch class, mounted in thin plastic with almost no enclosure volume behind the cone
• Dash and knee panel speakers are small and aimed into glass rather than at listeners
• Factory amplification is sized for a closed cabin at moderate volume, not for open air
• Nothing in the chain is built to overcome 80 dB of wind noise

The premium factory option improves things, though less than buyers expect. It typically adds tweeters, a subwoofer and an amplifier, which helps at low speed with the top on. Once panels come off the same limitations reappear, because the underlying driver sizes and mounting positions never changed. Confirm your exact configuration before buying anything, since standard and premium packages need different integration parts.

Pro Tip: Check your build sheet or run your VIN with a dealer before ordering. Premium systems are amplified and usually need an integration interface such as the PAC AmpPRO AP4-CH41 to get clean signal out. Buying base system parts for a premium equipped Jeep is the single most common ordering mistake owners make.

The Open-Top Problem Explained

In a sealed vehicle, low frequencies get a natural boost from cabin gain, where the enclosed space pressurises and reinforces bass below roughly 80 Hz. That effect is a large part of why a modest subwoofer sounds strong in a sedan. Take the roof and doors off a Wrangler and cabin gain disappears completely, so the same subwoofer that thumped in a closed vehicle suddenly sounds polite and distant. Nothing is broken, it is physics, and no amount of gain adjustment fixes it.

The second problem is masking. Wind and road noise in an open Jeep at highway speed commonly sits between 80 and 90 dB, and that noise floor lands directly on top of vocals, guitars and cymbals. Anything quieter than the noise simply never reaches you. Temperature, humidity and airflow shift the picture further, and how weather impacts car audio performance covers effects that are magnified in an open-top vehicle.

The third problem is exposure. Rain, dust, UV, trail spray, car wash cycles and freeze thaw all reach the speakers directly. Standard car speakers use paper or treated paper cones, foam or cloth surrounds and steel baskets, and none of those last in an open Jeep. Open top car audio has to borrow its component choices from marine and powersports builds rather than from regular vehicle installs.

Speaker Locations in a Wrangler and What Each One Does

A Jeep gives you more mounting positions than most vehicles, and each plays a different role. Getting the roles right matters more than getting the biggest speaker into every hole, because bad placement creates a scattered image that no equaliser can repair.

Front locations should carry the stage, meaning vocals and instruments that need to sit ahead of you. The overhead bar supports them rather than leads, because a Jeep with all its output overhead pulls the entire image above and behind the driver. The same rules explained in best car speaker placement for maximum soundstage apply with more force here, since there are no doors to reflect sound back into the cabin.

Jeep Sound Bar Speakers: 3 Realistic Upgrade Paths

The overhead sound bar is where most owners start a jeep wrangler audio upgrade, and there are three genuinely different routes. Which one fits depends on budget, tolerance for cutting and how loud the finished system needs to play with the top down.

Drop-in enclosure kits replace the factory speaker housings with sealed pods that hold larger drivers while keeping the original bar in place. This preserves the stock look, needs no cutting and delivers a real jump in midrange output because the driver finally gets proper cone area and a sealed volume behind it. Fitment is model specific, so shop by generation through the JL and JLU, JK and JKU, TJ or Gladiator JT collections rather than by speaker size alone.

Full overhead bar replacements swap the entire factory bar for a purpose built unit designed around 8 inch drivers plus tweeters. This is a completely different class of output from anything the stock bar can hold, and it requires external amplification from the start. Loaded versions arrive with speakers already installed, such as the DS18 JK and JKU loaded sound bar with 4 x 8 inch speakers, bullet tweeters and drivers, which removes the guesswork of matching drivers to the enclosure.

Unloaded bars suit owners who already have speakers or want specific drivers. You buy the bar, then choose your own 8 inch loudspeakers to fill it. This route usually costs less overall and gives full control over the sound character, but it needs more planning around power handling and impedance. The full Jeep audio range and the soundbar collection cover both loaded and unloaded options.

Pro Tip: Never mount a larger speaker in the factory bar without sealing the enclosure behind it. An unsealed cone lets front and rear waves cancel, which kills midbass and makes an expensive speaker sound thinner than the cheap one it replaced. Foam gaskets and a sealed pod are what actually make the upgrade audible.

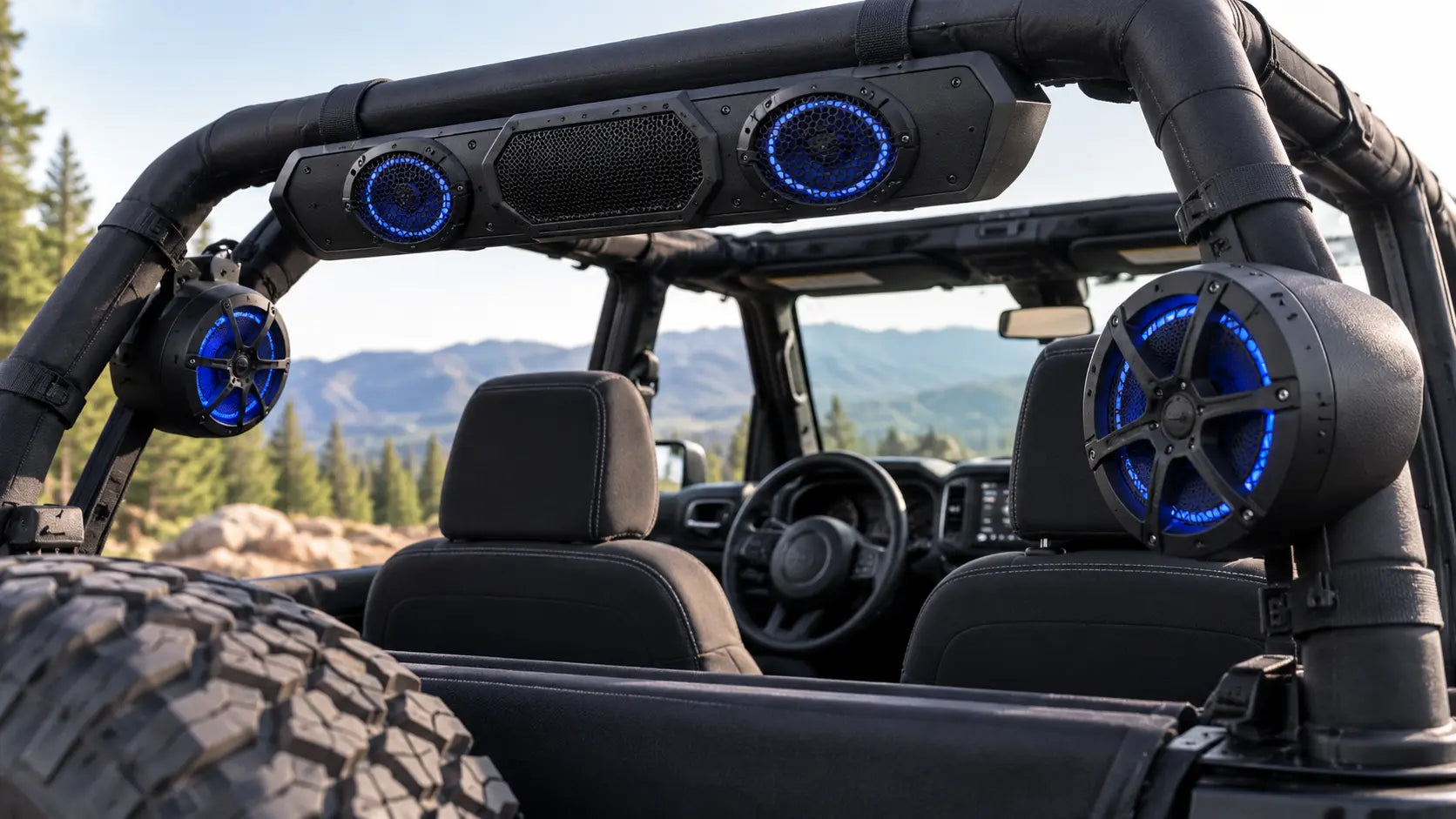

Roll Bar Speaker Pods and Why They Work So Well

Roll bar speaker pods solve the biggest problem in an open Jeep, which is distance and aim. Overhead speakers fire down past your ears and dash speakers fire into the windshield, so a large share of their output never reaches the listening position. Pods mounted on the cage sit closer to head height and can be rotated to point directly at the front seats, recovering real clarity without adding a single watt.

Two hardware pieces make this work. The pod itself holds the driver in a sealed housing, and a mounting tube with clamps attaches it to the cage. Universal enclosures such as the DS18 EN6P two-way pod with a 6.5 inch driver and tweeter fit a wide range of builds, while marine tower speakers offer a larger, more aggressive option for owners who want maximum output on the trail.

Aiming is where most pod installs go wrong. Pods pointed straight back or straight down throw most of their energy into empty air behind the vehicle, which is wasted the moment the top is off. Angle them slightly inward and forward toward the front seats, then check rear seat balance afterward. Compression driver and horn loaded designs help here too, since they concentrate output on axis instead of spraying it everywhere, and the pro audio loudspeakers range covers that style of driver.

Pro Tip: Torque clamp hardware in stages and recheck it after your first few trail runs. Vibration loosens clamps faster than owners expect, and a pod that shifts a few degrees changes the aim enough to hear. A drop of thread locker on the clamp bolts prevents the most common complaint installers see after delivery.

Waterproof Jeep Speakers: What the Ratings Actually Mean

Waterproof jeep speakers are not an upsell in an open-top build, they decide whether the system lasts five years or one wet season. The specification to look for is an IP rating, and IP65 is the working standard for exposed automotive use, indicating full dust protection plus resistance to low pressure water jets from any direction.

Materials matter as much as the rating badge. What separates a marine grade driver from a standard one:

• Injection molded polypropylene cones that do not absorb water or swell the way paper does
• Butyl rubber surrounds, which hold up under UV and heat far better than foam
• Composite or ASA baskets with UV coating that keep their shape in direct sun
• Stainless steel grille hardware that avoids the rust streaks ruining an otherwise clean install
• Sealed or gasketed mounting so water runs off the frame instead of pooling behind it

There is a sensitivity argument most owners miss as well. Marine and pro style drivers frequently rate 93 dB or higher at 1 watt, while typical car speakers sit closer to 87 to 89 dB. A 6 dB advantage means roughly four times the amplifier power saved for the same output, which is enormous when you are fighting wind noise. Understanding sensitivity ratings in car speakers explains how to read those numbers, and it is arguably the most useful single spec for an open-top build.

Pro Tip: An IP65 rating protects the front of the speaker, not the wiring behind it. Use marine grade connectors, seal every crimp with adhesive lined heat shrink and route wire so water drains away from terminals instead of collecting at them. Most Jeep speaker failures start at a corroded connection, not at the cone.

Power & Amplification for an Open Cabin

Factory head unit power will not carry any of the upgrade paths above. Output that feels comfortable in a closed sedan disappears into the wind in an open Jeep, so real amplification is a requirement rather than an enhancement. A four channel amplifier handles the front stage plus sound bar or pods, and a mono amplifier drives the subwoofer, though five channel units keep the install tidier when space is tight. The amplifier collection covers both approaches.

Match RMS power to speaker ratings rather than chasing peak numbers, and remember that an underpowered amplifier pushed into clipping damages speakers faster than a properly sized larger one. The calculations are laid out in matching amplifiers and speakers for optimal performance and choosing the right amplifier channels for your setup.

Most Wrangler owners keep the factory screen because of the vehicle controls built into it, which makes signal extraction the next decision. A line output converter or an amplifier integration interface takes factory output and produces a proper preamp signal, and units like the PAC AmpPRO SUB interface for Chrysler, Dodge, Jeep and Ram are built specifically for adding bass to factory amplified systems. If you would rather replace the screen entirely, vehicle specific kits such as the Stinger HORIZON12 display with integration kit for JL and Gladiator JT retain steering wheel controls and vehicle settings. Jeeps also generate heavy electrical noise from lighting and accessories, so read how to prevent audio system damage from engine noise and EMI before routing power and signal cables.

Jeep Subwoofer Install: Working Without Cabin Gain

A jeep subwoofer install has to replace bass the vehicle no longer reinforces. In practice that means more cone area, more power, or both, compared with what the same owner would need in a closed car. A small sub that sounded strong in a sedan feels weak in an open Wrangler, and the answer is displacement rather than turning the gain up until the amplifier clips.

Location options are limited but workable:

• Swing gate or tailgate mounting uses dead space and keeps the floor clear, as with the Stinger swing gate 12 inch enclosure for JK, JKU, JL and JLU
• Under seat and behind seat shallow enclosures preserve cargo room in a daily driven Jeep
• Wheel well enclosures use space that is otherwise wasted, at the cost of some interior width
• Purpose built model specific packages, such as the 2018 to 2024 Gladiator dual 8 inch ported enclosure, remove fitment guesswork entirely

Enclosure type deserves thought too. Sealed boxes deliver tighter, more accurate bass and handle power well, while ported designs produce more output around the tuning frequency for the same input. Open-top driving tends to favour ported or higher output designs precisely because the vehicle's natural low frequency boost is gone, though sealed remains better if accuracy with the top on matters most. Browse the subwoofer range and the enclosures collection, and see how to design a subwoofer box for maximum bass response if you plan to build custom.

Pro Tip: Protect the enclosure, not just the subwoofer. Bare MDF swells and delaminates the first time it gets wet in an open Jeep, so use a sealed, coated or purpose built box and plan for water drainage around it. An enclosure that soaks up moisture becomes a rattling, failing box inside one rainy season.

Electrical Support Most Jeep Builds Forget

Adding amplifiers increases current demand well past what the factory charging system was sized for, especially on Jeeps already running light bars, winches, compressors and accessory lighting. Voltage sag under load makes amplifiers distort and shut down, and owners routinely blame the amplifier when the real fault is supply. Compare your total draw against alternator capacity using what size alternator you need for car audio.

Grounding needs extra care in a Jeep because of body construction and trail exposure. Ground points should land on bare metal with paint and coating removed, then be sealed against the corrosion that off-road use accelerates. Poor grounds create alternator whine that rises and falls with engine speed, and chasing that noise after the fact costs far more time than doing the ground properly during the install.

Tuning for Top On and Top Off

An open Jeep is acoustically two different vehicles, and one tune cannot serve both. Top on, you have a small reflective cabin with bass reinforcement. Top off, you have something closer to an outdoor speaker setup. If your system includes a DSP or a head unit with presets, build two tunes and switch between them, because that single step usually beats another hardware upgrade.

The top-off preset generally needs more low bass level to replace lost cabin gain, a small lift in the presence region where wind noise masks vocals, and slightly less high treble to prevent harshness at volume. The top-on preset needs less bass boost and a flatter midrange. The workflow is covered in DSP tuning tips for maximum clarity, and the pro-level setup checklist before installation is worth running through before anything gets drilled.

Pro Tip: Set crossovers before touching the equaliser. High passing sound bar and pod speakers around 80 to 100 Hz keeps them out of trouble at volume and lets the subwoofer do the job it was built for. Jeep systems that sound harsh when pushed are usually running full range speakers into frequencies they cannot reproduce, not suffering from bad EQ.

Three Build Paths by Budget

Entry level starts and ends at the sound bar. A drop-in enclosure kit with 6.5 inch drivers, a modest four channel amplifier and a signal interface transforms a base Jeep for a reasonable outlay, with no cutting and full reversibility. That alone fixes the most common complaint, which is music disappearing at speed.

Mid level adds a front stage and bass. Upgrade dash and knee panel locations with weather capable coaxial or component speakers, add a subwoofer in a swing gate or under seat enclosure, and move to a five channel amplifier so everything runs from one clean power and signal path. At this point the system has genuine stage depth, real bass and enough headroom for open-top highway driving.

Full build replaces the overhead bar with an 8 inch based system, adds clamp mounted roll bar pods, runs a larger subwoofer enclosure and includes a DSP with separate top-on and top-off presets. Electrical upgrades stop being optional at this level. The full mobile audio range and the DS18 lineup overview cover most of the hardware these builds draw from.

Mistakes That Cost Jeep Owners the Most

• Buying standard car speakers for exposed locations, which can fail within a season or two of open-top driving
• Skipping enclosure sealing behind sound bar speakers, so an expensive upgrade produces almost no audible gain
• Running new speakers on factory head unit power and concluding the speakers were the problem
• Putting all the output overhead, which creates a system that sounds like it is playing behind you
• Ignoring the electrical side, so the build performs in the driveway and collapses at volume with accessories loaded

Each of these is cheap to design around at the planning stage and expensive to correct once panels are back on.

Quick Answers

Do I need marine speakers if I mostly drive with the top on? If the top comes off at all, or the Jeep parks outdoors, yes. Water reaches sound bar and roll bar locations during a car wash alone, and UV damages standard surrounds whether or not you drop the top.

Will bigger sound bar speakers alone fix my Jeep audio? Only partly. Larger drivers in a sealed pod help significantly, but without amplification they still get masked by wind noise at highway speed. Plan speakers and power together.

Can I keep my factory head unit? In most cases yes. An amplifier integration interface or line output converter takes factory signal and feeds your amplifier, preserving steering wheel controls, vehicle settings and the stock appearance.

Where should the subwoofer go in a Wrangler? Swing gate and tailgate enclosures generally allow the most cone area, while under seat and behind seat options preserve cargo space. Both work, and the choice usually comes down to how you use the back of the Jeep.

A Jeep build rewards planning far more than spending. Owners who map speaker locations, choose weather rated drivers, supply proper power and tune separately for top on and top off end up with systems that stay clear at 70 mph with the doors sitting in the garage. That is a completely different experience from a stock Wrangler, and it comes from respecting what the open cabin does to sound rather than trying to overpower it with volume.
