SRX-JW18128 Jeep Wrangler JL (2018-2023)/Gladiator JT (2020-2023) HORIZON12 Multimedia Infotainment Display with Integration & Installation Kit
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
Take your Jeep Wrangler JL or Gladiator JT to the next level with real-time information screens built for on-road and off-road adventures. Designed with IP65 weather resistance, it’s perfect for open-top drives, featuring an optically bonded surface to protect against dust and moisture. Personalize your driving experience with a multi-zone interface that allows you to combine essential controls, select your favorite widgets, and customize backgrounds and colors. Enhance your safety and awareness with four camera inputs compatible with both AHD and standard resolutions. Define your drive with a display that blends rugged durability, advanced functionality, and customizable style.
Key Features:

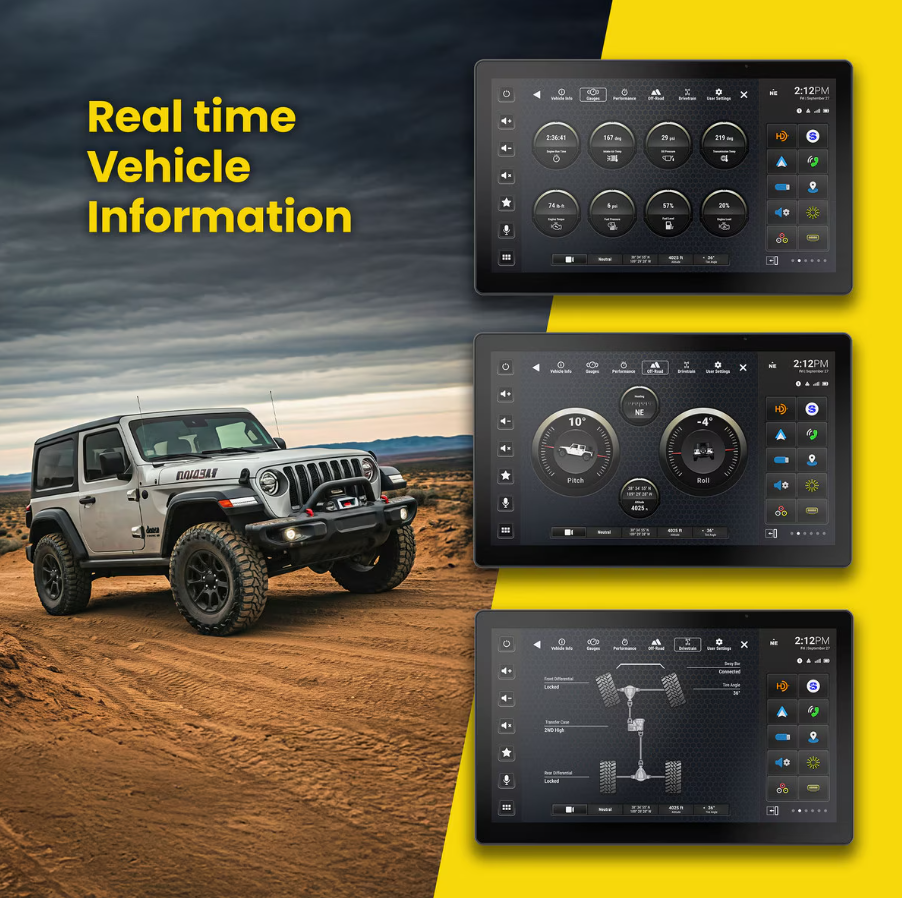

- On-screen gauges to monitor vehicle vitals such as battery voltage and coolant

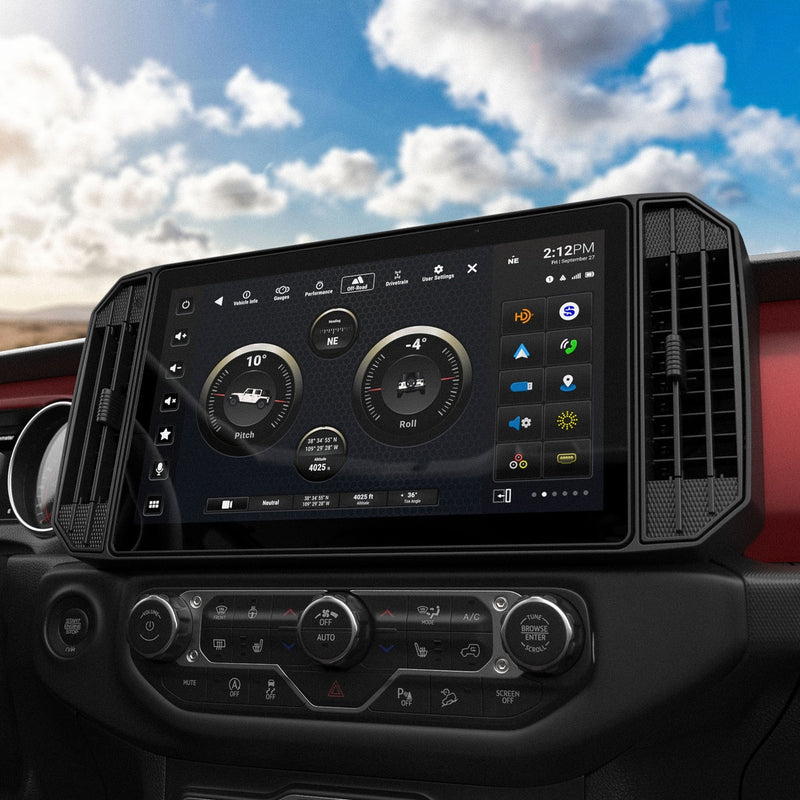

temperature - Off-road screen featuring pitch and roll
- Complete feature retention: warning chimes, steering wheel mounted radio controls,
factory amplifier, rear and front cameras, on-screen climate control (if equipped) - Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake
signals - Complete plug-and-play system: no vehicle modifications needed!
Customizable widget for quick access to your favorites
HORIZON12 Features:

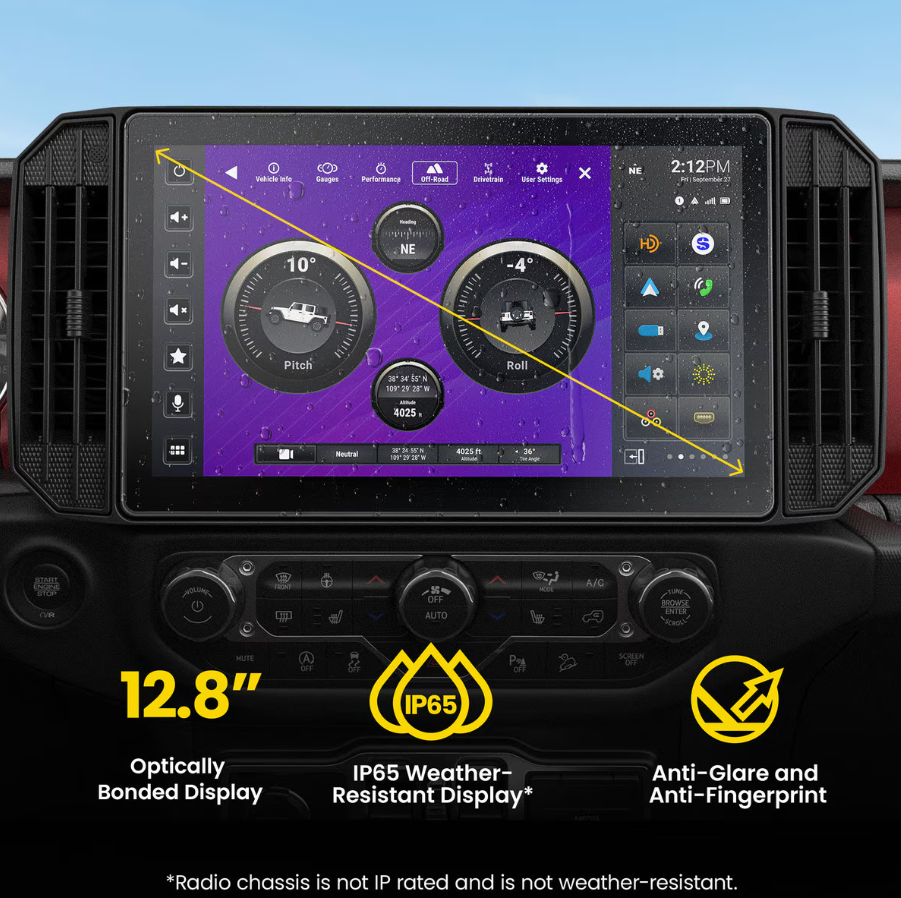

- 12.8-inch, 1920x1080 Full HD touchscreen with anti-glare, anti-reflective & anti-fingerprint film
protection - Optically bonded screen for moisture and dust resistance
- IP65 rated touchscreen*

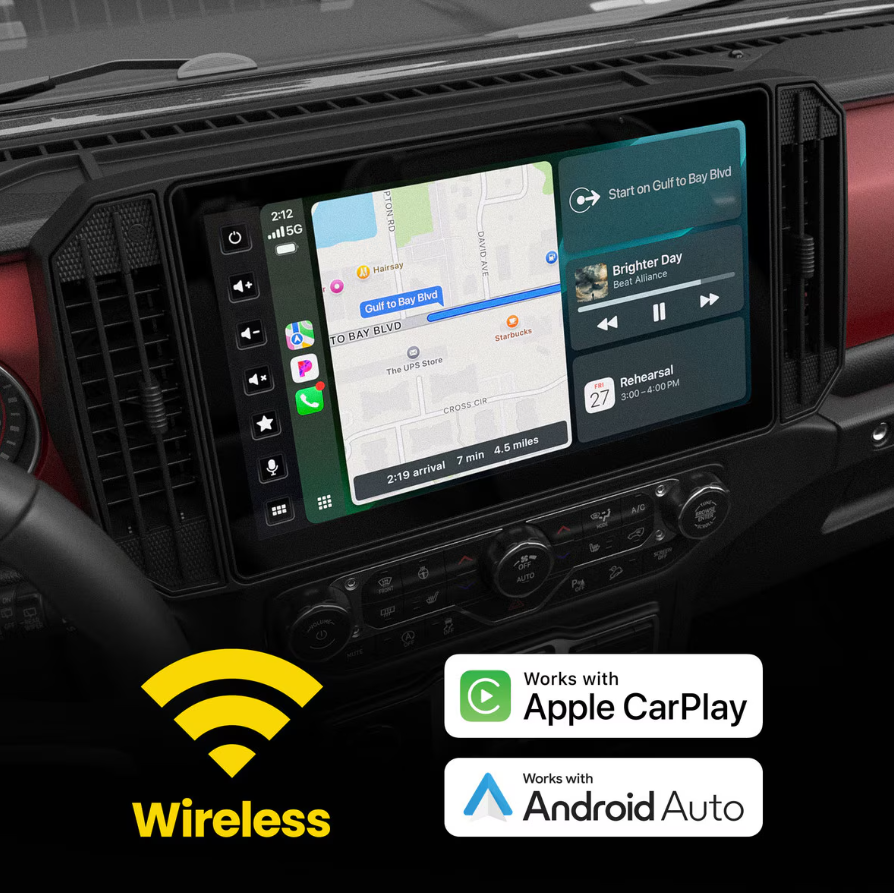

- Wireless (and wired) Apple CarPlay® and Wireless (and wired) Google Android Auto™
- SiriusXM-Ready™ (SiriusXM Connect Vehicle Tuner and Subscription required)
- Built-in HD Radio tuner
- Accessory Control to control up to four accessories on-screen (SwitchHub recommended)
- 4.5Vrms 8ch RCA audio outputs with subwoofer control
- Toslink (Optical) Variable Audio Output
- 15 Band Adjustable EQ with 6 user presets for each audio source
- 1 HDMI rear input
- 2 USB-A rear inputs, 1.5A output; 1 USB-C rear input for wired CarPlay and Android Auto, 3A charging
- Handsfree Bluetooth® 5.1 A2DP, supports dual phone connections
- Built-in microSD card slot for optional iGO Navigation
- Fast Wake-Up Enabled
- 4 AHD/CVBS Camera Video inputs with trigger activation
- Mic Audio input from rear camera
- Customizable illumination colors, display backgrounds, and multi-zone user interface
(combine the most useful controls and select your favorite widgets)
*Radio Chassis is not IP rated.
Integrated Kit Includes Everything Needed for the Installation:

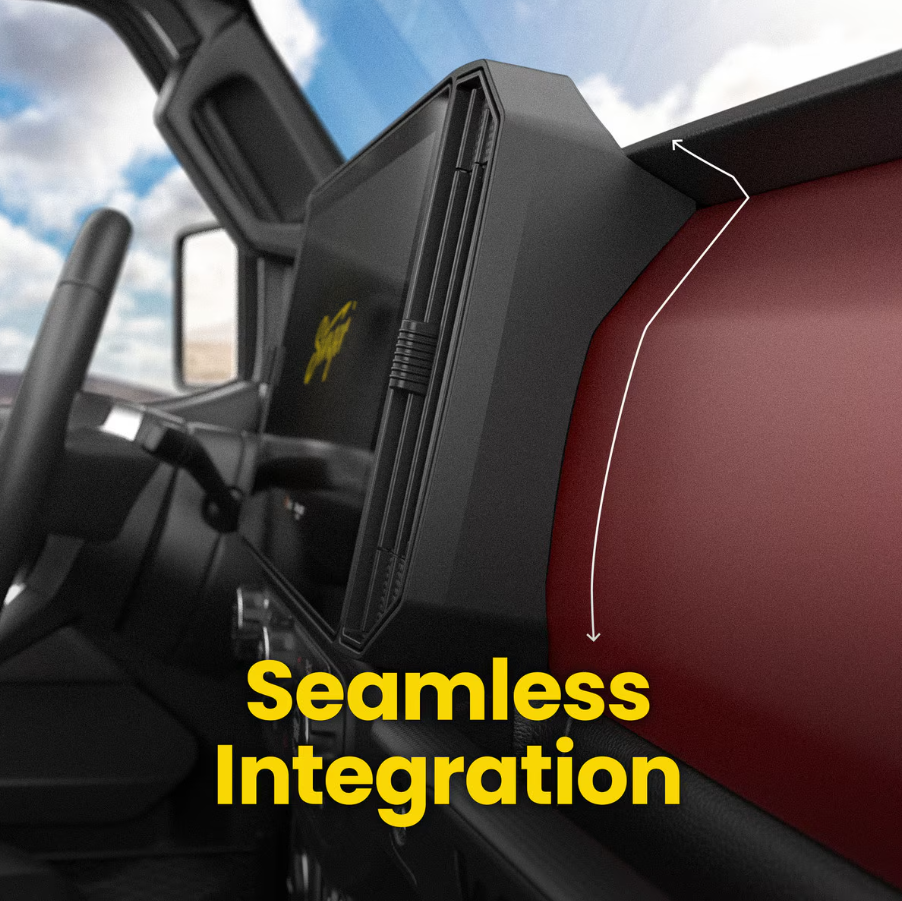

- Flush mounted plastics for a seamless OEM experience
- RadioPRO Advanced vehicle integration module for Jeep vehicles
- Complete plug-and-play installation harnesses
- Adapters for satellite, AM/FM radio and factory USB retention
- External chime speakers
- HORIZON12 infotainment system
*Not compatible in 4XE Hybrid models
📊 Specification Table: Stinger SRX‑JW18128 / HORIZON12 (12.8″) for Jeep JL (2018‑2023) & Gladiator JT (2020‑2023)
| Category | Specification |
|---|---|
| Model | SRX‑JW18128 (HORIZON12, 12.8″) |
| UPC | 609098907200 |
| Compatibility | Jeep Wrangler JL 2018–2023; Gladiator JT 2020–2023 (excl. 4XE hybrids) |
| Display | 12.8″ Full HD (1920×1080), capacitive, anti-glare/reflective/fingerprint film |
| Touchscreen Features | Optically bonded; IP65-rated (dust & moisture splash resistant) |
| User Interface | Multi-zone, customizable widgets, backgrounds, and illumination colors |
| CarPlay/Android Auto | Wireless & wired support |
| HD Radio & SiriusXM Ready | Built-in HD; SiriusXM tuner required separately |
| Camera Inputs | 4 AHD/CVBS inputs with triggers |
| USB / HDMI | Rear: 2× USB-A (1.5 A), 1× USB-C (3 A CarPlay/Data), 1× HDMI |
| Audio Outputs | 4.5 Vrms × 8 RCA channels with subwoofer control; Toslink optical output |
| EQ & Audio Tuning | 15-band adjustable EQ, 6 presets/source; crossover filters; AudioControl DM Smart integration |
| Bluetooth | v5.1 A2DP; dual phone hands-free |
| microSD Slot | Supports iGO navigation maps |
| Accessory Control | On-screen control of up to 4 accessories (SwitchHub recommended) |
| Vehicle Integration | Retains steering wheel controls, chimes, factory amplifier/USB/sat radio ports; reads vehicle signals (speed, brake, reverse, illumination); climate controls (if equipped) |
| Off-road Data Functionality | Pitch & roll, battery voltage, coolant temp, compass, GPS coords, axle/sway bar status |
| Performance Metrics | Speed, RPM, 0–60, braking & ¼‑mile times |
| Installation Kit Includes | Dash panels, RadioPRO Advanced module, dash harness, satellite/FM adapters, USB harnesses, chime speaker, integration modules, flush-mount hardware |
| Mounting | Single ISO chassis; plug-and-play; no vehicle modifications |
| Weight | ~10 lbs (~4.5 kg) |
