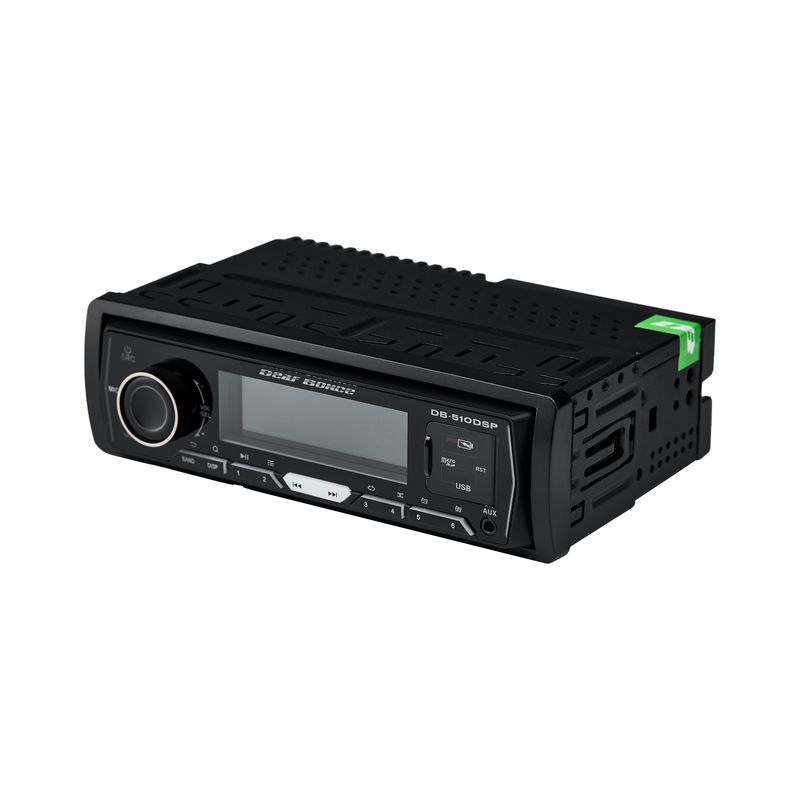

Deaf Bonce DB-510DSP
The Deaf Bonce DB-510DSP is a powerful digital signal processor that enhances audio quality with advanced DSP technology. Its compact design and versatile connectivity make it easy to install and integrate into various audio systems, delivering clear and robust sound for an exceptional listening experience.
Features:
- High Power Output: Delivers robust and clear sound with high power handling capabilities.
- Digital Signal Processing (DSP): Advanced DSP technology for precise audio tuning and customization.
- Compact Design: Lightweight and compact, making it easy to install in various setups.
- Versatile Connectivity: Multiple input and output options for seamless integration with different audio systems.
Specifications:
|
Power RMS 4 Ohm |
4x25 W |
|
Radio tuner type |
AM, FM, RDS |
|
Number of RCA outputs |
8 |
|
Number of radio stations |
18 FM, 12 AM |
|
AUX input |
3.5 mm mini-jack |
|
Card reader |
ME. 20 Sonly for models DB 510DSP and |
|
USB ports |
USB Type-A + USB charging port (5V, 1A) |
|
Supported audio playback formats |
MP3, WMA, AAC, FLAC, WAV |
|
Head Unit steering wheel control buttons learning (SWC) |
Yes |
|
Hands-Free support |
Yes |
|
CONNECTION |
|
|
Working voltage |
10-17 V |
|
Input terminal connection |
16 AWG |
|
Output terminal connection |
20 AWG |
|
Automatic turn on/off |
ACC |
|
Front panel backlight type |
ARGB, 7 colors |
|
Quantity of backlight zones |
2 |
|
Information screen type |
VA LCD |
|
Integrated fuse |
15A |
|
AUDIO |
 |
|
Built in amplifier class                        AB |
|
|
Number of RCA outputs |
8 |
|
Number of full range RCA outputs |
6 |
|
Number of subwoofer RCA outputs |
2 |
|
RCA output voltage |
up to 4.5 V |
|
Bluetooth profile |
A2DP |
|
Frequency response for full range channels |
20 Hz- 20 kHz |
|
Frequency response for subwoofer channels |
20 Hz- 800 Hz |
|
Signal to noise ratio |
≥80 dB |
|
Minimum permissible load impedance on the single channel |
4 Ohm |
Â
|
CROSSOVER |
|
|
Filter types for full range channels |
LPF, HPF |
|
Filter types for subwoofer channels |
LPF, HPF |
|
Crossover frequency for full range channels |
30 H2 - 12.5 KHZ |
|
Crossover frequency for subwoofer channels |
20 Hz- 800 Hz |
|
Filter slope for full range channels |
6-24 dB/Oct |
|
Filter slope for subwoofer channels |
6-24 dB/Oct |
|
TIME ALIGNMENT |
|
|
Time alignment, distance |
0 - 642 cm / 0 - 240 inch |
|
Time alignment, delay |
0 - 18 ms |
|
Time alignment, step |
0.1 ms, 3 cm, 1 inch |
|
SIZE |
 |
|
Size (LxWxH) |
188x58x138 mm |
|
Size (LxWxH)| |
7.4x2.28x5.43 inch |
