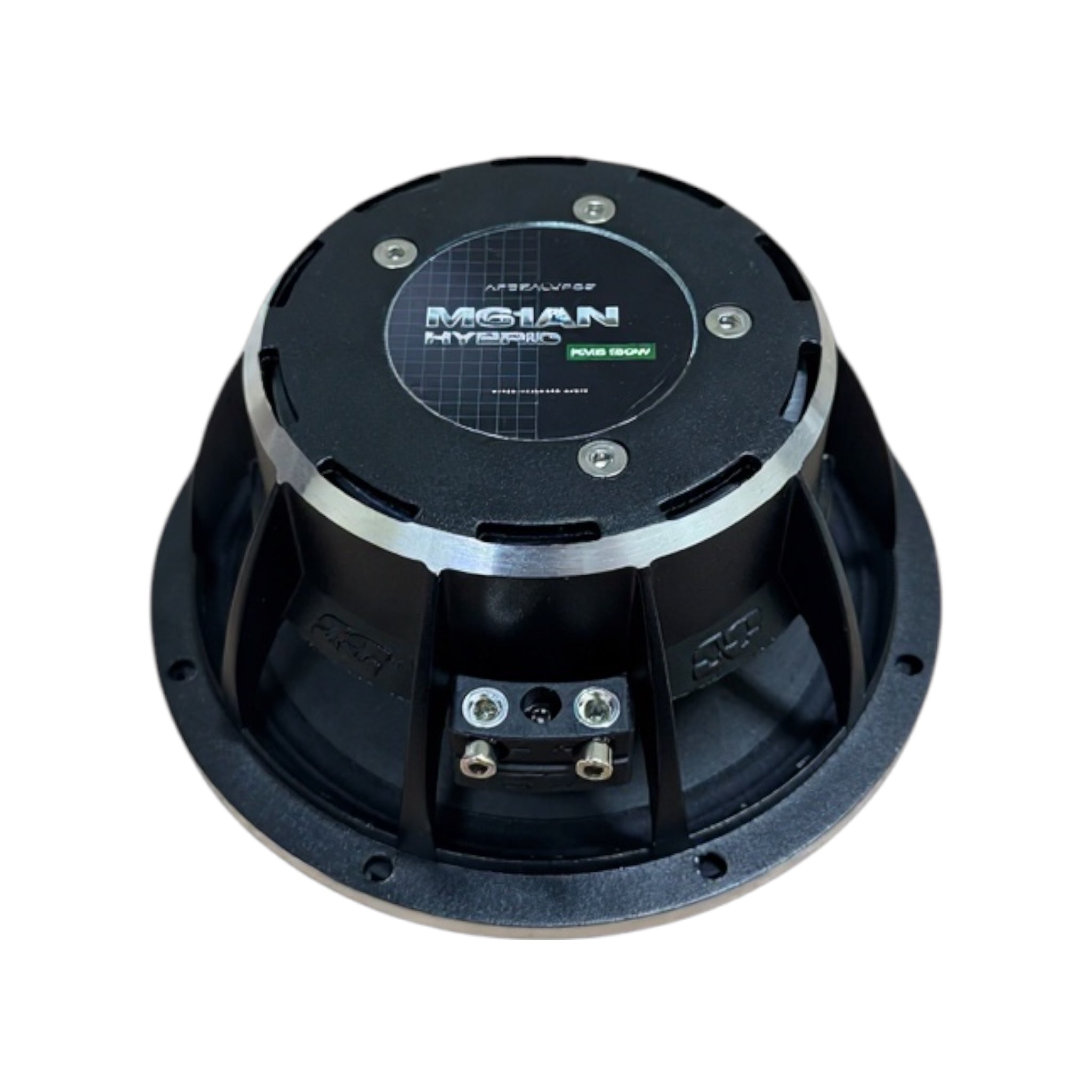

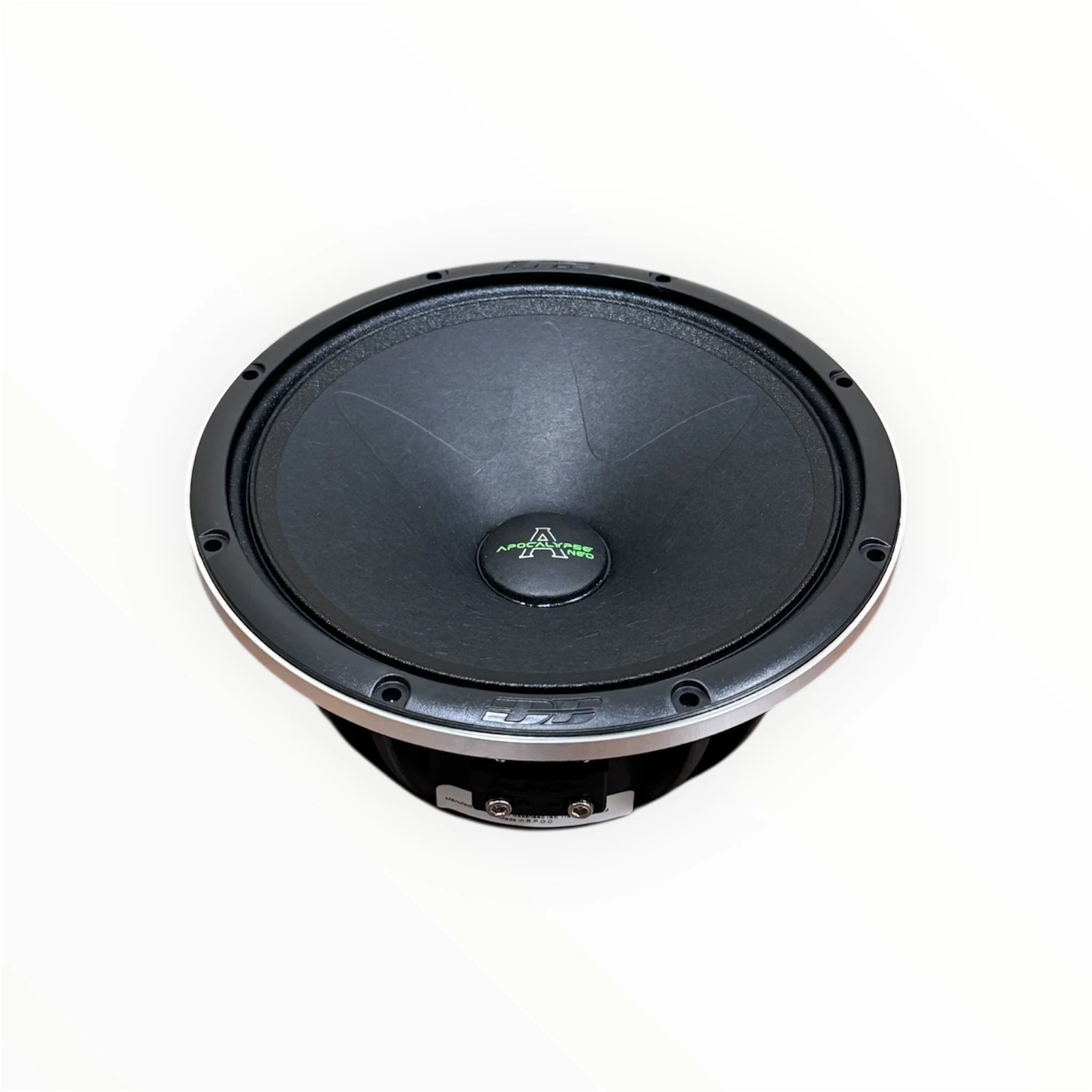

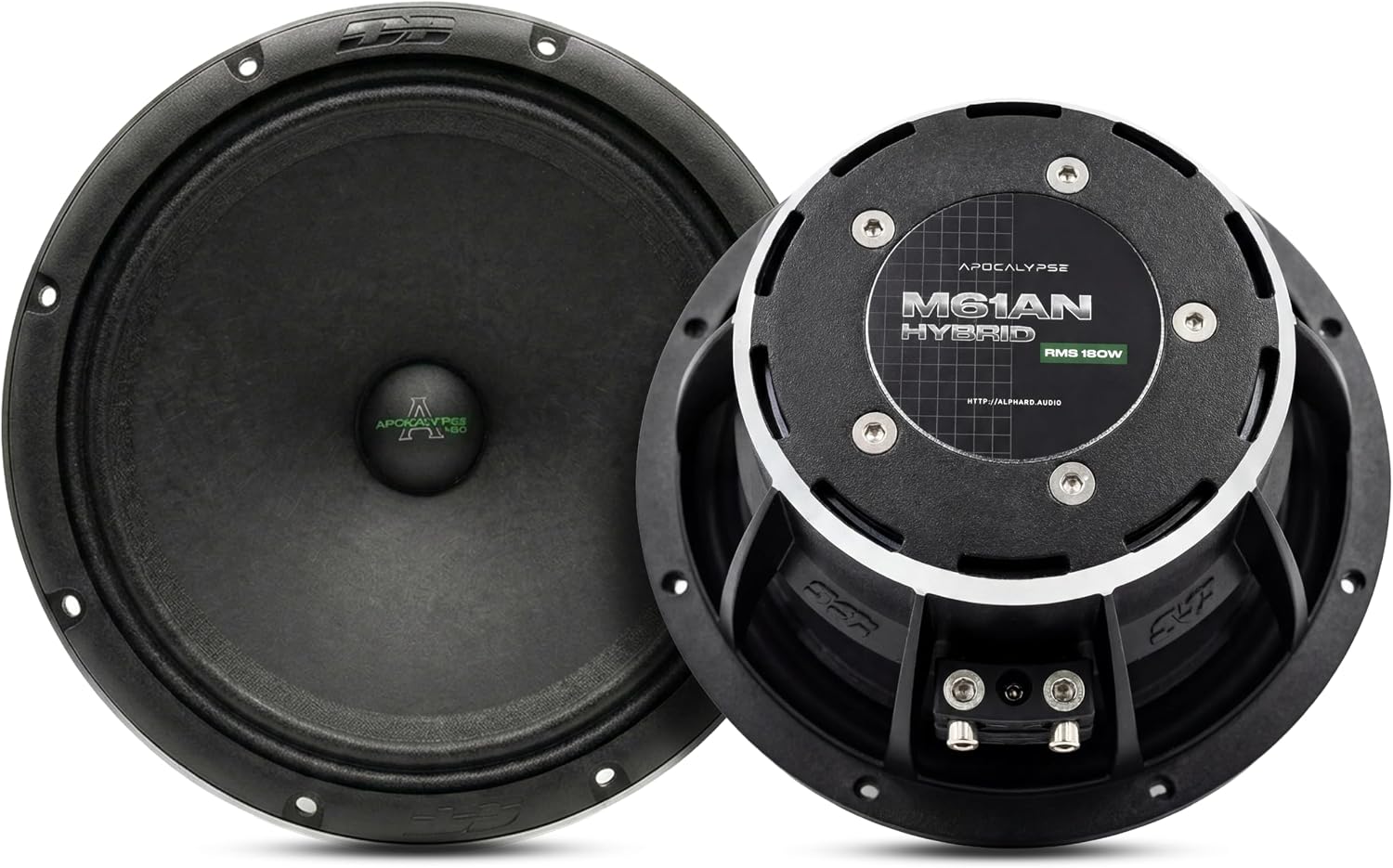

Deaf Bonce Apocalypse AP-M61AN Hybrid 6.5" NEO Ferrite Midrange Speakers (Pair) | 180W RMS
- SKU: DEF-AP-M61ANHYBIRD
The Deaf Bonce Apocalypse AP-M61AN Hybrid is a 6.5 inch midrange pair built around a neodymium plus ferrite hybrid motor, giving you the punch of a heavy ferrite magnet with less weight and a slimmer profile. Each speaker handles 180W RMS (360W max) at 4 ohms and plays from 90 Hz all the way to 16 kHz, one of the widest ranges in the Apocalypse 6.5 lineup. That low reach is what sets it apart: it brings real midbass weight to a door build while keeping vocals loud and sharp.
| Specification | AP-M61AN Hybrid |
|---|---|
| Series | Deaf Bonce Apocalypse |
| Type | 6.5 inch midrange (pro audio) |
| Sold As | Pair (2 speakers) |
| RMS / Max Power | 180 W / 360 W |
| Impedance | 4 ohm |
| Sensitivity | 100.5 dB |
| Frequency Response | 90 Hz to 16,000 Hz |
| Motor | Hybrid (neodymium + ferrite) |
| Voice Coil | 1 in, CCAW wire |
| Fs | 87 Hz |
| Qts / Vas / BL | 0.48 / 12.74 L / 5.5 |
| Cone / Surround | Pressed paper / cloth |
| Frame | Aluminum |
| Mounting Depth | Approx. 2.66 in |
| UPC | 4650185711442 |
What the Hybrid Motor Does for You
Ferrite magnets are strong and affordable but bulky. Neodymium is far more powerful for its size but costs more. Deaf Bonce combines both in the M61AN Hybrid, which keeps the motor compact and lighter than an all-ferrite design while still giving the cone the control it needs at high volume. The result is a speaker that fits shallower spaces and responds quickly, so vocals, snares and guitars come through crisp instead of muddy.
The other number worth noticing is the 87 Hz resonance. Most 6.5 inch pro audio mids resonate around 110 Hz, which forces you to cross them higher and leave a gap between the midrange and the subwoofer. The M61AN Hybrid can play lower, so the hand-off to your sub sounds smoother and the doors carry more of the kick drum.
Choosing Between Apocalypse 6.5 Midranges
| Model | RMS | Low End | Sensitivity | Pick It If |
|---|---|---|---|---|
| AP-M61AN Hybrid | 180 W | 90 Hz | 100.5 dB | You want midbass reach in a slimmer, lighter driver |
| AP-M61AC | 180 W | 100 Hz | 101.6 dB | You have the depth and want a cast-frame ferrite mid |
| AP-M61SE PRO | 150 W | 100 Hz | 102.8 dB | You want maximum volume from less amp power |
Install and Tuning Notes
- Power: Plan for 150 to 200 watts RMS per speaker at 4 ohms. The Apocalypse ATOM-400.4 PRO delivers 200W per channel at 4 ohms for one or two pairs. For four pairs wired two per channel at 2 ohms, the Machete MFA-4.220 gives each speaker about 165W.
- Crossover: Thanks to the lower resonance, you can start the high-pass filter around 100 Hz instead of the 120 to 150 Hz most pro audio mids need. Use a 12 dB per octave slope or steeper.
- Tweeters: The M61AN reaches 16 kHz, but a dedicated tweeter keeps the top end clean at volume. The AT-37 Sport and AP-T25 NEO are matching Apocalypse options.
- Mounting: Midbass reach only pays off when the door is sealed. Add SoundSkins deadening and mount the speaker on a solid baffle so the back wave does not cancel the front.
- Gains: Set them with a multimeter or oscilloscope. Clean power keeps the cloth surround and voice coil healthy for the long run.
Questions About the M61AN Hybrid
What does "NEO Ferrite" mean?
It describes the hybrid motor, which uses both a neodymium magnet and a ferrite magnet. You get strong output and cone control in a lighter, more compact speaker than a ferrite-only design.
Is it 360 watts RMS?
No. It is rated at 180 watts RMS and 360 watts max per speaker. Size your amplifier to the 180W RMS rating.
Is the AP-M61AN Hybrid sold as a pair?
Yes. Every order includes two 6.5 inch midrange speakers.
Can it replace my factory door speakers?
Its shallow motor fits many factory 6.5 inch locations, though some vehicles need a spacer or adapter ring. Measure the depth with the window rolled down, use the fitment tool on this page, or contact our team for help.
Do I still need a subwoofer?
Yes. The M61AN Hybrid adds midbass punch, but deep bass below about 80 Hz belongs to a subwoofer.
