When you are installing a system for your car, most people focus on the head unit, speakers, subwoofers and amplifiers. If your system is not properly grounded, it could cause major problems that destroy everything.
If the ground connection is poor, unwanted noises may enter the system, its functions may deteriorate and devices could fail. Troubles such as buzzing, alternator whine or cutouts might be due to a bad ground.
Before we get into grounding, let’s talk a bit about why it is important, how you should be doing it and how to tell if you have a grounding issue and how you should go about fixing it to avoid having it ruin your sound.
Why Grounding Is So Crucial in Car Audio?
Your car’s electrical system runs on a 12-volt DC system, and every component needs a clean, solid return path to ground. The amplifier ground guide rule is simple: if the current can't flow back efficiently to the battery's negative terminal (ground), it causes resistance, instability, and noise.
Improper grounding can result in:
-
Voltage drops across equipment
-
Reduced amplifier output
-
Signal interference or whining
-
System malfunctions
-
In rare cases, component damage
A solid ground ensures your system runs at full power, maintains clean signal integrity, and remains safe long-term.
Symptoms of a Bad Ground in Car Audio
Not sure if your system has a grounding problem? Here are some of the most common signs that something’s not right:
-
Alternator whine (a high-pitched whining that increases with RPM)
-
Buzzing or humming through speakers
-
Popping or clicking noises when turning accessories on/off
-
Amplifier cutting in and out
-
Low volume output or distortion
-
Amp not powering on, even when wired correctly
If you’re experiencing any of these, grounding should be one of the first things you check. Most audio issues tied to interference or signal problems come down to poor ground contact.
How to Ground a Wire in a Car Stereo System Properly?
Here’s a simple step-by-step process for grounding your car audio system the right way :
1. Choose a Solid Ground Point
Find a clean, unpainted metal part of your vehicle’s chassis as close as possible to your amplifier or processor. The shorter the ground wire, the better—keep it under 18 inches if possible.
Avoid grounding to seat bolts, seat belt anchors, or painted surfaces. You want a direct chassis connection with no corrosion or resistance.
2. Prepare the Surface
Use a wire brush, sandpaper, or a Dremel tool to expose clean, bare metal. Paint, rust, or debris will prevent proper contact and introduce resistance.
If needed, apply a grounding bolt or nut and use a star washer for bite. It’s a small detail, but it makes a huge difference.
3. Use the Right Gauge Wire
Match your ground wire to the same gauge as your power wire. If your amp uses a 4 AWG power wire, the ground should also be 4 AWG. Undersized wire can choke current and cause voltage drops.
4. Secure Connections
Crimp your ring terminals tightly, heat-shrink them if possible, and secure them with a locking nut. Loose or wobbly connections create erratic behavior, so don’t skip this step.
Amplifier Ground Guide: Ground Loops and How to Prevent Them
One common issue in car audio is the ground loop—a condition where multiple grounding points in different locations cause voltage differences, resulting in noise.
To avoid ground loops:
-
Use a single grounding point for all your equipment when possible
-
Avoid daisy-chaining grounds between devices
-
Run grounds back to the same chassis location or distribution block
-
Keep ground paths as short and direct as possible
If you’re using processors, EQs, or multiple amps, consider using a centralized ground hub or distribution block connected to a single chassis point.
Electrical Noise Fixes That Actually Work
Struggling with noise even after solid grounding? Here are a few proven electrical noise fixes:
-
Keep power and signal wires separate—cross them at 90° angles if needed
-
Use twisted pair RCA cables to reduce induced noise
-
Add a line driver or ground loop isolator if necessary
-
Inspect your alternator and battery grounds—upgrading your "Big 3" can help
-
Use ferrite noise suppressors on power or RCA cables as a last resort
Sometimes, what seems like a grounding issue might actually be related to your signal path or a faulty cable. Isolate the problem by removing components one by one and testing.
Common Grounding Mistakes and How to Avoid Them
Even experienced installers can miss small grounding errors. Here’s what to watch out for:
❌ Grounding to Painted Metal
Paint acts as an insulator. Always sand the surface down to bare metal.
❌ Using Factory Bolts with Loctite or Rust
If a bolt doesn’t make full metal contact, it creates resistance. Clean thoroughly or drill a new hole.
❌ Grounding to Seats or Hinges
These aren't grounded well to the chassis and often introduce noise.
❌ Grounding Far from the Amp
Long ground wires act as antennas and increase the chance of picking up interference. Keep them short.
❌ Different Ground Points for Each Amp
This can cause voltage imbalance and loops. Use a common ground location for all amplifiers.
Troubleshooting a Car Stereo Ground Wire Problem
Let’s say your head unit or amp isn’t turning on, or it’s behaving erratically. Here’s how to troubleshoot:
-

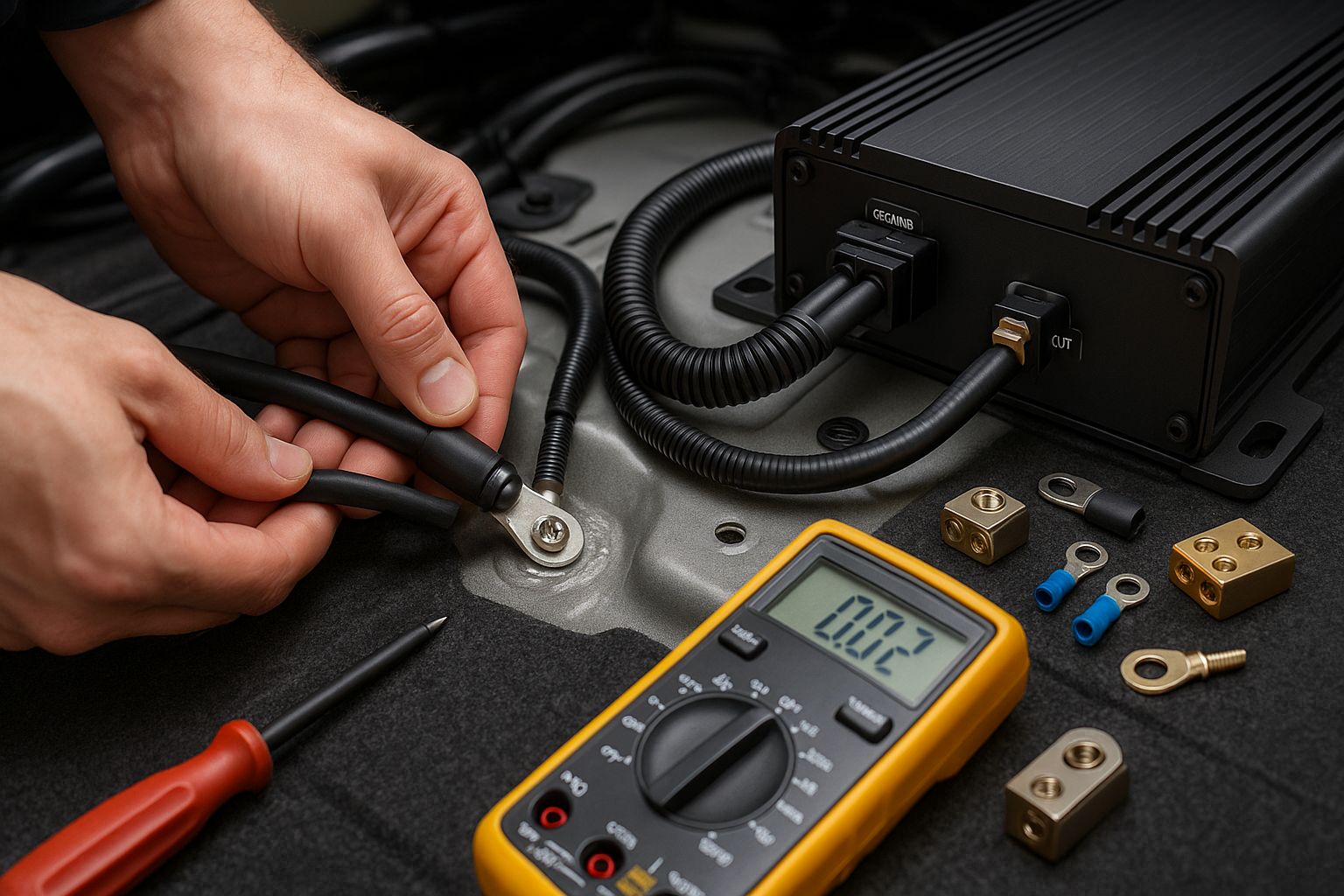

Multimeter Test
Use a multimeter to check voltage between the amp’s ground terminal and battery negative. You should get close to 0 ohms of resistance. -
Test for Continuity
Check continuity from the ground terminal to the chassis. No beep = no connection. -
Inspect Wiring
Look for pinched wires, corrosion, or loose crimps in your ground connection. -
Temporary Ground Test
Run a temporary ground from the amp straight to the battery negative. If your issue resolved, your original ground location is bad.
If you’re dealing with persistent car stereo ground wire problems, it’s usually a matter of poor connection or improper location.
Enhancing Your System with Clean Power and Grounds
Once your grounding is solid, consider upgrading your system's electrical foundation:
-
Big 3 Upgrade: Replace the factory battery ground, engine ground, and alternator wire with thicker wire (typically 1/0 or 4 AWG).
-
Battery Upgrade: Use an AGM or lithium battery for improved current delivery.
-
Capacitors: In some cases, a stiffening cap can help with voltage drops, especially on big bass hits.
-
Distribution Blocks: Use fused power and ground distribution blocks for multi-amp systems to centralize grounding.
Clean power and grounding equal better performance. You’ll get a louder, clearer sound with less distortion and fewer headaches.
Better Sound Starts with a Solid Foundation
You can have an amazing audio system in your car without using high-end amps or subwoofers. You need to keep each element in the electrical system clean and dependable, starting with the ground.
Proper grounding reduces noise, ensures your components get the power they need, and makes tuning easier. It's the kind of detail that separates amateur installs from pro-grade systems.
Keep in mind, no matter what electrical work you do, grounding is needed because it’s such a fundamental part.
Focus on setting up your sound system properly at the beginning and each time you turn it on, the results will be clean, strong and draw you in.
