How to Test Car Speakers Like a Pro? A Step-by-Step Guide

Audio performance from car speakers remains crucial during vehicle operation. Car speakers endure aging that results in diminishing volume output and audio distortion leading to total system failure. By understanding proper speaker testing methods you gain the ability to identify issues while guaranteeing audio quality output. This guide delivers detailed instructions to assess your speakers before installation and to verify their accuracy with a multimeter while also explaining testing methods without radio power or battery presence.

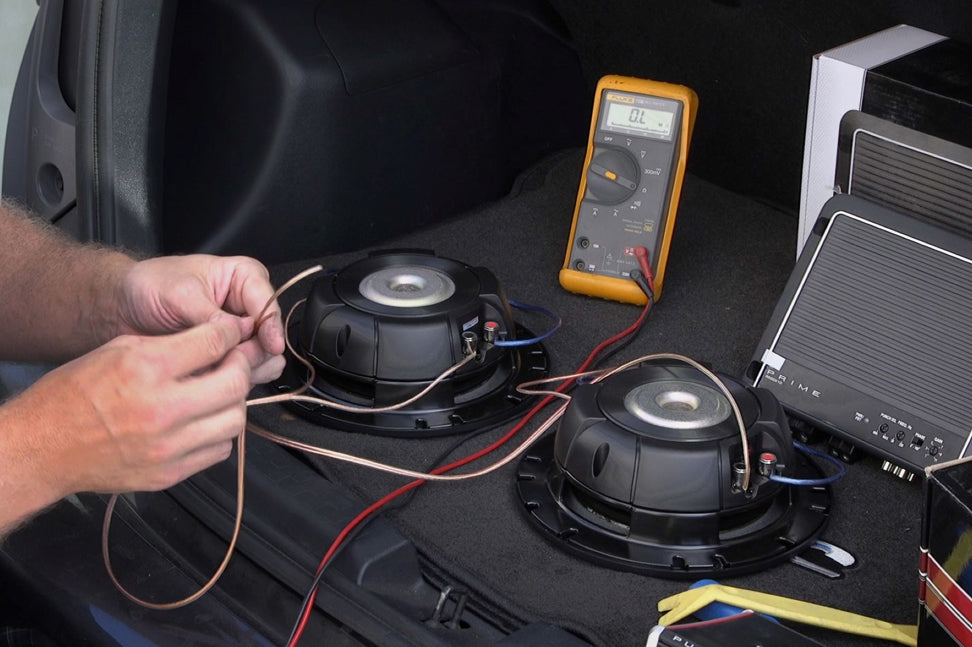

How to Test Car Speakers with a Multimeter?

The multimeter serves as a necessary tool for speaker inspection through its resistance and continuity measurements.

Step 1: Gather Your Tools

• A digital multimeter

• The car speaker(s) you want to test

• Speaker wiring diagram (if available)

Step 2: Set the Multimeter

1. Turn the multimeter on.

2. Set it to the resistance (Ω) mode.

3. Choose a range between 20Ω and 200Ω.

Step 3: Measure Speaker Impedance

1. Disconnect the speaker from the car audio system.

2. Connect the red probe to the positive terminal (+) and the black probe to the negative terminal (-).

3. Proper reading for a 4-ohm speaker should fall between 3.5 to 4.5 ohms yet an 8-ohm speaker should manifest between 6 to 8 ohms on the meter.

4. If the reading is significantly higher or shows "OL" (open loop), the speaker may be damaged.

Test Car Speakers Without Multimeter:

You can verify your car speakers condition even without a multimeter through alternative methods.

Using a 9V Battery

This is a simple way to check if a speaker is functional.

1. Take a standard 9V battery.

2. Connect the positive terminal of the battery to the speaker “+” wire and the negative to the “-” wire.

3. If you hear a popping sound or see the speaker cone move, the speaker is working.

4. No movement or sound could indicate a faulty speaker.

Using an External Audio Source

1. Disconnect the speaker from the car stereo.

2. Connect it to a working home stereo or an external amplifier.

3. Play music at a moderate volume.

4. If the speaker produces sound without distortion, it is in good condition.

How to Test Car Speakers Without a Radio?

Testing car speakers becomes possible without a working car radio because multiple alternative methods exist.

Step 1: Directly Connect to an Audio Source

1. Use an external amplifier or a home stereo system.

2. Connect the speaker wires to the corresponding terminals.

3. Play an audio track and listen for clear output.

Step 2: Use a Battery to Check Speaker Movement

A 9V battery can help determine if the speaker's voice coil is intact.

• Briefly touch the speaker terminals with the battery.

• If the cone moves slightly, the speaker is operational.

• No movement may indicate internal damage.

Test Car Speakers Without Battery:

If you don’t have a battery, you can test the speakers using alternative methods.

Step 1: Use a Multimeter

A multimeter in resistance mode can check speaker continuity without needing a power source.

• A functional speaker should show a steady resistance value.

• A reading of "OL" or infinity suggests a broken circuit inside the speaker.

Step 2: Use a Phone or MP3 Player

1. Take a 3.5mm AUX cable and cut one end to expose the wires.

2. Connect the exposed wires to the speaker terminals.

3. Play an audio file on the phone.

4. If the speaker produces sound, it is functional.

How to Test Car Stereo Speaker Output?

If your speakers seem fine but sound output is weak or distorted, the issue might be with the car stereo system.

Step 1: Check the Stereo Settings

• Ensure that balance and fade settings are properly adjusted.

• Confirm that the volume is not muted or too low.

• Reset the stereo to factory settings if necessary.

Step 2: Test Speaker Wires with a Multimeter

1. Set the multimeter to DC voltage mode.

2. Place the red probe on the positive speaker wire and the black probe on the negative wire.

3. Play music and observe the voltage reading.

4. Fluctuating voltage means the stereo is sending signals, constant zero might indicate a faulty connection.

How to Measure Car Speakers for Replacement?

Accurate measurement ensures you purchase the correct replacement speaker.

Step 1: Remove the Speaker

1. Use a screwdriver to remove the screws holding the speaker.

2. Carefully take out the speaker without damaging the wiring.

Step 2: Measure the Speaker Size

1. Use a measuring tape to check the diameter from edge to edge.

2. Common sizes include 4-inch, 5.25-inch, 6.5-inch, and 6x9-inch speakers.

Step 3: Measure the Mounting Depth

1. Measure from the bottom of the speaker magnet to the front of the mounting bracket.

2. Compare the depth with your car’s specifications to ensure a proper fit.

Common Car Speaker Problems and Solutions!

1. No Sound from Speakers

• Check all wiring connections.

• Ensure the stereo is turned on and not muted.

• Swap the speaker with a working one to confirm if the problem lies with the speaker or the stereo.

2. Distorted or Crackling Sound

• Check for a torn speaker cone.

• Lower the volume to see if distortion persists.

• If distortion continues, consider replacing the speaker.

3. Low or Uneven Volume

• Adjust the balance and fade settings.

• Check if any speaker is wired out of phase (positive and negative terminals swapped).

• Ensure the amplifier or stereo is delivering enough power.

Final Thoughts: Keep Your Car Speakers in Top Condition

Testing car speakers is important for maintaining an excellent car audio experience. Even if you use a multimeter or 9V battery, diagnosing issues early can save you from costly repairs or replacements. Regular testing and proper maintenance will help you enjoy high quality sound while driving.
