Clean, well-planned amp installation turns a good car stereo into a system that sounds controlled, dynamic, and true to the recording. Poor wiring, wrong fuse placement, or mismatched power can introduce noise, distortion, or even create a safety hazard. Follow the right audio installation process and your amplifier will deliver reliable power and clear sound for years to come.

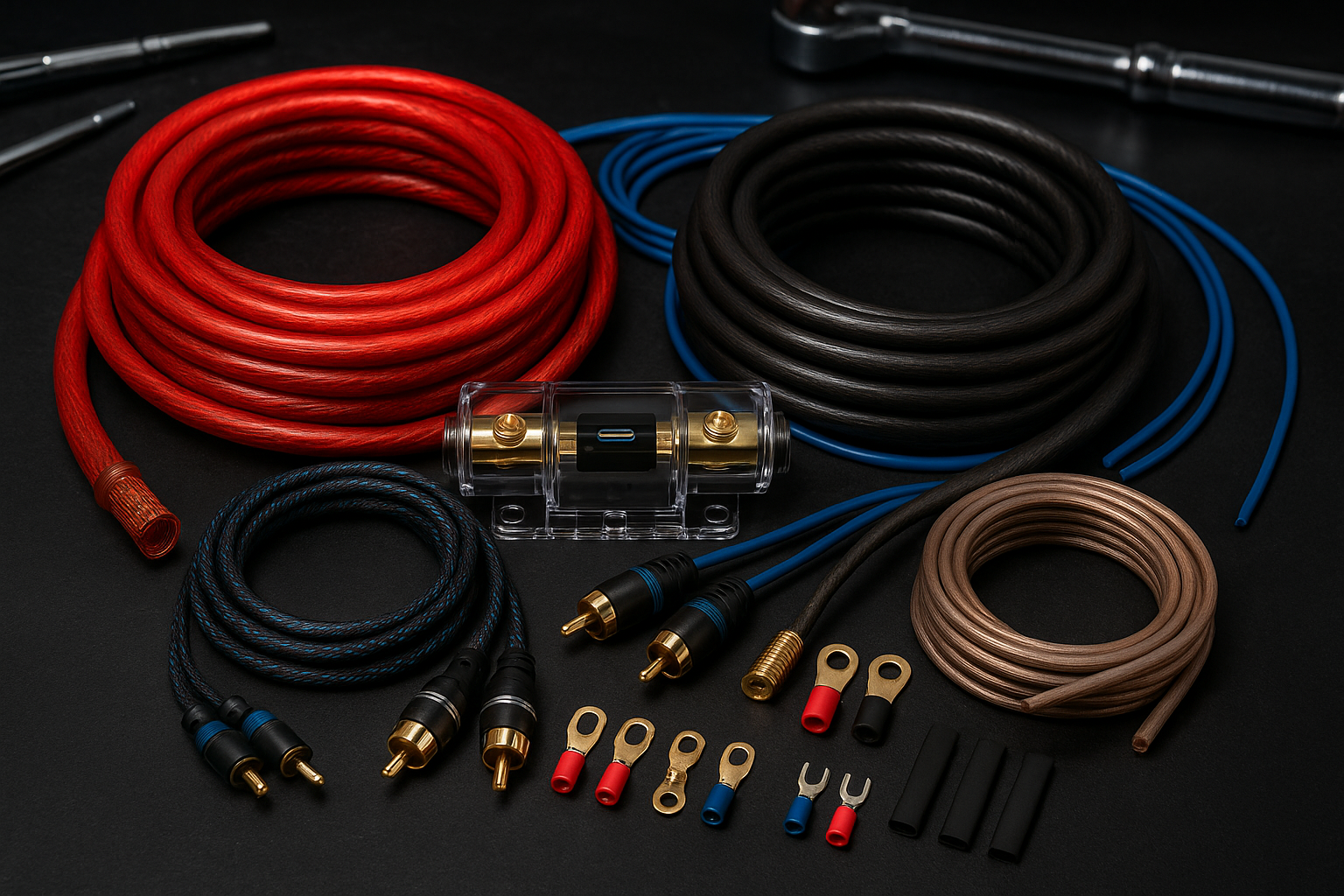

What an amp kit actually contains (and why each part matters)
Purchasing an automobile amp kit makes the installation of amp kits easier, the amp kits assemble the parts you are going to use and eliminate the guesswork. Not all kits are the same, but high-quality kits pay attention to proper choice of the wire gauge, safe fusing, and stable signal connections.
|
Component |
What it does |
Why it matters |
|
Power wire (usually 4–0 to 4 AWG in higher-end kits) |
Carries battery voltage to the amplifier |
Must be thick enough to avoid voltage drop under load |
|
Ground wire (same gauge as power) |
Completes the amplifier’s power circuit |
Short, secure ground eliminates lots of noise issues |
|
In-line fuse / fuse holder |
Protects wiring and vehicle from short circuits |
Must be installed very near the battery (see safety below). |
|
RCA interconnects |
Carry low-level audio signals from head unit to amp |
Shielded RCAs prevent alternator and other noise |
|
Remote turn-on lead |
Tells the amp to power up with the head unit |
Prevents the amp from staying on and draining battery |
|
Speaker wire |
Connects amp outputs to speakers / subs |
Correct gauge keeps clarity and prevents heating |
|
Connectors / terminals / zip ties |
For safe, secure connections and routing |
Reduces vibration, chafing, and future failures |
Plan First: Tools, Workspace, and Safety
Mistakes are made when you install your amp kit in a hurry. Collect wire cutters/strippers, crimping equipment, torque wrench/driver for ground bolts, multimeter and heat shrink or good quality electrical tape. You should work in a dry, well lit area and disconnect the negative battery terminal before touching wiring.
Most important safety step of all is to install the inline fuse the closest to the positive battery terminal possible. If a power wire would short out, industry guidance calls for the fuse to be installed within the first few inches to 18" of the mounting of the battery.
Step-by-step: Amp installation that lasts (audio installation process)
- Plan your amp location and rack — choose a location with ventilation and secure mounting (under a seat, behind a panel, or in the trunk). Leave at least a little clearance around the amp for heat dissipation.
- Run power wire from the battery — route through a factory grommet in the firewall where possible. Leave the fuse out until the full install is complete. Keep the power cable routed away from RCA/signal cables to reduce noise pickup.
- Install in-line fuse next to the battery — mount the fuse holder securely and within a few inches (or up to the short industry allowance) of the battery positive terminal so the unprotected wire length is minimized.
- Ground properly — choose a solid chassis or body grounding point within 18" of the amp if possible, scrape paint to metal, and use the same gauge ground as the power feed to minimize resistance. Avoid odd grounding points like seat bolts or un-welded pieces.
- Run remote turn-on and RCA cables — keep RCAs separated from the power run; connect the remote turn lead to the head unit’s remote output (or an alternate switched 12V if no dedicated remote).
- Connect speaker outputs — maintain correct polarity for every speaker; double-check impedance (ohms) to ensure amp-to-speaker compatibility.
- Set gains and crossovers — use low initial gain; tune gradually to match the head unit’s preamp output and speaker specs. Use the amp’s crossover settings to send the correct bands to subs vs. mid/high speakers.
Wire Gauge and Fusing: Quick reference table
Match wiring size and fuse capacity to the total system demand. Below is a simplified reference of maximum recommended fuse size per common AWG (source: industry wire charts). Always follow wire manufacturer or kit recommendations and use RMS ratings when calculating total system demand.
|
Power Wire AWG |
Maximum recommended fuse |
Typical use |
|
00 (1/0) |
400 A |
Very large multi-amp systems |
|
0 (1/0) |
325 A |
High end, single-or multi-amp systems |
|
2 AWG |
200 A |
Big single amp or two mid-power amps |
|
4 AWG |
125 A |
Common for 600–1,100W RMS systems in many kits |
|
8 AWG |
50 A |
Small amps or short runs for modest systems |
|
10 AWG |
35 A |
Low-power installs or accessories |
|
12 AWG |
20 A |
Tiny, low-draw accessories only |
For exact wire sizing by total RMS output and installation length, consult a wire gauge calculator or the kit manufacturer chart. Using CCA wire requires upsizing compared with OFC copper, another reason many installers prefer oxygen-free copper.
OFC wiring, CCA, and long-term reliability
Oxygen-free copper (OFC) power wire is the standard recommended for amp installations because it conducts better, resists corrosion, and handles heat cycles without fracturing. Copper-clad aluminum (CCA) may be cheaper, but it has higher resistance and often requires a larger gauge to carry the same current—so the cost savings are usually illusory for power wiring. If long-term reliability and clean power delivery matter, choose OFC.
Common problems during amp kit install & how to avoid them:
- Ground loop noise — usually caused by poor grounding or running RCAs next to power. Re-route RCAs and improve ground.
- Blown inline fuse immediately — often the result of shorted power wire or wrong fuse rating; double-check routing and ensure no exposed conductor touches chassis.
- Weak bass / low output — wrong gauge power, poor ground, or under-fused supply; verify amp gain and that wiring gauge meets the amp’s draw.
Amp Kit Installing Checklist
- Fuse installed and secure at battery (fuse removed until testing is complete)
- Ground lug tightened to bare metal, short run to amp
- RCAs routed away from power wire and secured
- Speaker polarity checked at amp and speaker terminals
- All mounting hardware secure, amplifier ventilated
Good amp installation is an investment in quality and safety. Use a properly sized elite audio amp kit, OFC cable, safe fusing and grounding and properly tune the amp and you will get consistent clean power that makes your entire system shine.
