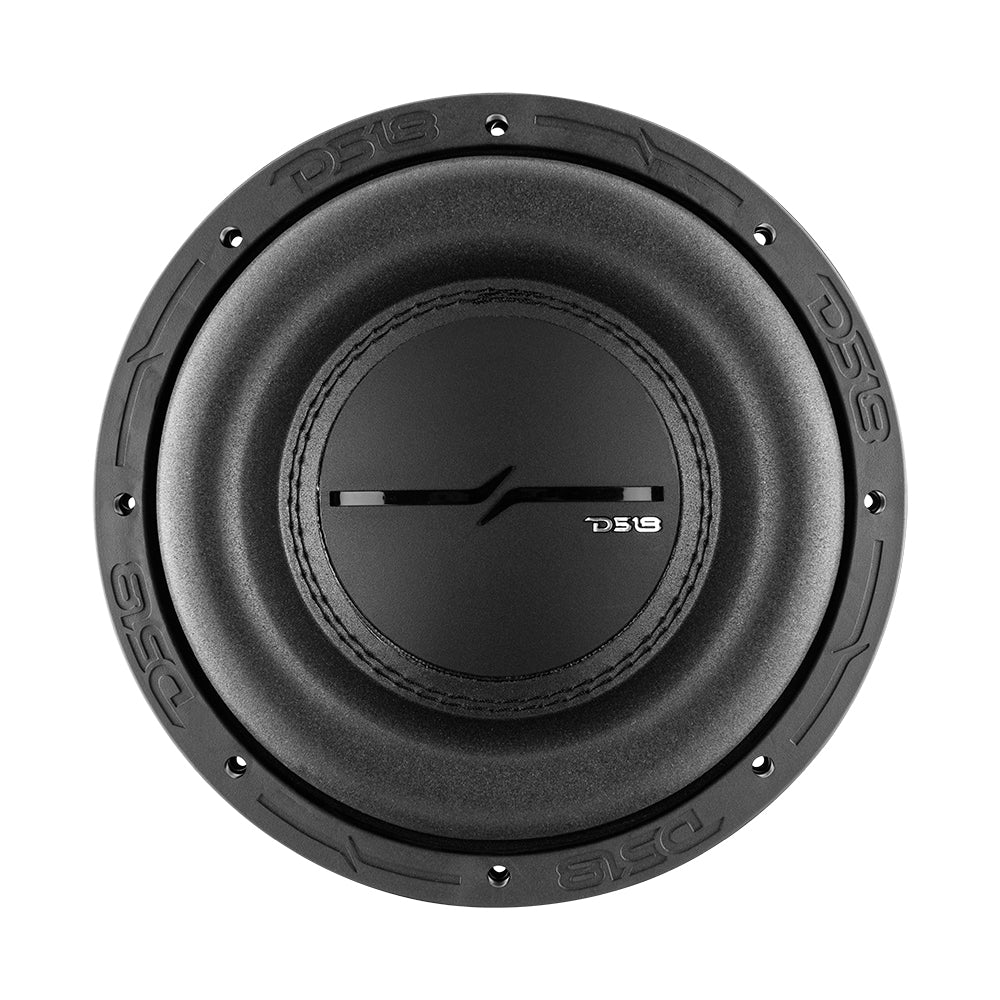

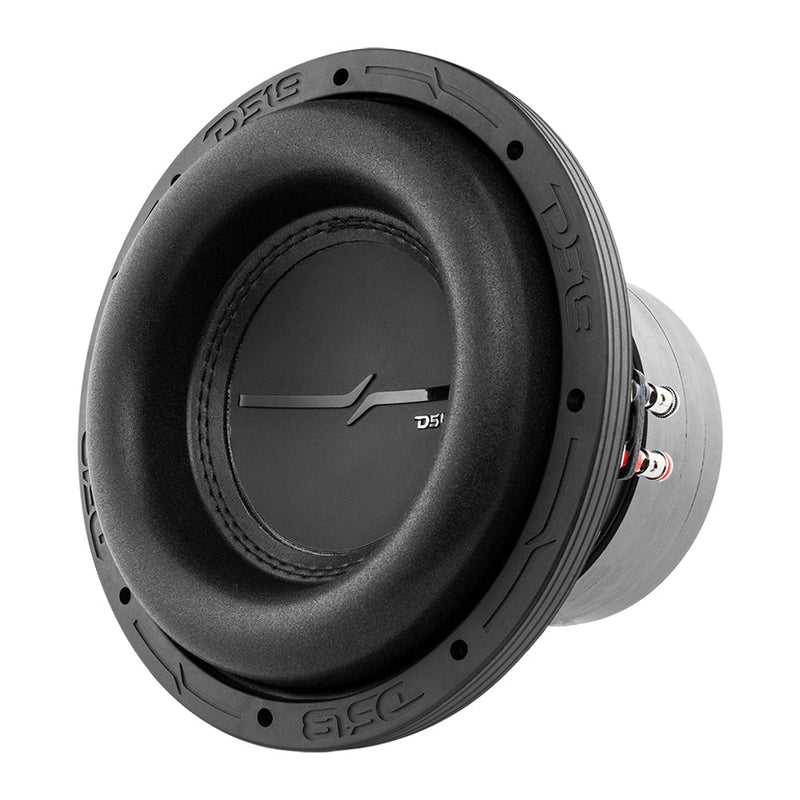

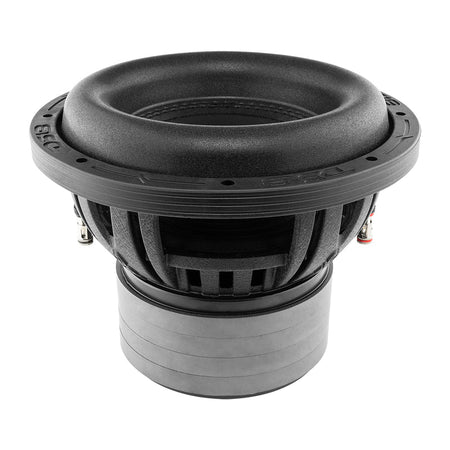

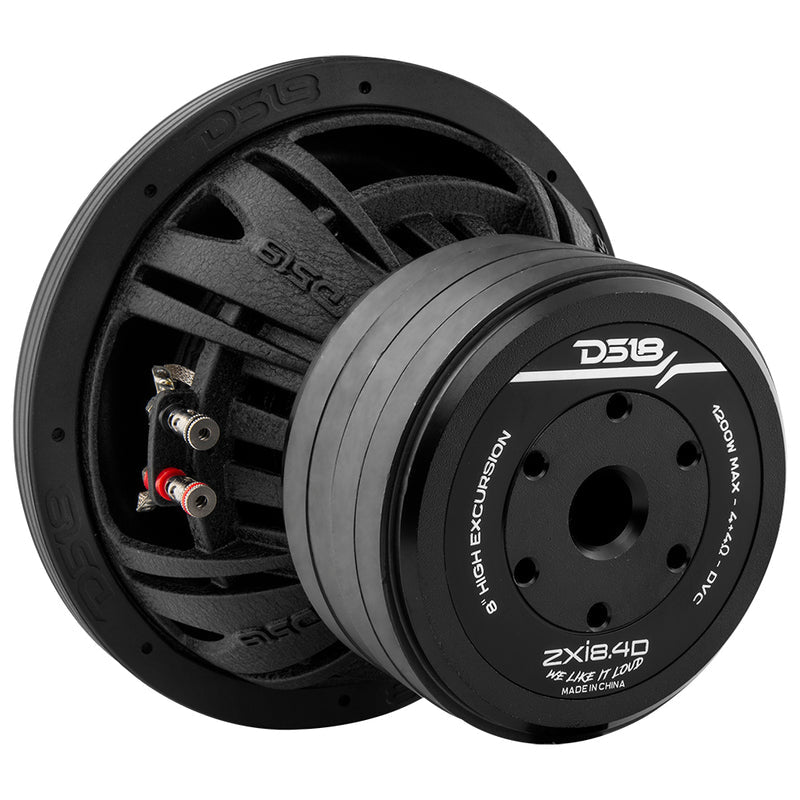

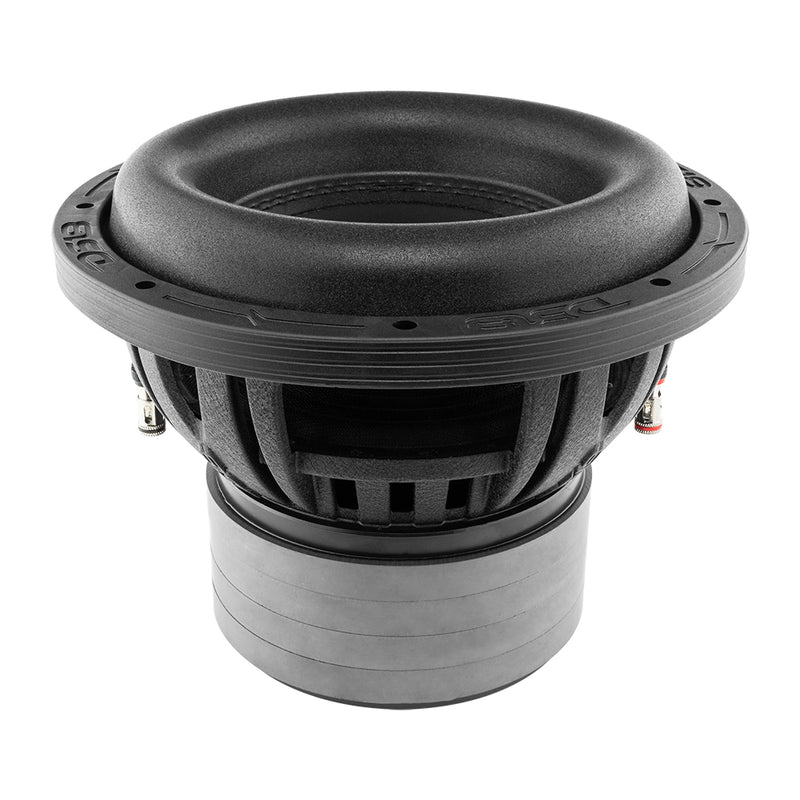

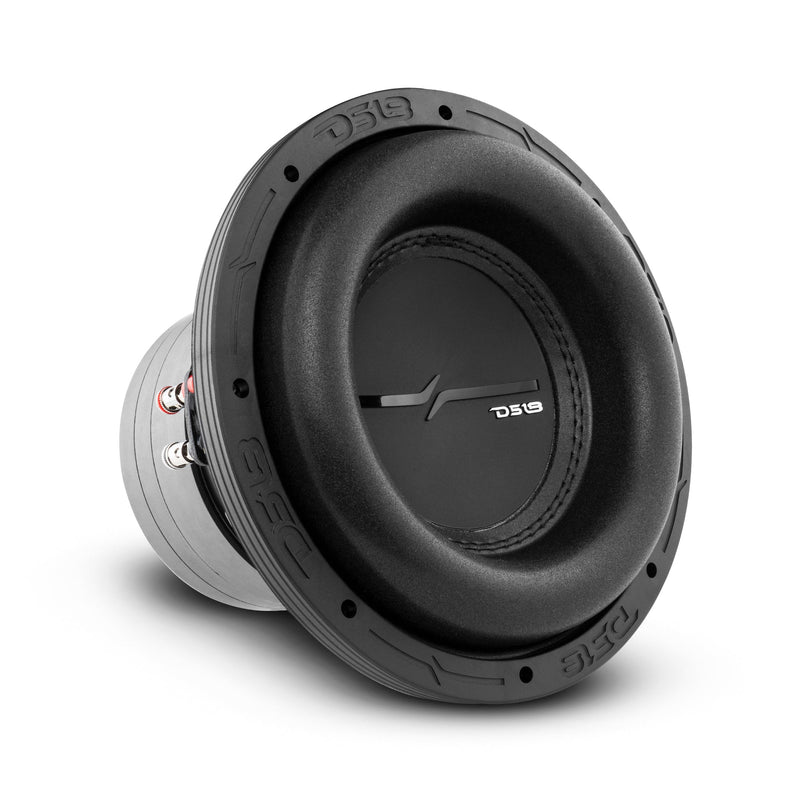

DS18 DS-ZXI8.4D ZXI High Excursion 8 Inch Subwoofer 1000W Watts Dvc 4-Ohm 4 Magnets DS18
DS18 ZXi8.4D ZXI High Excursion 8 inch Car Audio Subwoofer 1000W Watts Dvc 4-Ohms 4 Magnets. Do you want more excursion, more thumping power, and to shake everyone's mirrors around you?
DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed for the ZXI8.4D high excursion subwoofer. This monster sub packs a 2 inch coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass.
This sub has a low FS so it can be used in large boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies in the bass zone of sub frequencies.
The ZXI subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 8 inch model comes dual 4 ohm and comes with a 2 inch voice coil that handles 600w RMS and 1200w max power.
The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle giving you an amazing bass experience.
HIGHLIGHTS:
- Large foam surround giving great high xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 600w RMS and 1200w max through a high strength 2 inch CCAW aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dustcap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
KEY FEATURES:
- 8 inch High Excursion Subwoofer
- Impedance: DVC 4-ohm
- Max Power Handling: 1200 watts
- RMS Power Handling: 600 watts
- Frequency Response: 25-880Hz
- Voice Coil Diameter: 2 inch
- Voice Coil Material: CCAW
- Sensitivity: 86 dB
- Magnet Weight: 104 oz
- Magnet Material: Ferrite
- Mounting Depth: 5.51 inch
- Xmax: 18.5mm one way
SPECIFICATIONS:
| SERIES | ZXI High Excursion Series |
| SOLD AS | Piece |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Car|Jeep|Marine|Truck/SUV |
| BRAND | DS18 |
| UPC | 810097260351 |
| WATT | 700 Watts |
| OHM | 4 ohm |
| DIM LENGTH | 1.0 |
| DIM WIDTH | 1.0 |
| DIM HEIGHT | 1.0 |
| DIM UNIT | in |
| WEIGHT | 1.0 |
| WEIGHT UNIT | lb |
