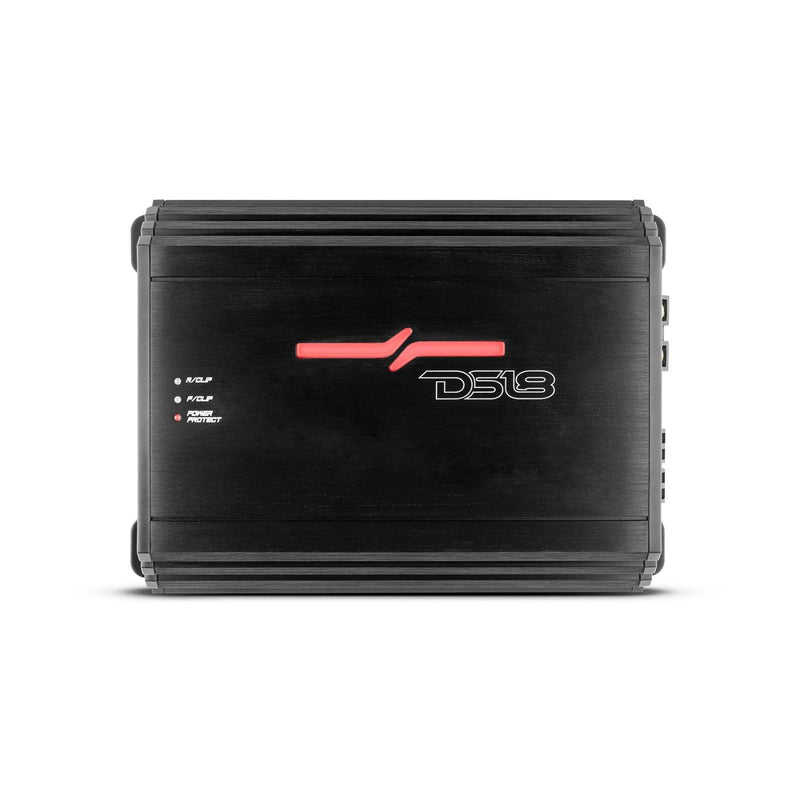

DS18 DS-ZR800.4D ZR Class D 4-Channel Full Range Amplifier 200x4 at 4 Ohm Watts RMS DS18

Out of stock
SKU: DS-ZR800.4D
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $319.95 USD

DS18 ZR800.4D ZR Class D 4-Channel Stereo Full Range Amplifier 4 x 200 at 4 Ohms Watts RMS DS18's ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.

The ZR series was designed to pump up the bass and help your speakers reach their maximum potential as a part of your sound system. These amps offer a surplus of tuning options: the ZR800.4D comes with Lowpass, and Highpass filters to help tune any song to your frequency.

The ZR800.4D is made to deliver 2 x 600 watts RMS at 4-Ohms Bridge, 4 x 320 watts RMS at 2-Ohms, and 4 x 200 watts RMS at 4-Ohms giving you the perfect power for your bass.

KEY FEATURES:
  • Digital Class D Full Range Amp
  • MAX Wattage: 3600 Watts Peak
  • RMS Wattage: 2 x 600 Watts RMS at 4-Ohms Bridge, 4 x 320 Watts RMS at 2-Ohms, 4 x 200 Watts RMS at 4-Ohms
  • Frequency Response: 20Hz – 20KHz
  • Signal to Noise Ratio: >90dB
  • Efficiency at 4-Ohms: 88 percent
  • Total Harmonic Distortion: 1 percent
  • Input Range: 0.2v - 6v
  • Selectable X-Over: FULL/LPF/HPF
  • LED Indicator: Clipping, Power, Protect
  • Power and Ground Terminal: 4 Ga
  • Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridge)
GREAT FOR:
  • Car Audio
  • Pro Audio
  • Off Road
  • Motorcycles
  • Stunt Walls
  • DIY Projects
SPECIFICATIONS:
WARRANTY 1-Year Limited Manufacturer Defect
UNIVERSAL Yes
AAIAID FXVX
VEHICLE TYPE Car|Jeep|Truck/SUV
BRAND DS18
DIM LENGTH 1.0
DIM WIDTH 1.0
DIM HEIGHT 1.0
DIM UNIT in
WEIGHT 1.0
WEIGHT UNIT lb
  • Installation Guide
