DS18 DS-ZR212LD Bass Package 2 x ZR12D4 12 Inch Subwoofers In a Ported Box 3000 Watts DS18

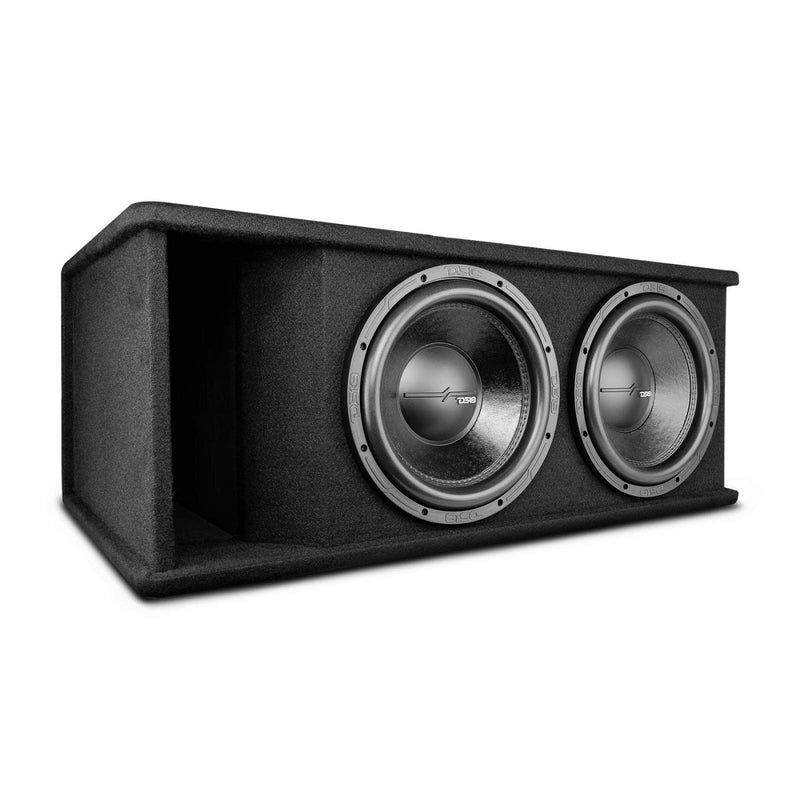

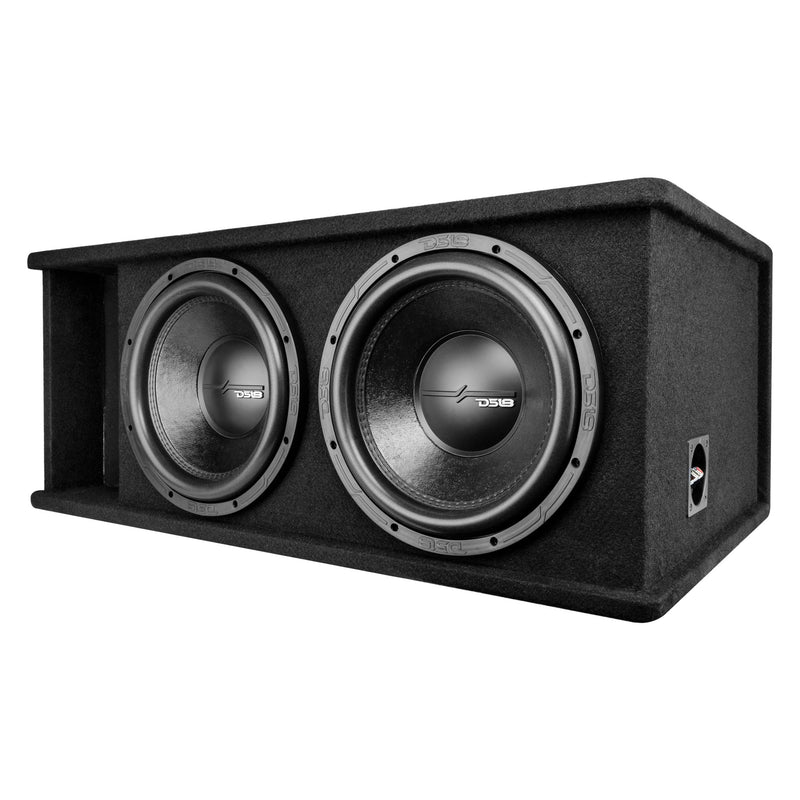

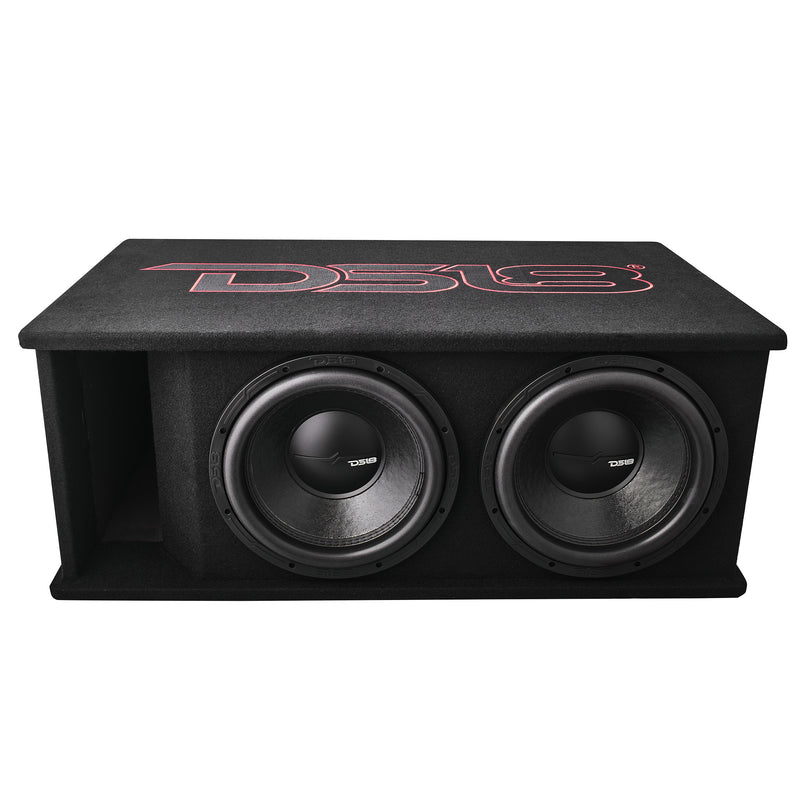

DS18 ZR212LD Bass Package 2 x ZR12D4 12 inch Subwoofers In a Ported Box 3000 Watts. The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!
The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.
This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1500W RMS and 3000W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.
HIGHLIGHTS:
The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers
KEY FEATURES:
ZR12.4D
- Two 12 inch DVC subwoofer
- Max Power Handling: 1500 watts each
- RMS Power Handling: 750 watts each
- Frequency Response: 25hz-200hz
- Voice Coil Diameter: 2.5 inch
- Voice Coil Material: Copper
- Impedance: Dual Voice Coil 4-Ohm
- Sensitivity: 82 DB
- Magnet Weight: 100 Oz
- Magnet Material: Ferrite
- Mounting Depth: 6.6 inch
- Xmax: 25mm one way
BOX:
- Box Material: 3/4 inch MDF
- Box Covering: Carpet with DS18 logo
- Box Tuning: 29hz
- Box Type: Side Ported
- Internal Volume: 5.3 ft3Demensions:
- Height: 14.48 inch
- Width: 36.22 inch
- Depth 1: 19.68 inch
- Depth 2: 21.65 inch
GREAT FOR:
Car Audio
Pro Audio
Home Solutions
Hi-Fi Installation
DIY Projects
SPECIFICATIONS:
| WARRANTY | 1-Year Limited Manufacturer Defect |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| VEHICLE TYPE | Car|Jeep|Truck/SUV |
| BRAND | DS18 |
| UPC | 810005189323 |
| WATT | 3000 Watts |
| DIM LENGTH | 1.0 |
| DIM WIDTH | 1.0 |
| DIM HEIGHT | 1.0 |
| DIM UNIT | in |
| WEIGHT | 1.0 |
| WEIGHT UNIT | lb |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
