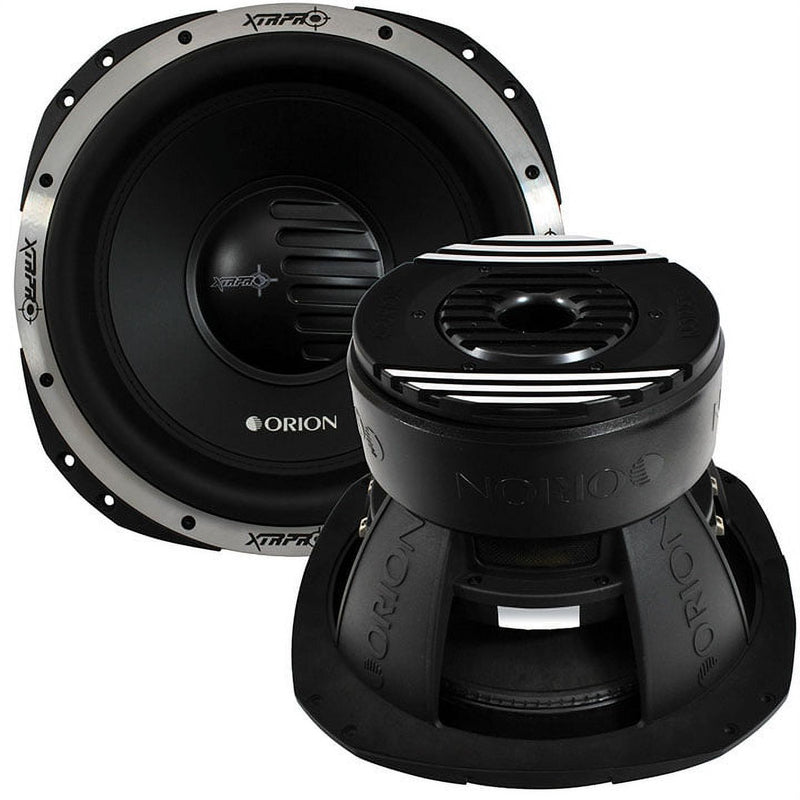

Orion XTRPRO124D 12″ XTR PRO Series Subwoofer – 1500W RMS / 6000W Max, Dual 4‑Ohm Car Audio Bass
Bring serious low-end power to your system with the Orion XTRPRO124D 12" XTR PRO Series Subwoofer. Built for high-output car audio setups, this Orion XTR 12 inch subwoofer delivers aggressive bass, strong performance, and the durability needed for demanding daily or competition-style systems.
Designed with a dual 4-ohm voice coil configuration, the Orion XTR PRO 12 gives you flexible wiring options for different amplifier setups. With 1500W RMS and 6000W max power handling, this subwoofer is made to hit hard while maintaining control and clarity. Whether you are upgrading a custom build or replacing an older subwoofer, the Orion XTRPRO124D is engineered to deliver deep, powerful bass that stands out.
The UV-coated reinforced paper cone, Santoprene surround, and cast aluminum frame help support stable performance and long-lasting reliability. A 176 oz ferrite magnet and 3-inch aluminum wound voice coil add strength and precision, while the forced convection cooling system helps maintain consistent performance during extended playtime.
If you are searching for an Orion XTR PRO 12 box specs reference or a powerful bass upgrade for a serious car audio build, the XTRPRO124D is a strong choice for maximum impact and impressive sound output.
Features:
- 12" XTR PRO Series subwoofer
- Dual 4-ohm voice coil configuration
- 1500W RMS / 6000W max power handling
- High-output bass performance
- UV-coated reinforced paper cone
- Santoprene surround
- Cast aluminum frame
- 176 oz ferrite magnet
- Forced convection cooling system
- Designed for powerful car audio systems
Orion XTRPRO124D 12" XTR PRO - Specifications
Model: XTRPRO124D
Series: Orion XTR PRO
Subwoofer Size: 12"
Voice Coil Configuration: Dual 4 Ohm
RMS Power Handling: 1500W
Max Power Handling: 6000W
Sensitivity: 89.3 dB
Frequency Response: 32 Hz – 1 kHz
Voice Coil Diameter: 3"
Voice Coil Material: Aluminum wound voice coil on Kapton former
Spider: Dual flat Conex spiders with loop stitched tinsel leads
Dustcap Material: Polypropylene
Cone Material: UV-coated reinforced paper
Surround Material: Santoprene
Basket Material: Proprietary cast aluminum frame
Magnet: 176 oz ferrite
Speaker Displacement: 0.1674 cu. ft.
Mounting Depth: 196mm / 7.70"
Cutout Diameter: 288mm / 11.34"
UPC: 818550011229
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
