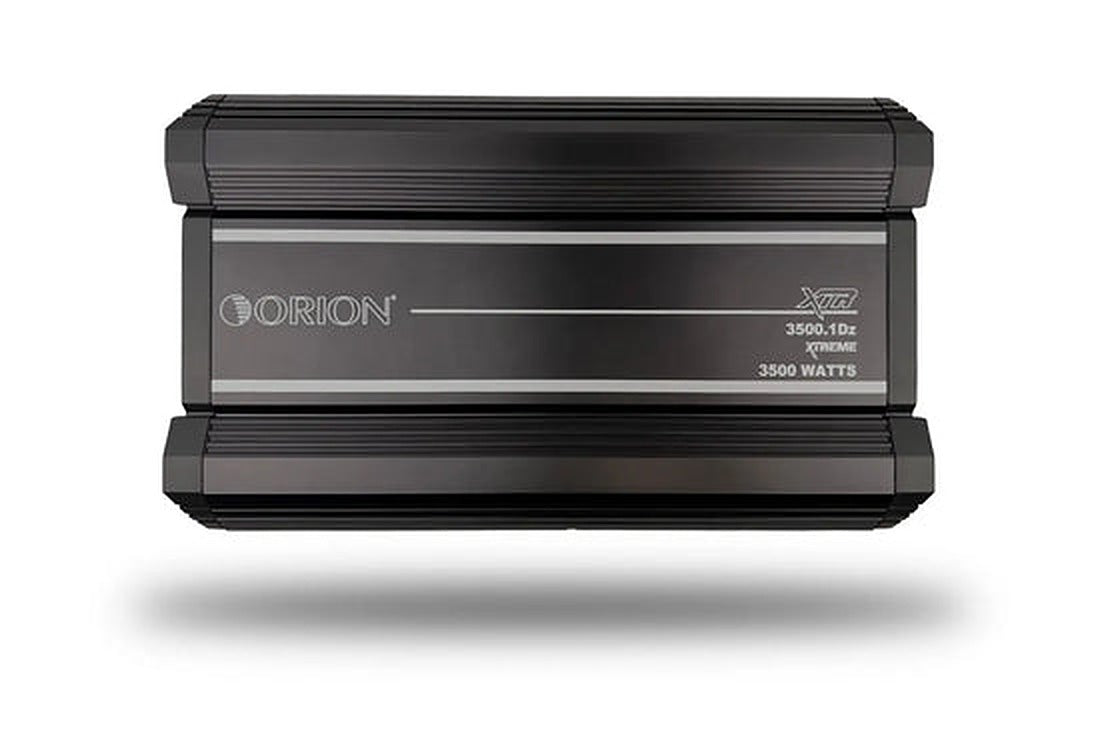

ORION XTR3500.1Dz Series 3500W RMS 1-Channel Class-D Amplifier
The ORION XTR3500.1Dz amplifier revolutionizes car audio with its cutting-edge features and precision engineering. Delivering unparalleled power, accuracy, and control, it sets a new standard in audio performance. With its advanced design, every note is reproduced with clarity and depth, creating an immersive sound experience that redefines car audio excellence.
Features:
Class D Amplification - Experience the pinnacle of efficiency and precision with Class D amplification for commanding and accurate sound reproduction.
3500 Watts RMS - Immerse yourself in a world of sonic excellence with 3500 Watts RMS, delivering unprecedented audio performance.
Precision Audio Control - The adjustable built-in crossover enables precise tuning of audio frequencies, maximizing speaker performance.
Customized Bass Enhancement - Enhance your lower frequencies using the adjustable bass boost function, delivering impactful and deep bass tones.
Advanced Protection Measures - With built-in protection circuitry, the amplifier defends against overheating and short circuits, guaranteeing durability.
Compact and Stylish Design - The amplifier's compact design provides flexible installation possibilities without sacrificing performance or aesthetics.
Engineered Excellence - Crafted with meticulous attention to detail to ensure optimal audio precision, power efficiency, and reliable operation.
Specifications:
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter
Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
RMS Power @ 4 Ohms @ 0.5% THD+N: 1450W
RMS Power @ 2 Ohms @ 0.5% THD+N: 2500W
RMS Power @ 1 Ohm @ 0.5% THD+N: 3800W
Linked with identical Amplifier
RMS Power @ 2 Ohms @ 0.5% THD+N: 7600W

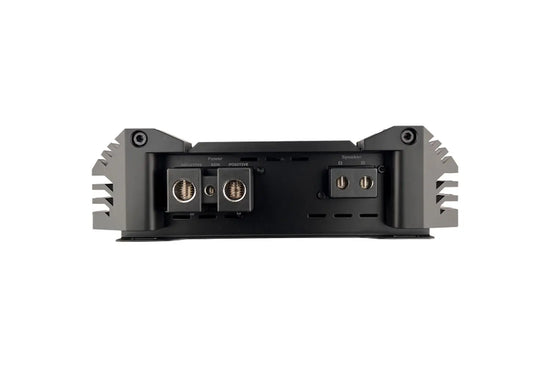

Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 0 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 4 AWG.
Frequency Response: 20Hz - 250Hz
Low Pass Crossover: 30Hz - 300Hz
Supply Voltage: 9 - 16V
Amplifier Efficiency: >88%
Damping Factor: 200dB
Signal to Noise Ratio: >90dB
T.H.D. & Noise: 0.5%
Phase Shift: 0 - 180
Bass Boost: 0-18dB Variable
Subsonic Filter: Off / 25Hz
Variable Input Level Control: 0.2V - 6.0V
Fuses: 300A recommended (not included)
Dimensions (L x W x H): 15.35" x 9.25" x 2.75" (390x235x70mm)
UPC: 818550016965
