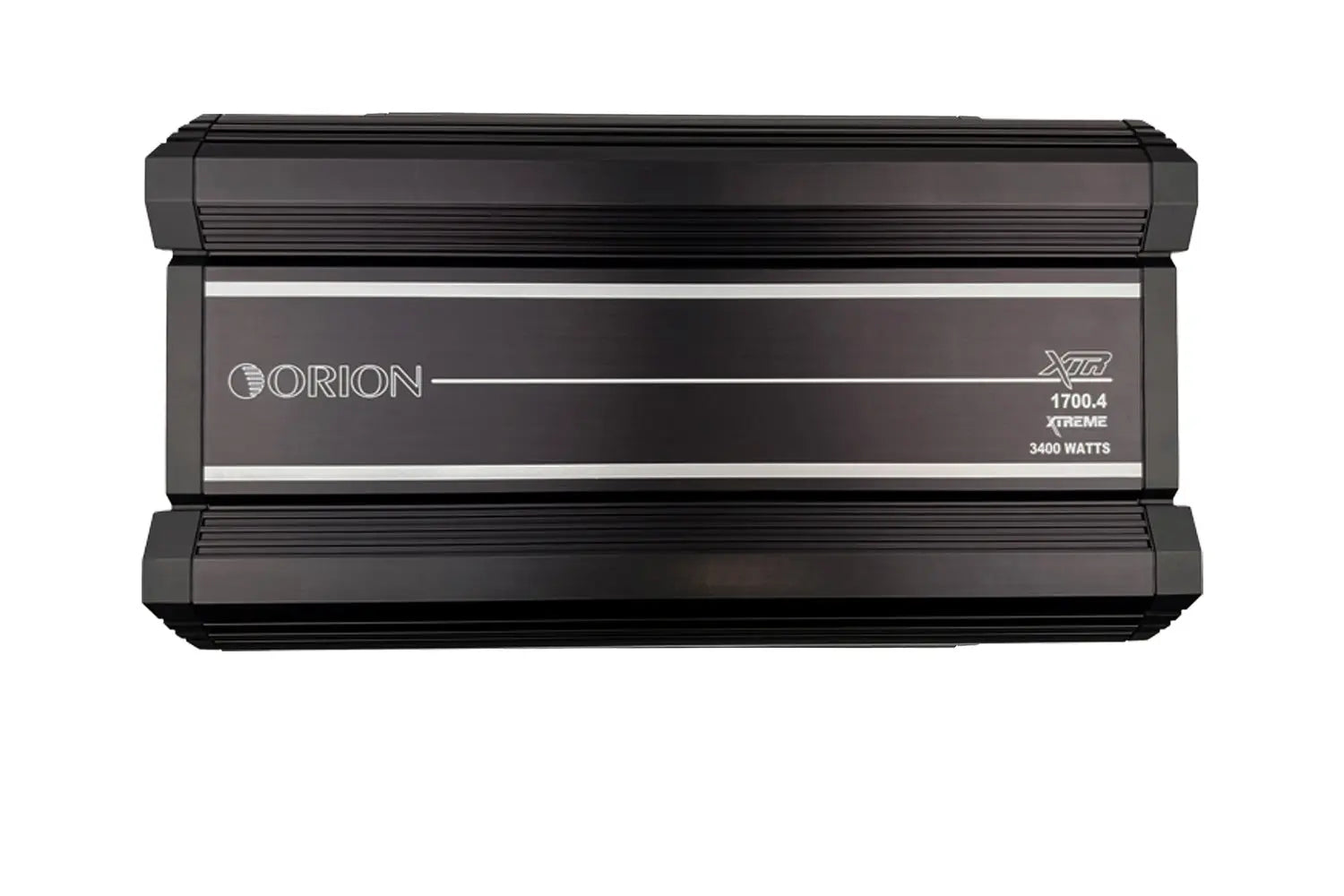

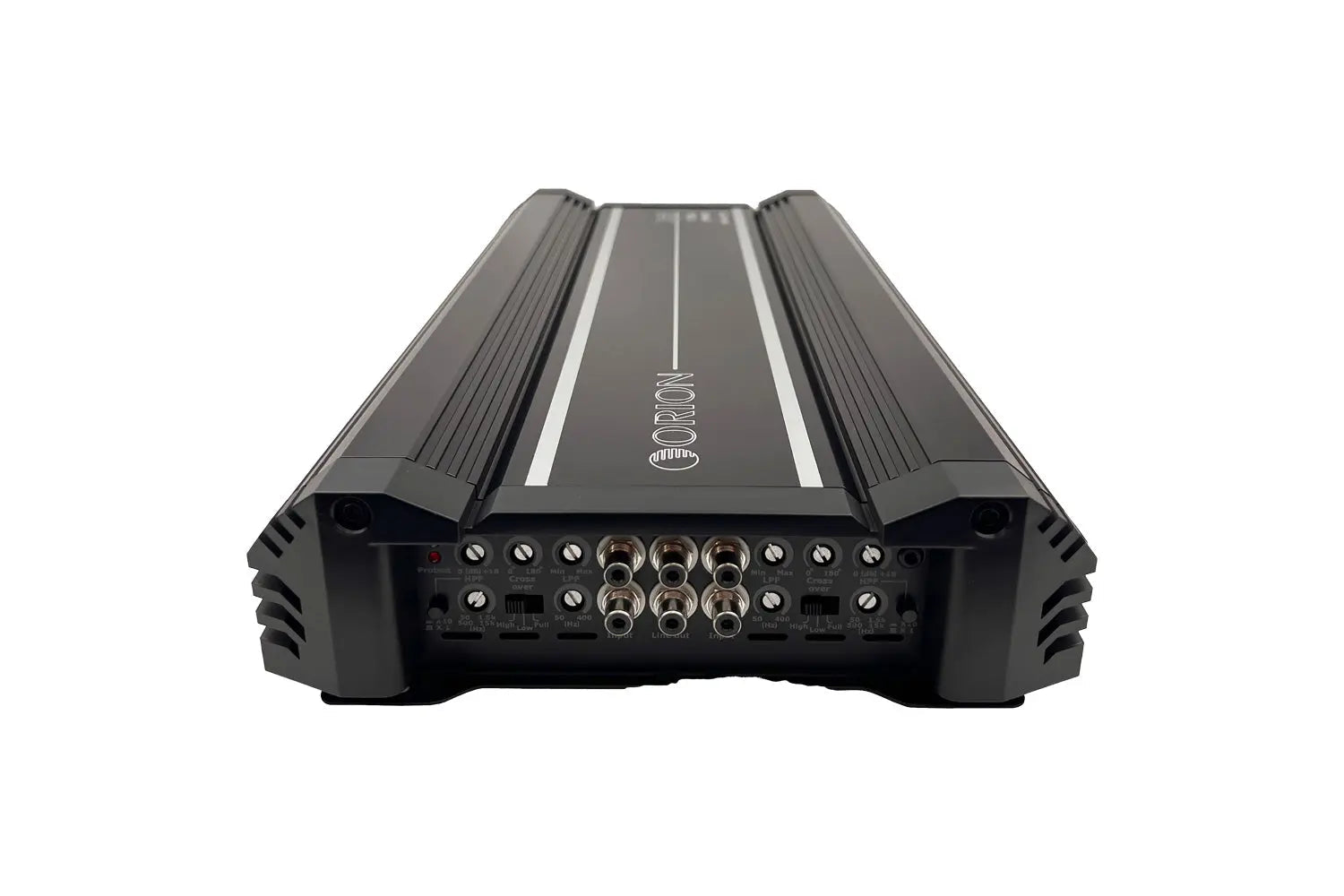

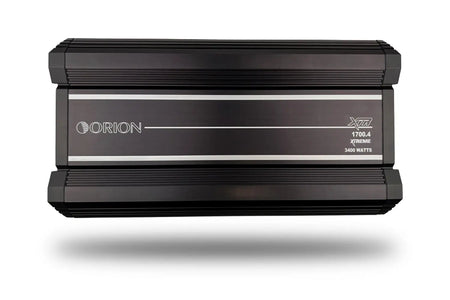

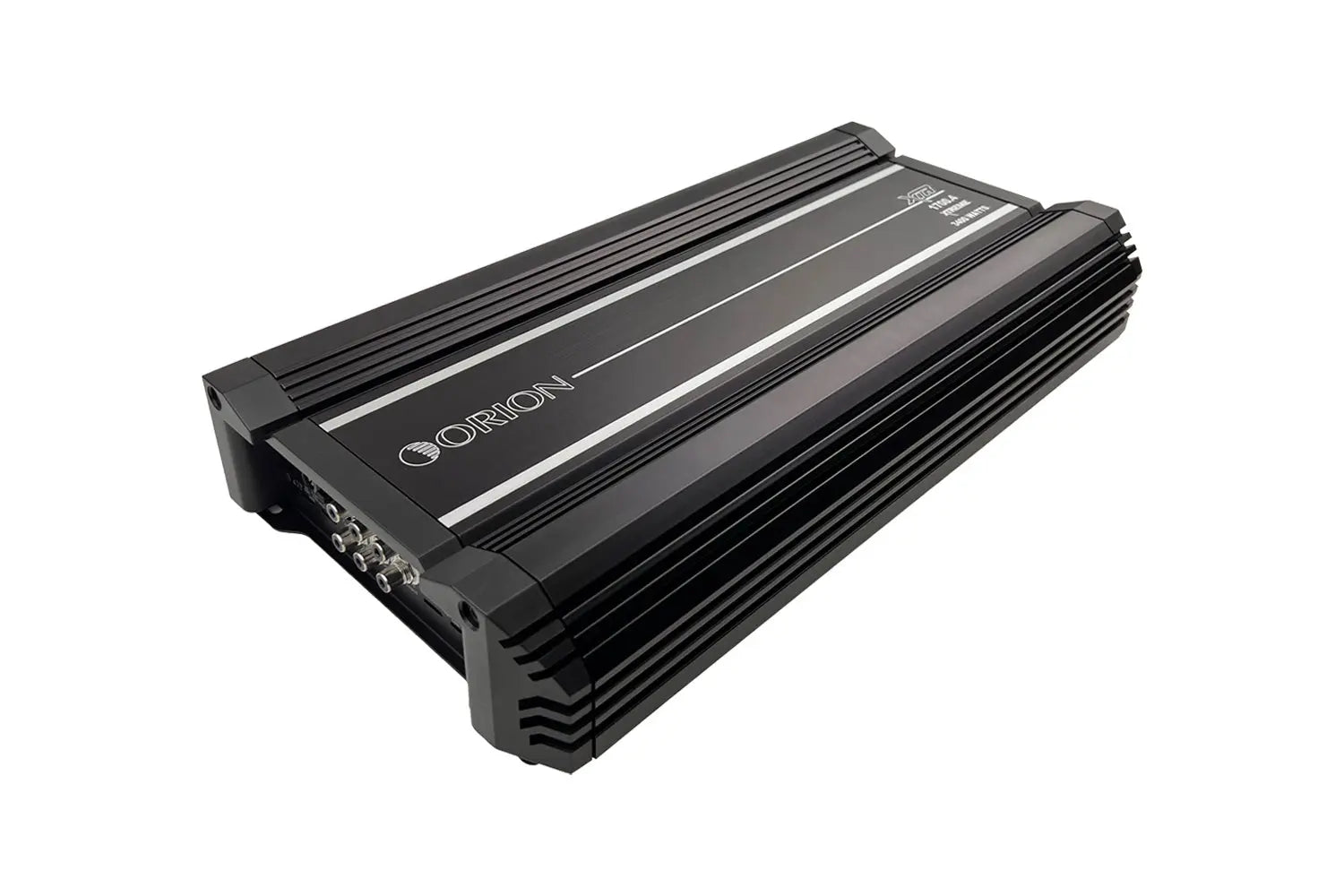

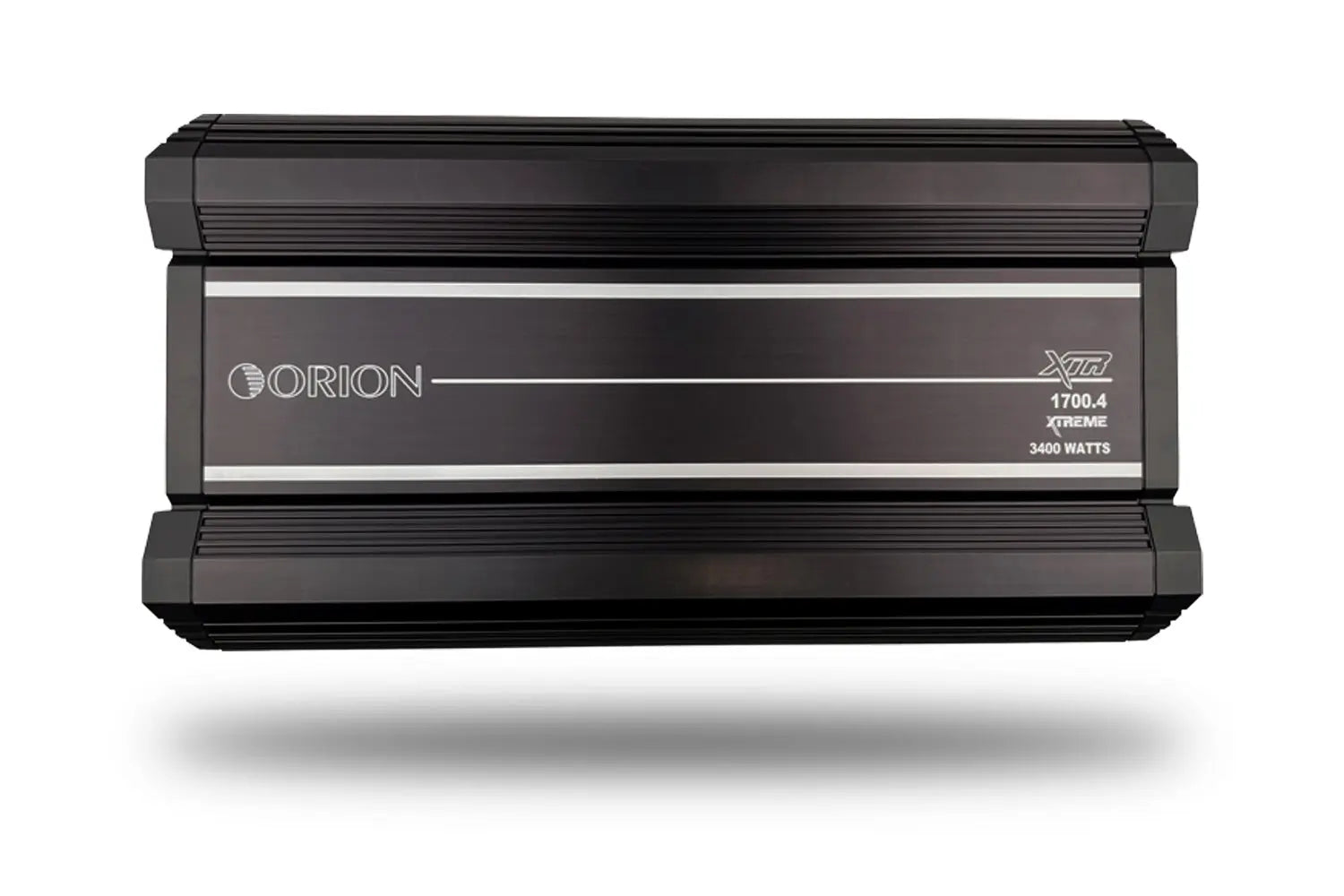

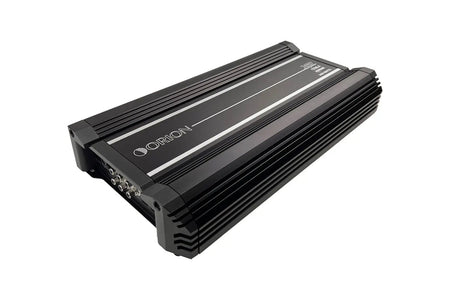

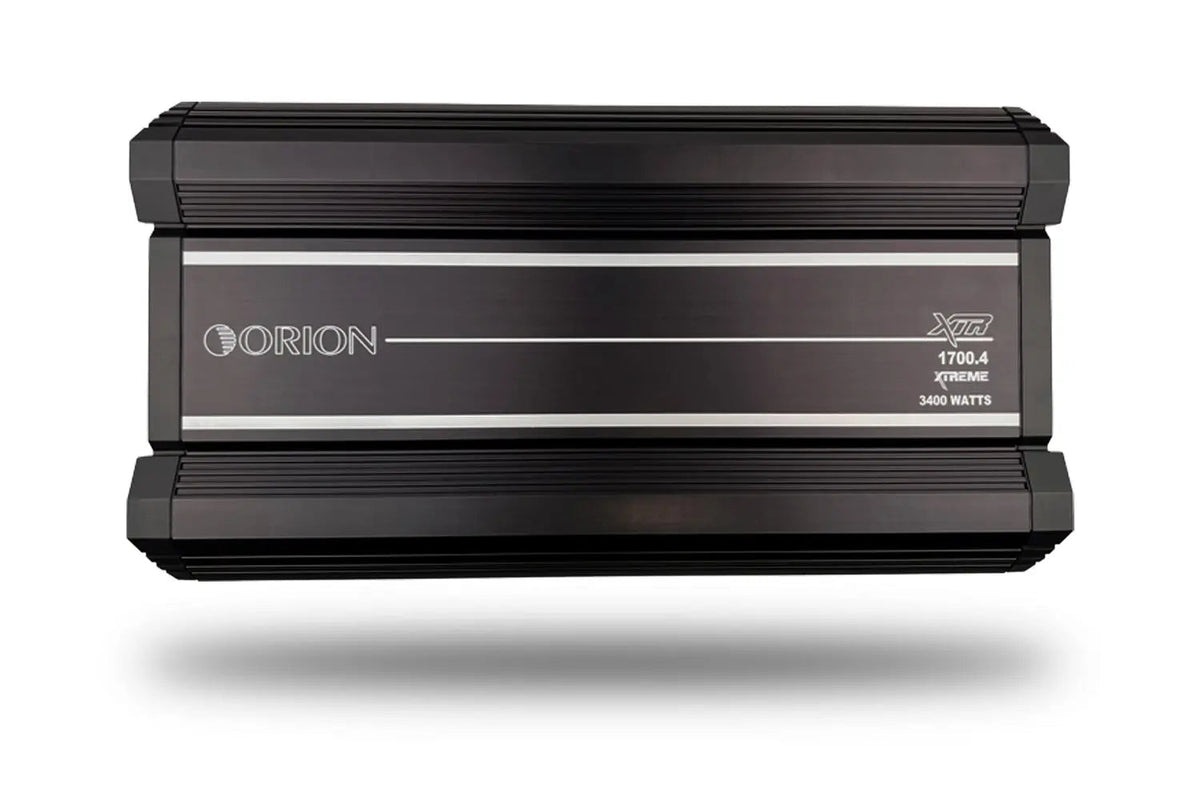

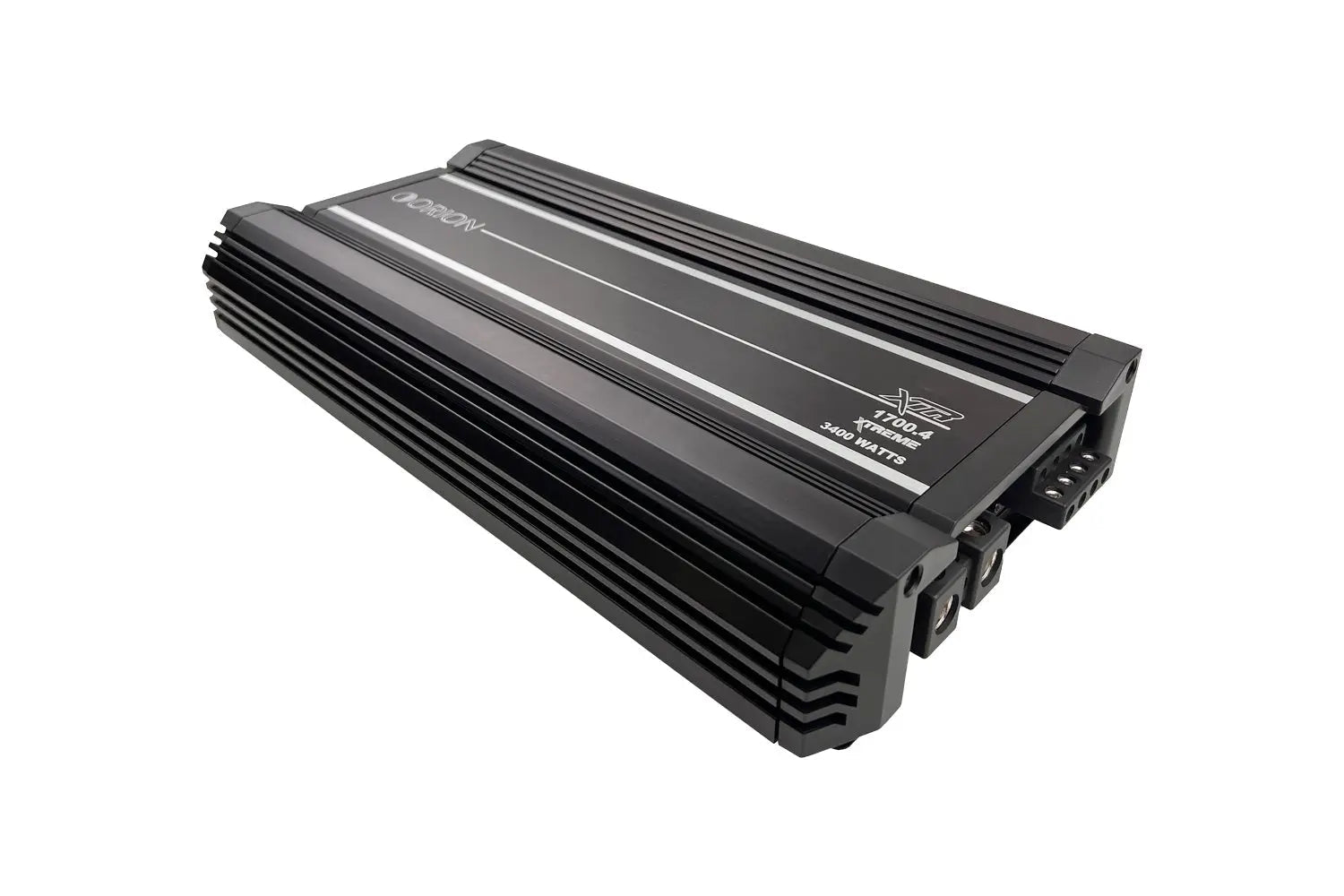

Orion XTR1700.4 1700W RMS 4-Channel Class AB Car Amplifier – High Power Full Range, Bass Boost, Adjustable Crossovers
Upgrade your car audio system with the ORION XTR1700.4, a high-power 4-channel Class-AB amplifier engineered for clean output, strong performance, and precise sound control. Designed for enthusiasts who want powerful full-range audio, it delivers 1700W RMS of dynamic, distortion-free sound.
Built with advanced engineering and premium components, this amplifier ensures accurate signal reproduction across all frequencies—delivering clear highs, detailed mids, and powerful output for door speakers or full-range systems.
Features:
- 1700W RMS High-Power Output – delivers clean, dynamic, and powerful full-range sound performance
- High-Fidelity Class-AB Amplification – precise, low-distortion audio for detailed highs, mids, and bass
- Adjustable Crossovers & Bass Boost – fine-tune frequencies for optimized speaker performance and sound control
- 2-Ohm Stable Design – reliable operation for demanding aftermarket speaker systems
- Advanced 4-Way Protection Circuitry – safeguards against thermal overload, short circuit, DC offset, and voltage issues
Specifications:
RMS Power: 250W × 4 @ 4Ω (0.5% THD+N)
RMS Power: 425W × 4 @ 2Ω (0.5% THD+N)
RMS Power: 850W × 2 @ 4Ω (bridged mode, 0.5% THD+N)

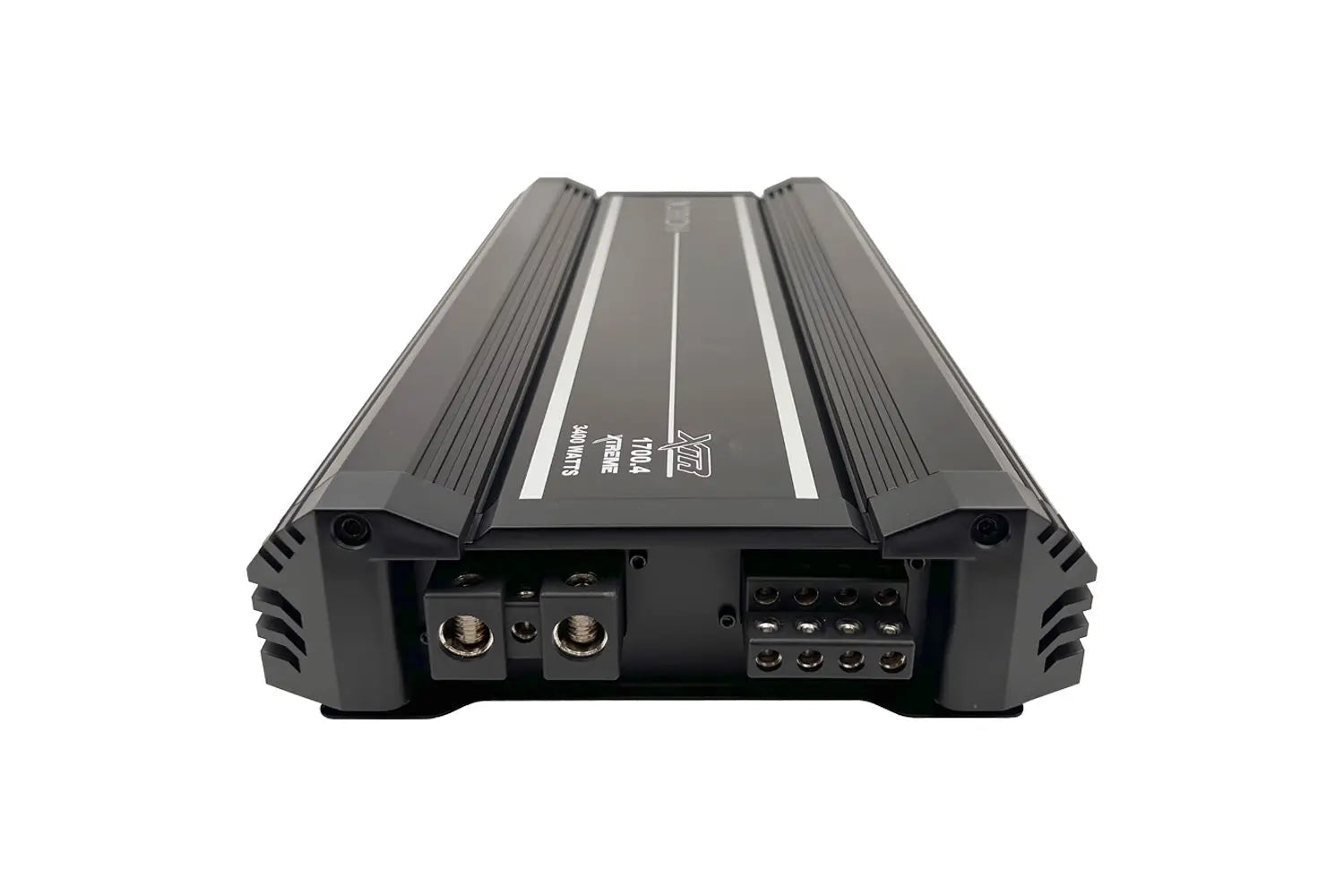

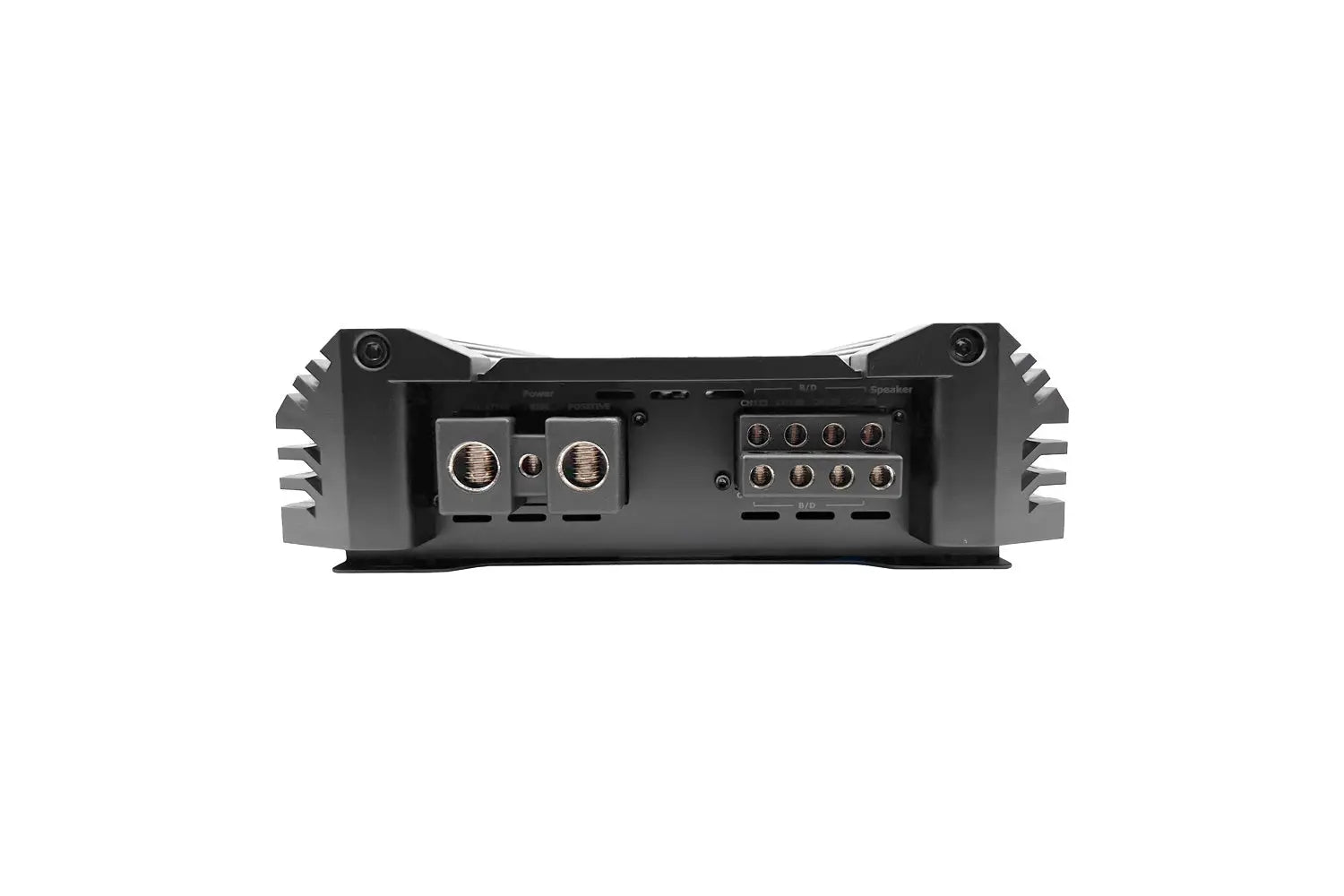

Positive Power Terminal: 1 × 0 AWG
Negative Power Terminal: 1 × 4 AWG
Remote Turn-On Wire: 10 AWG
Speaker Output Terminals: 10 AWG
Frequency Response: 20Hz – 35kHz
Linear Bandwidth: 20Hz – 65kHz (±3 dB)

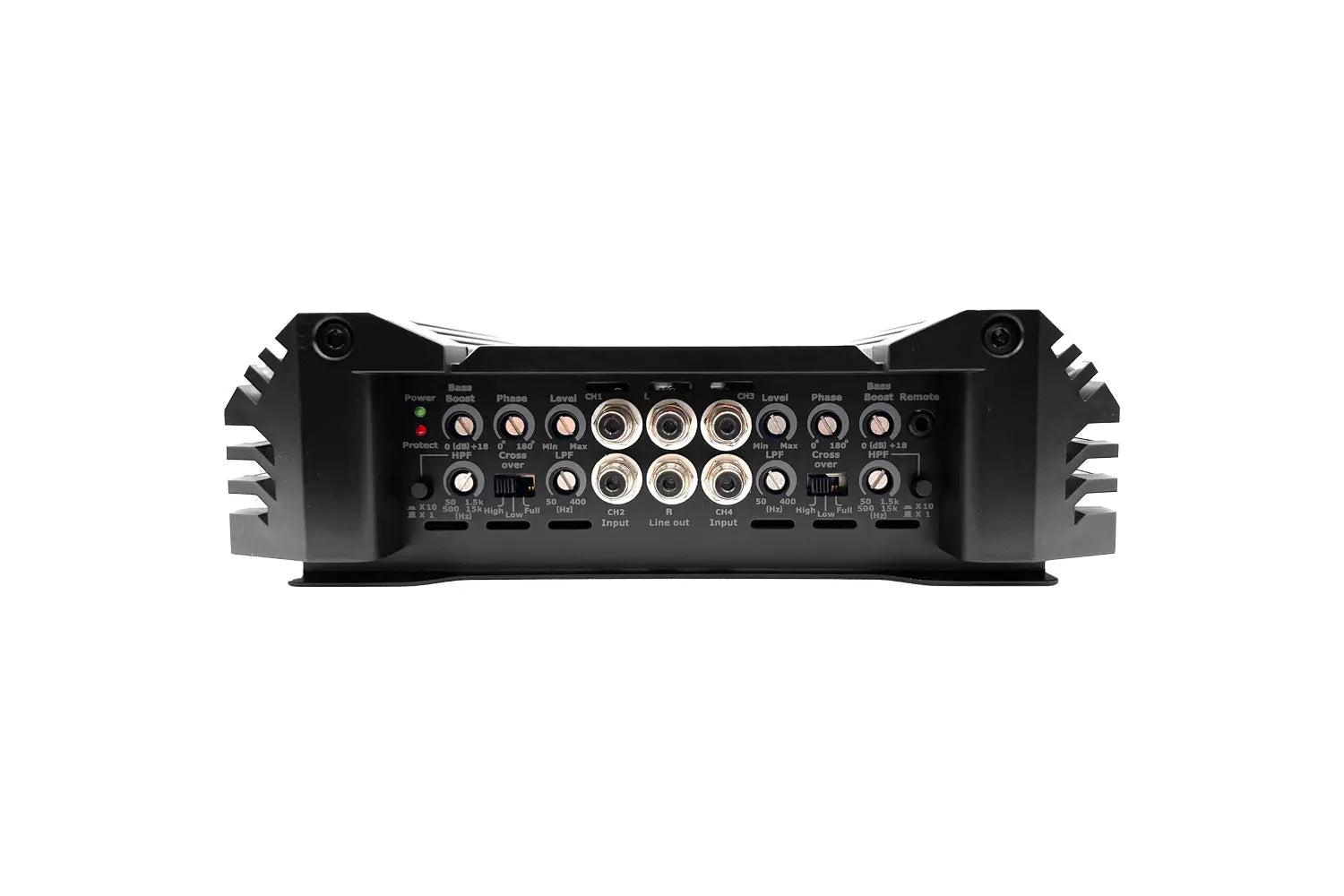

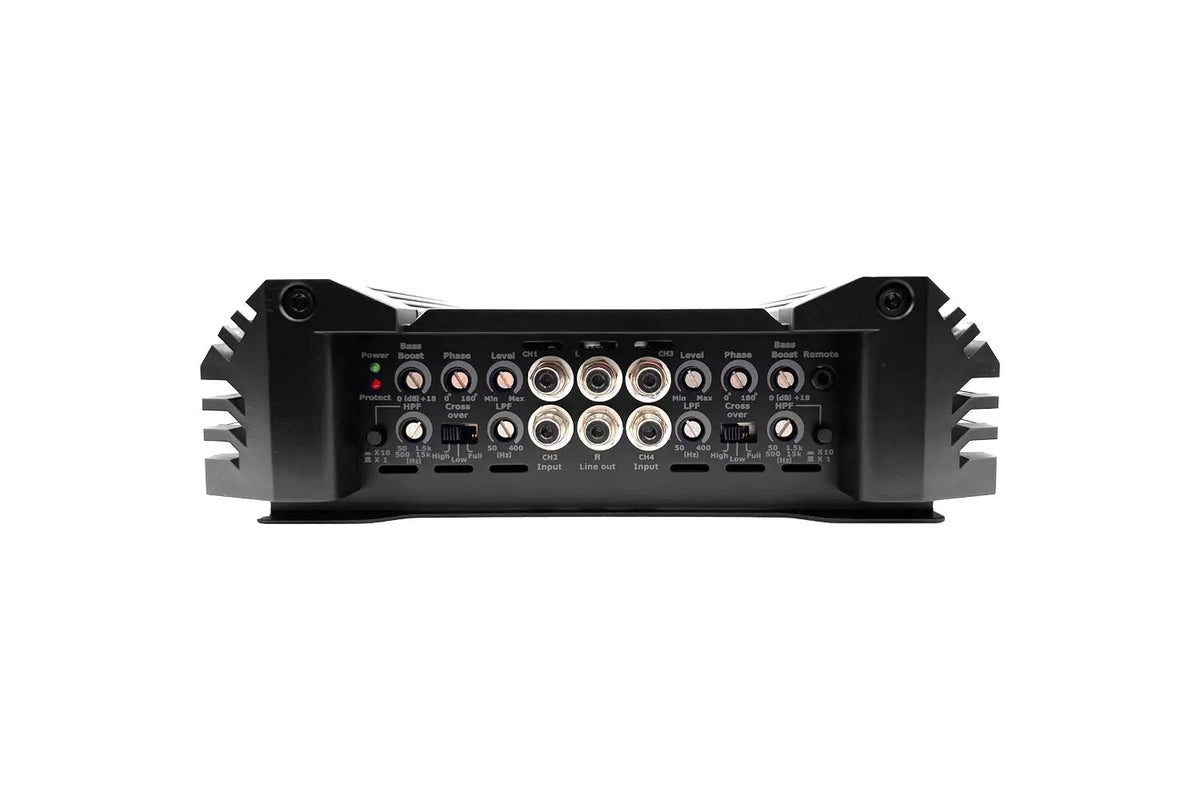

High Pass Crossover: 50Hz – 1.5kHz / 500Hz – 15kHz (continuously variable)
Low Pass Crossover: 50Hz – 400Hz (continuously variable)
Supply Voltage: 9V – 16V
Amplifier Efficiency: >60%
Damping Factor: 100dB
Signal-to-Noise Ratio: >95dB
THD + Noise: 0.5%
Phase Shift: 0° – 180°

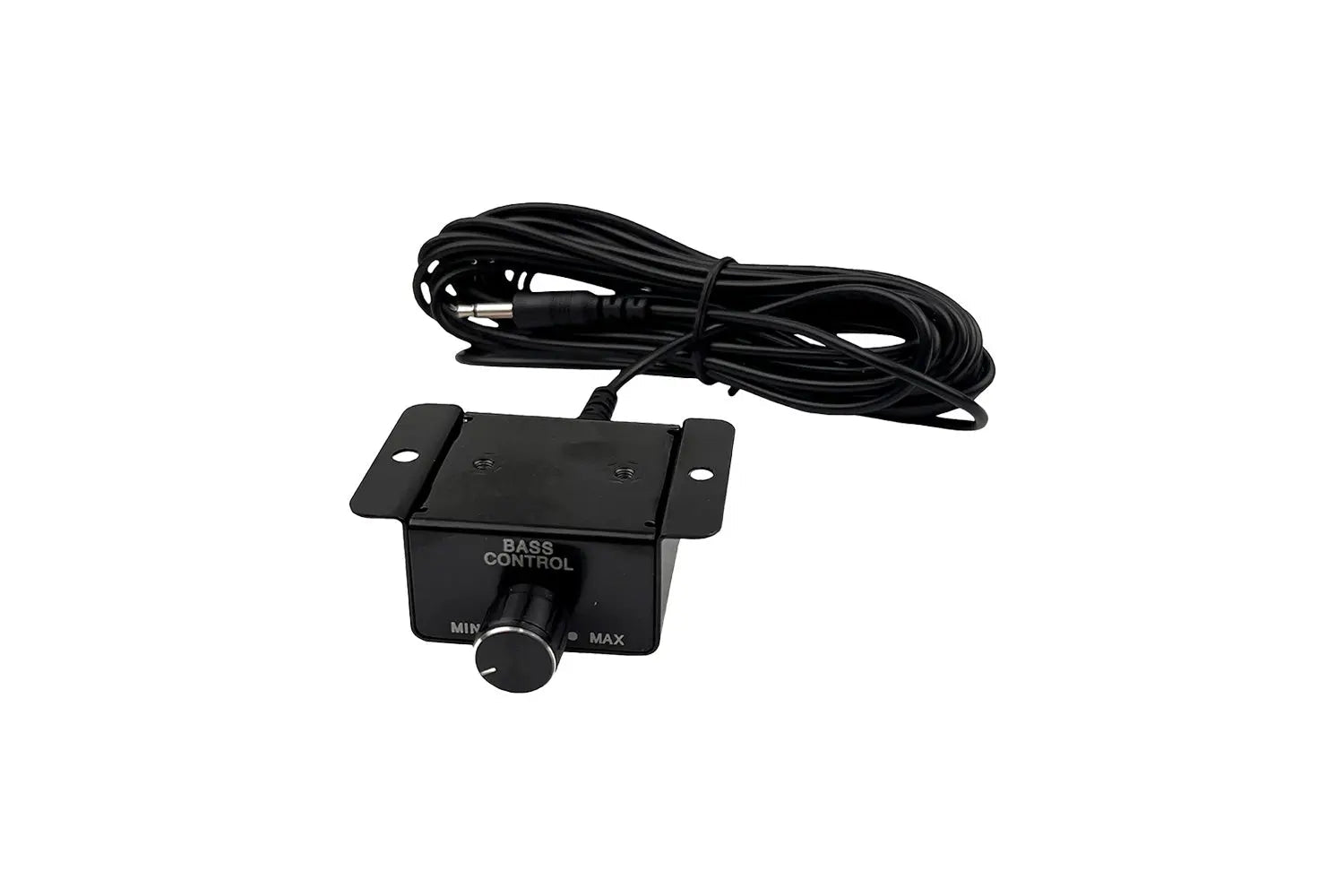

Bass Boost: 0 – 18dB (variable)
Input Level Control: 0.2V – 6.0V
Fuse Requirement: 150A (recommended)
Dimensions: 17.32" × 9.25" × 2.75" (440 × 235 × 70mm)
UPC: 818550010581
