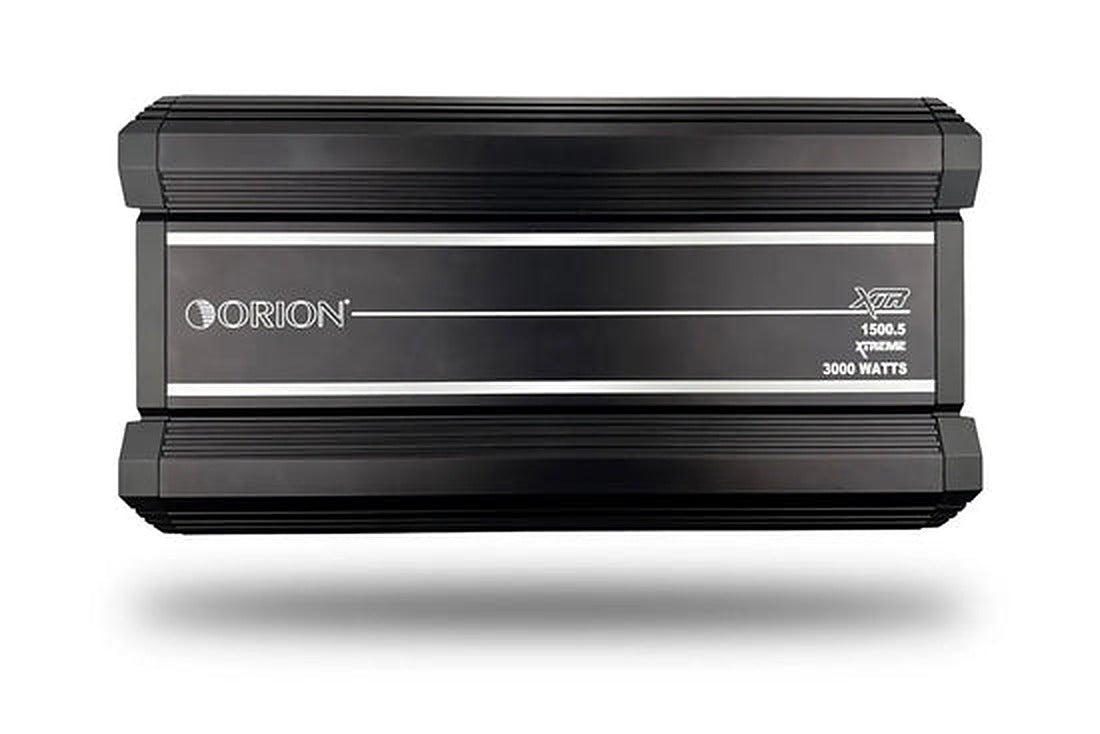

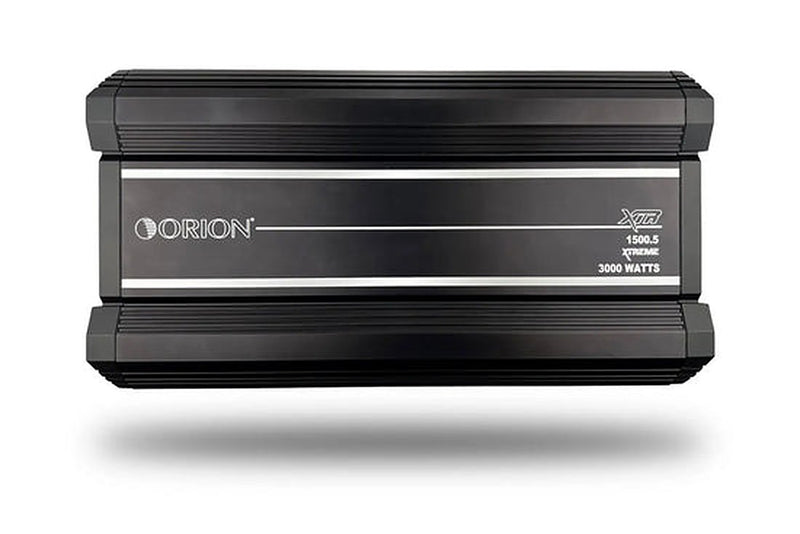

ORION XTR1500.5 XTR Series 1500W RMS 5-Channel Class-AB/D Amplifier
ORION XTR1500.5 XTR Series 1500W RMS 5-Channel Class-AB/D Amplifier
Experience the perfect blend of efficiency and versatility with Class AB/D amplification for powerful and accurate sound reproduction. Immerse yourself in a world of versatile audio excellence with 1500 Watts RMS, delivering balanced and clear sound performance. The amplifier's multiple channels provide flexibility for various speaker setups, enabling you to customize your audio experience. The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes. Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability. The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics. Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
Features:
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter
- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 90W + 1 x 380W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 125W + 1 x 650W
- RMS WATTS @ 1 Ohms @ 0.5% THD+N: 4 x ***W + 1 x 1000W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 250W + 1 x 380W
Power Terminal Management:
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
Specifications:
Frequency Response: 20Hz - 350kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable Channel 1-4: (50-5kHz)
- Low Pass Crossover Continuously variable Channel 1-4: (50-400Hz)
- Low Pass Crossover Continuously variable Channel 5: (50-250Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >60%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: ***A recommended (TBD)
- Dimensions (L x W x H): 17.32" x 9.25" x 2.75" (440x235x70mm)
UPC: 818550019997
