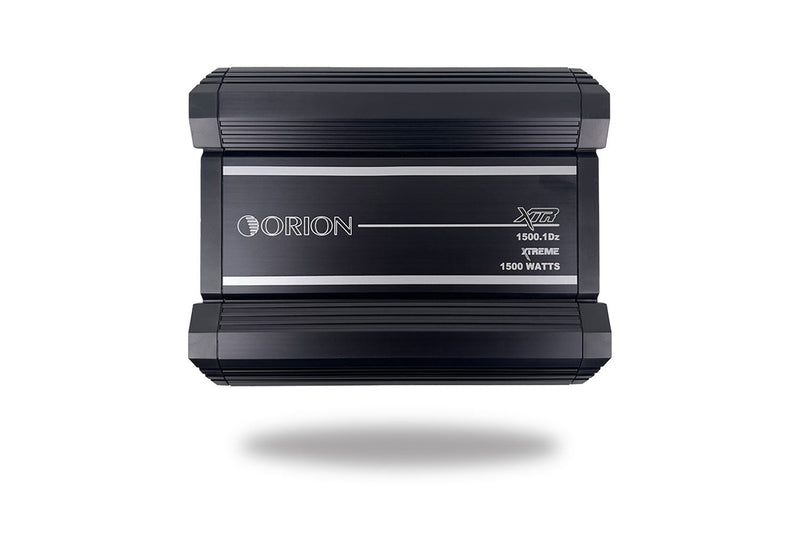

ORION XTR1500.1Dz XTR Series 1500W RMS 1-Channel Class-D Amplifier
ORION XTR1500.1Dz XTR Series 1500W RMS 1-Channel Class-D Amplifier
Experience the pinnacle of efficiency and precision with Class D amplification for commanding and accurate sound reproduction. Immerse yourself in a world of sonic excellence with 1500 Watts RMS, delivering unprecedented audio performance. The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes. Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability. The amplifier's compact design offers versatile installation options without compromising performance or aesthetics. Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
Features:
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter
- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS Power @ 4 Ohms @ 0.5% THD+N: 750W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 1050W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 1500W
- Linked with identical Amplifier
RMS Power @ 2 Ohms @ 0.5% THD+N: 3000W
Power Terminal Management:
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 0 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 4 AWG.
Specifications:
Frequency Response: 20Hz - 250Hz
Low Pass Crossover: 30Hz - 300Hz
Supply Voltage: 9 - 16V
Amplifier Efficiency: >88%
Damping Factor: 200dB
Signal to Noise Ratio: >90dB
T.H.D. & Noise: 0.5%
Phase Shift: 0 - 180
Bass Boost: 0-18dB Variable
Subsonic Filter: Off / 25Hz
Variable Input Level Control: 0.2V - 6.0V
Fuses: 150A recommended (not included)
Dimensions (L x W x H): 11.42" x 9.25" x 2.75" (290x235x70mm)
