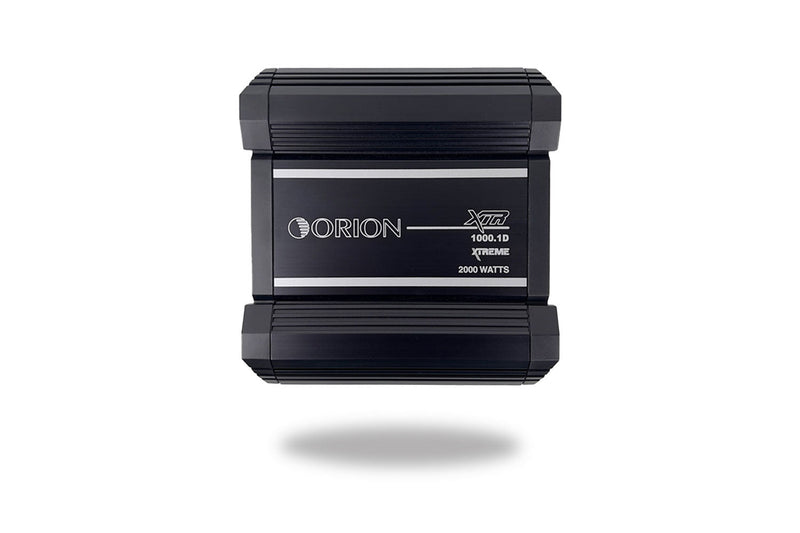

ORION XTR1000.1D XTR Series 1000W RMS 1-Channel Class-D Amplifier
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
ORION XTR1000.1D XTR Series 1000W RMS 1-Channel Class-D Amplifier
Unleash Auditory Excellence
The ORION XTR1000.1D XTR Series 1000W RMS 1-Channel Class-D Amplifier sets the stage for unrivaled audio performance. Through advanced features and precision engineering, this amplifier transcends boundaries, delivering powerful, accurate, and controlled sound to your car audio system.
Immersive Sound Reproduction
Rediscover your music in its truest form. Every note, beat, and melody – from the gentlest to the most intense – is meticulously reproduced for an immersive and authentic listening experience.
Power and Precision Combined
Experience your music with newfound depth and clarity. The ORION XTR1000.1D XTR Series Amplifier seamlessly blends commanding power with impeccable audio quality, creating an unforgettable auditory journey.
Elevate Your Drive
Enter the realm of sonic mastery with the ORION XTR1000.1D XTR Series 1000W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.
Features:
Class D Amplification - Experience the efficiency and precision of Class D amplification for powerful and accurate sound reproduction.
1000 Watts RMS -
Immerse yourself in a realm of sound with 1000 Watts RMS, delivering an impactful and dynamic audio performance.
Precision Audio Control -
The adjustable built-in crossover enables meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement -
Elevate your low frequencies with the adjustable bass boost feature, delivering resonant and impactful bass notes.
Advanced Protection Measures -
Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Efficient Design -
The amplifier's compact design ensures versatile installation options without compromising performance.
Engineered Excellence -
Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter
Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS Power @ 4 Ohms @ 0.5% THD+N: 510W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 790W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 1080W
POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 12 AWG.
Speaker Output Terminals: 12 AWG.
Specifications:
- Frequency Response: 15Hz - 250Hz
- Linear Bandwidth 15Hz to 250Hz +/- 3 dB
- Low Pass Crossover: 30Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >80%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 25Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 80A recommended (2 x 40A ATC Fuses)
- Dimensions (L x W x H): 8.66" x 9.25" x 2.75" (220x235x70mm)
UPC: 818550010598
