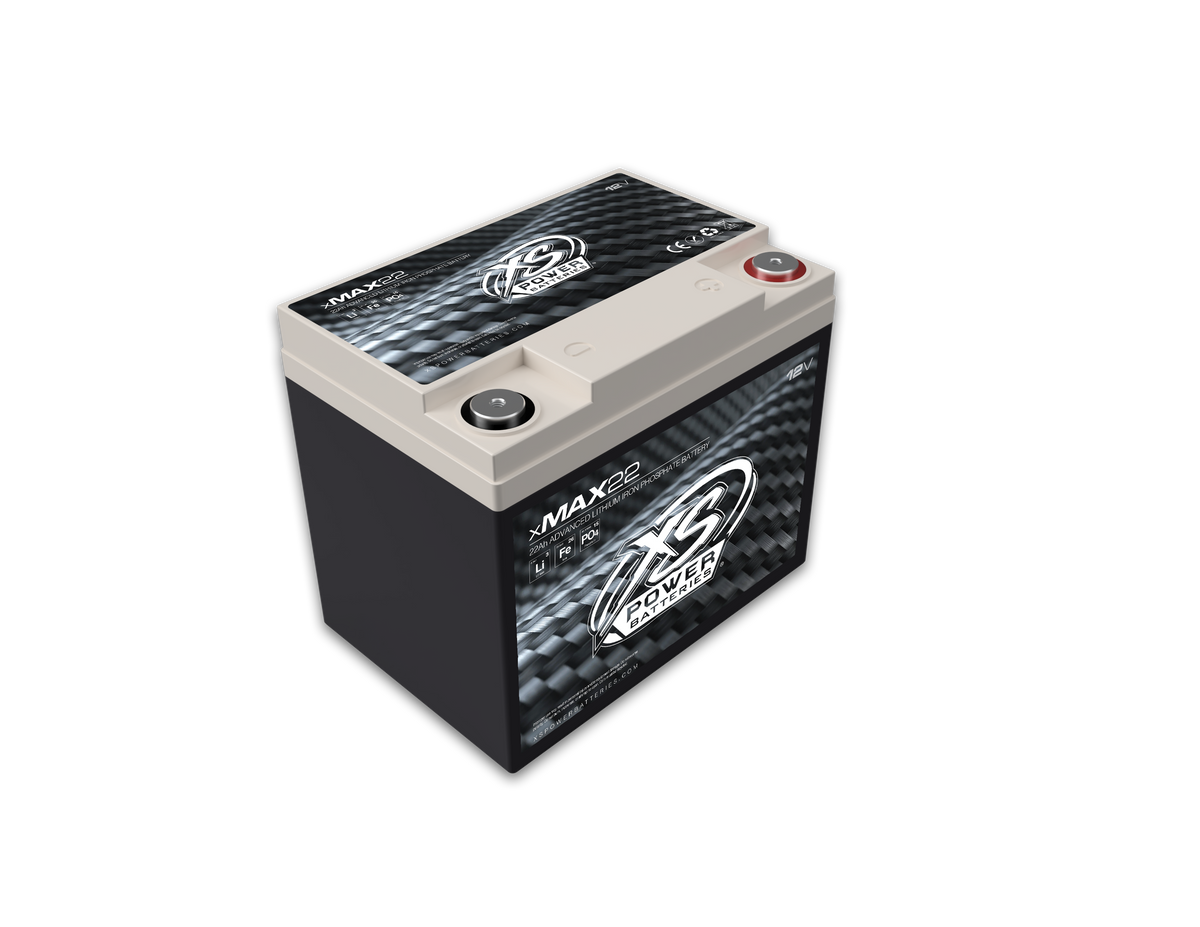

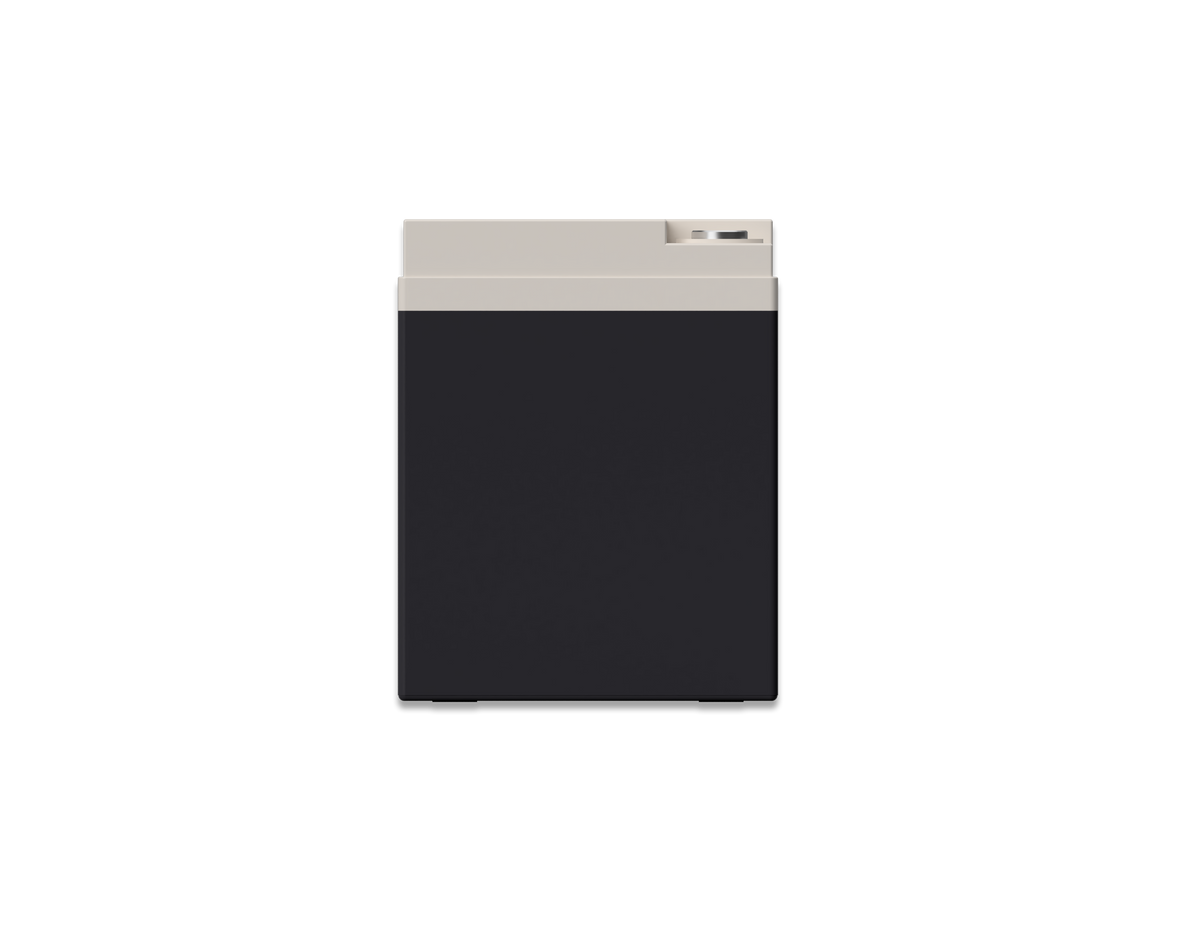

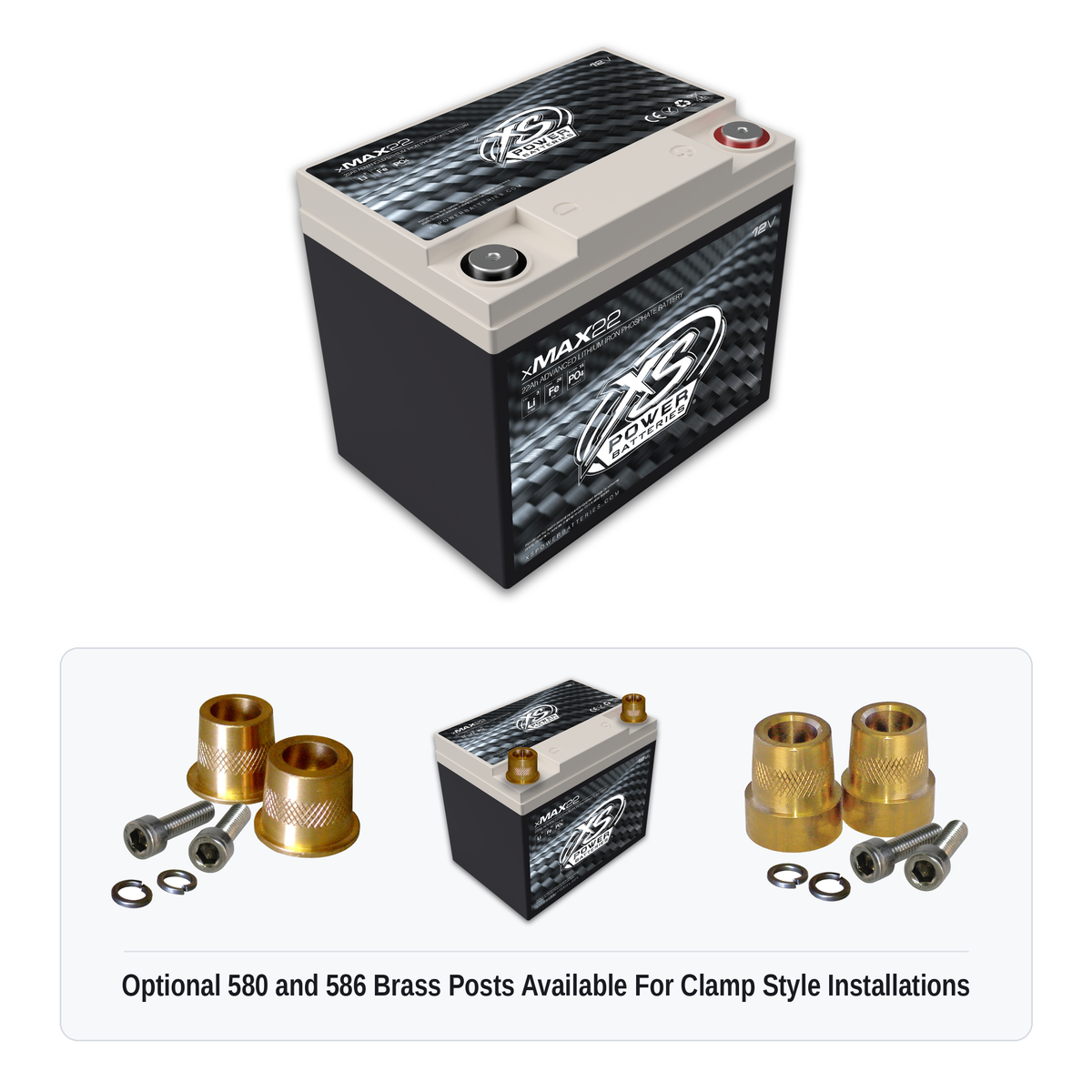

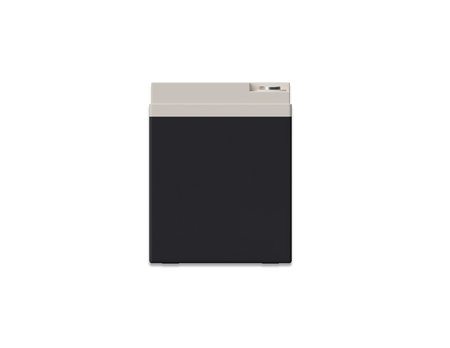

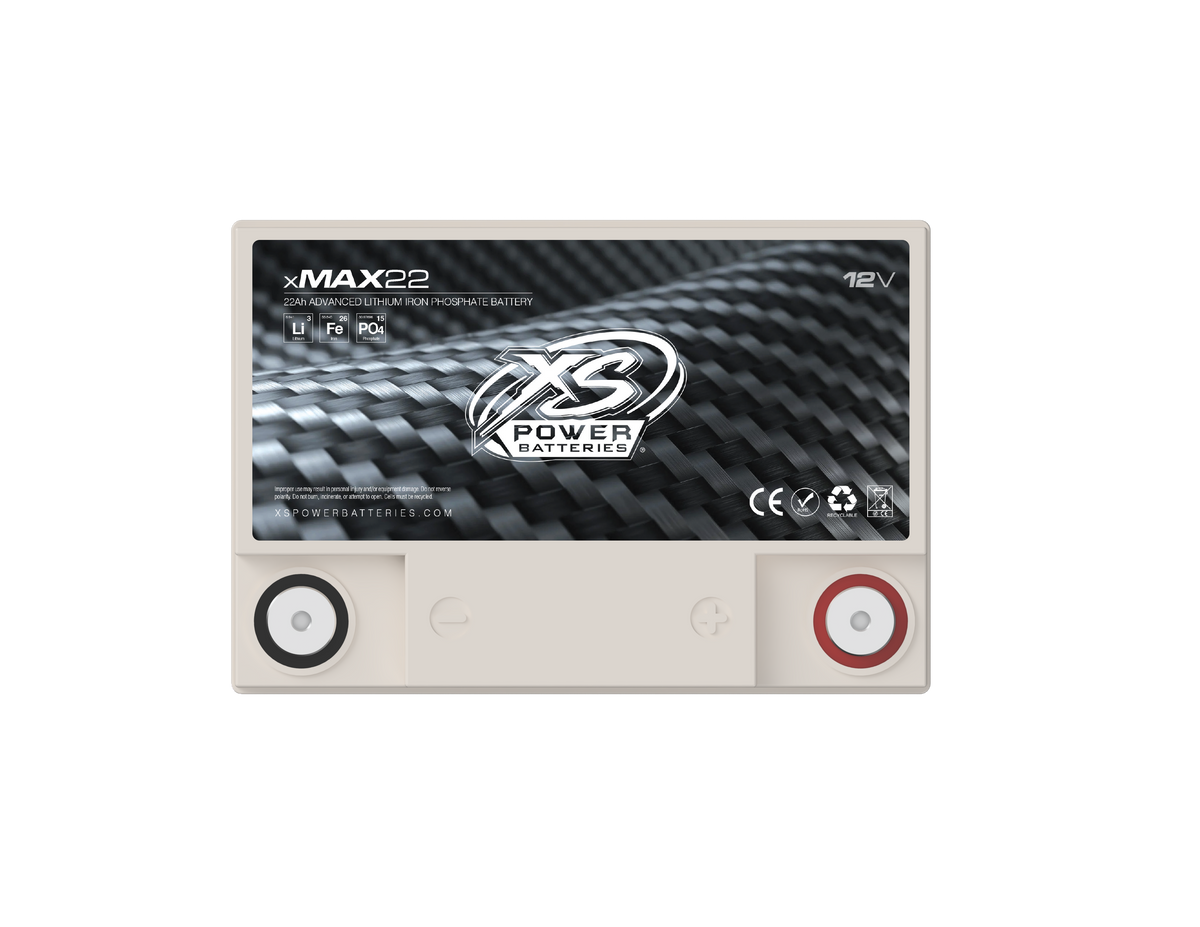

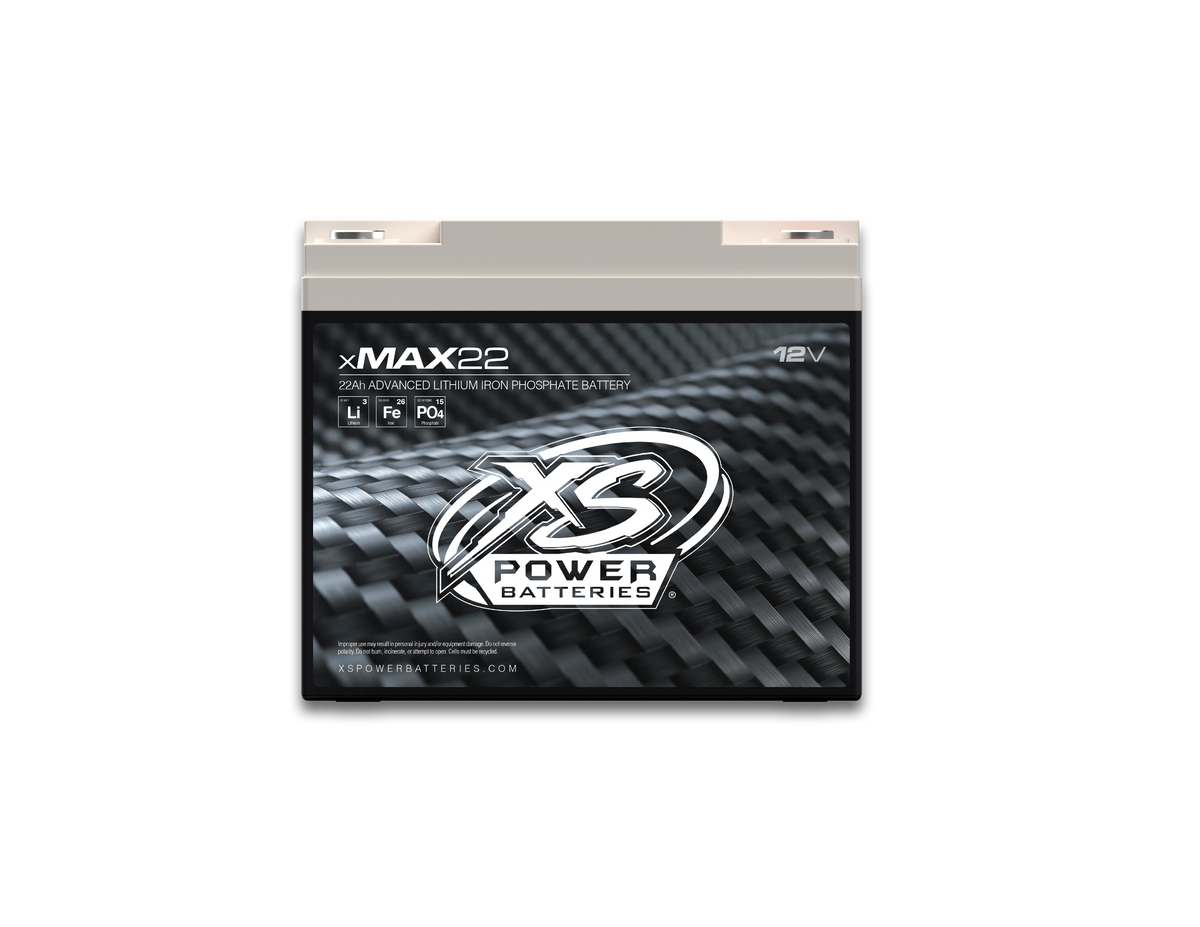

XS Power xMAX 22 12V Lithium Car Audio Battery - 22.5Ah, 2,500W Continuous, 5,000W Burst, Group U1R
The XS Power xMAX 22 is a compact 12-volt lithium iron phosphate (LFP) battery for car audio systems where space is tight but power demands are high. It supports 2,500 watts of continuous music power and up to 5,000 watts burst, with strong voltage stability and minimal voltage sag under load.
It stores 22.5 amp hours, delivers up to 2,050 amps, weighs 7.8 lbs and comes in a Group U1R size. Fast charge and discharge performance make it a good match for high-output amplifiers and competition-style SPL systems.
The xMAX 22 is meant to be a supplemental battery, ideally paired with other xMAX batteries for more capacity. If you pair it with AGM batteries, XS Power recommends isolating them with a battery isolator and using AGM batteries less than one year old. It requires a lithium-specific charger, accepts up to 130 amps of standalone alternator input, and is not rated for under-hood or marine use.
HIGHLIGHTS:
- 12V lithium iron phosphate (LFP) chemistry
- 22.5 Ah capacity, 2,050 max amps
- 2,500W continuous (music), 5,000W burst
- Compact Group U1R size, 7.8 lbs
- Max standalone alternator input: 130 amps
- 4-year warranty
GREAT FOR:
- Supplemental power for high-output amplifiers
- Competition-style SPL systems
- Adding capacity alongside other xMAX batteries
SPECIFICATIONS:
| SERIES | xMAX |
| VOLTAGE | 12V |
| CHEMISTRY | Lithium Iron Phosphate (LFP) |
| AMP HOURS | 22.5 Ah |
| MAX AMPS | 2,050 |
| CONTINUOUS WATTAGE (MUSIC) | 2,500 Watts |
| BURST / BURST SPL WATTAGE | 5,000 Watts |
| GROUP SIZE | U1R |
| MAX STANDALONE ALTERNATOR INPUT | 130 Amps |
| WEIGHT | 7.8 lbs |
| CHARGER | Lithium-specific charger required |
| INSTALLATION | Not rated for under-hood or marine use |
| WARRANTY | 4 Years |
| SOLD AS | Each |
| BRAND | XS Power |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Electrical That Keeps Up
Power to Run the System You Built
Stable Voltage Under Load
Holds voltage when the system pulls hard, so lights stay steady and amplifiers do not cut out.
Built for Audio Draw
High-output designs are made for heavy current and repeated deep discharge, unlike a standard starting battery.
Size It to the System
Match capacity and charging output to the total draw of your amplifiers. The specs list what this unit delivers.
Safe Installation
Correct fusing, cable gauge and secure mounting are essential on any high-current upgrade.
