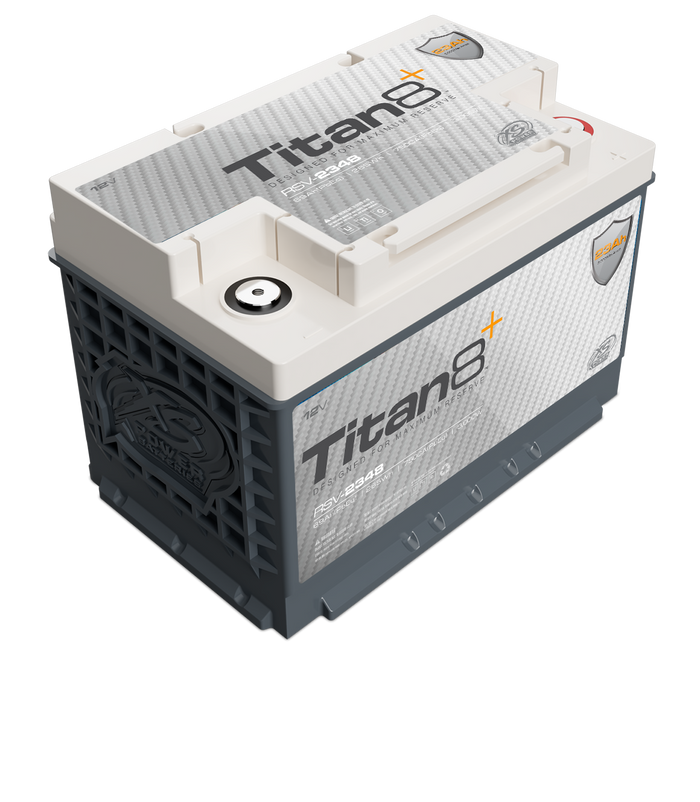

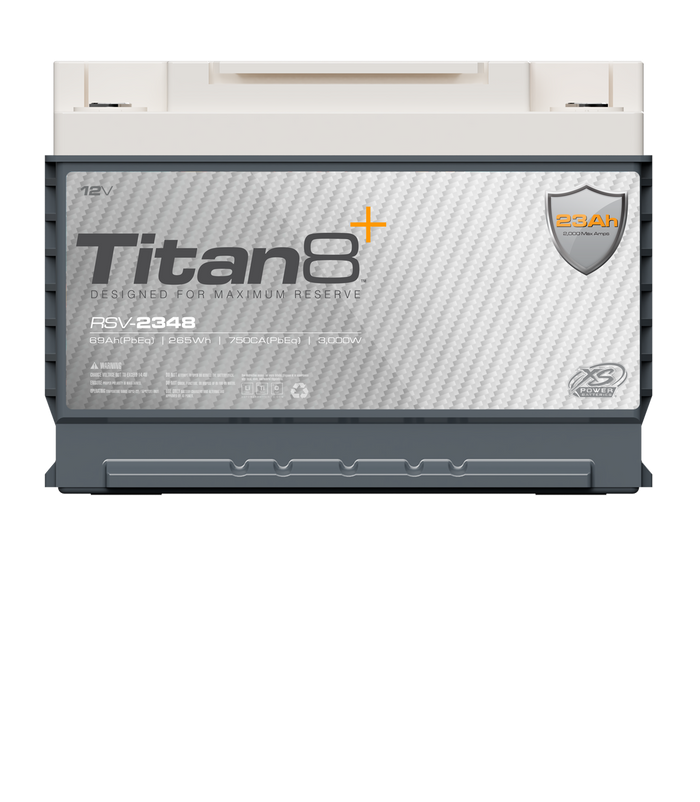

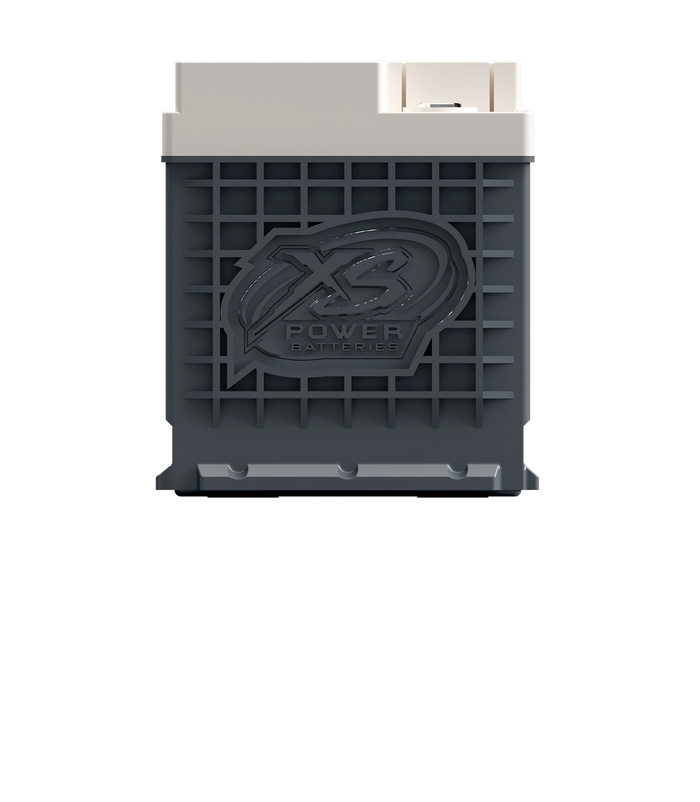

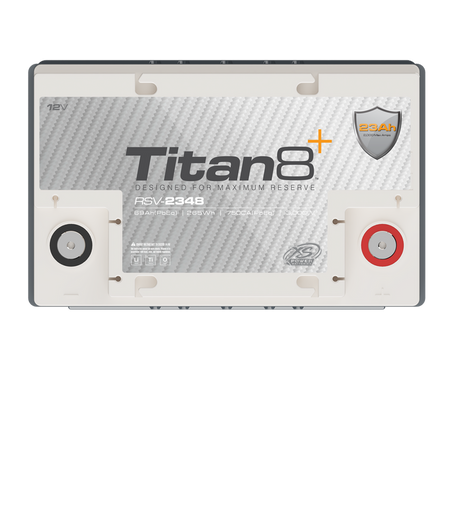

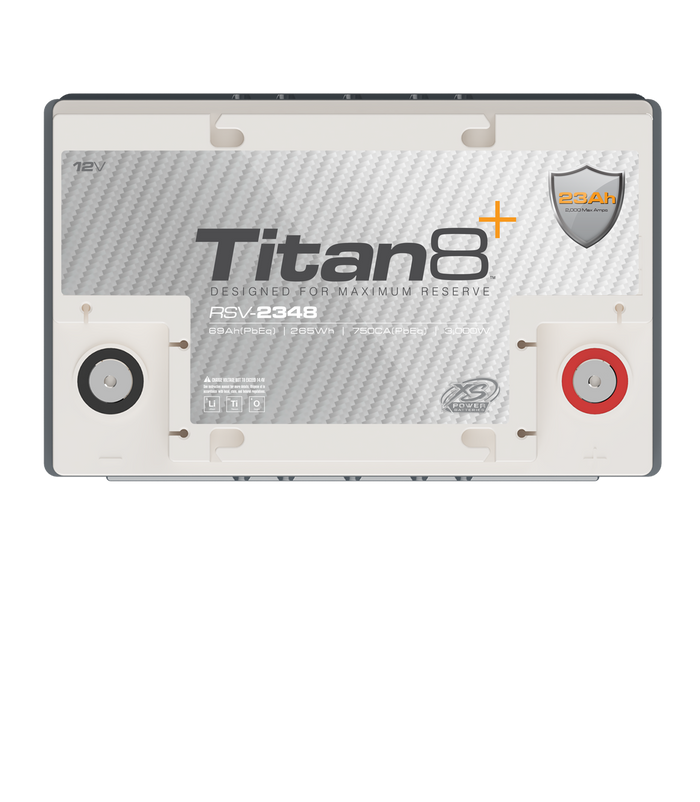

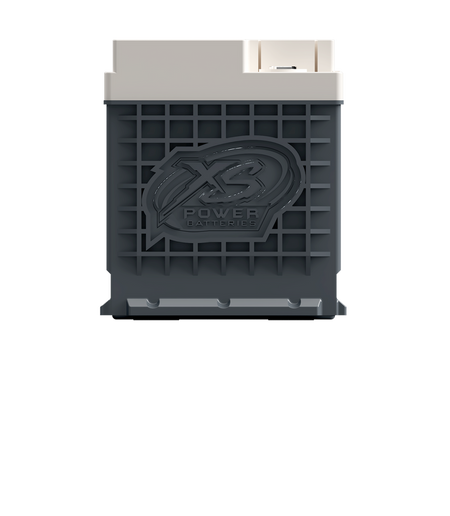

XS Power RSV-23-4800 High Output AGM Battery 12V
Upgrade your vehicle’s power with the XS Power Titan8 RSV-23-4800 Group 48/H6 lithium battery. Delivering 750 cranking amps and a 69Ah reserve capacity, it provides reliable starting power and consistent performance for daily drivers, performance vehicles, and car audio systems. Built with advanced Titan8 lithium technology, it charges faster, weighs less, and lasts up to 4x longer than traditional AGM batteries.
Features:
- Advanced Titan8 Lithium Technology – Delivers faster charging, higher efficiency, and up to 4x longer lifespan than traditional AGM batteries.
- Strong Starting Power – Produces 750 cranking amps for reliable engine starts in demanding conditions.
- High Reserve Capacity – 69Ah PBeq capacity supports modern electronics, aftermarket accessories, and car audio systems.
- Lightweight High-Performance Design – Provides powerful energy storage with reduced weight for daily drivers, performance builds, and audio applications.
Specifications:
Brand: XS Power
Model: RSV-23-4800
Battery Type: Titan8 Lithium (LTO)
BCI Group Size: 48 / H6 / DIN L3
Voltage: 12V
Max Amps: 5,000A
Cranking Amps (CA): 500A
CA Pb Equivalent: 750A
Amp Hour (Ah): 23Ah
Ah Pb Equivalent: 69Ah
Energy Capacity: 265Wh
Recommended Wattage Support: 3,000W–5,000W
Terminal Hardware: M6 Included
Polarity: Left Positive (L)
Length: 10.94"
Width: 6.93"
Height: 7.48"
UPC: 810111136273
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Electrical That Keeps Up
Power to Run the System You Built
Stable Voltage Under Load
Holds voltage when the system pulls hard, so lights stay steady and amplifiers do not cut out.
Built for Audio Draw
High-output designs are made for heavy current and repeated deep discharge, unlike a standard starting battery.
Size It to the System
Match capacity and charging output to the total draw of your amplifiers. The specs list what this unit delivers.
Safe Installation
Correct fusing, cable gauge and secure mounting are essential on any high-current upgrade.
