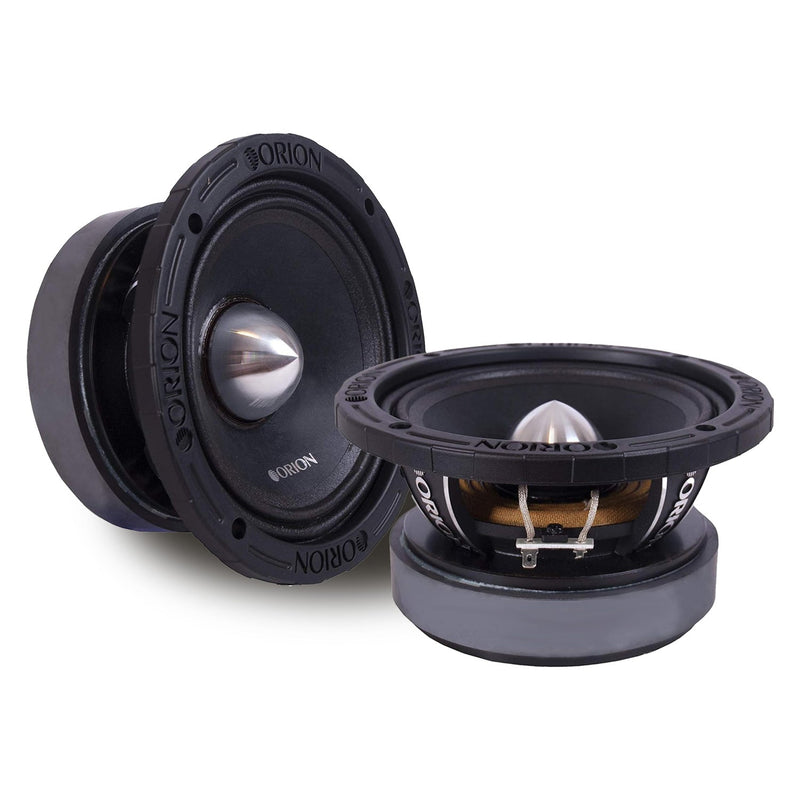

ORION XPM654MBF 6.5" Midbass Speakers 1600 Watts

Orion XPM654MBF 6.5" midbass speakers are designed for high-output car audio systems that need powerful midbass response and efficient sound reproduction. Rated at 400W RMS and 1,600W Max power per the supplied specifications, these 4-ohm speakers combine a 2-inch voice coil, 99.1dB sensitivity, cast basket, non-pressed paper cone, and billet aluminum phase plug for a durable high-performance design. The 54-ounce ferrite magnet provides the motor structure needed for demanding applications, while the compact 6.5-inch format allows flexible installation in custom car audio builds. Sold as a pair, the XPM654MBF is a strong upgrade for listeners looking for louder, deeper, and more impactful midbass from their vehicle audio system.

Key Features

• 6.5" Midbass Speakers sold as a pair
• 400W RMS / 1,600W Max Power for high-output systems
• 99.1dB Sensitivity for efficient sound output
• 4-Ohm Impedance for amplifier flexibility
• 2" Voice Coil designed for high-power applications
• Cast Basket for a strong and rigid speaker structure
• Non-Pressed Paper Cone for responsive midbass reproduction
• Billet Aluminum Phase Plug for a premium speaker design
• 54 Oz Ferrite Magnet for powerful motor performance
• 3.28" Mounting Depth for custom installation applications

Built for Powerful Midbass

The XPM654MBF focuses on the frequencies that give music its punch and impact. Its 400W RMS power handling and 99.1dB sensitivity make it well suited to systems where strong output is a priority without moving to a larger speaker size.

Technical Specifications

*The supplied source lists the frequency response as “230 kHz - 9 kHz,” which appears to be a typo. 230Hz-9kHz is presented here as the likely intended specification, but it should be verified against Orion's official product data before publishing.

Installation Dimensions

With a 5.75-inch cutout diameter, 7-inch overall diameter, and 3.28-inch mounting depth, the XPM654MBF can be planned into custom speaker locations where these dimensions are compatible. Check the available mounting space before installation.

What's Included

• 2 × Orion XPM654MBF 6.5" Midbass Speakers
