Universal Camera for Front/Rear Position Selectable with Adjustable AHD/CVBS System

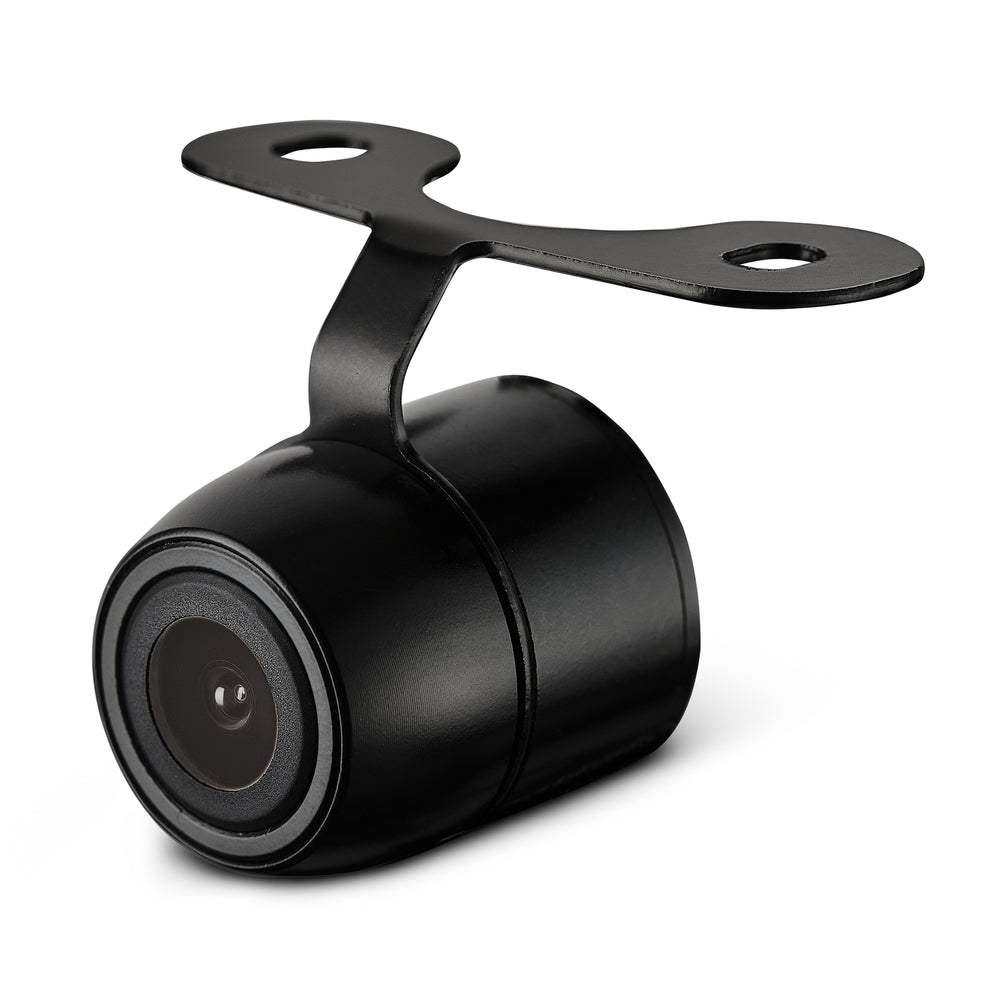

DS18’s AHDRC is the ultimate solution for vehicle safety and convenience. This universal camera can be used as a front, rear, or interior view camera, featuring a selectable AHD/CVBS system for flawless compatibility across a broad range of devices. Designed with precision, the AHDRC features a 150° wide-angle lens that captures an expansive view of your surroundings, while advanced night vision capabilities provide superior clarity and confidence on the road. The AHDRC comes fully equipped with everything you need for a seamless setup: a surface mount bracket, flush mount ring, RCA wire harness, and more. Its adjustable viewing angle of up to 45° allows for perfect positioning to suit any application.
Features:
- Back Up Camera
- Surface Mount ~ Front or Rear
- High Resolution / Low Illumination
- Full Color, Parking Guide
- AHD / CVBS Systems
- Water Proof IP68
Specifications:
Camera Type: 12V AHD/CVBS
Mounting Type: Universal Surface or Flush mount
Location Mode (Front/Rear): Front or Rear
Adjustable Modes: Front/Rear, Parking Lines ON/OFF, AHD/CVBS
Parking Guide Lines: Selectable (ON-OFF)
Night Vision: Yes
Lens Material: Glass-Plastic Hybrid (1G3P)
Housing Material / Color: Aluminum / Black
Adjustable Mount Angle: Yes up to 45°
Waterproof Rating: IP68
Wiring Length (Video): 20ft / 6m
Wiring Length (Power): 3ft / 1m
Lens Viewing Angle: 150°
Image Sensor Size: 1/4.5"
TV System: AHD 25 / NTSC
Effective Pixels: 1080x720 (AHD) / 640x480 (CVBS)
Resolution: Up to 720P
Minimum Illumination: 0.1 lux
Video Output: 1.0 Vp-p / 75 ohms
Auto Gain Control (AGC): Yes
Black Light Compensation (BLC): Yes
S/N Ratio: >48dB
White Balance: Yes
Electronic Shutter: Electronic Rolling Shutter
Current Consumption: 80mA
Operating Voltage: 8-15V
Operating Temperature: -4°F~140°F / -20°C~60°C
Storage Temperature: -22°F~158°F / -30°C~70°C
Measurements:
Overall Length: 1" / 27mm
Overall Diameter: 0.88" / 22.5mm
Mounting Hole Diameter: 0.7" / 18mm

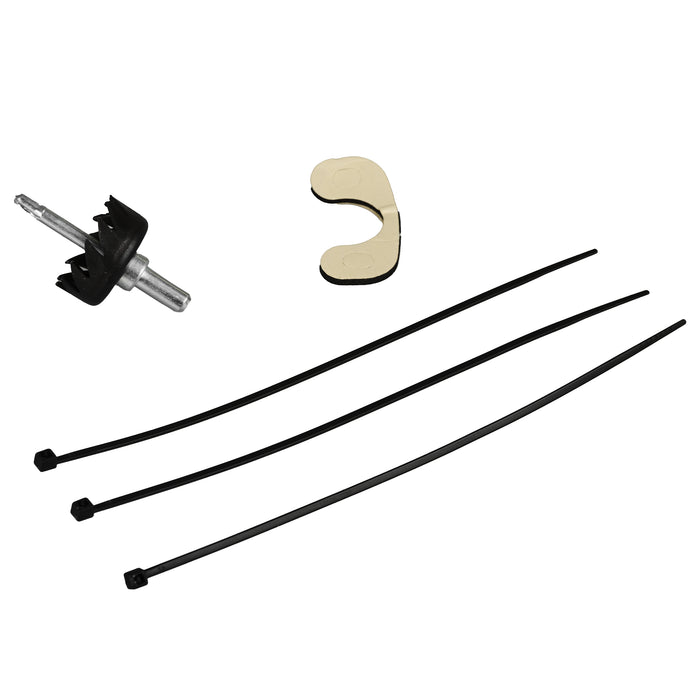

Accessories Included:

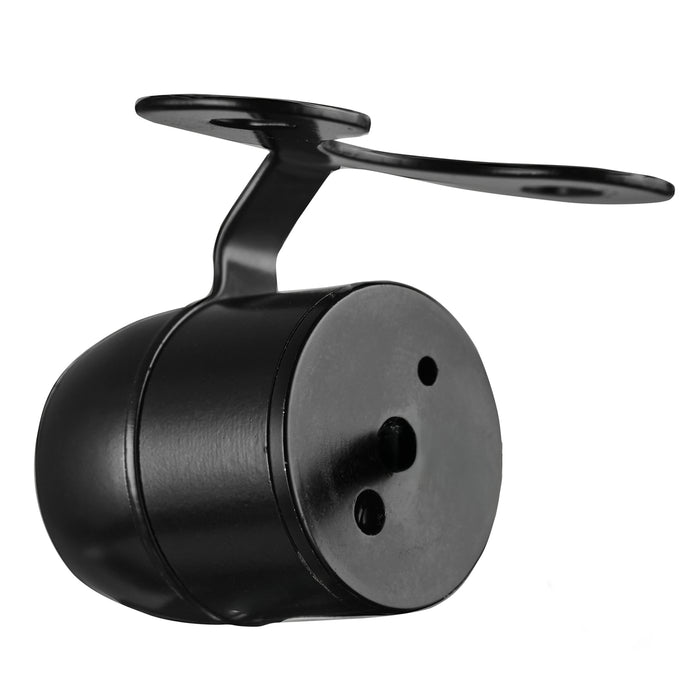

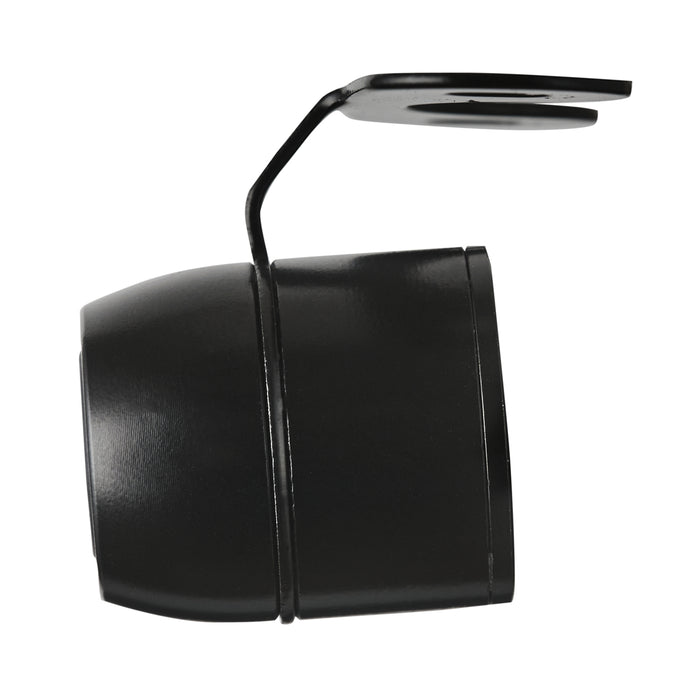

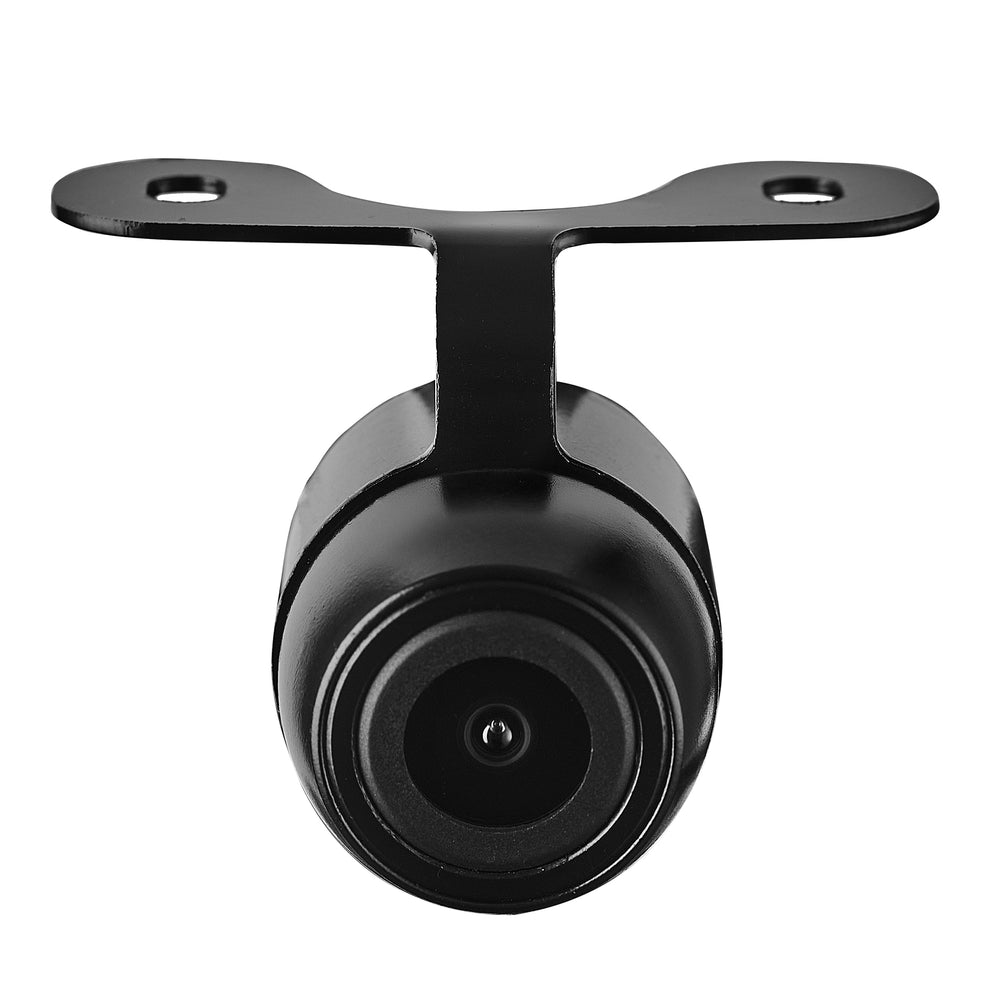

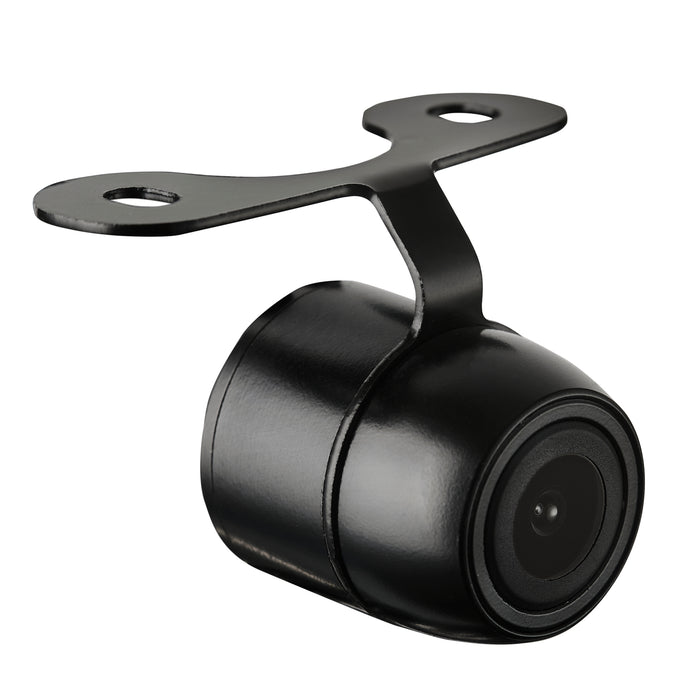

Bracket for Surface Mounting: 1pc
Double-Side Foam Tape for Surface Mounting: 1pc
Screws for Surface Mounting: 2pcs (PWA 3x10mm)
Hole Saw for Flush Mounting: 1pc (22.5mm)

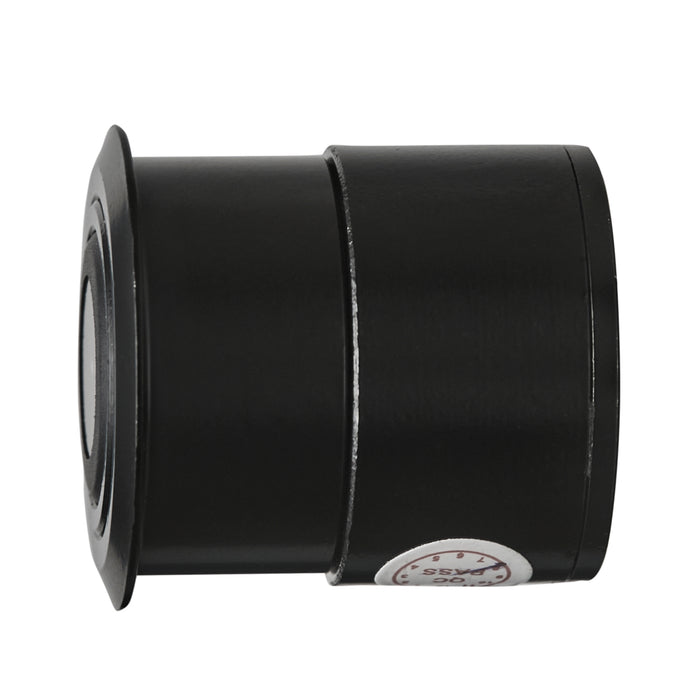

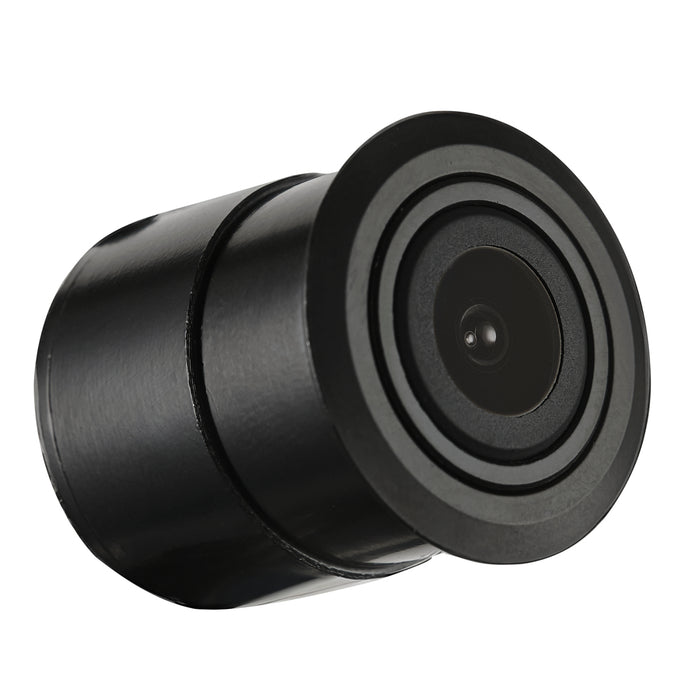

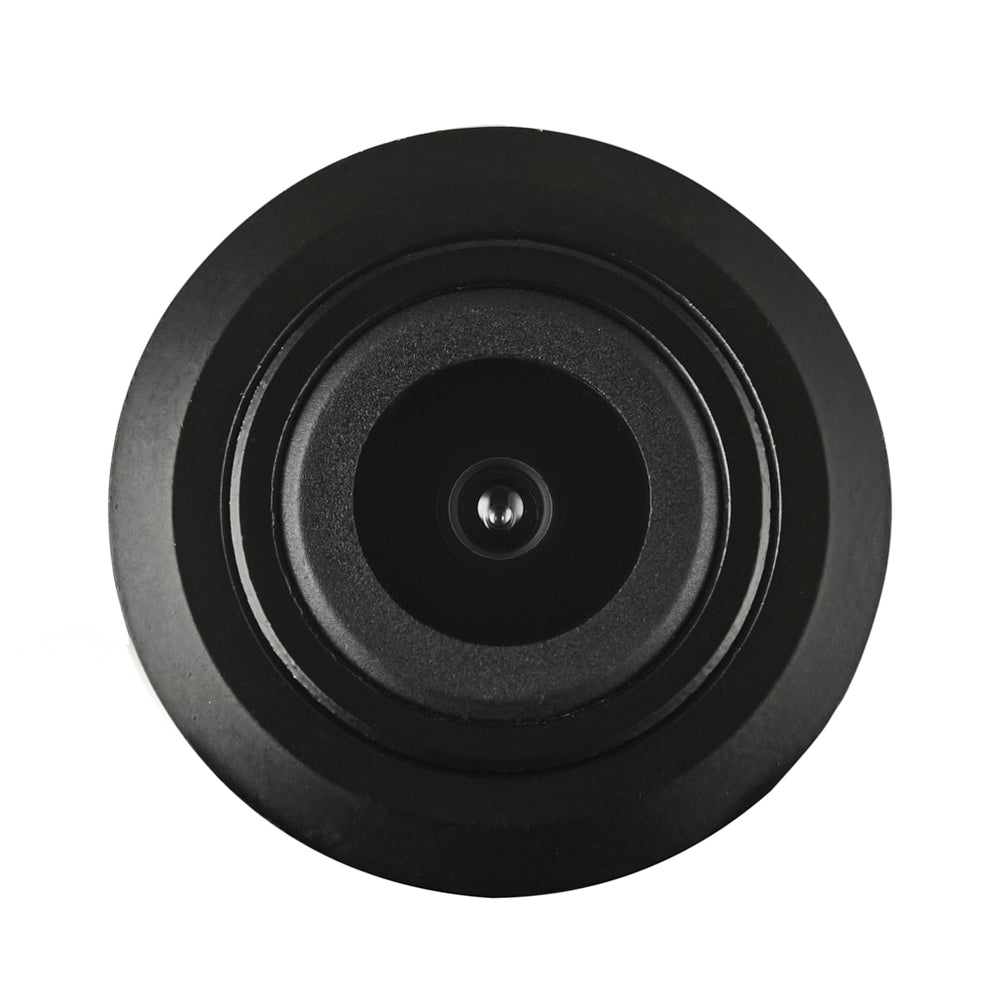

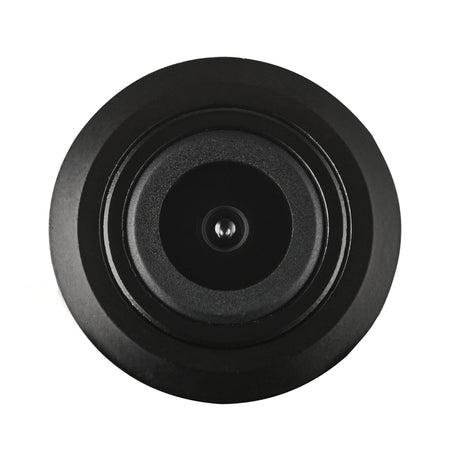

Ring for Flush Mounting: 1pc

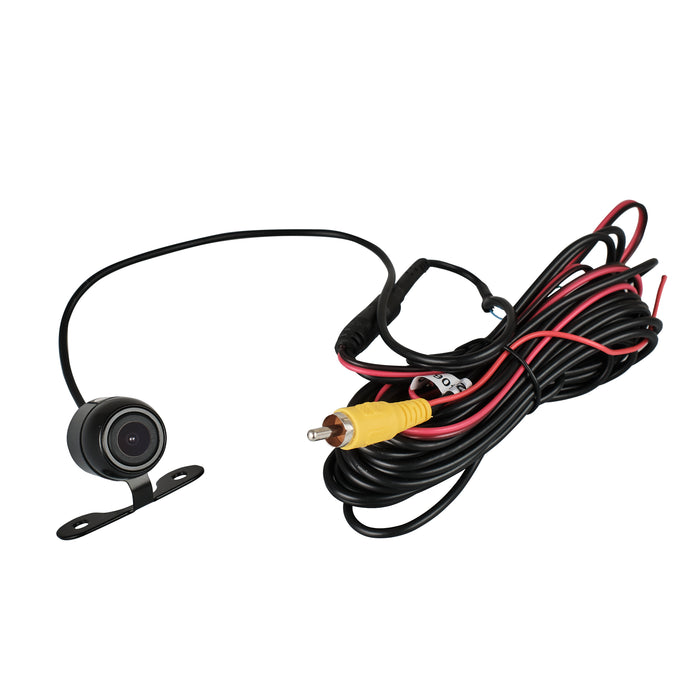

RCA Wire: 1pc (20ft/6M)
Cable Ties: 4pcs (3x150mm)
| Feature | Specification |
|---|---|
| Model | AHDRC Universal Camera |
| Position | Front / Rear / Interior (Selectable) |
| Sensor / Lens | 1/4.5″ sensor, 150° wide-angle lens |
| TV System | Switchable AHD 720p / CVBS |
| Resolution | AHD: 1080×720, CVBS: 640×480 |
| Night Vision | Yes |
| Parking Guide | Selectable ON/OFF |
| Adjustable Angle | Up to 45° |
| Housing | Aluminum, IP68 waterproof |
| Mounting | Surface or flush mount (bracket & ring included) |
| Video Output | 1.0 Vp-p / 75 Ω |
| Power | 12 V, 80 mA |
| Dimensions | 1″ (L) × 0.88″ (Ø); flush mount hole Ø 0.7″ |
| UPC | 810097266537 |
