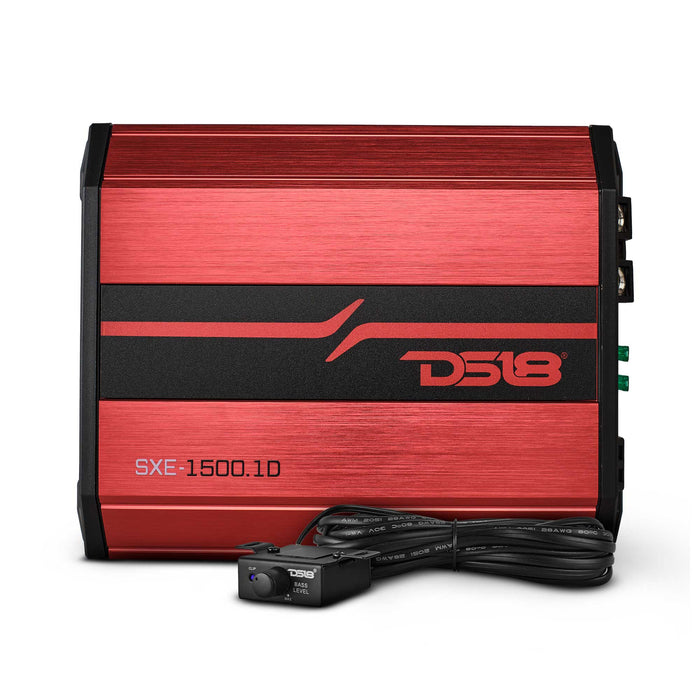

SXE Class D Monoblock Car Amplifier 1 x 500 Watts RMS @ 1 Ohm 1500 Watts - Compact Amplifier with Remote Subwoofer Level Control (Red)

In stock
SKU: DS-SXE-1500.1D/RD
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $169.95 USD

The SXE-1500.1D is the perfect companion for rich, powerful bass! This 1500W Monoblock amplifier is engineered to get LOUD!

With RMS power ratings of 200W at 4 ohms, 350W at 2 ohms, and 500W at 1 ohm, it delivers exceptional performance for any subwoofer setup. Designed in a compact size for easy installation, the SXE-1500.1D fits perfectly into all setups without sacrificing space. Its Class D digital design ensures high-efficiency amplification for clear, crisp sound at all volumes. The amplifier's robust 1 ohm stability guarantees reliable performance even under demanding conditions.

Key features include a fully adjustable lowpass filter, subsonic filter, and bass boost from 0 to 18dB/octave: allowing precise control over your audio output. The built-in clipping LED indicator and multiple layers of electronic protection (including thermal, overload, short circuit, impedance, voltage, and clipping) ensure your amplifier operates safely and effectively. With a frequency response ranging from 10Hz to 250Hz and a signal-to-noise ratio of 90dB, this car audio amplifier delivers a dynamic audio experience.

The remote level control with clip indicator offers convenient operation and customization from within your vehicle, making it easy to dial in your perfect sound.

Boost your bass and enjoy perfect audio with the SXE-1500.1D!

Features:

  • Subwoofer Monoblock Amplifier
  • 1 Channel
  • Class D
  • 1 ~ 4 Ohm Stable
  • 1 x 500 Watts @ 1 Ohm
  • Compact Design

Specifications:

Amplifier Class: Digital (D)
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Power/Protect/Clip
Power Input Terminal Size: 4Ga
Fuse Size: 2 x 30A (60A)
Remote Level Control: Yes
Cooling Fan: No
Voltmeter: No
Thermal Protection: Yes (70°)
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (16.5v)
Clipping Protection: Yes
Body Color / Finish: Red Brushed Aluminum

Compact Size to easy Installation for Any Applications: Yes
Stable/Reliable Two or Four Layers Traces PCB Design: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes
Remote Level Control with Clip Indicator: Yes

Audio:

Frequency Response: 10Hz-250Hz
Signal to Noise Ratio: 90dB
Efficiency @ 4ohm: 80%
Damping Factor: 140
Input Impedance: 20kΩ
Channel Separation: N/A
Total Harmonic Distortion (THD): 0.05%
Low Level Input Range: 200mV-5V
High Level Input: No
Selectable X-Over: Fixed LPF
X-Over Filter Range: 50-250Hz
Bass Boost Range: 0-12dB
Bass Boost Frequency: 45Hz
Infrasonic Filter: 10-55Hz
Phase Selector: 0-180°

Total Watts (Peak): 1500W
RMS Power @ 4 ohm
200W
RMS Power @ 2 ohm
350W
RMS Power @ 1 ohm
500W

Measurements:

Overall Length: 7.68" / 195mm
Overall Width: 5.5" / 140mm
Overall Height: 1.8" / 48mm
Heatsink Length: 6.18" / 157mm
Gross Single Unit Weight: 3.09 lbs / 1.4KG
