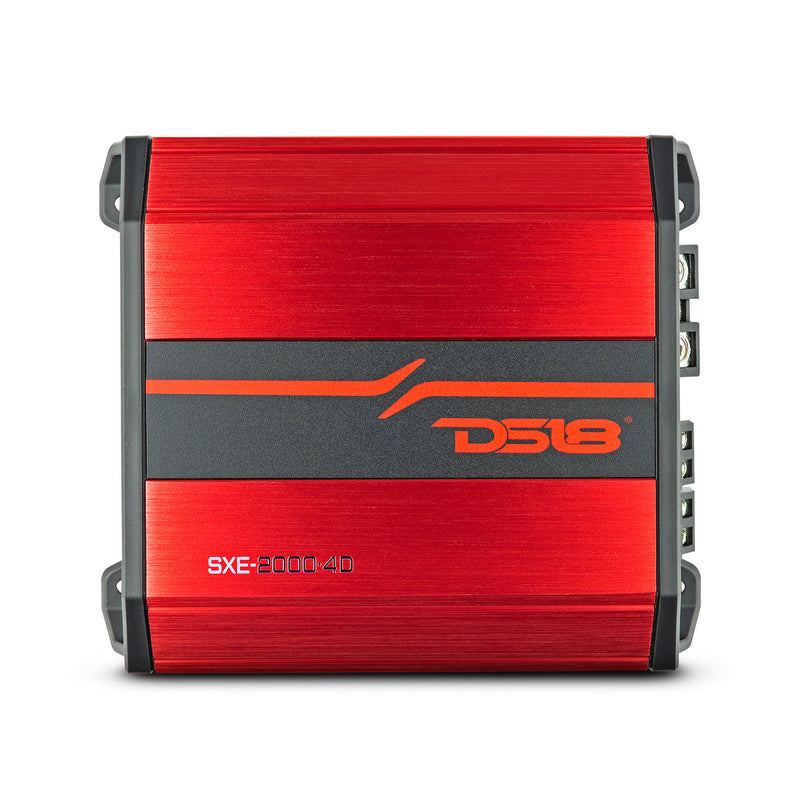

DS18 SXE-2000.4D/RD Class D 4-Channel Amplifier 4 x 100 Watts Rms @ 4-ohm 2000 Watts

In stock
SKU: DS-SXE-2000.4D/RD
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $239.95 USD



  • Full Range Amplifier
  • 4 Channel
  • Class D
  • 2 ~ 4 Ohm Stable
  • 4 X 100 Watts @ 4 Ohm
  • Compact Design

DS18 SXE-2000.4D


DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-2000.4D at the helm, your vehicle's speakers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks.

The SXE-2000.4D offers you the ability to shape your systems audio to match your personal preferences. Its selectable crossover, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-2000.4D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style.

Thanks to its Class D circuit design the SXE-2000.4D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-2000.4D's staggering performance, delivering 320W x 2 CH bridged at 4-ohms, 160W x 4 CH at 2-ohms, and 100W x 4 CH at 4-ohms. These power settings are guaranteed to supercharge any custom build.

The SXE-2000.4D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has thought of everything to guarantee a long-lasting and exceptional audio experience.

SPECS

SKU
SXE-2000.4D
Total Watts (Peak)
2000W
RMS Power @ 4 Ohm
4 x 100W
RMS Power @ 2 Ohm
4 x 160W
RMS Power @ 1 Ohm
N/A
RMS Power @ 4 Ohm Bridge
2 x 320W


Audio

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
90%
Damping Factor
200
Input Impedance
20kΩ
Channel Separation
60dB
Total Harmonic Distortion (THD)
0.10%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
40HZ-2KHZ
Bass Boost Range
No
Bass Boost Frequency
No
Infrasonic Filter
No
Phase Selector
No


Features

Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
1 x 40A (40A)
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Body Color / Finish
Red / Black Brushed Aluminum


Measurement

Overall Length
6.4" / 164.3mm
Overall Wide
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
5" / 127mm


Extra Features

Compact Size to easy Installation for Any Applications
Yes
Stable/Reliable Two or Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
No
