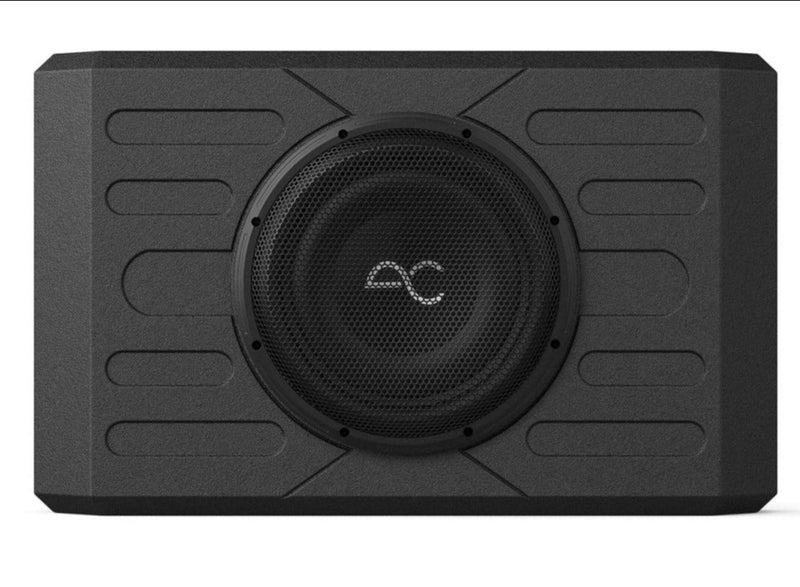

Stinger TXFBB12 SWING GATE 12-INCH SUBWOOFER ENCLOSURE FOR FULL-SIZE FORD BRONCO
PERFECT FOR 2021 FULL-SIZE FORD BRONCO 2-DOOR AND 4-DOOR*
Built tough and made to fit your Ford Bronco’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.
SPECIFICATIONS:
| Nominal Impedance (Z) | 2 ohms |
| DC Resistance (Re | 1.8 ohms |
| Resonance Frequency (Fs) | 27.8430 Hz |
| Piston Area (Sd) | 0.0511 m2 |
| Force Factor (BL) | 10.3379 T.m |
| UPC | 609098900553 |
| Mechanical Q Factor (Qms) | 4.0762 |
| Electrical Q Factor (Qes) |
0.4073 |
| Total Q Factor (Qts) | 0.4216 |
| Sensitivity 1W/M (SPL) | 87.3655 |
| Mechanical Comp (Cms) | 0.2047 mm/N |
| Moving Mass (Mms) | 159.6086 g |
| Linear Excursion (Xmax) | 9 mm |
| Volume Acoustic Comp (Vas) | 74.5578 Ltr/2.632984 cu ft |
| Reference Efficiency (NO.) | 0.33% RMS |
| Power (Pe) | 400 Watts |
| Frequency Response | 20-250 Hz |
| Voice Coil Diameter | 2.5 in/63.5 mm |
| Displacement | 0.0619 cu ft/1.752 Ltr |
SKU: STG-TXFBB12
UPC: 609098900553
