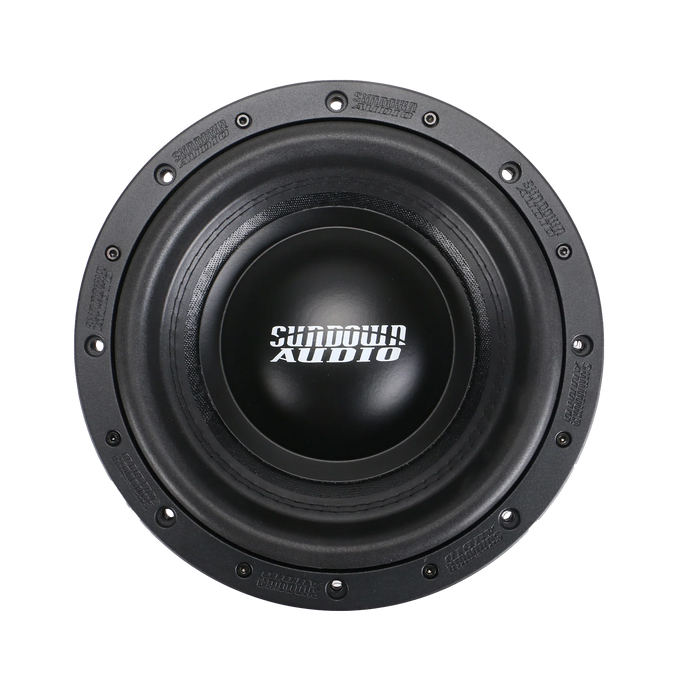

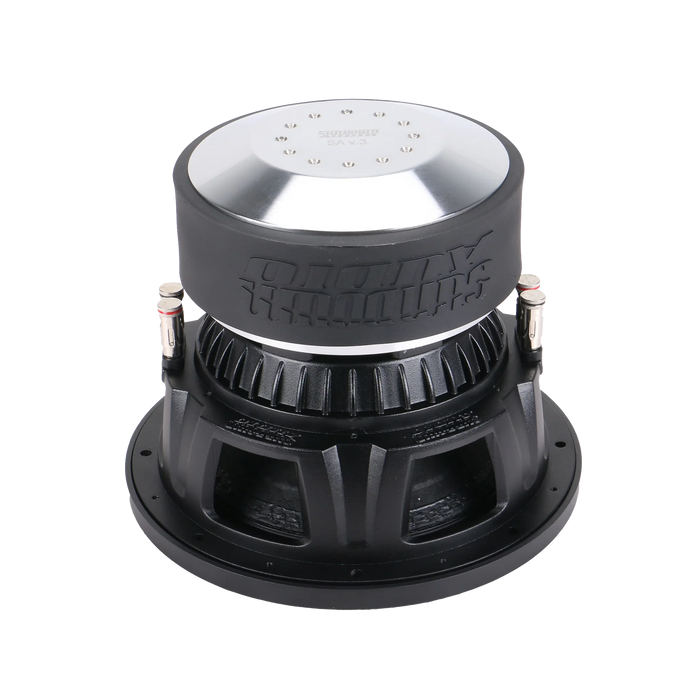

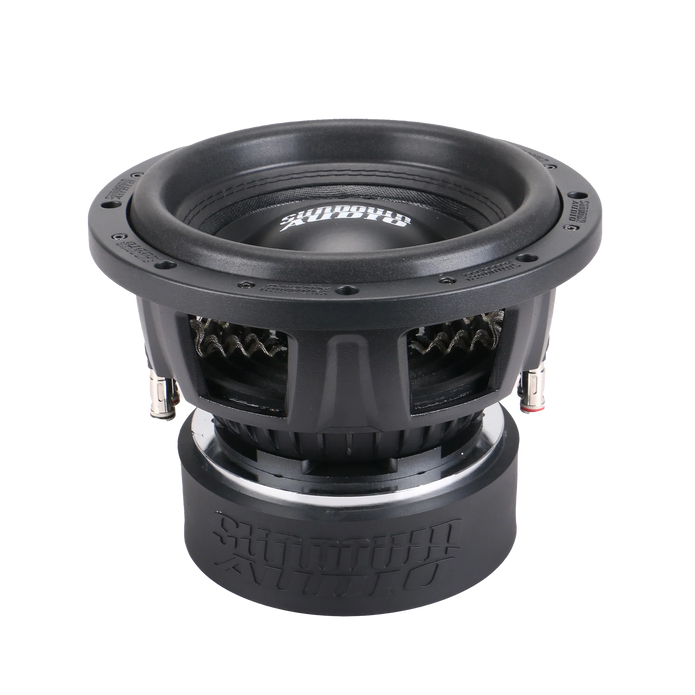

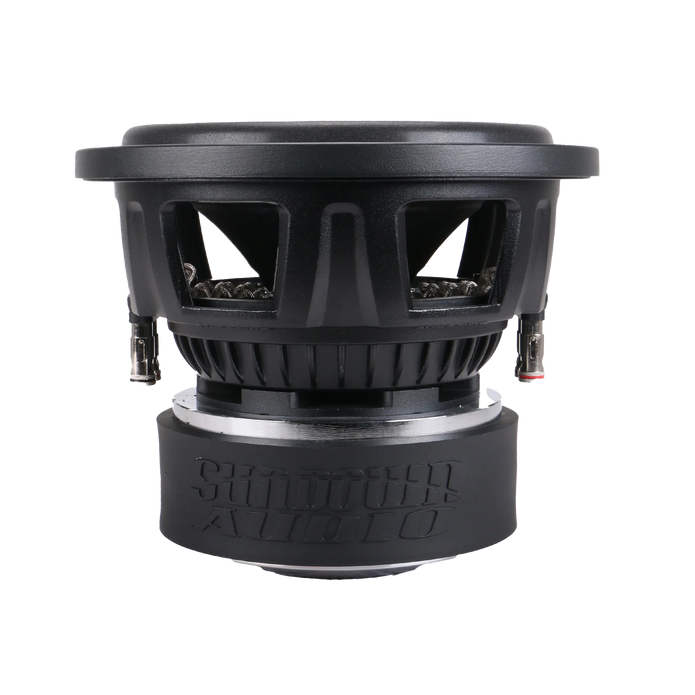

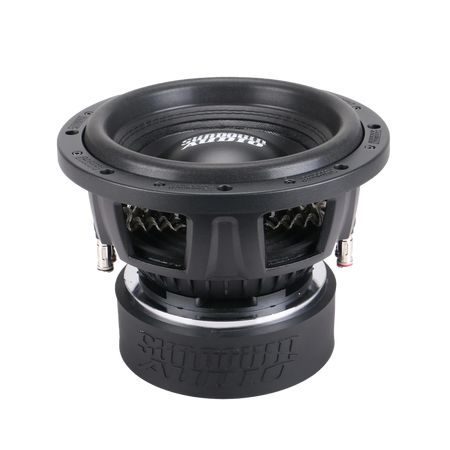

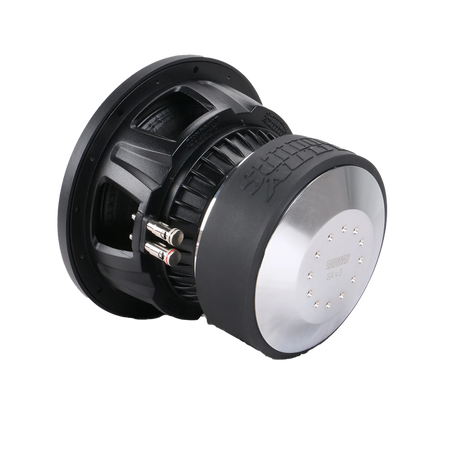

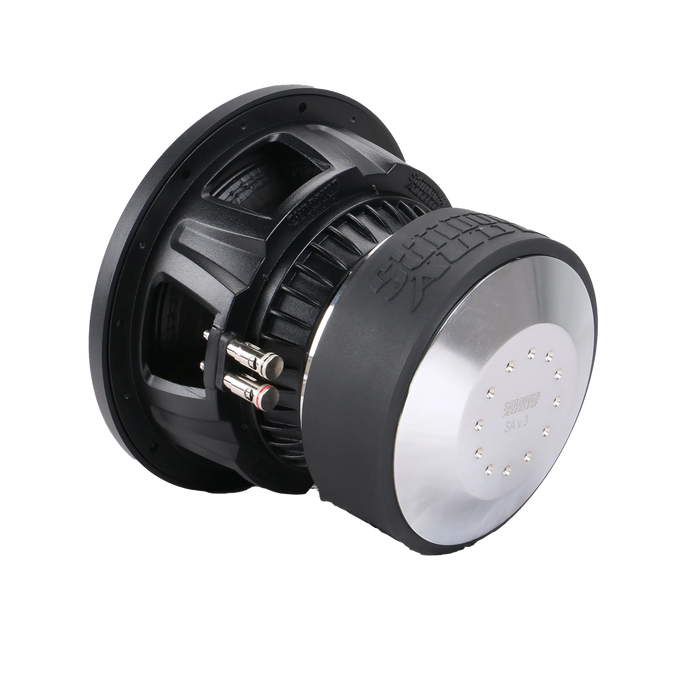

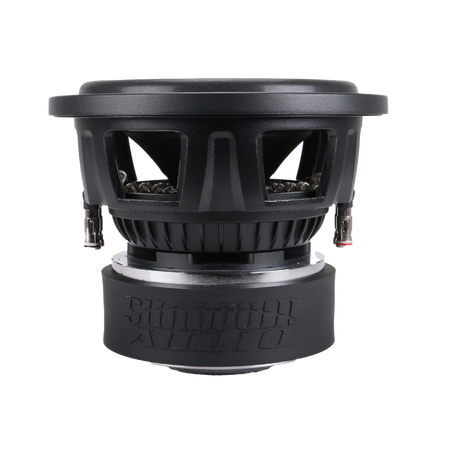

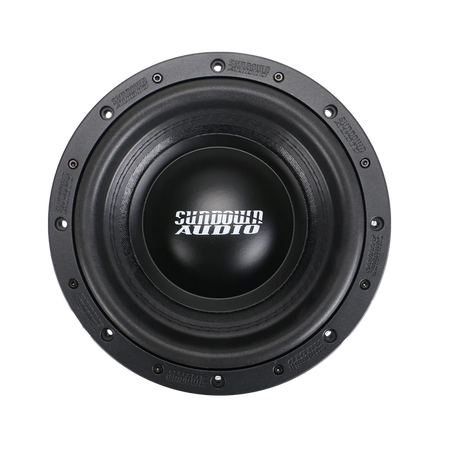

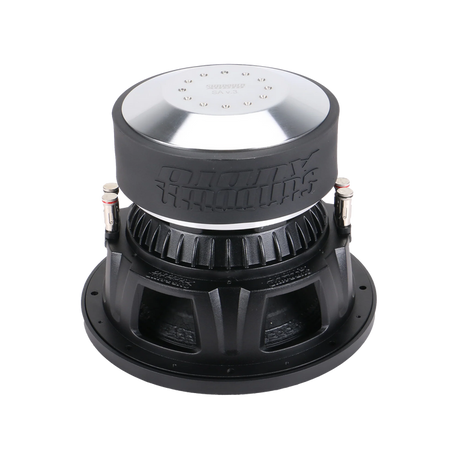

Sundown SAV310D4 SA-10 v.3 10" inch Subwoofer Sub 1250W RMS 4 Ohm DVC
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price
$399.99 USD
The Sundown Audio SAv3 10" D4 Subwoofer is engineered for powerful, precise, and deep bass, making it a top choice for car audio enthusiasts. Delivering 1250 Watts RMS, this subwoofer features a redesigned motor structure, optimized for efficiency and increased power handling. Inspired by the U v.2 series, the SAv3 10" D4 utilizes a smaller yet more efficient motor paired with a longer 2.75" coil for superior performance.
Features:
- Redesigned Motor for Enhanced Performance – Inspired by the U v.2 series, the motor is optimized for the 2.75" coil, providing improved efficiency and higher power handling.
- Optimized Coil & Air Gap – Precision-wound coils ensure a balanced air gap, delivering consistent output between the D2 and D4 versions.
- 1250W RMS Power Rating – Advanced thermal management allows for better heat dissipation, increasing longevity and reliability in high-powered setups.
- 3D FEA Optimized Suspension System – A newly designed spider pack enhances cone control and excursion, delivering cleaner, deeper bass at high outputs.
- Uv.2 Frame & Surround Platform – Built on the same rugged frame and surround as the U v.2 series, ensuring maximum durability and bass response.
Specifications:
T/S SPECS | SAV3 10″ D4 |
---|
RE (Ohms) | 6.06 |
FS (Hz) | 36 |
VAS (L) | 8.497 |
Qes | 0.509 |
Qms | 2.445 |
Qts | 0.421 |
Le (mH) | 4.456 |
BL (NA) | 31.742 |
Mms (Grams) | 337.651 |
Cms (uM/N) | 47.126 |
Sens (dB @ 1w/1m) | 82.1 |
Xmax | 22mm |
Enclosure Specifications:
Sealed Enclosure | 0.5 cu ft |
Ported Enclosure | 1.0 cu ft |
Recommended Tuning | 35Hz |
Recommended Port Area | 15 sq in |
Displacement | .17 cu ft |
Depth | 6.92" |
Outside Diameter | 11″ |
Cut-Out | 9.5″ |
