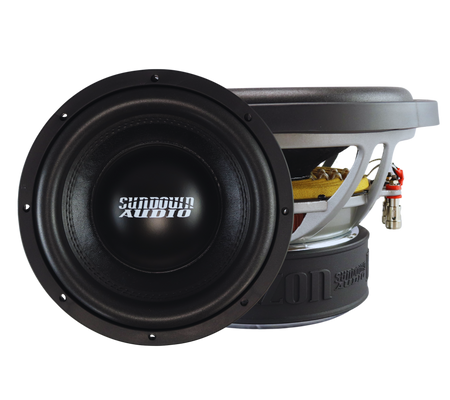

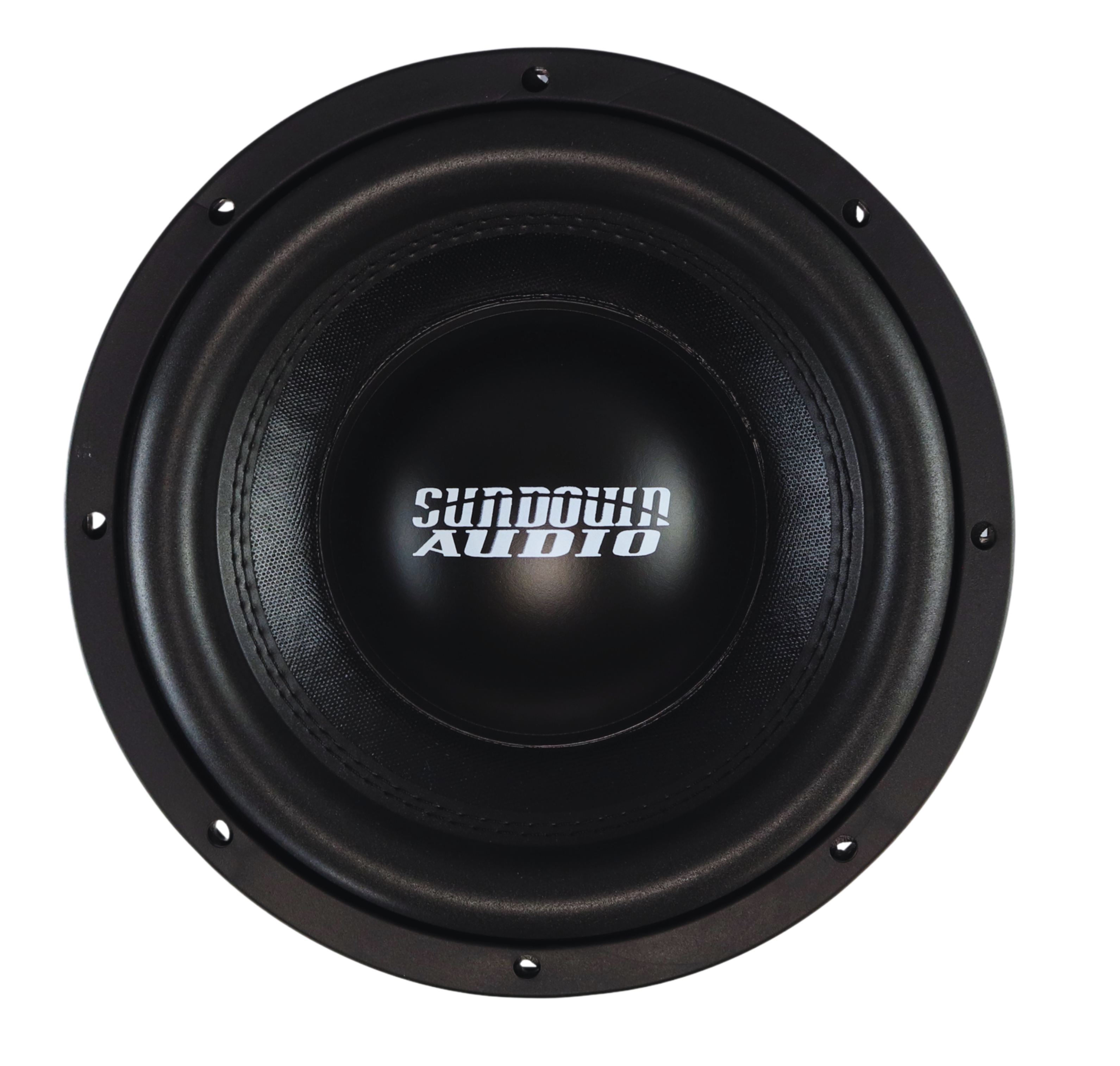

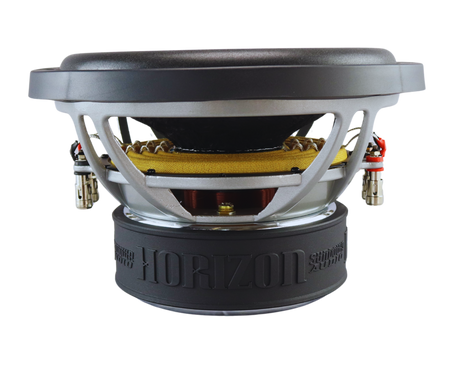

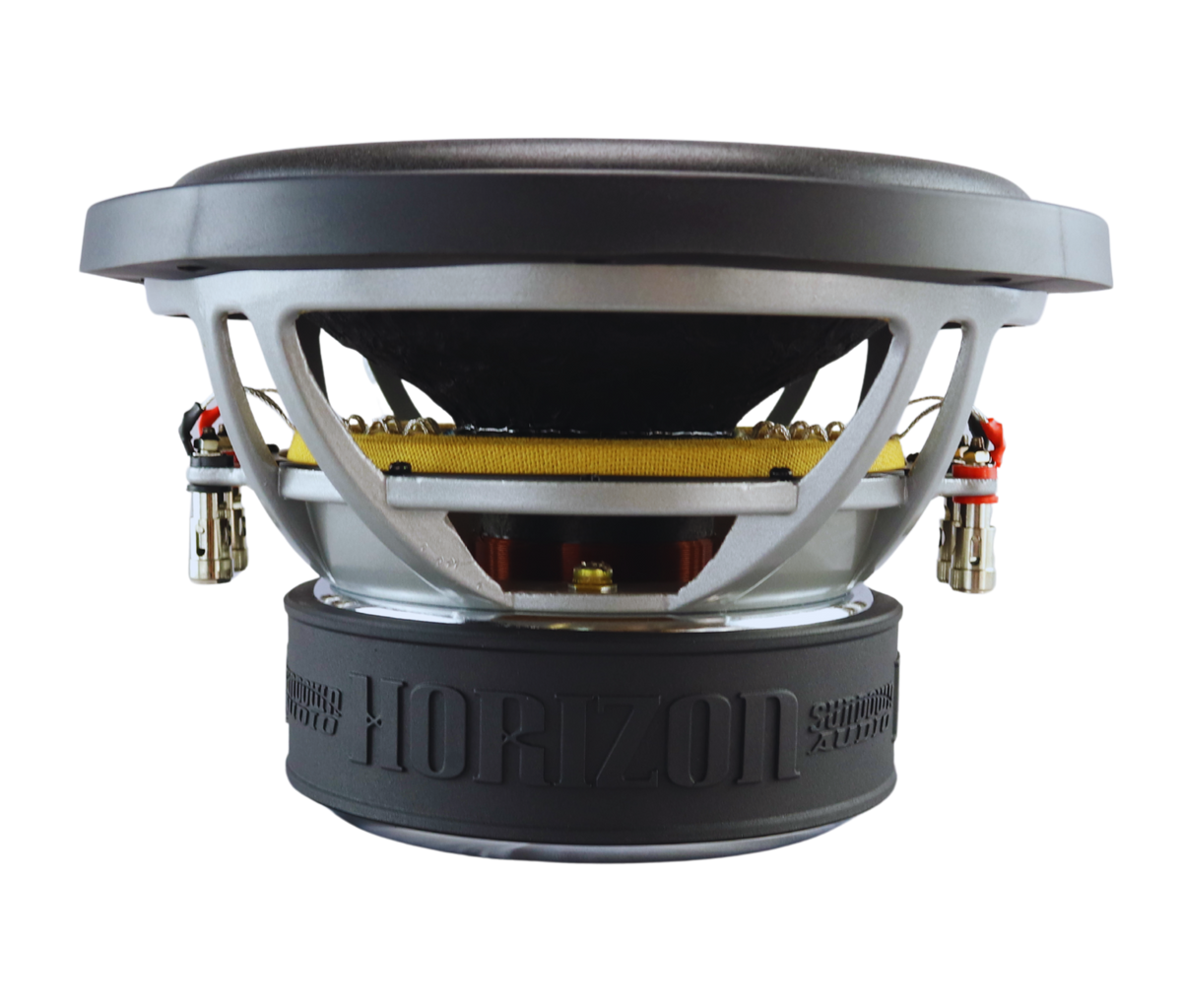

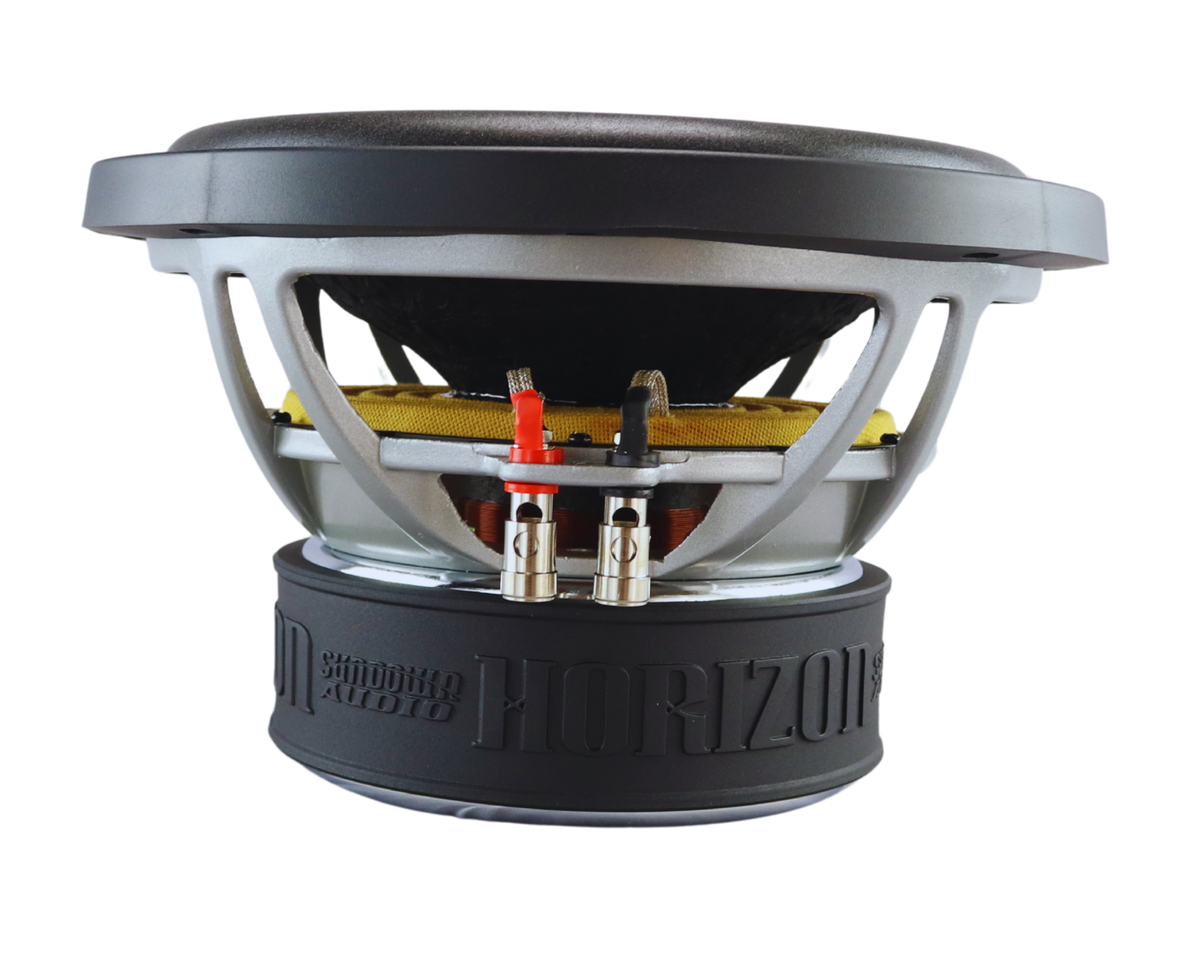

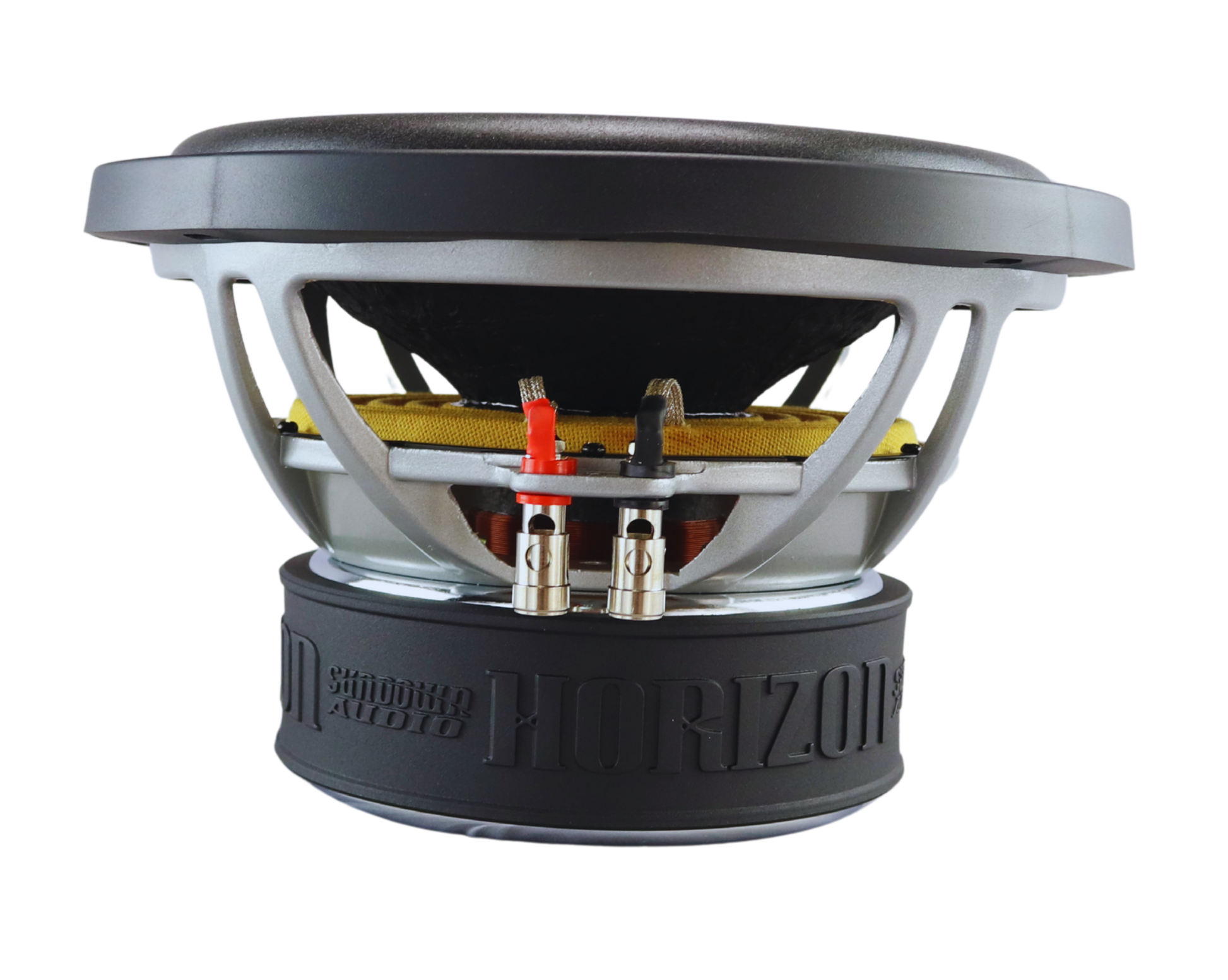

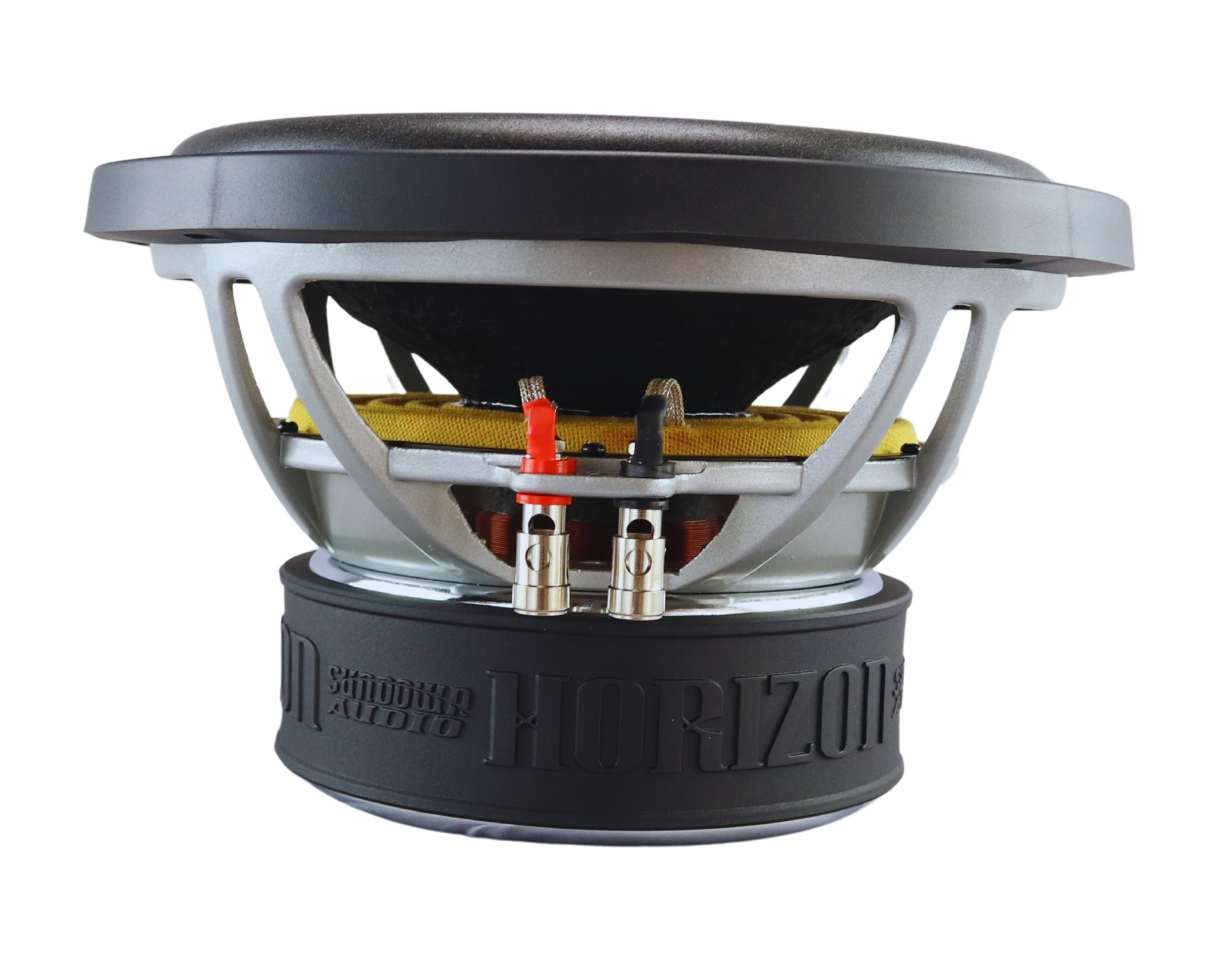

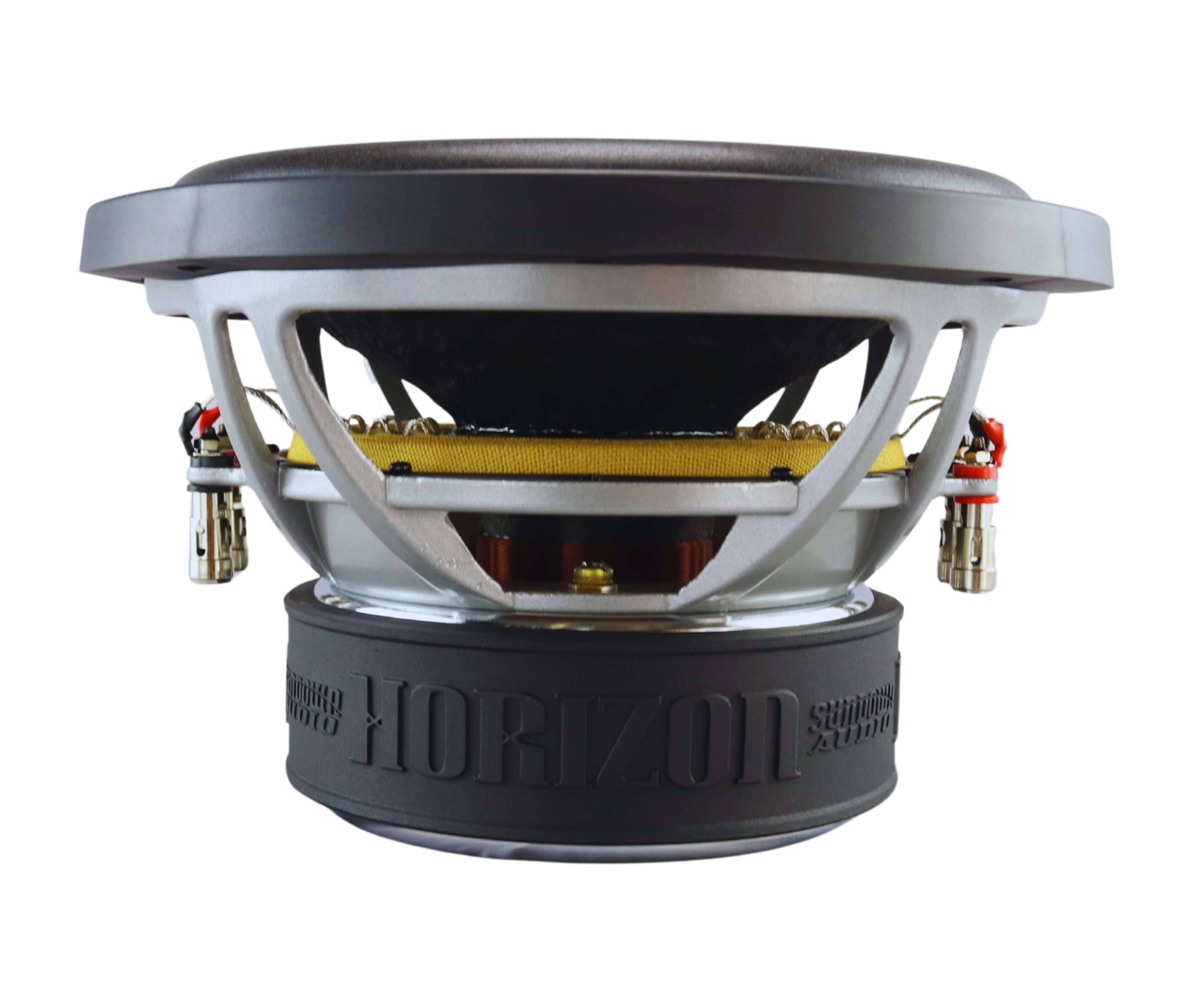

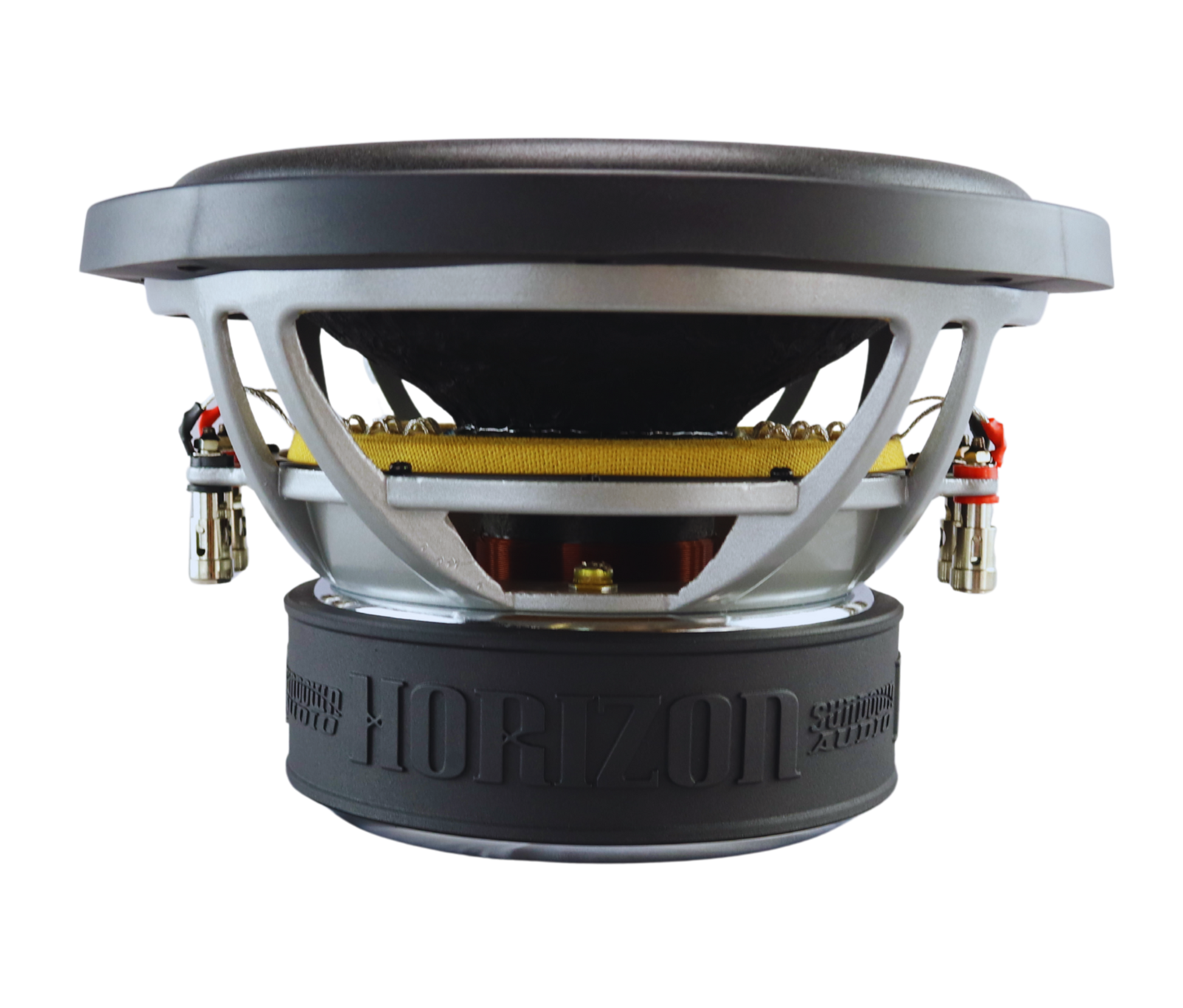

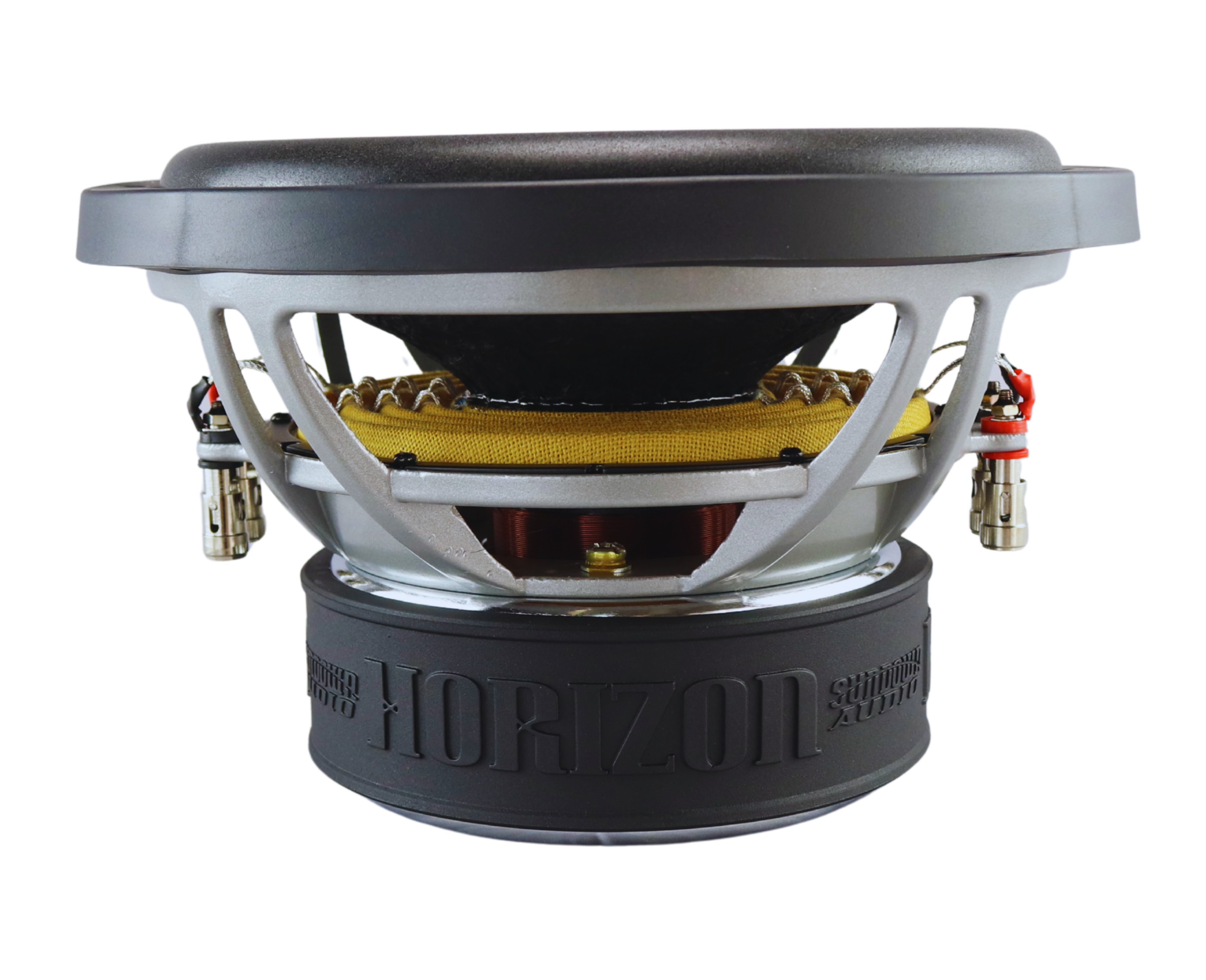

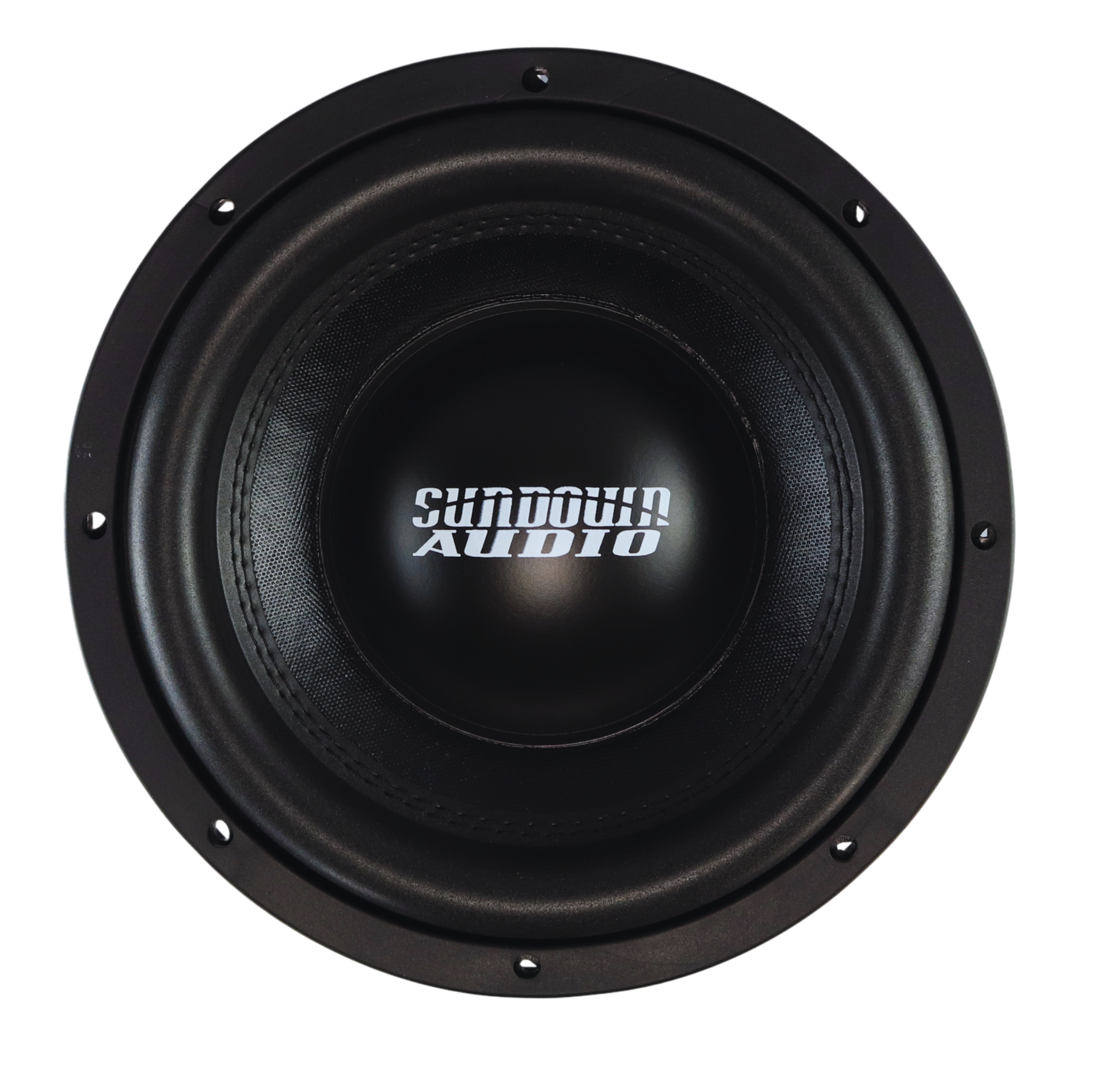

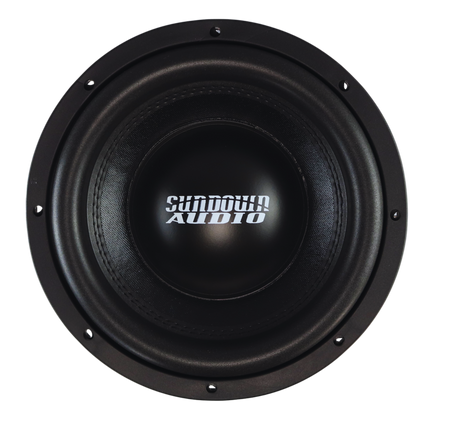

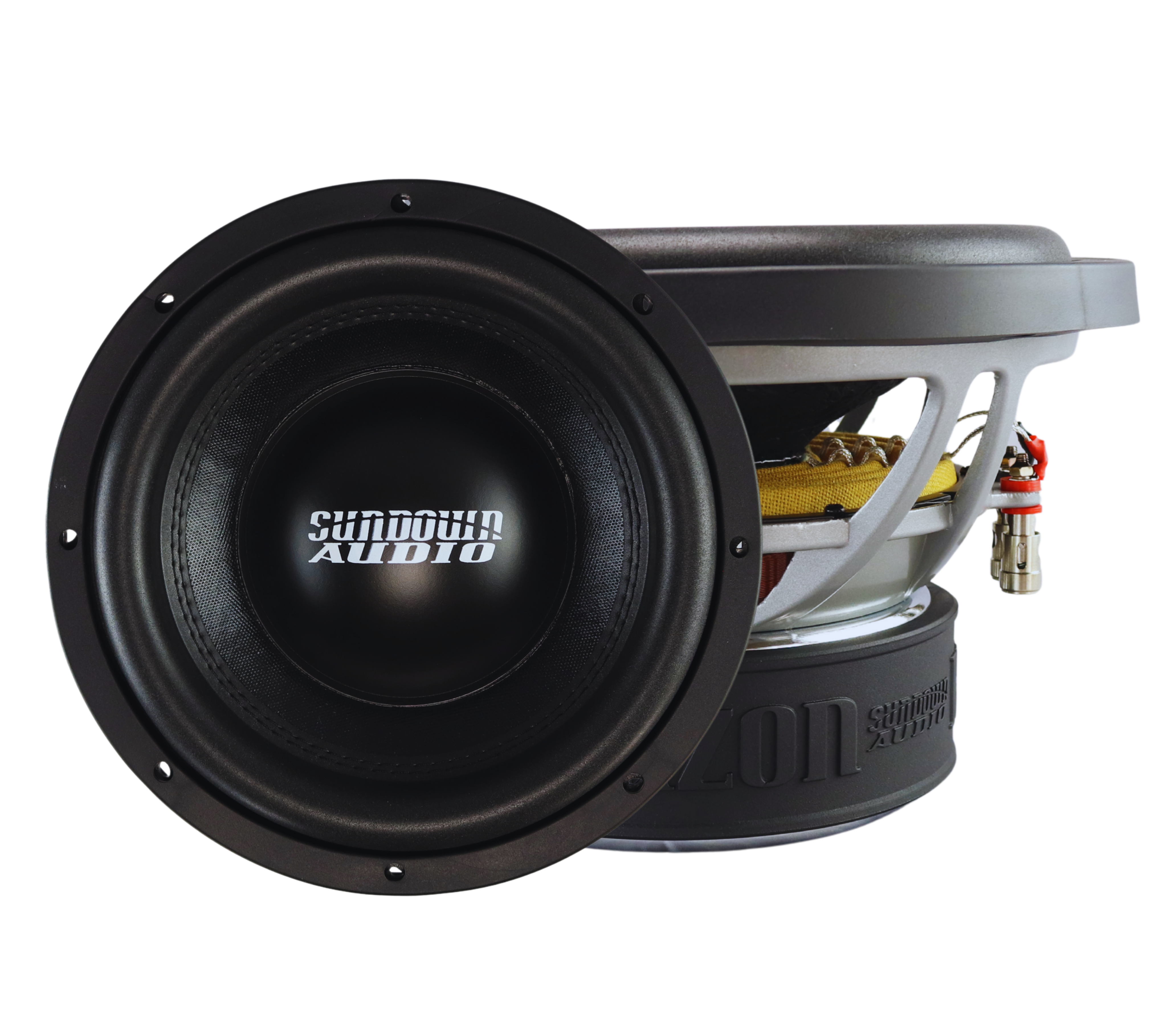

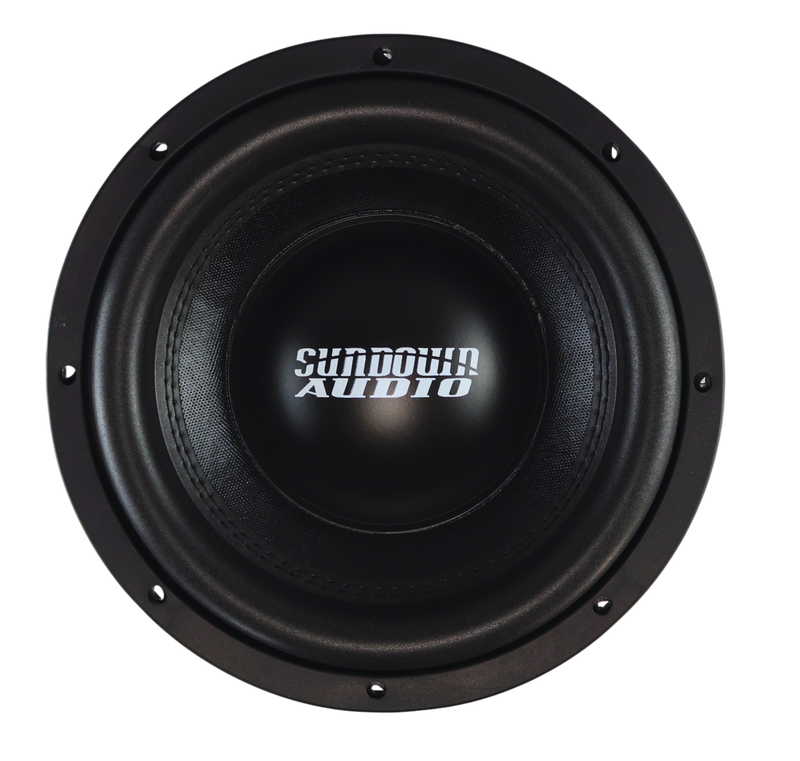

Sundown HZ10D4 Horizon Series 10" Subwoofer Dual 4-Ohm 1500W Peak / 750W RMS
Sundown Audio HZ10D4 Horizon Series 10" Subwoofer delivers deep, powerful bass with 750W RMS / 1500W peak power, Dual 4Ω voice coils, and 14mm Xmax for superior excursion. Built with a heavy-duty cast aluminum frame, vented cooling system, and stitched tinsel leads for durability. Perfect for ported enclosures for maximum output.
Features:
- RMS Power: 10" – 750W RMS / 2.5" Voice Coil
- Voice Coil Options: Dual 4Ω – High-temp 4-layer copper voice coil wire
- XMAX: Class-leading 14mm Xmax

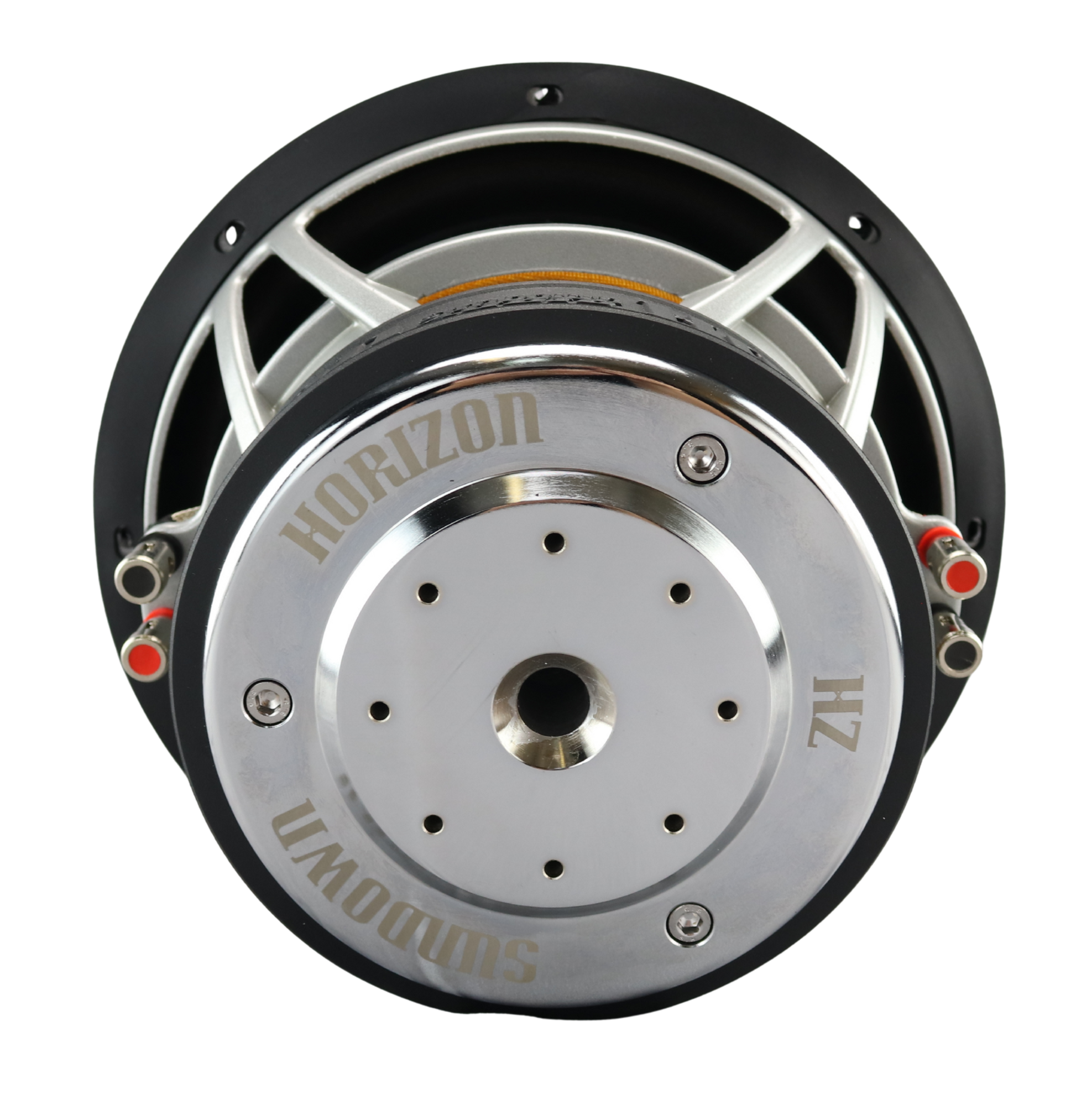

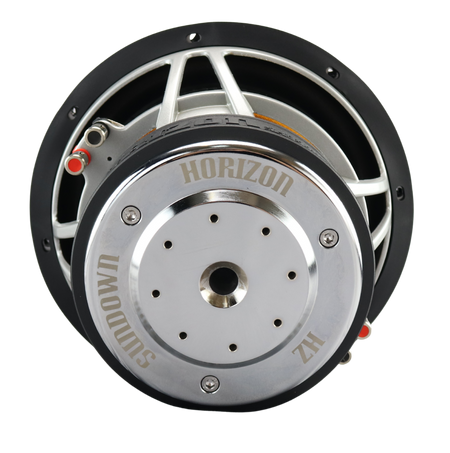

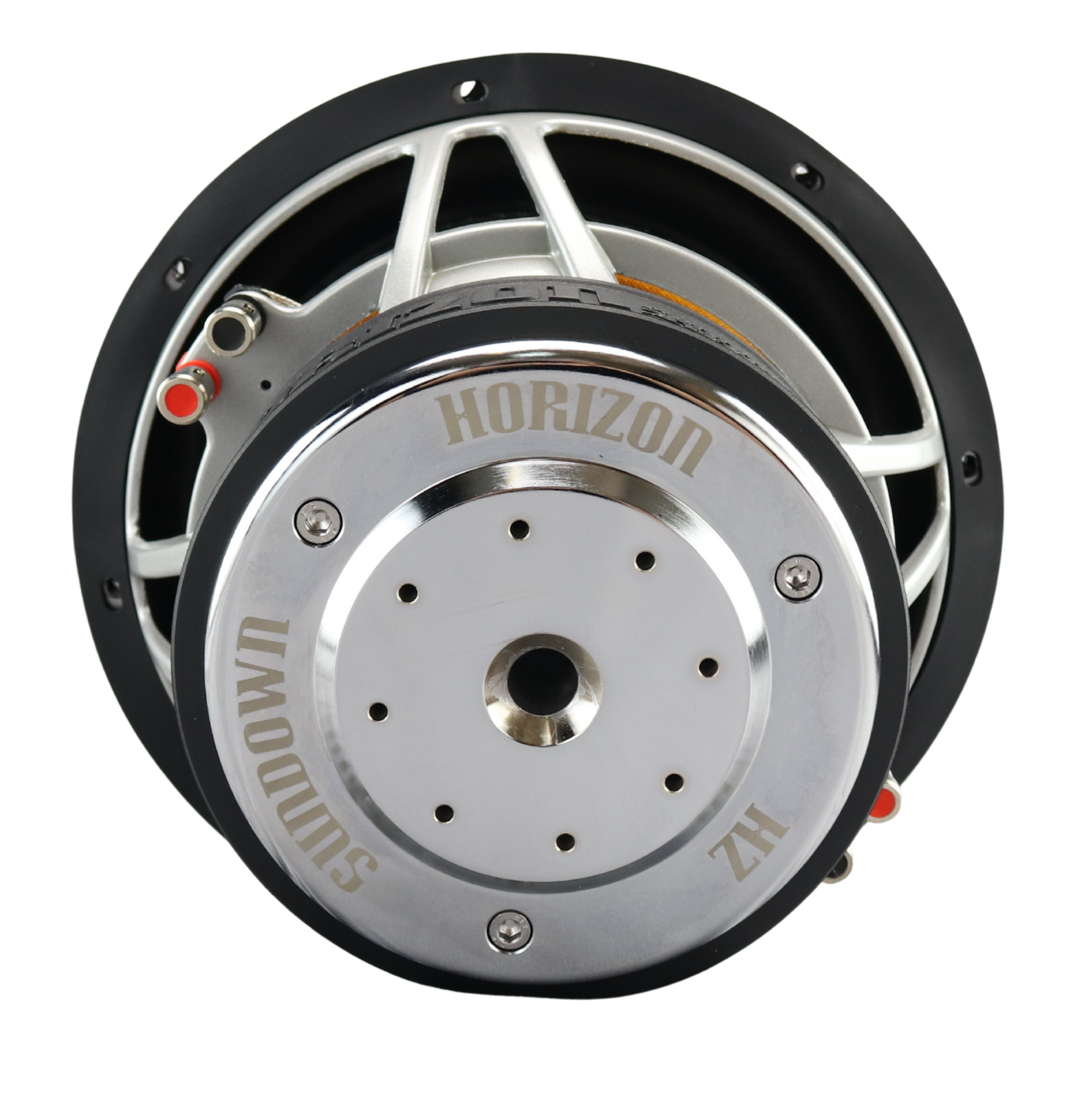

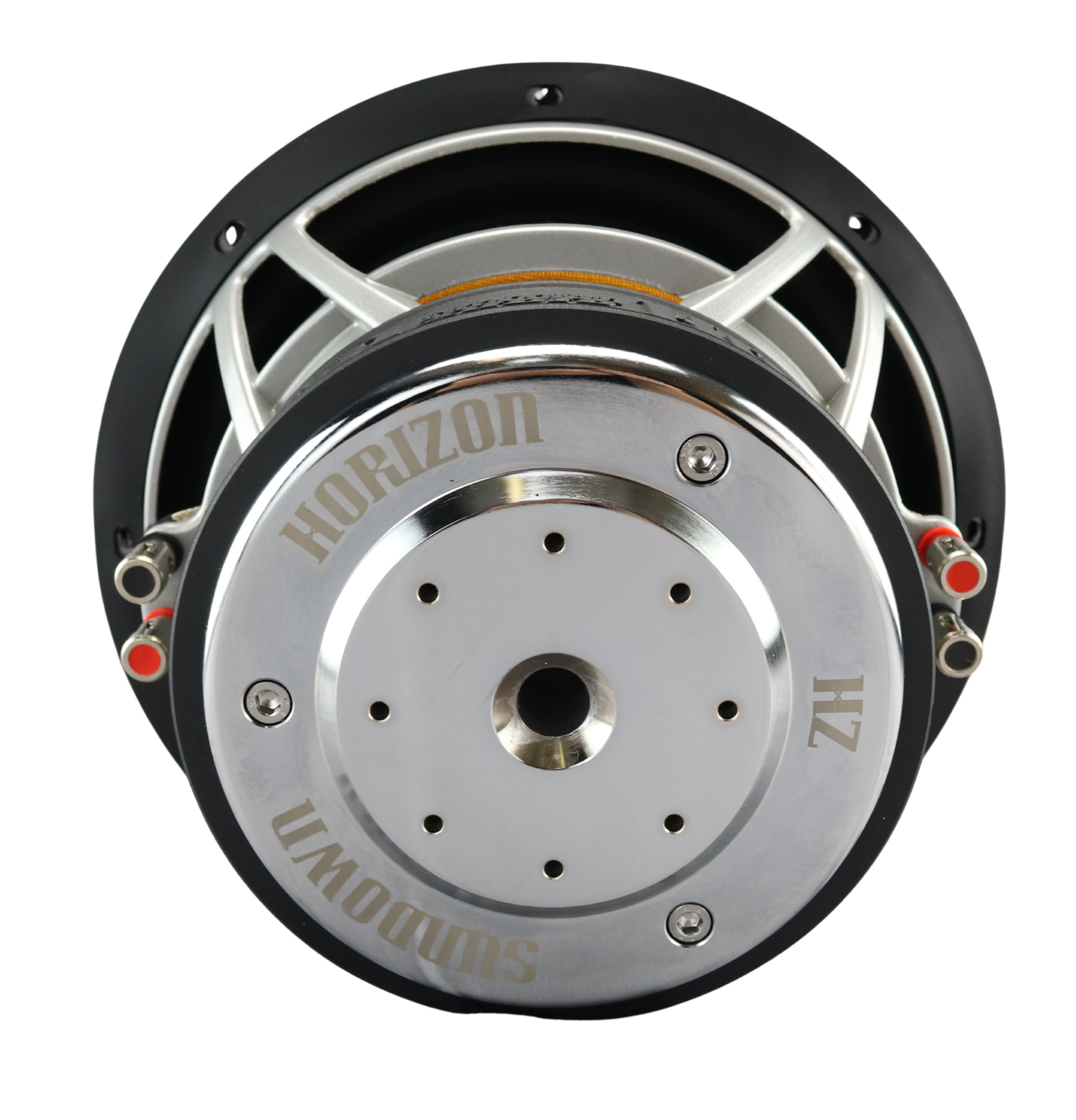

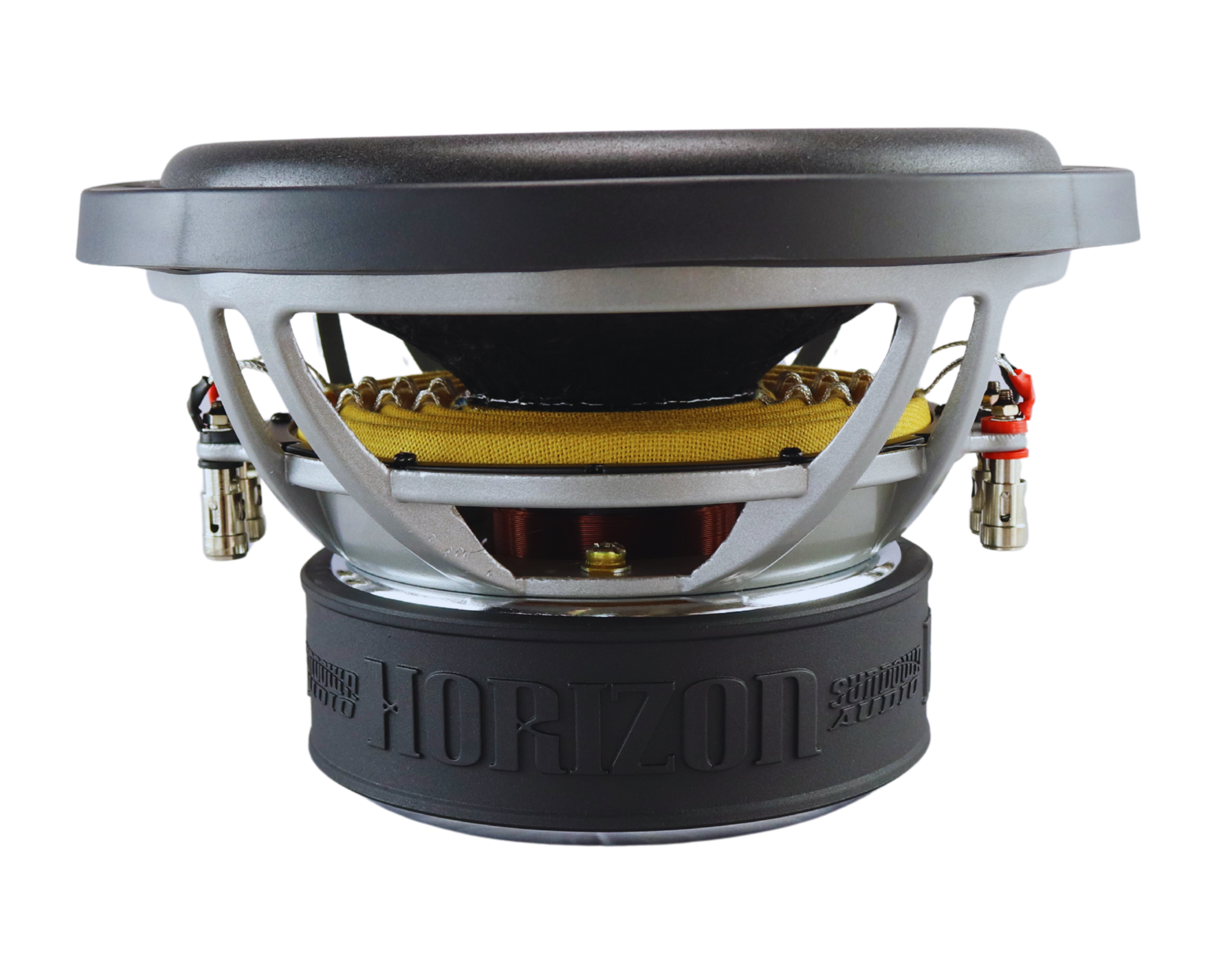

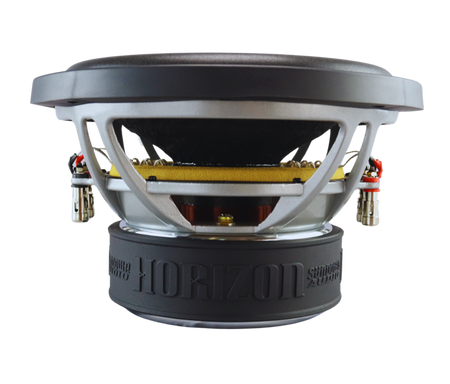

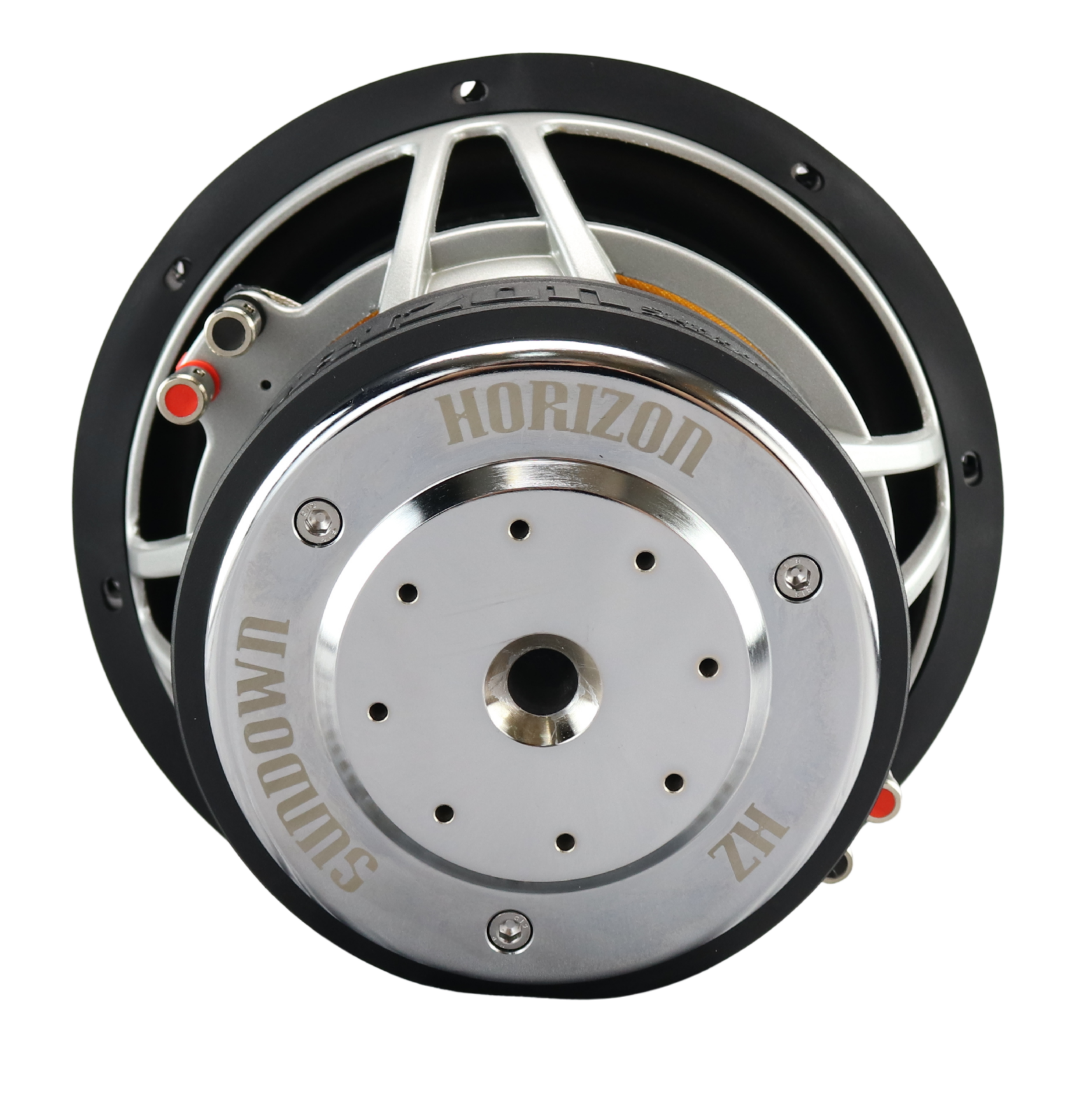

- Frame: Heavy-duty cast aluminum basket
- Cooling: Vented motor gap and pole piece for optimized heat dissipation

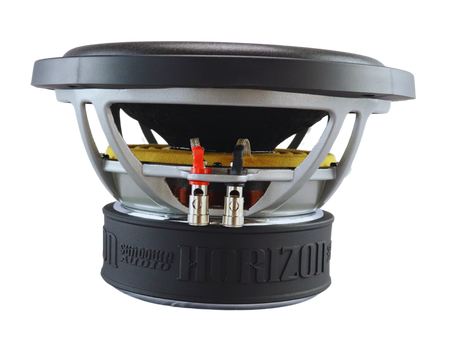

- Durability: Stitched Mini-XL tinsel leads and bolted spider pack
- Suspension: High-roll surround with progressive spider for smooth, controlled excursion
- Recommended Enclosure: Ported for maximum efficiency and output
Specifications:
RE (Ohms): 6.13
FS (Hz): 33.143
VAS (L): 22.863
Qes: 0.539
Qms: 3.430
Qts: 0.466
BL (NA): 19.782
Mms (Grams): 165.360
Cms (mm/N): 139.453
Sensitivity (dB @ 1w/1m): 83.8
Xmax: 14 mm
UPC: 810111136006
Enclosure Specs:
Ported Enclosure
- Size: 1.0 cu ft (net)
- Port Area: 15 sq in
- Port Tuning: 35 Hz
Sealed Enclosure
- Size: 0.5 cu ft (net)
- Displacement: 0.1 cu ft
- Depth: 5.8"
- Outside Diameter: 10.45"
- Cutout: 9.2"
