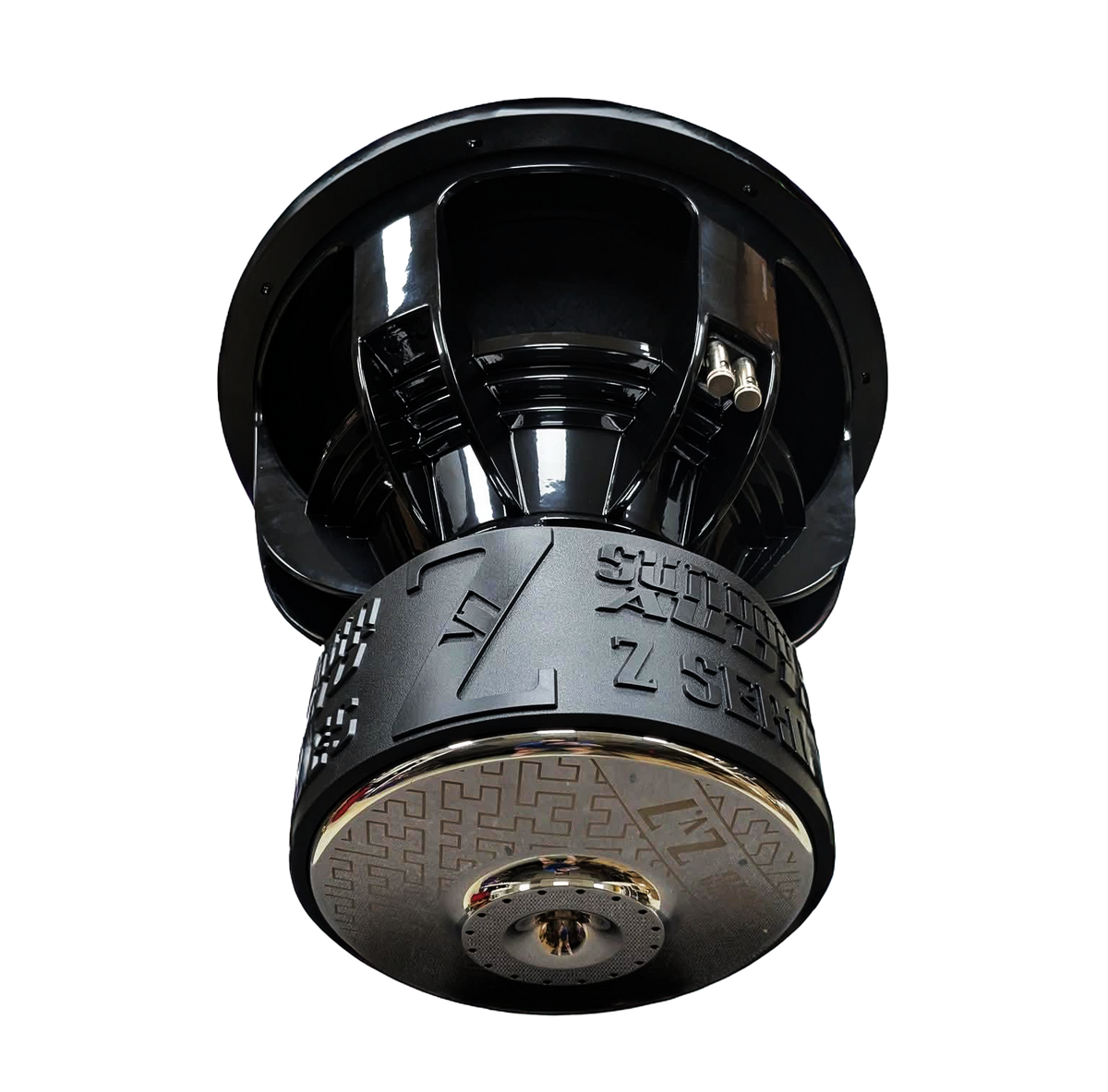

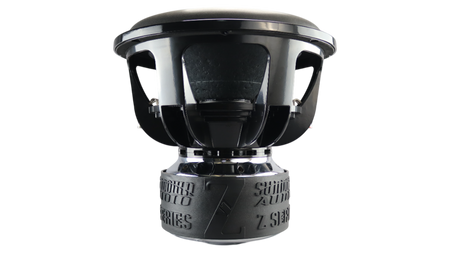

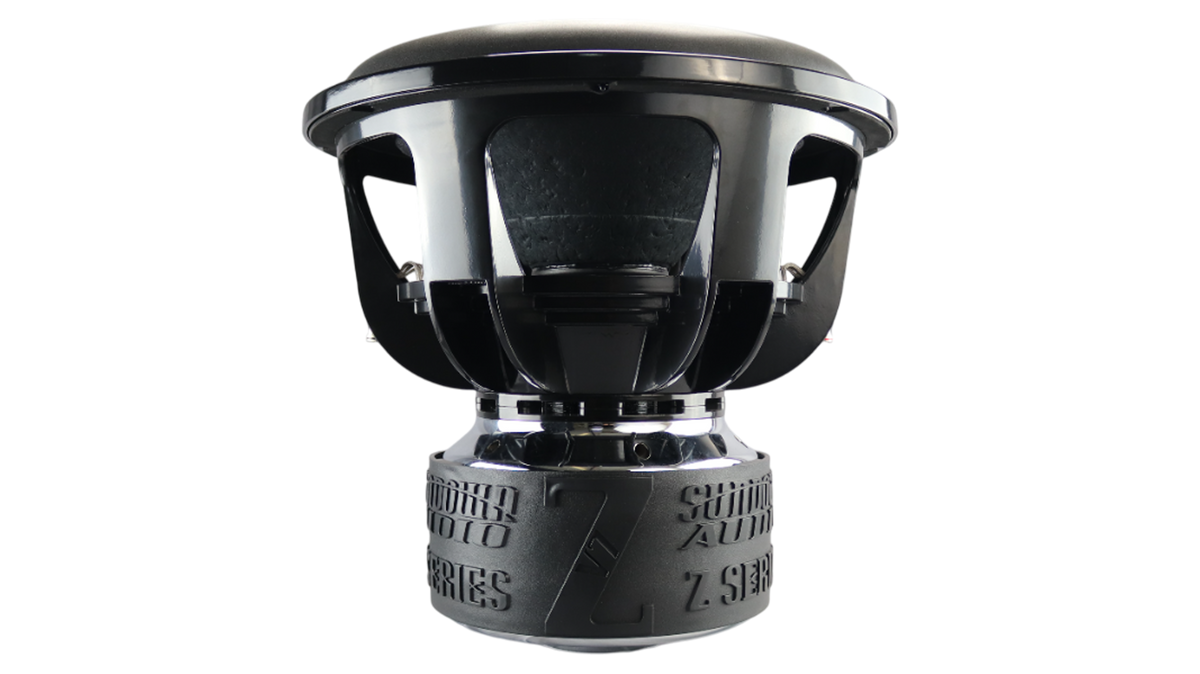

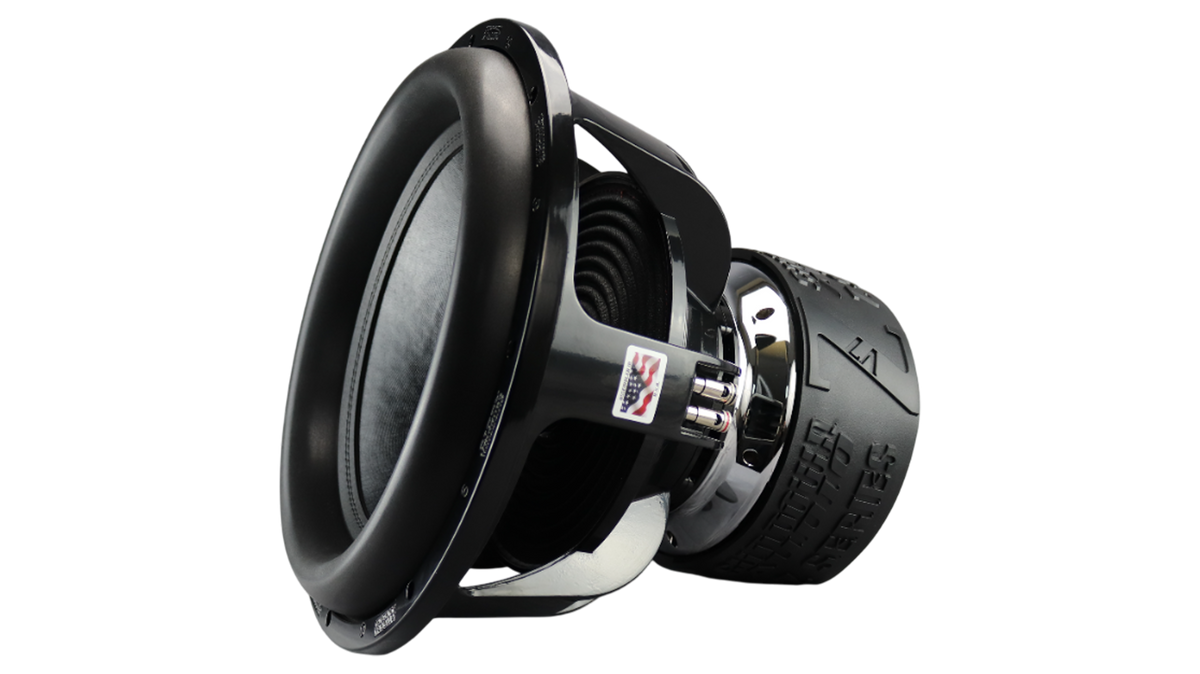

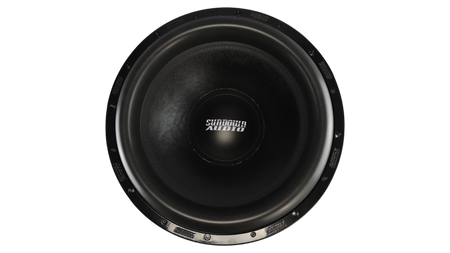

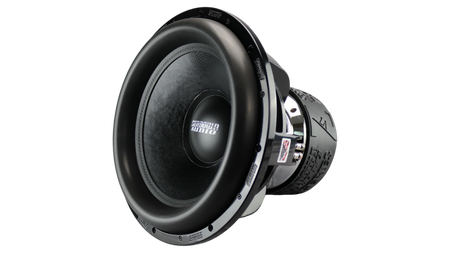

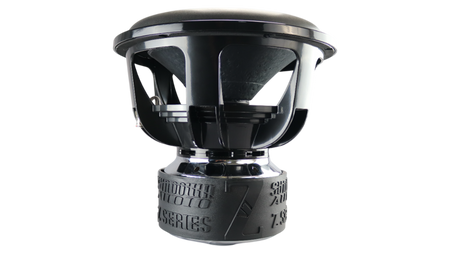

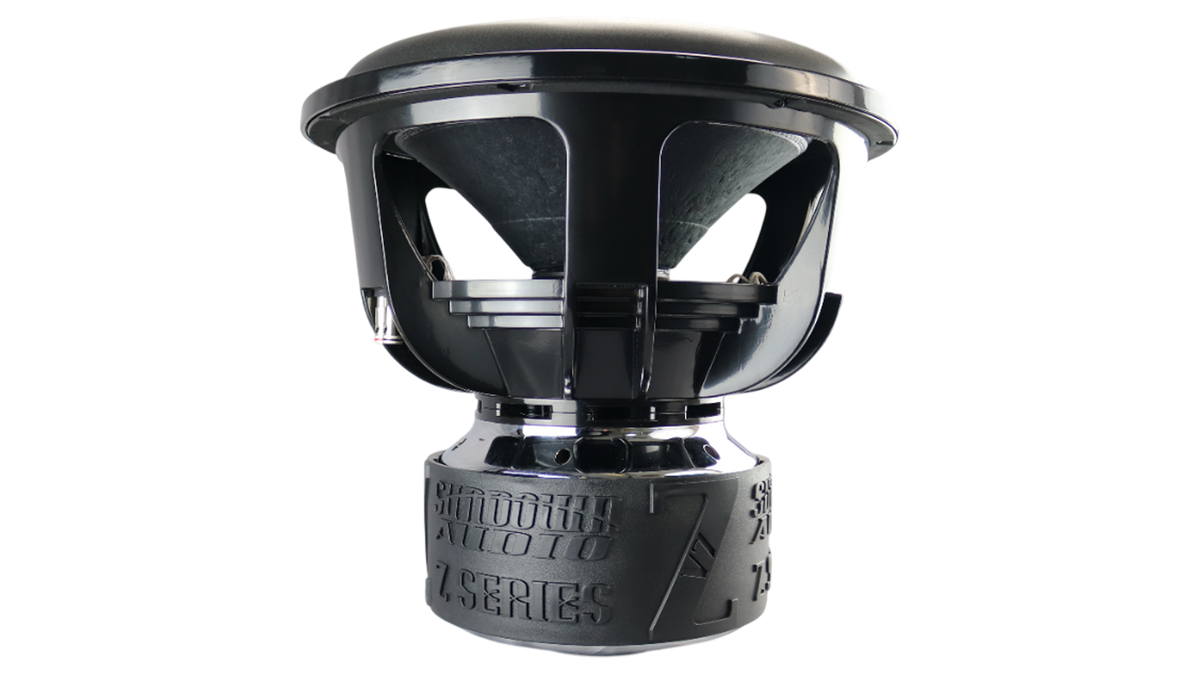

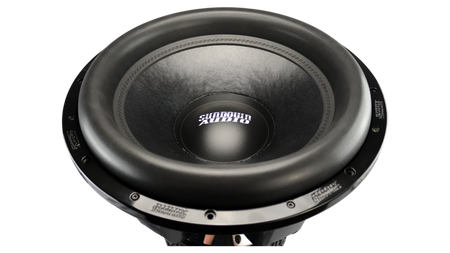

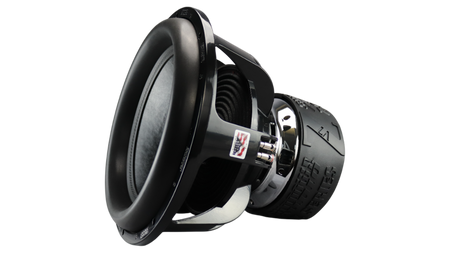

Sundown Audio ZV718D2 Z-Series v.7 18" Subwoofer - Dual 2-Ohm, 3.3" Voice Coil, 42mm Linear Excursion

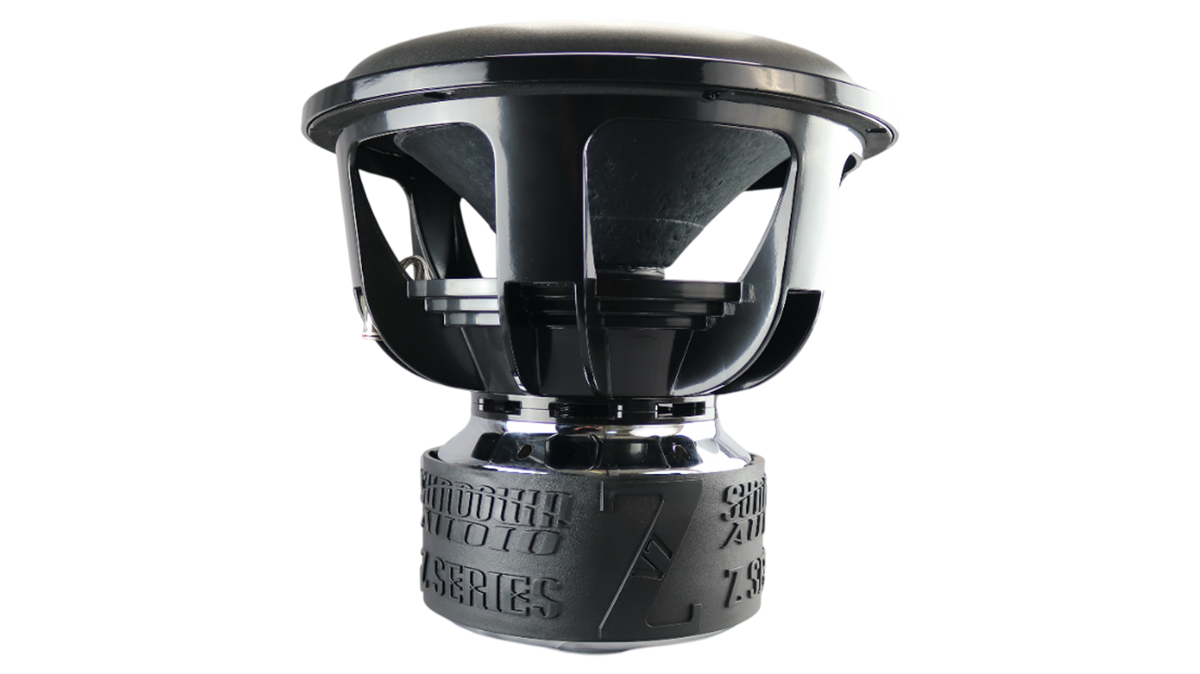

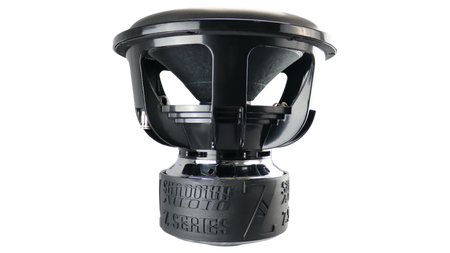

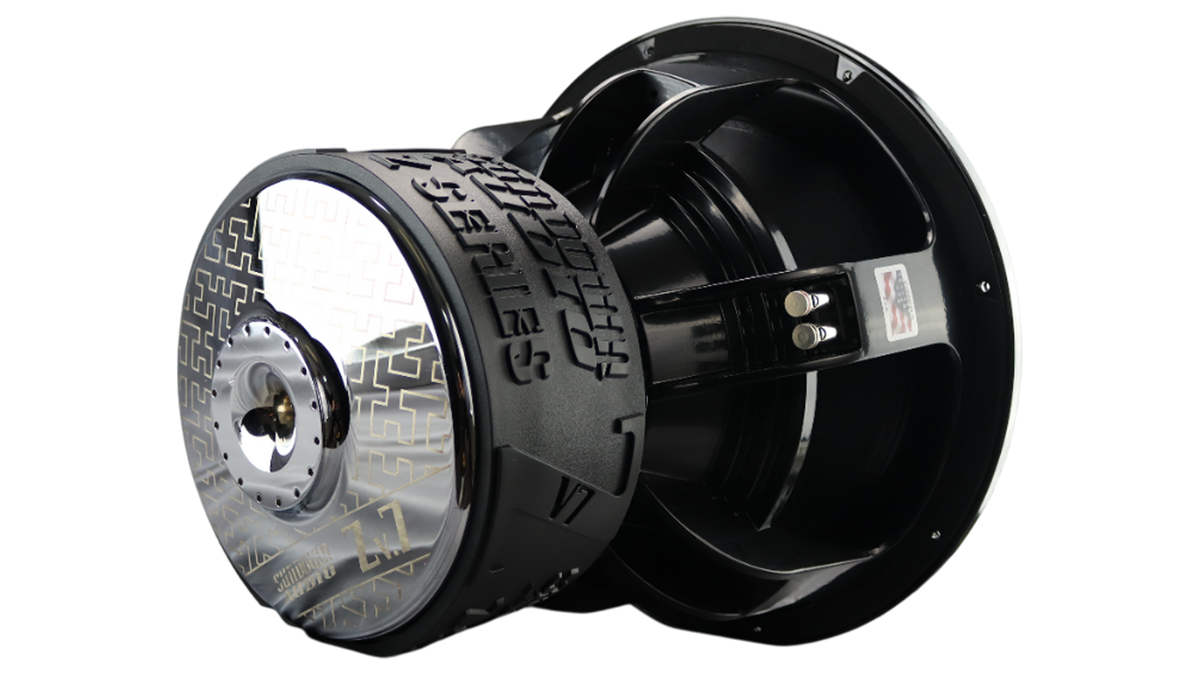

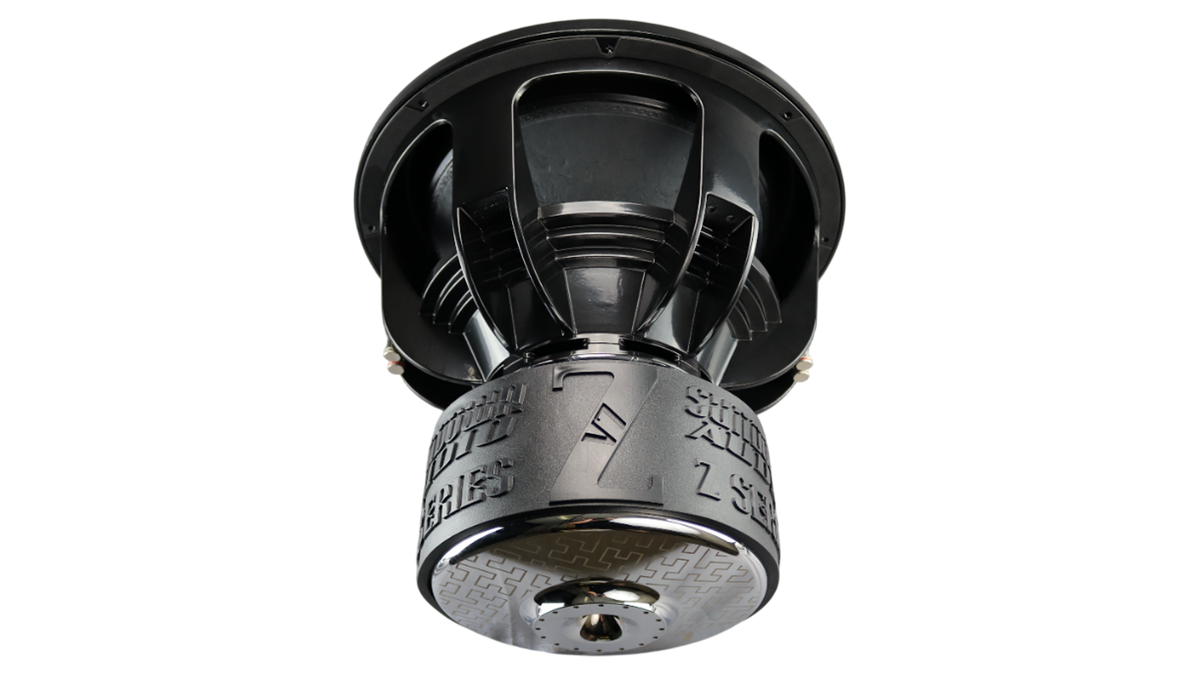

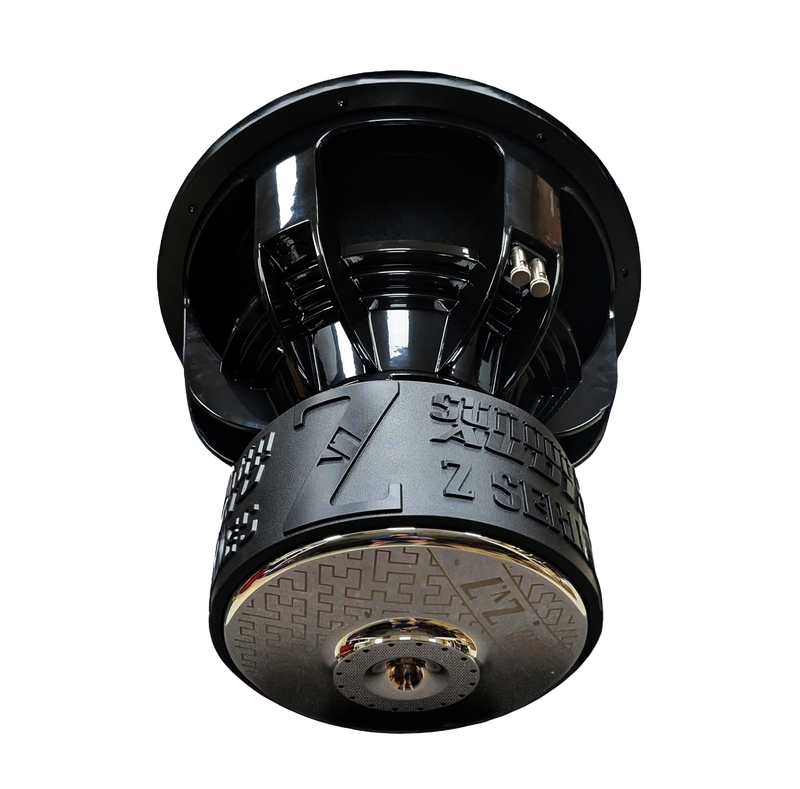

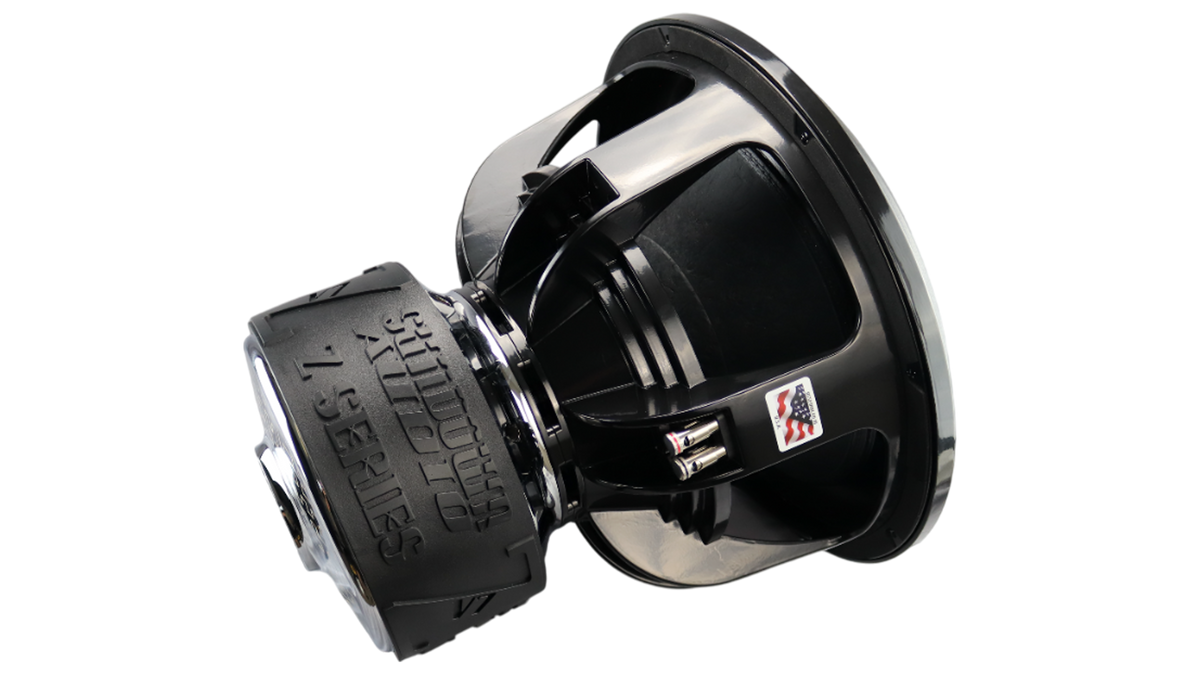

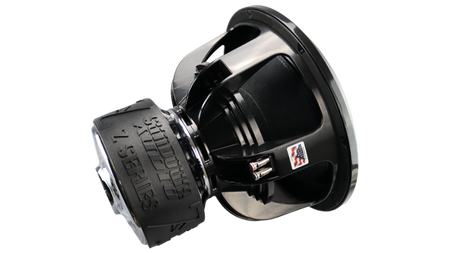

The Sundown Audio ZV718D2 is the 18-inch, dual 2-ohm model of the Z v.7, which sits above the M and X v.4 in Sundown's 2025 ultra-high excursion subwoofer lineup. Its custom tooled, patented mega-platform frame carries a quad stacked 265mm (10.43-inch) motor with a 100mm magnet stack and a hyper-extended pole, with clearance for more than 4 inches of peak-to-peak travel before mechanical bottom. Sundown rates the motor force factor (BL^2/RE) at roughly 50% above the Z v.6.
A 3.3-inch, 4-layer round wire aluminum voice coil is wound on a thick aluminum former using Sundown's fat wire method for high power and abuse. The coil is cooled by a patent-pending airflow directing pole cap, six pole OD channels, sixteen gap vents and a cross-drilled, slotted top plate, while a 9mm magnet ID Faraday ring and pole-extension inductance sleeve give linear inductance.
The 95mm winding length allows 42mm of one-way linear excursion by 70% BL. The Z v.7 targets the lowest possible bass extension from a small ported box with very low distortion, and it works in enclosures commonly used for Sundown mega-platform subwoofers.
HIGHLIGHTS:
- Dual 2-ohm voice coils
- 42mm one-way linear excursion (70% BL)
- Quad stacked 265mm motor, 100mm magnet stack height
- 3.3-inch 4-layer round wire aluminum voice coil
- 9mm Faraday ring and pole-extension inductance sleeve
- Patented mega-platform frame
GREAT FOR:
- Ported 18-inch builds
- Very low bass extension with low distortion
- Builds using existing Sundown mega-platform boxes
SPECIFICATIONS:
| SERIES | Z-Series v.7 |
| SIZE | 18 Inch |
| IMPEDANCE | Dual 2 Ohm (DVC) |
| VOICE COIL | 3.3 Inch, 4-layer round wire aluminum |
| VOICE COIL WINDING LENGTH | 95mm |
| MOTOR | Quad stacked, 265mm (10.43 in) diameter |
| MAGNET STACK HEIGHT | 100mm (3.94 in) |
| LINEAR EXCURSION | 42mm one-way (70% BL) |
| FARADAY RING | 9mm magnet ID |
| FRAME | Patented mega-platform |
| SOLD AS | Each |
| BRAND | Sundown Audio |
| UPC | 810199220062 |
