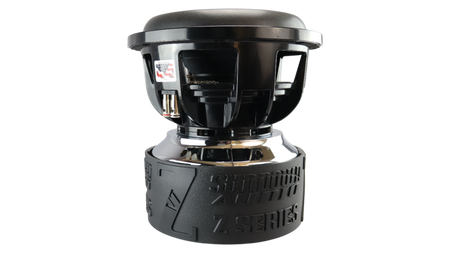

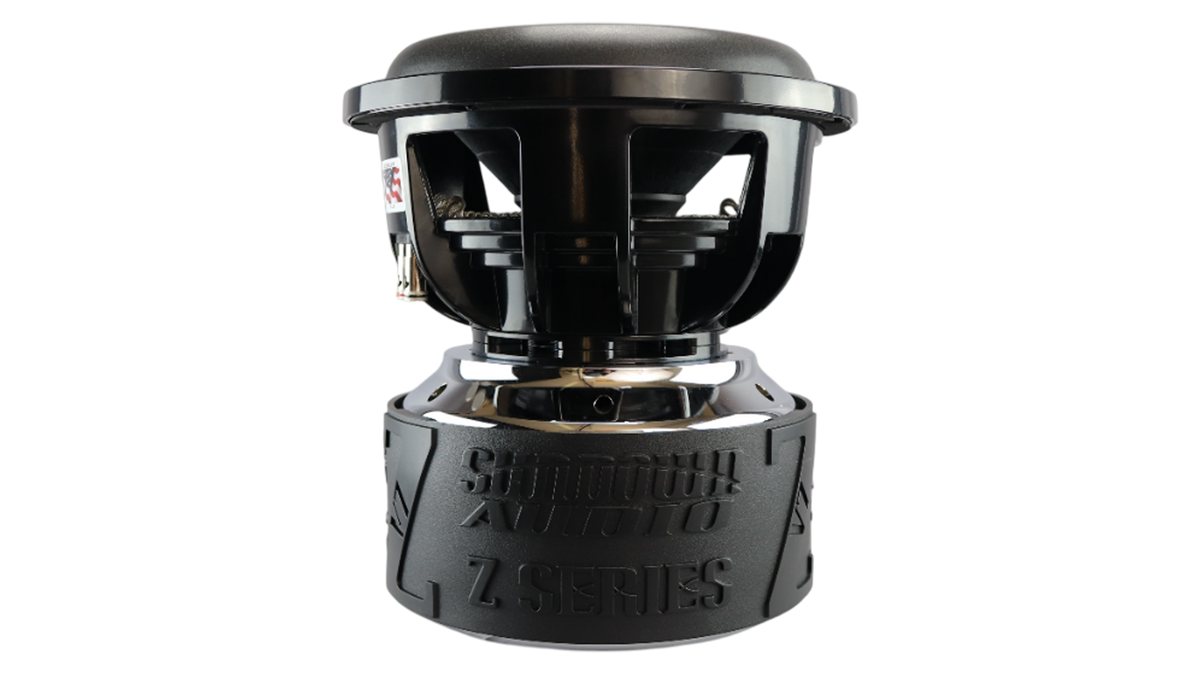

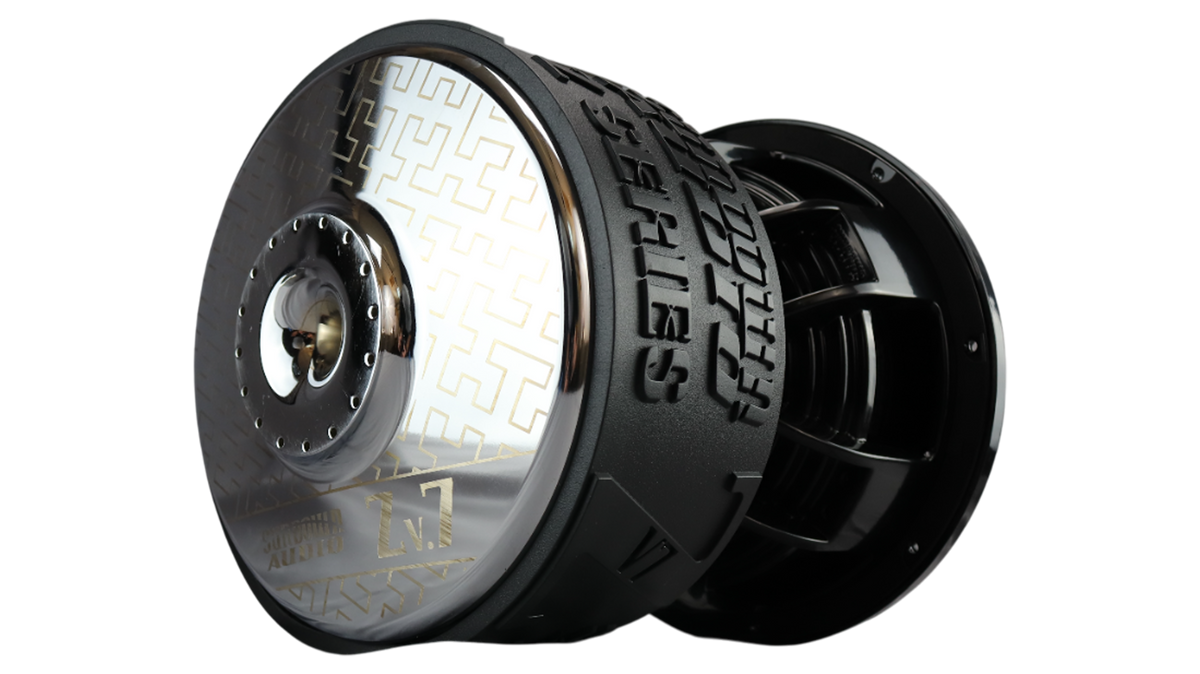

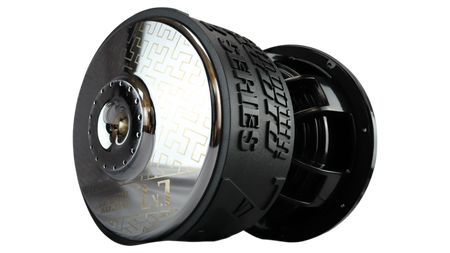

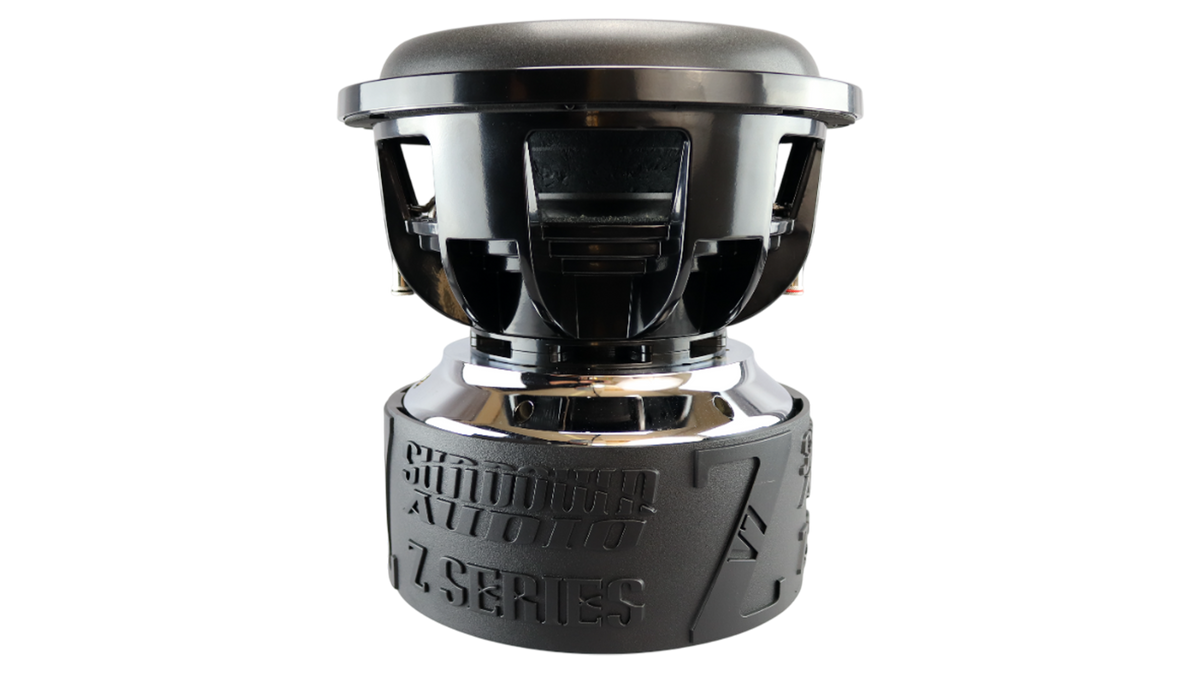

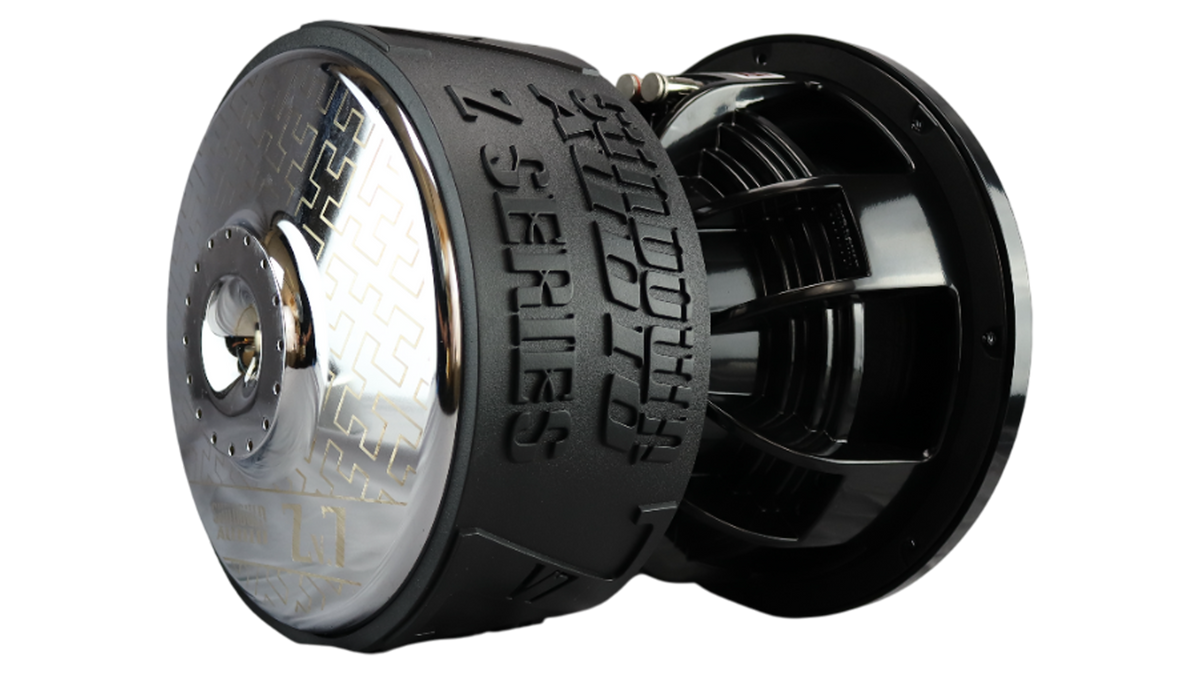

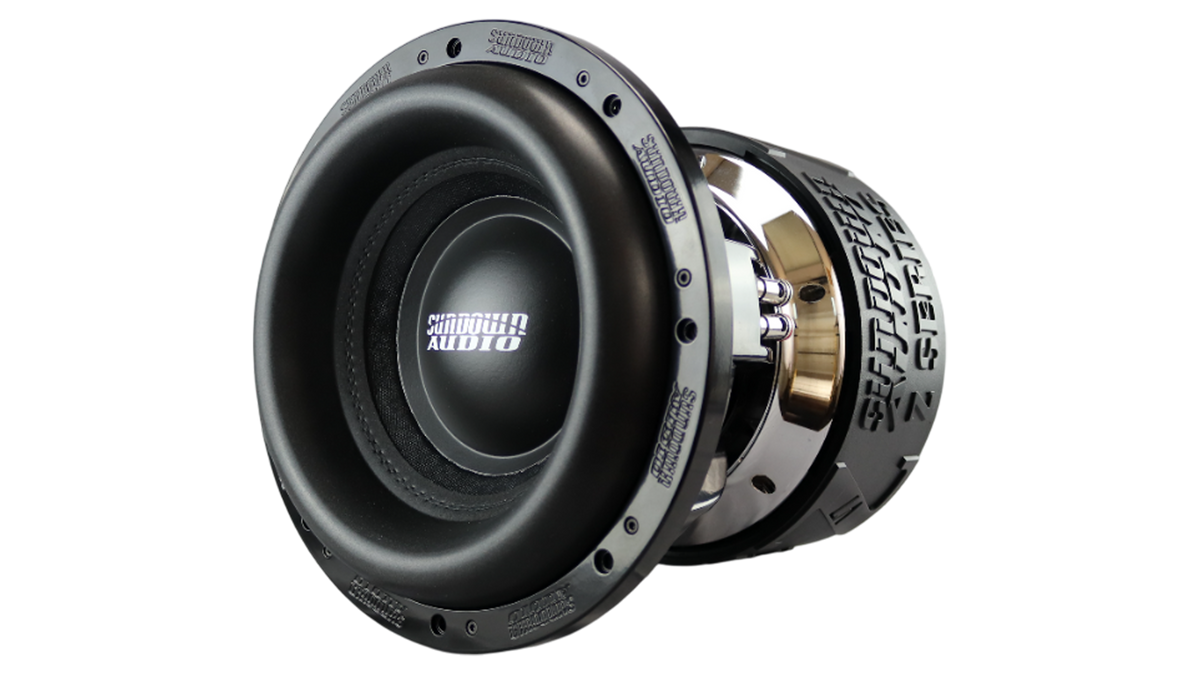

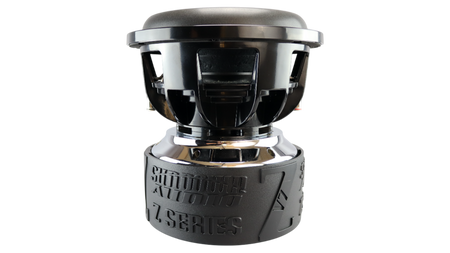

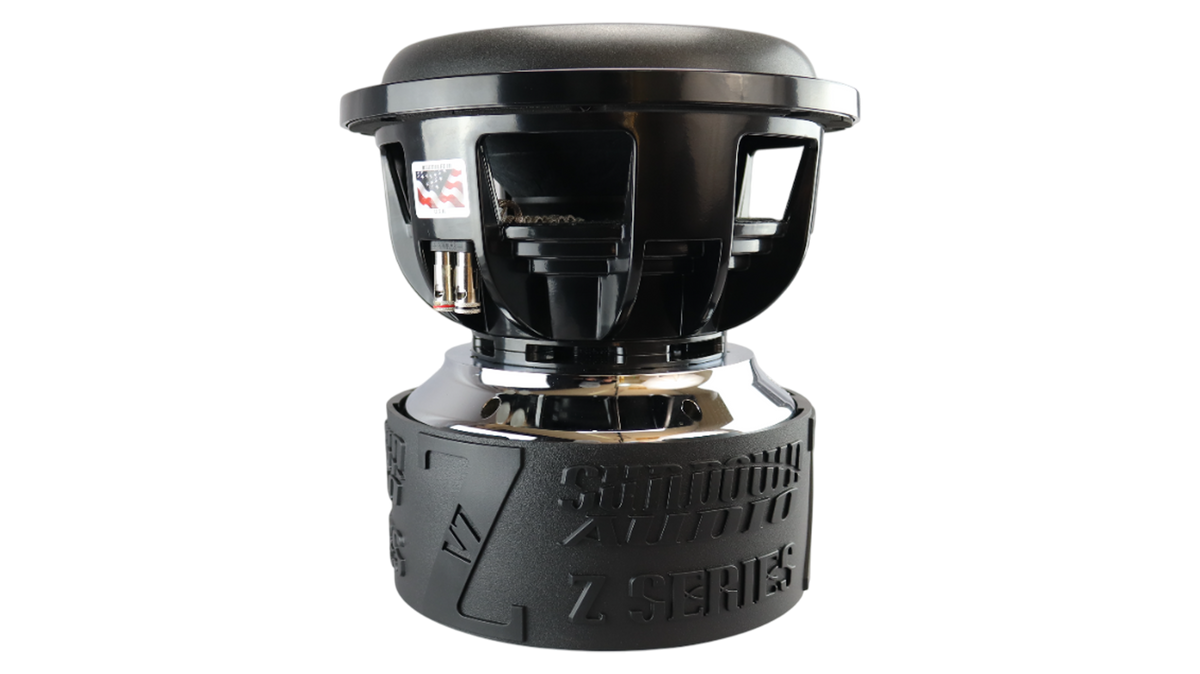

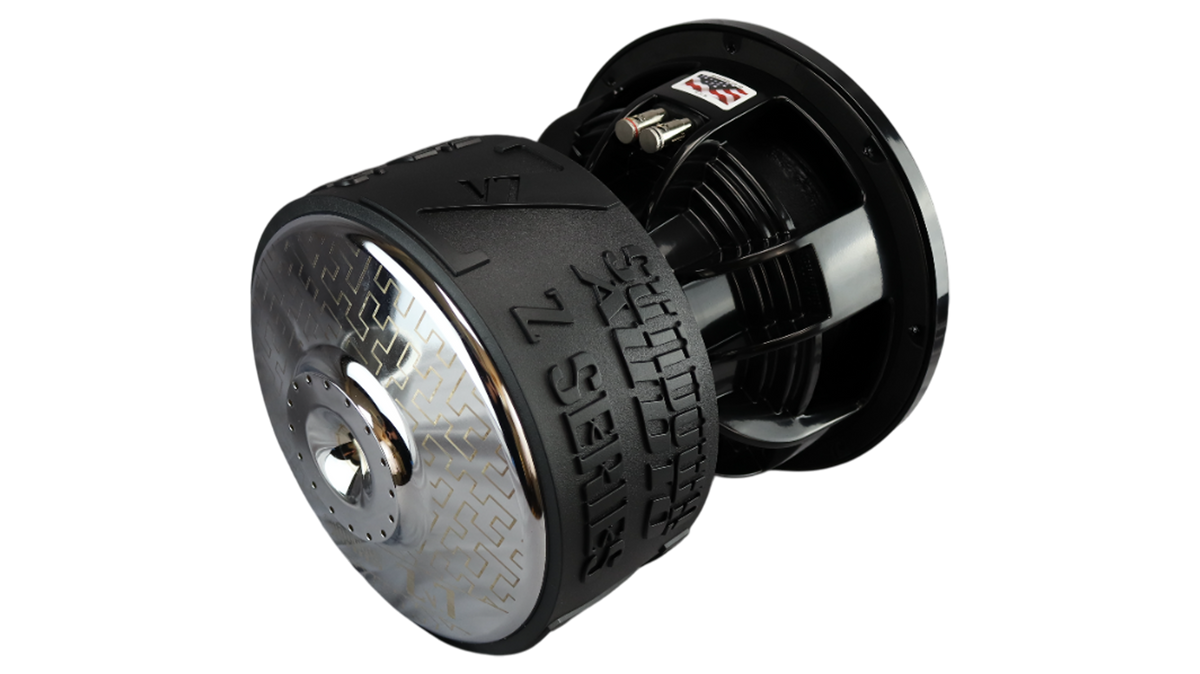

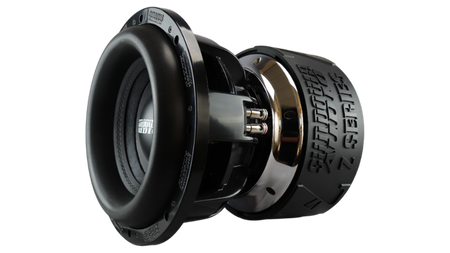

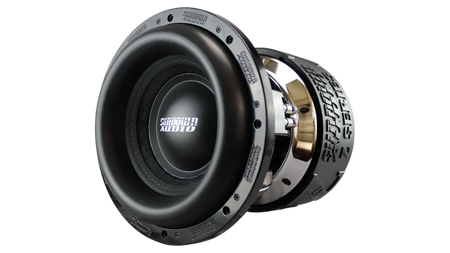

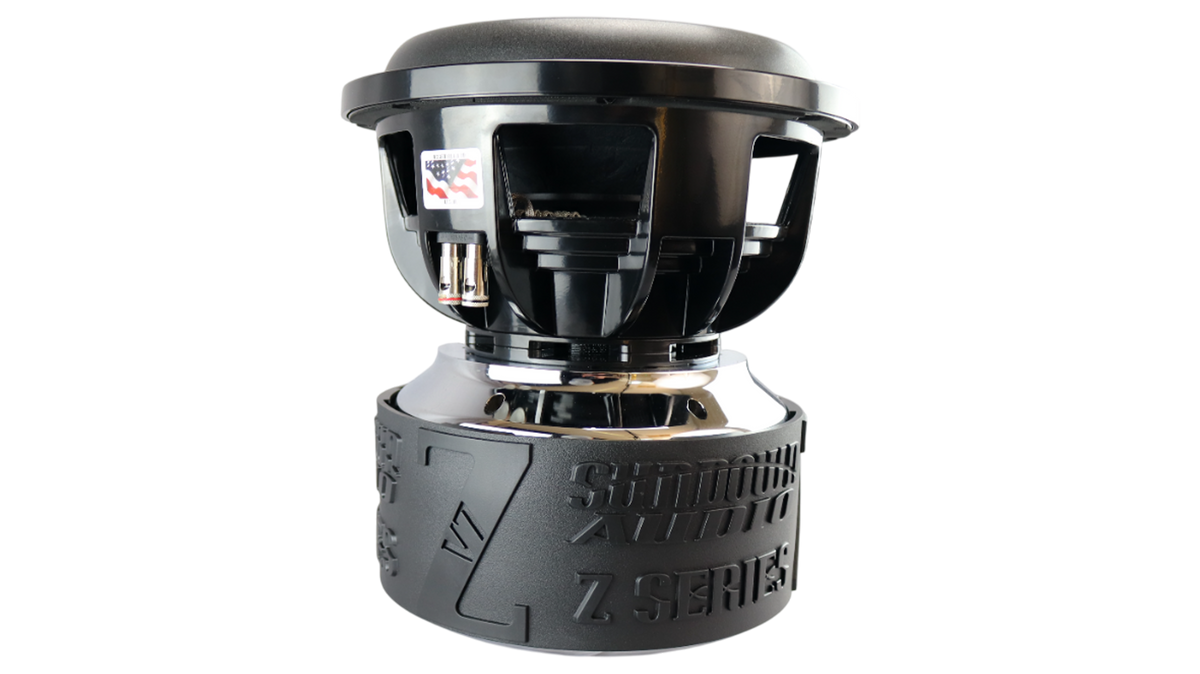

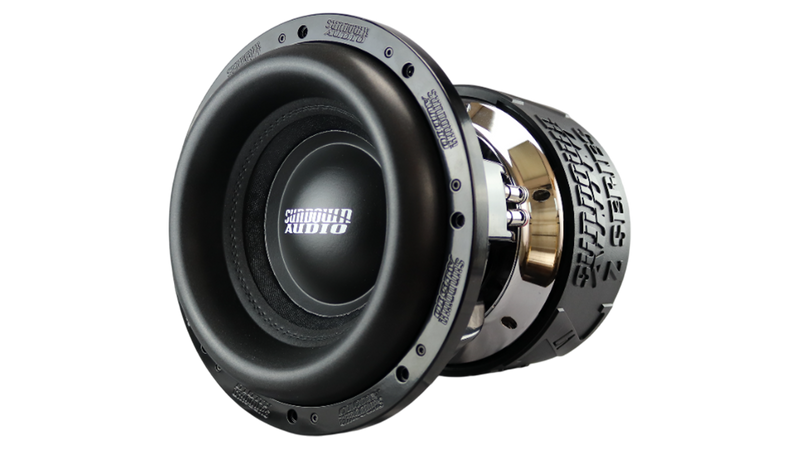

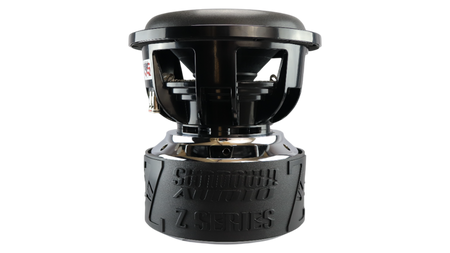

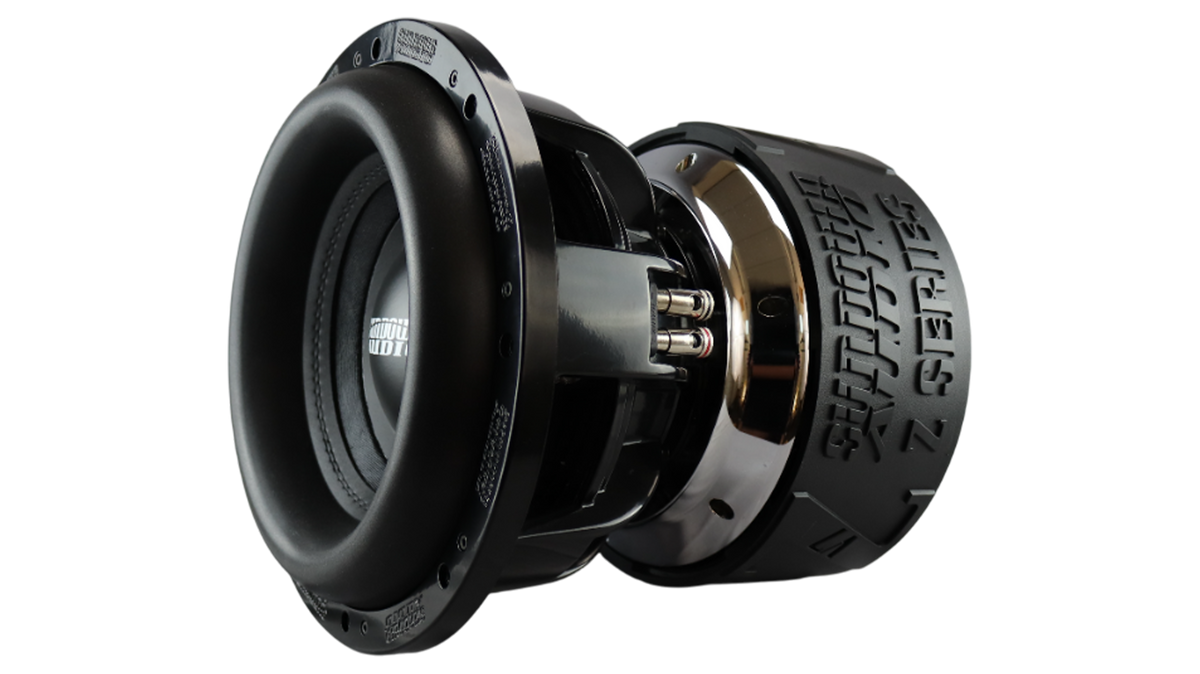

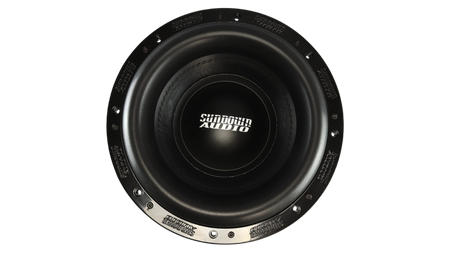

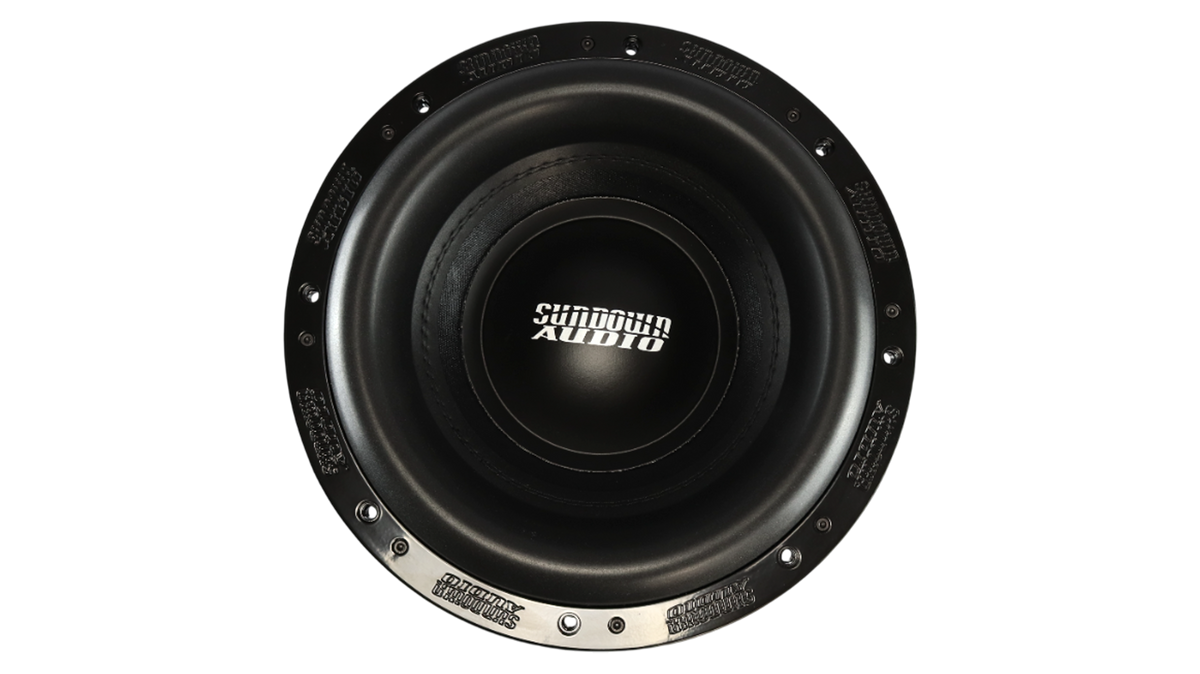

Sundown Audio ZV712D2 Z-Series v.7 12" Subwoofer - Dual 2-Ohm, 3.3" Voice Coil, 42mm Linear Excursion

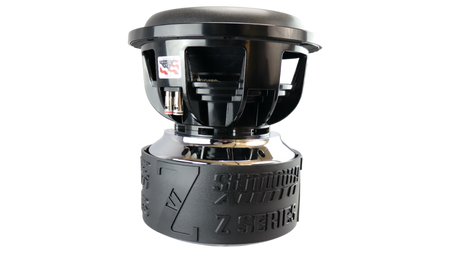

The Sundown Audio ZV712D2 is the 12-inch, dual 2-ohm model of the Z v.7, the third step in Sundown's 2025 ultra-high excursion subwoofer lineup after the M and X v.4. It is built on Sundown's custom tooled, patented mega-platform frame and drives a quad stacked 265mm (10.43-inch) motor with a 100mm magnet stack, a hyper-extended pole and enough clearance for over 4 inches of peak-to-peak travel before mechanical bottom. Motor force factor (BL^2/RE) is about 50% higher than the Z v.6.

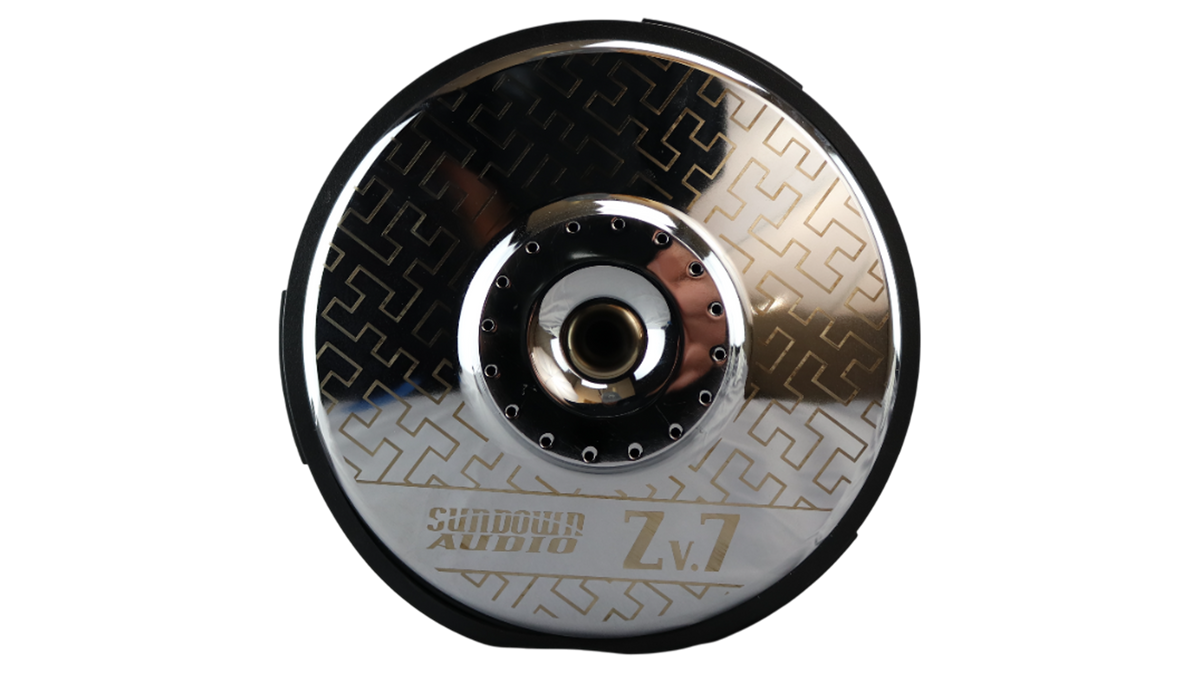

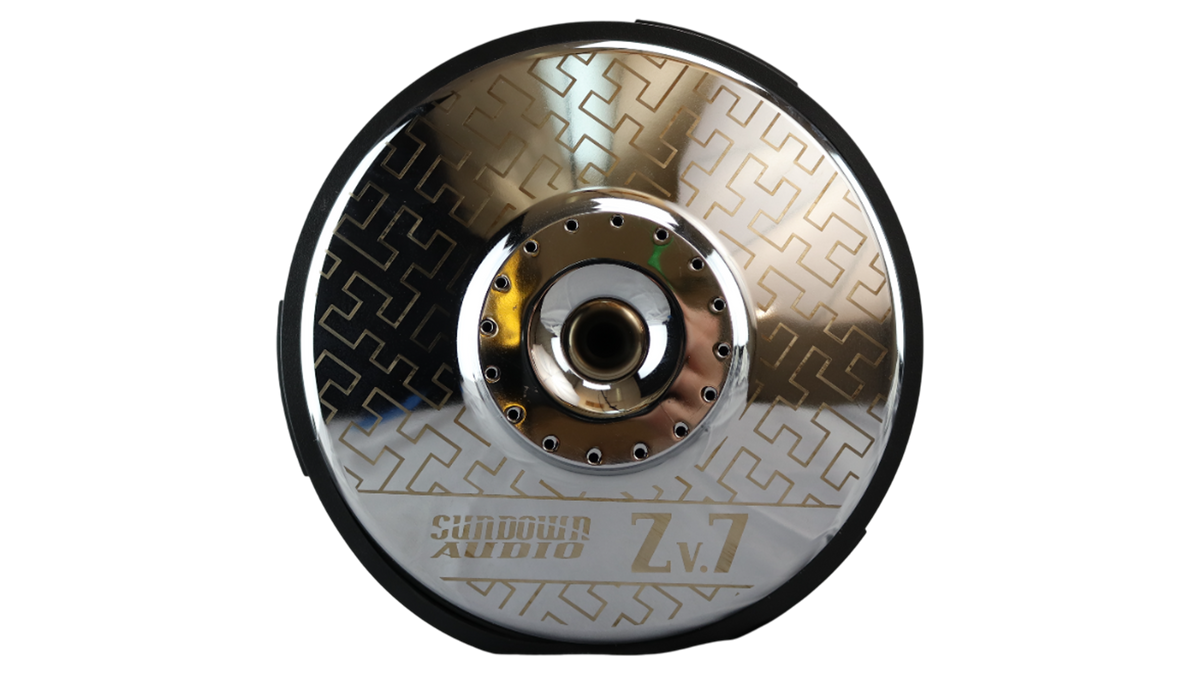

The 3.3-inch, 4-layer round wire aluminum voice coil sits on a thick aluminum former and uses Sundown's fat wire winding to handle heavy power. Cooling comes from a patent-pending airflow directing pole cap, six pole OD channels, sixteen gap vents and a cross-drilled, slotted top plate. A 9mm magnet ID Faraday ring and a pole-extension inductance sleeve keep inductance linear.
With a 95mm voice coil winding length, the Z v.7 reaches 42mm of one-way linear excursion by 70% BL. It is designed for deep, low-distortion bass from small ported enclosures and fits the same boxes commonly used for Sundown mega-platform subwoofers.
HIGHLIGHTS:
- Dual 2-ohm voice coils
- 42mm one-way linear excursion (70% BL)
- Quad stacked 265mm motor, 100mm magnet stack height
- 3.3-inch 4-layer round wire aluminum voice coil
- 9mm Faraday ring and pole-extension inductance sleeve
- Patented mega-platform frame
GREAT FOR:
- Small ported enclosures
- Low-frequency extension with low distortion
- Builds using existing Sundown mega-platform boxes
SPECIFICATIONS:
| SERIES | Z-Series v.7 |
| SIZE | 12 Inch |
| IMPEDANCE | Dual 2 Ohm (DVC) |
| VOICE COIL | 3.3 Inch, 4-layer round wire aluminum |
| VOICE COIL WINDING LENGTH | 95mm |
| MOTOR | Quad stacked, 265mm (10.43 in) diameter |
| MAGNET STACK HEIGHT | 100mm (3.94 in) |
| LINEAR EXCURSION | 42mm one-way (70% BL) |
| FARADAY RING | 9mm magnet ID |
| FRAME | Patented mega-platform |
| SOLD AS | Each |
| BRAND | Sundown Audio |
| UPC | 810199220024 |
