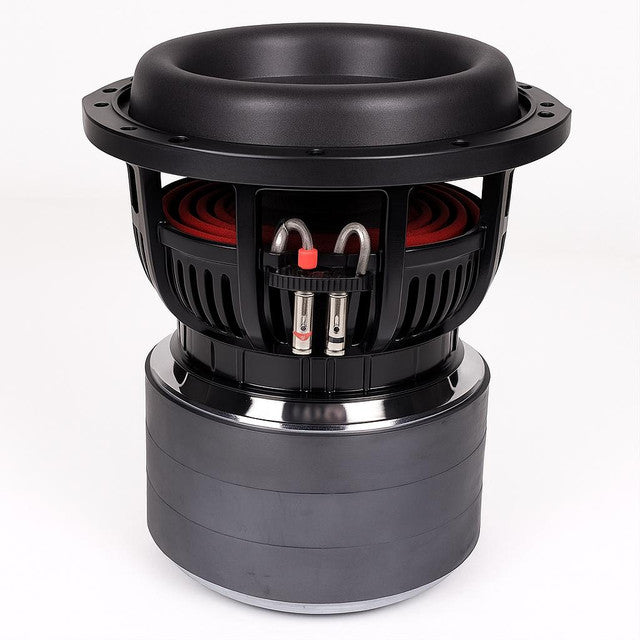

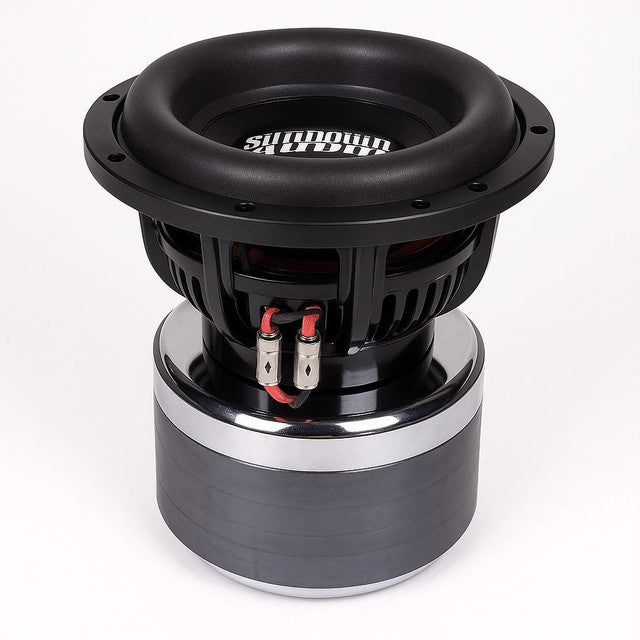

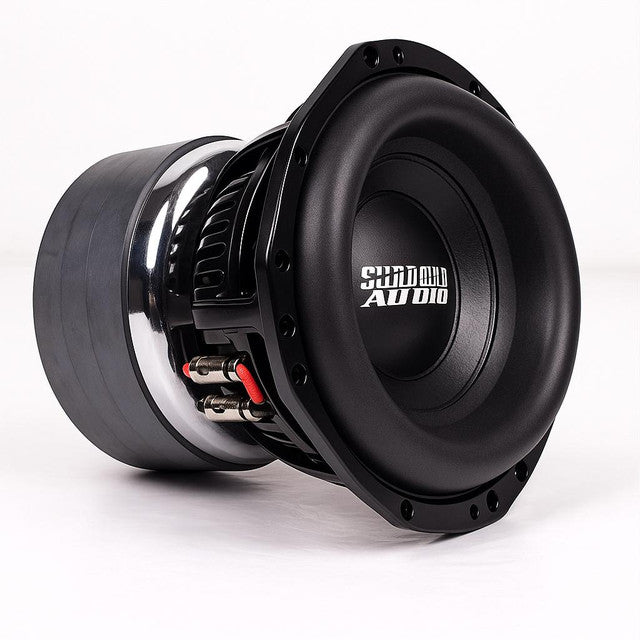

Sundown Audio Z-Series 8" Subwoofer | 2000W RMS | 1 Ohm | High-Power SPL Sub
Don’t underestimate its size — the Z8 Series 8” subwoofer is compact but engineered for serious bass and elite performance in space-limited installs. With a powerful 2000W RMS and 4000W peak output, it’s built for high-output systems that demand precision, punch, and long-lasting durability.
Borrowing advanced tech from Sundown’s larger Z-Series models, the Z8 features a 3" black aluminum 8-layer voice coil, a massive 30mm Xmax, and a custom motor structure designed for optimal airflow and cooling. Every component is crafted to withstand extreme use while delivering consistent, high-fidelity sound.
Features:
- Power Handling: 2000W RMS / 4000W Peak
- Voice Coil: 2.75" black aluminum, 4-layer round-wound
- Xmax: 30mm one-way excursion
- Cooling: Vented motor structure, pole vent, and cast-aluminum spacer ring
- Surround & Suspension: Mega-Roll v.2 surround, dual spider pack
- Durability: Stitched XL tinsel leads, heavy-duty terminals
-
Enclosure Type: Designed for ported enclosures (sealed not recommended)
- UPC: 810111133968
Specifications:
- Power Handling: 2000W RMS / 4000W Peak
- Voice Coil: 2.75" Black Aluminum, 4-layer round-wound
- Xmax: 30mm one-way excursion
- Impedance: Available in Dual 1 Ohm or Dual 2 Ohm
- Cooling System: Vented pole piece, cast-aluminum spacer ring, vented magnetic gap
- Surround: Mega-Roll v.2 high-excursion surround
- Spider Pack: Dual linear spiders for stability
- Motor: Custom-tooled with aluminum Faraday ring
- Tinsel Leads: Stitched XL leads for durability
- Mounting Depth: 9.5"
- Cut-Out Diameter: 8.2"
- Recommended Enclosure: Ported, 1.0 cu. ft. tuned to 32Hz
- Displacement: 0.12 cu. ft.
Recommended Enclosure:
- Type: Ported only (sealed not recommended)
- Volume: 1.0 cu. ft. net
- Tuning: 32Hz
- Port Area: 15 sq. in.
- Displacement: 0.12 cu. ft.
- Mounting Depth: 9.5"
- Cut-Out Diameter: 8.2"
- Outside Diameter: 10"
