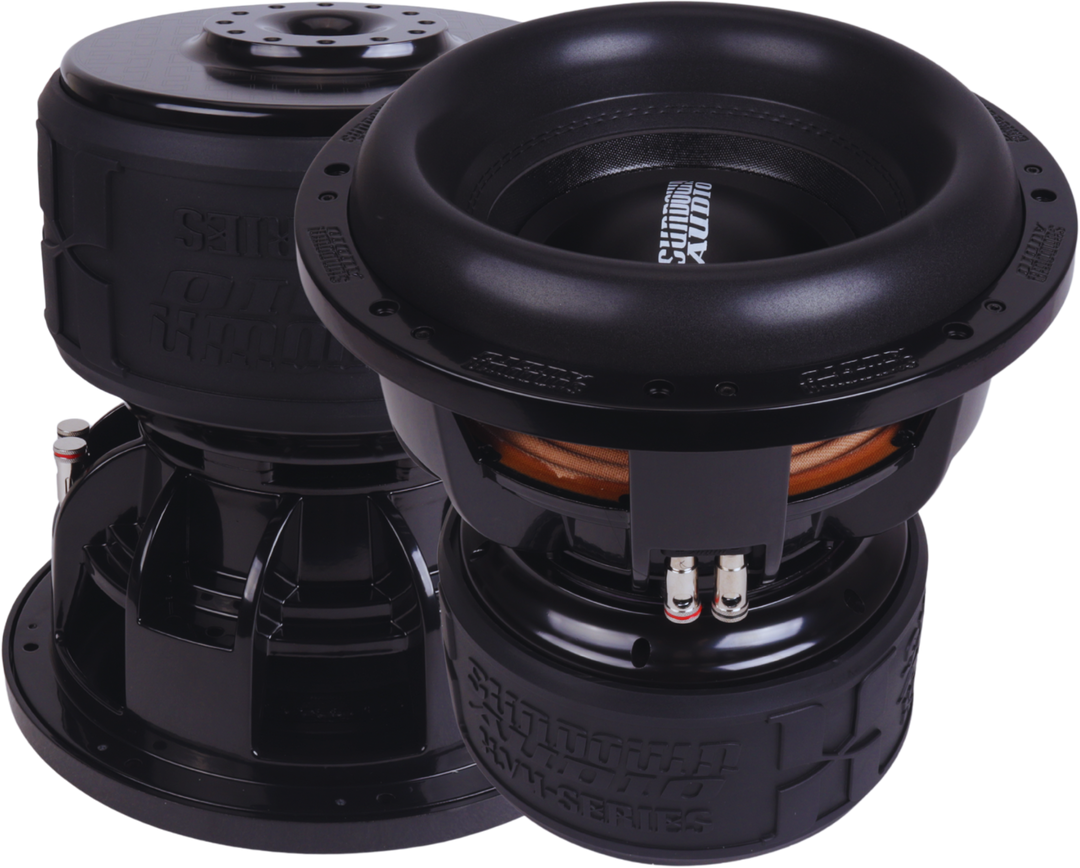

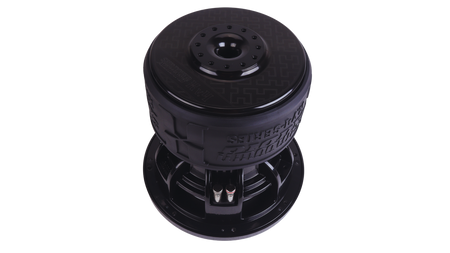

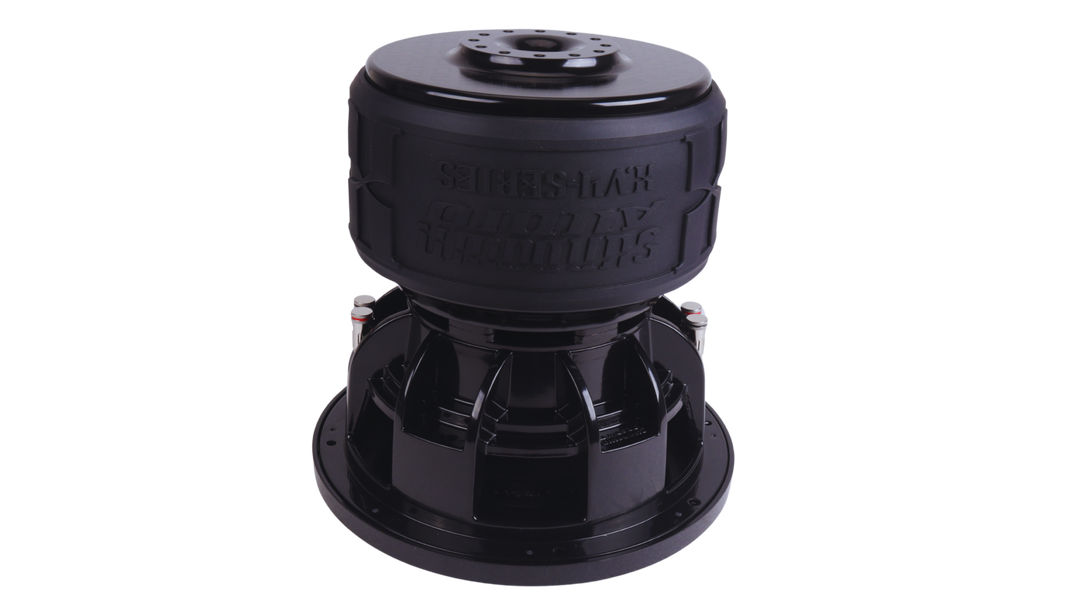

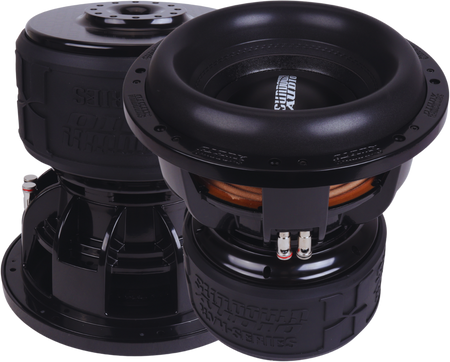

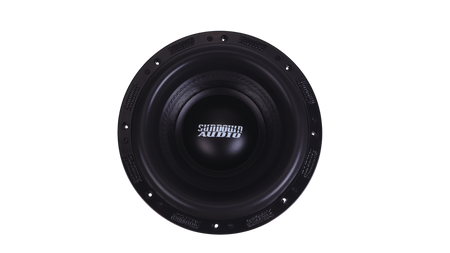

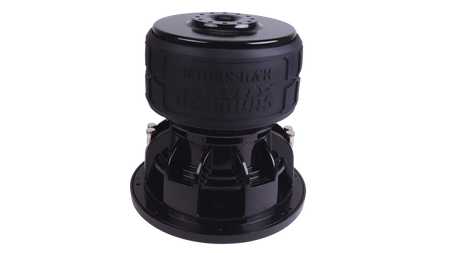

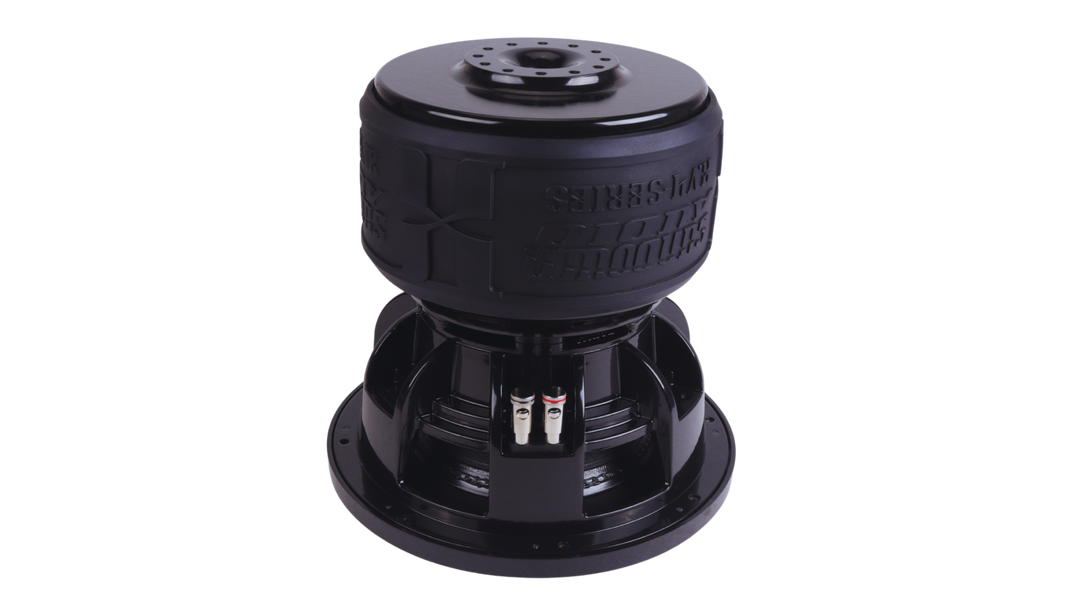

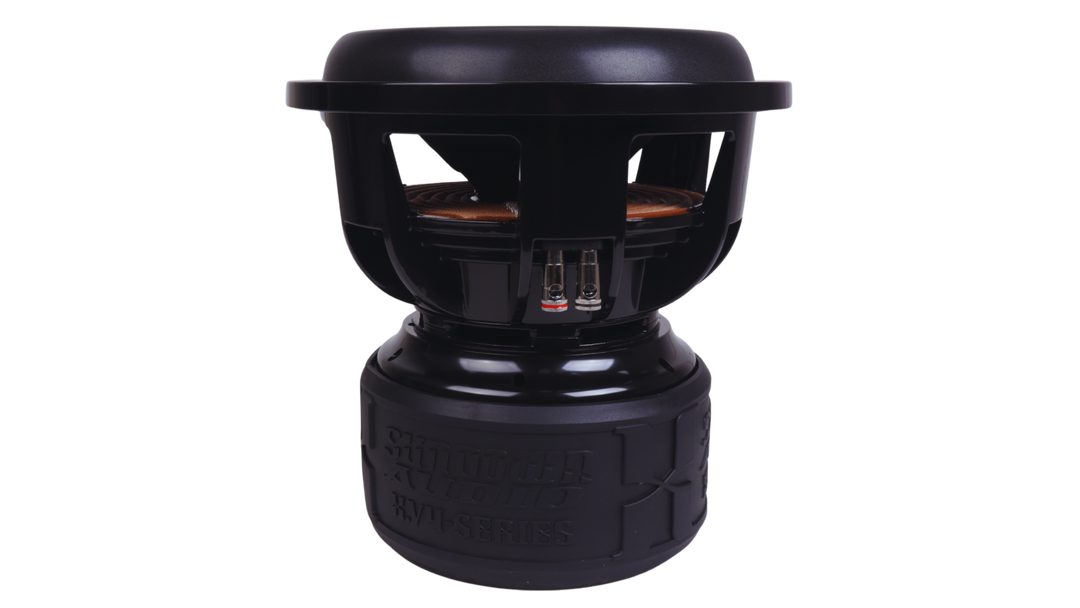

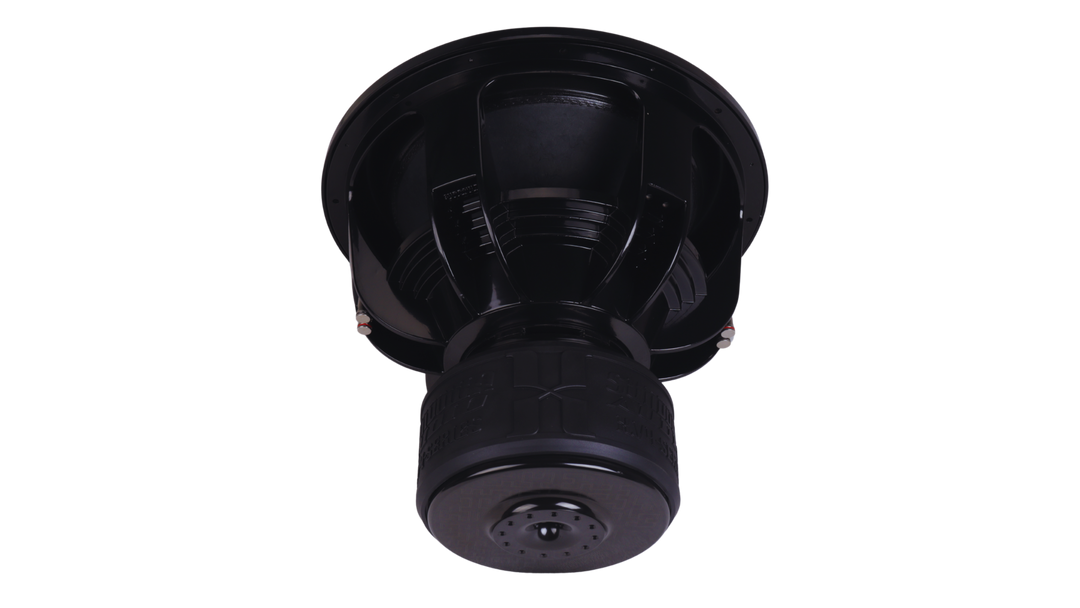

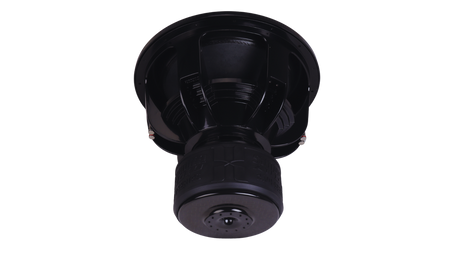

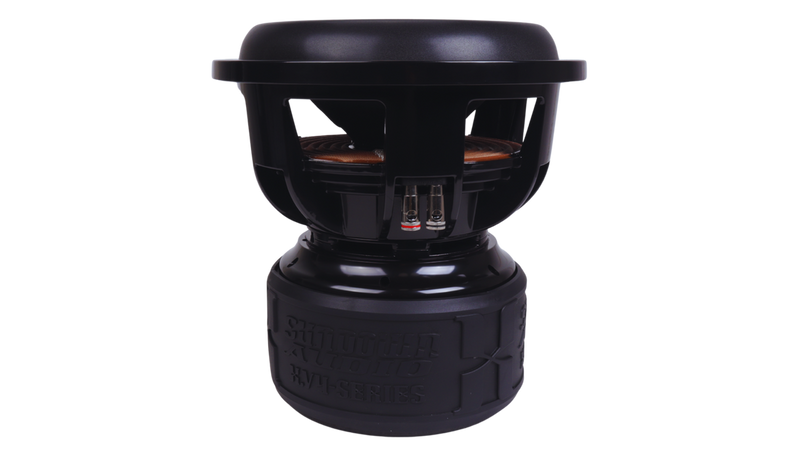

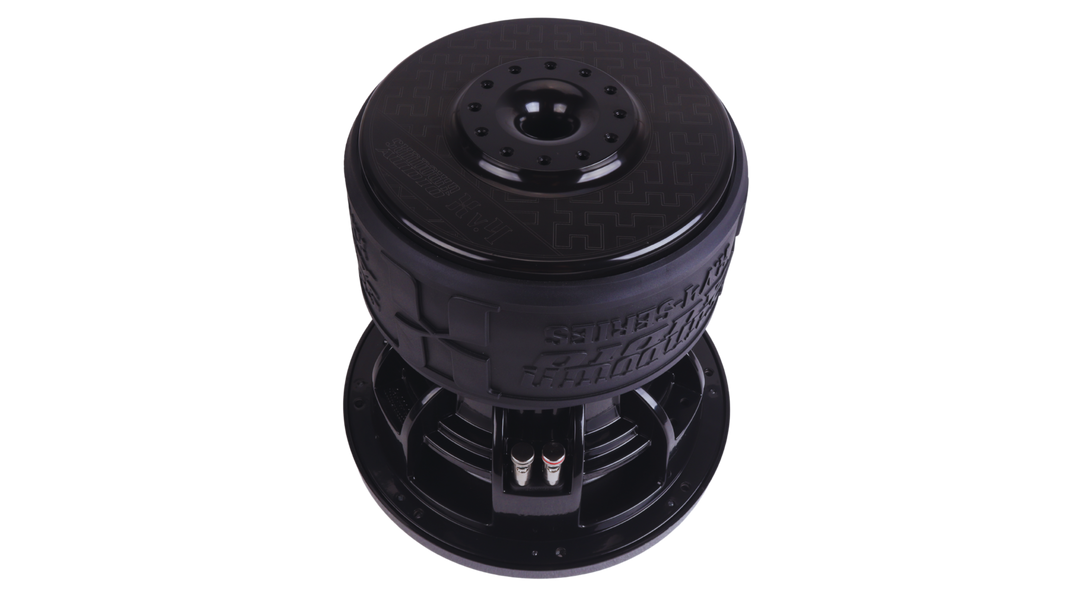

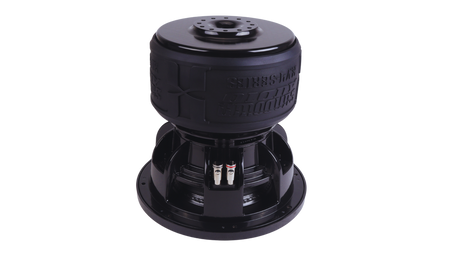

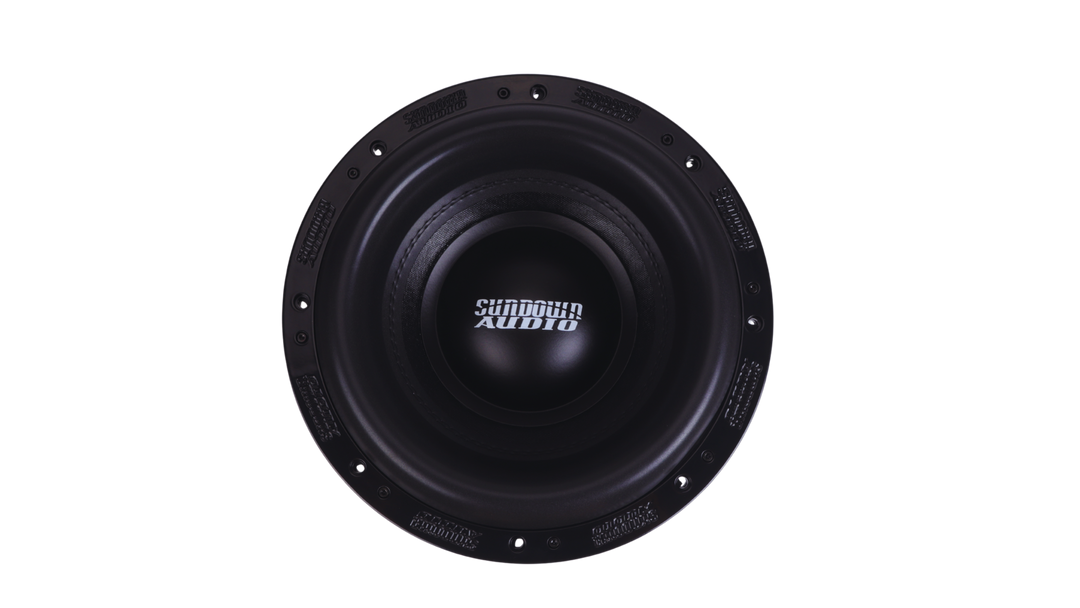

Sundown Audio XV412D1 12" XV4 Dual 1 Ohm Subwoofer – 3000W RMS / 6000W Peak Deep Bass
Experience extreme bass with the Sundown Audio XV4 12" Dual 1Ω subwoofer. Featuring 3000W RMS, 6000W peak, X v.4 coils, and a heavy-duty motor, it delivers deep, accurate, high-output performance for serious car audio builds.
Features:
- 12" subwoofer featuring advanced Xv4 voice coil technology
- Power handling: 3000W RMS / 6000W peak output
- Offered in Dual 1Ω and Dual 2Ω configurations
- High-efficiency motor design with strong BL performance
- Optimized for ported enclosures (2.5 cu ft tuned to 32Hz)
- 30mm Xmax for deep excursion and precise bass response
- Reinforced cone built to withstand extreme pressure
- Engineered for audiophiles and high-SPL enthusiasts
Specifications:
Dual 1-Ohm T/S Specs
RMS Power: 3000 W
Peak Power: 6000 W
Re (Ohms): 2.05
Fs (Hz): 39.39
Vas (L): 14.13
Qes: 0.58
Qms: 4.95
Qts: 0.50
Le (mH): 1.33
BL (N/A): 24.4
Mms (g): 343.14
Cms (µm/N): 47.56
Sensitivity (dB @ 1W/1m): 83.47
Xmax: 30 mm
Subwoofer Measurements
Displacement: 0.23 cu ft
Mounting Depth: 11.75"
Cutout Diameter: 11.09"
Motor Diameter: 9.25"
Ported Enclosure Specs
Recommended Enclosure Size: 2.5 cu ft
Recommended Port Area: 40 sq in
Recommended Port Tuning: 32 Hz
4th Order Enclosure Specs
Sealed Side: 1.0 cu ft
Ported Side: 3.0 cu ft
Port Area: 60 sq in
Port Length: 60 sq in (as provided)
UPC: 810111131278
