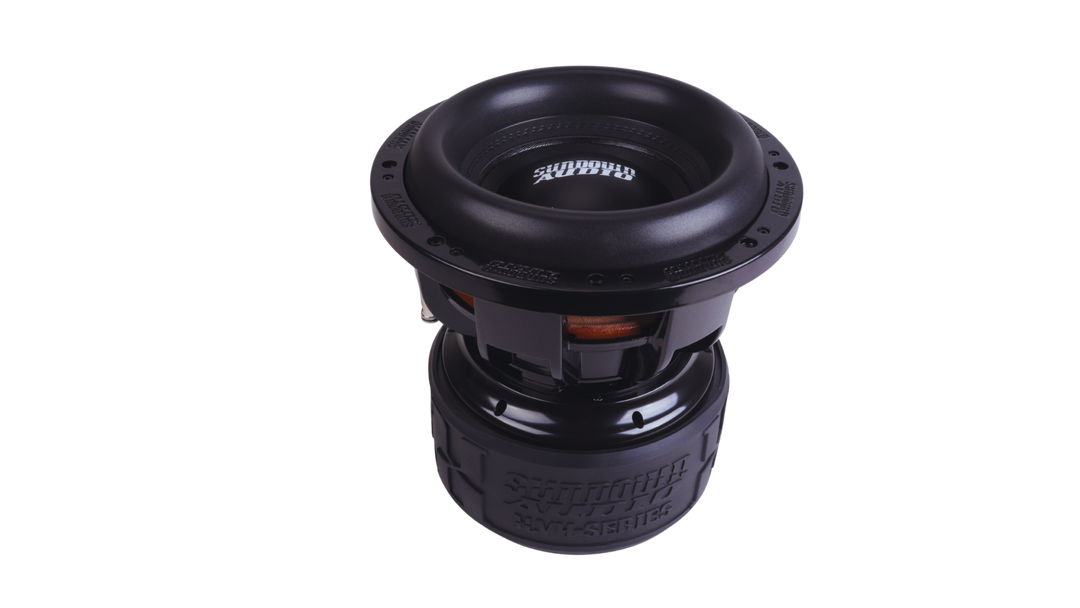

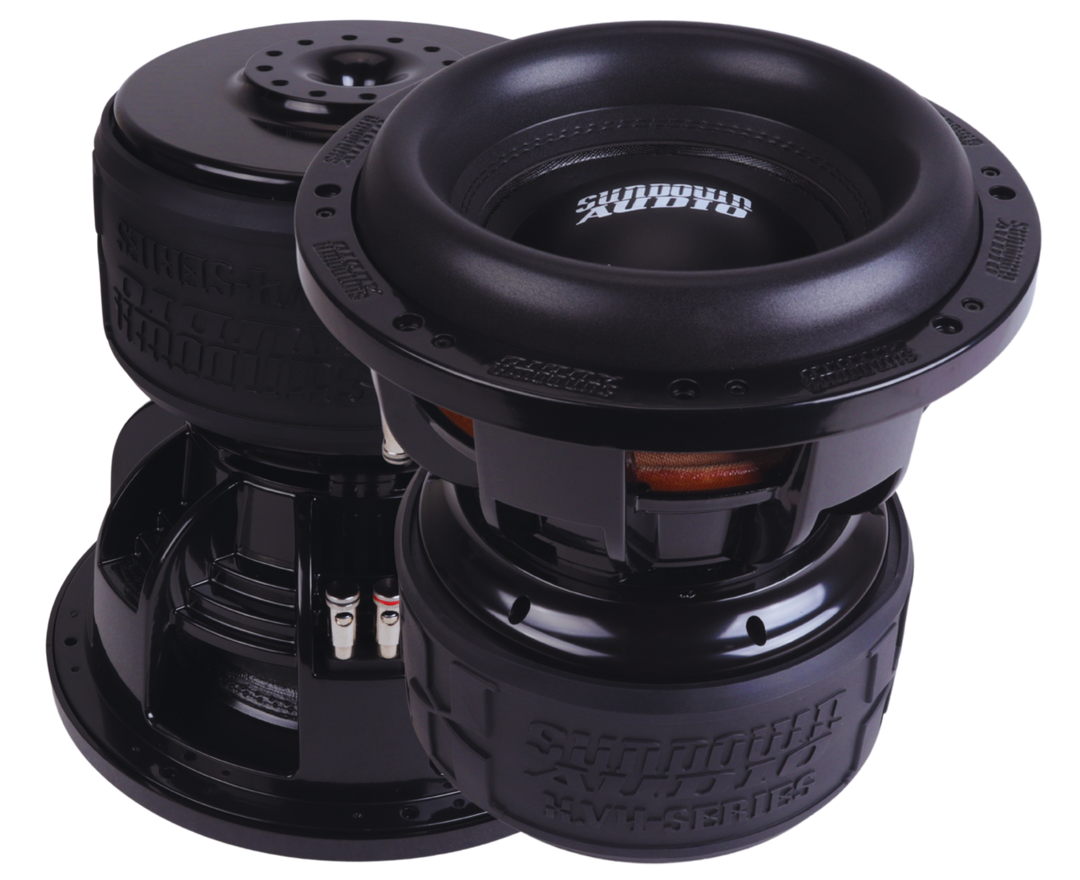

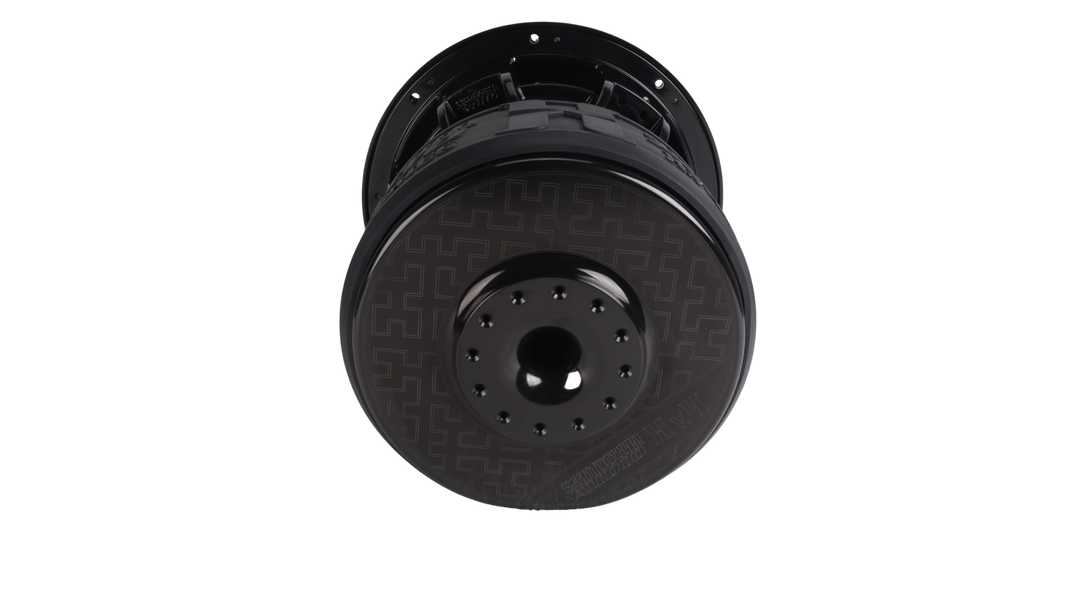

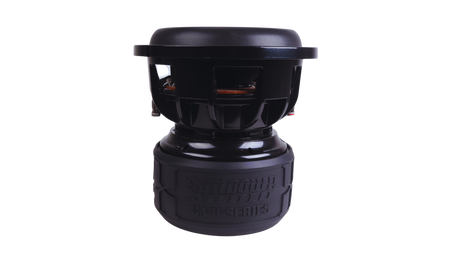

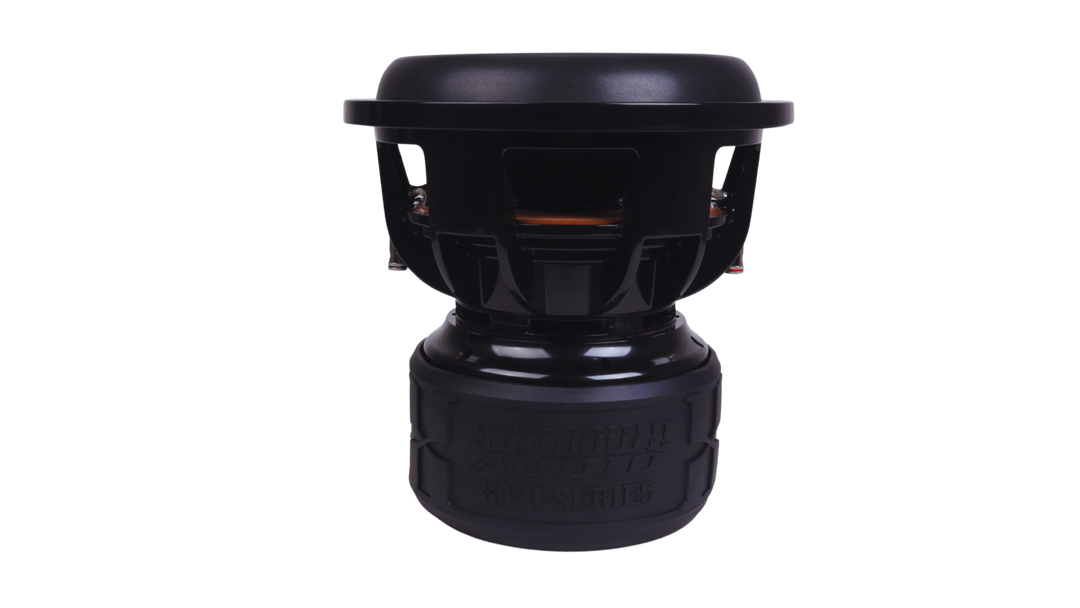

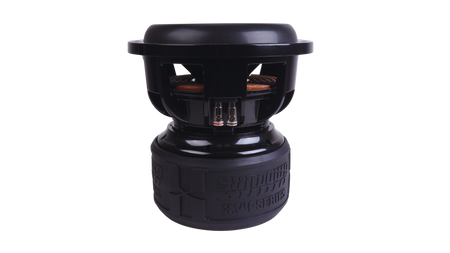

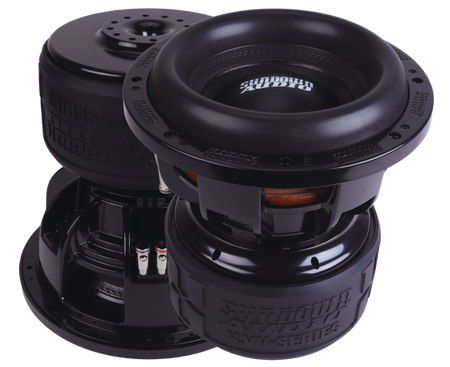

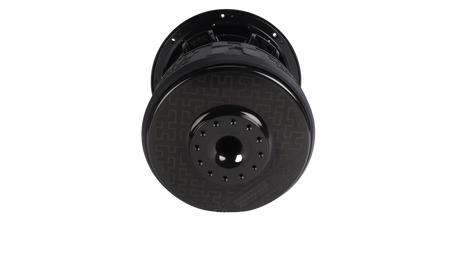

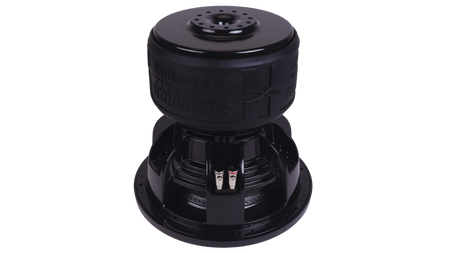

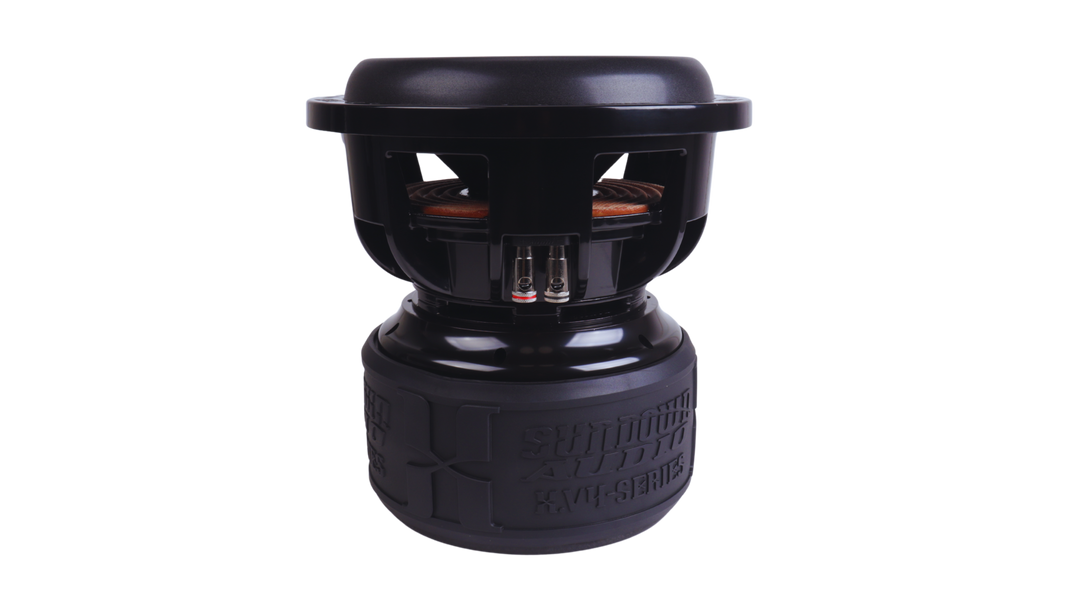

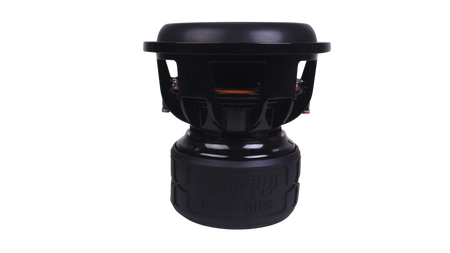

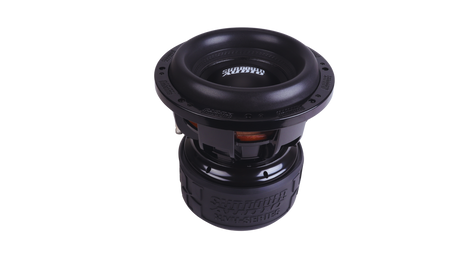

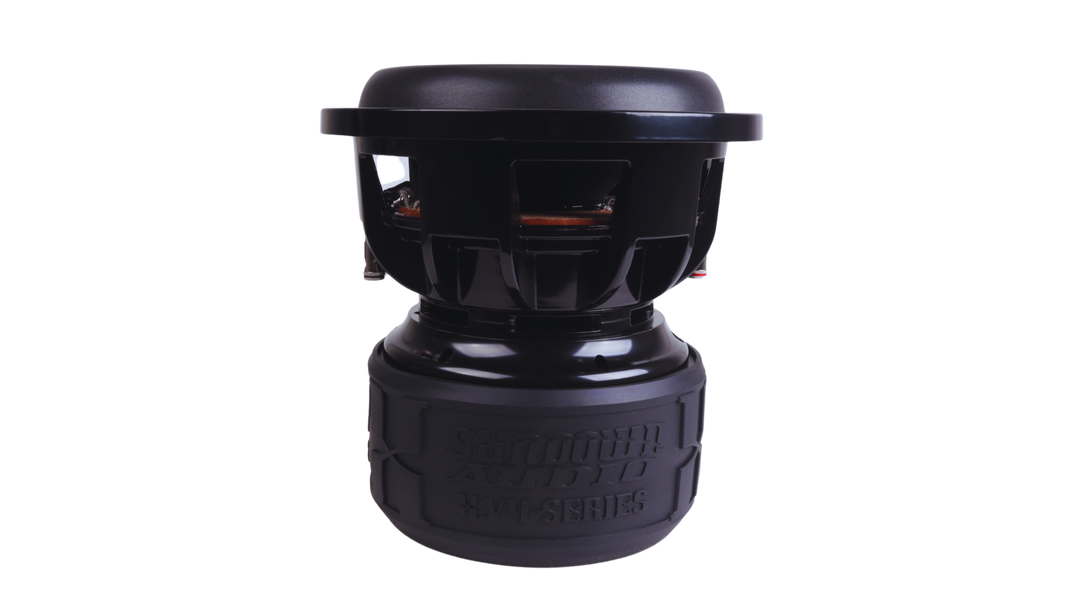

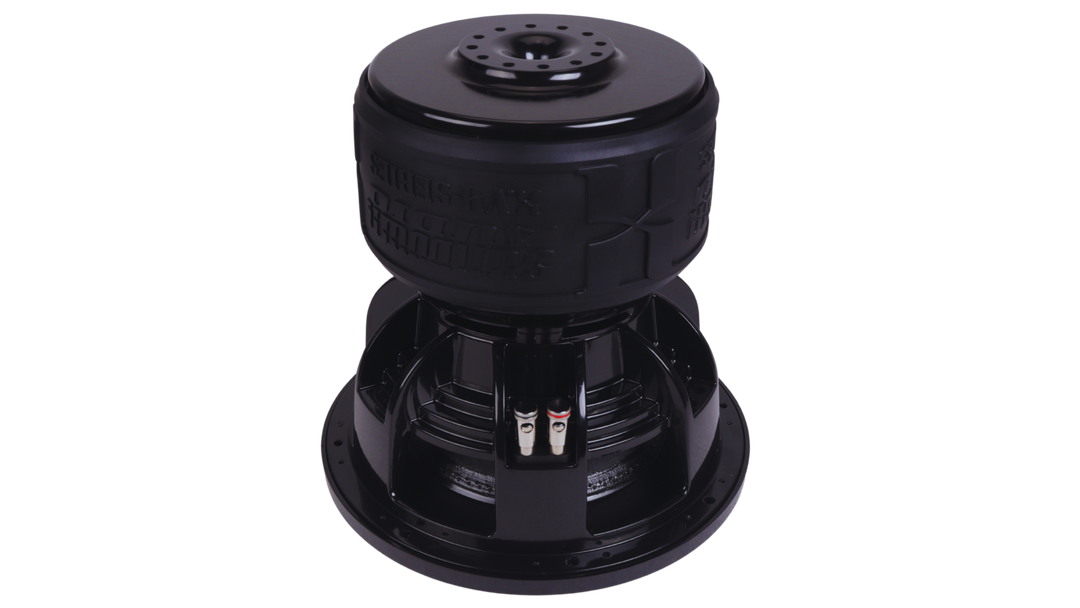

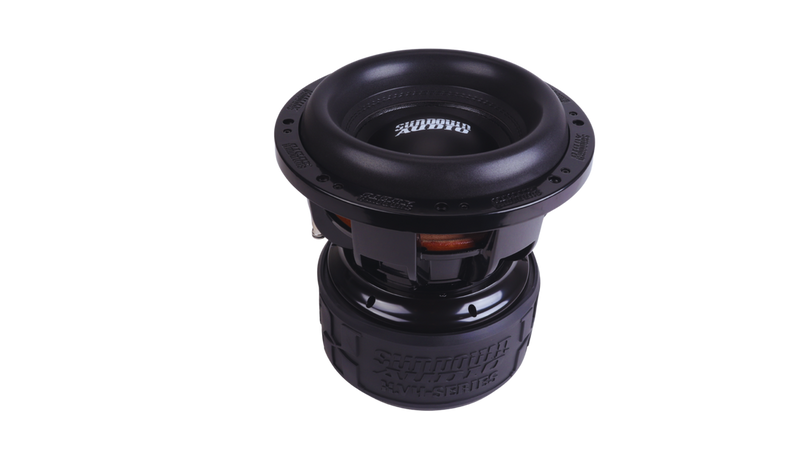

Sundown Audio XV410D1 X-Series 10" 3000W RMS Subwoofer – High Power Dual Coil
Experience deep, precise bass with the Sundown Audio XV4 10" subwoofer. Featuring 3000W RMS / 6000W peak, 30 mm Xmax, and X v.4 coil technology, it delivers high-output, distortion-free performance for car audio upgrades and competition setups.
Features:
- Delivers 3000W RMS continuous power and 6000W peak output.
- Advanced X v.4 coil technology for superior efficiency and performance.
- 10" subwoofer engineered for deep, precise bass reproduction.
- Optimized for ported enclosures with 1.5 cu ft volume and 32 Hz tuning.
- 30 mm Xmax ensures maximum cone excursion for clean, distortion-free bass.
- Equipped with a heavy-duty 9.25" motor for high-output reliability.
- Built with durable construction for competition-level performance.
- Offers Dual 1‑Ohm and Dual 2‑Ohm wiring options for flexible system setups.
Specifications:
Dual 1‑Ohm T/S Specs
RMS Power: 3000 W
Peak Power: 6000 W
Re (Ohms): 3.2
Fs (Hz): 41.37
Vas (L): 8.24
Qes: 0.58
Qms: 5.07
Qts: 0.52
Le (mH): 2.68
BL (N/A): 22.19
Mms (g): 341.7
Cms (µm/N): 43.29
Sensitivity (dB @ 1W/1m): 81.76
Xmax: 30 mm
Subwoofer Measurements
Displacement: 0.22 cu ft
Depth: 11″
Cutout: 10.01″
Motor Diameter: 9.25″
Ported Enclosure Specs
Enclosure Size: 1.5 cu ft
Recommended Port Area: 24 sq in
Recommended Port Tuning: 32 Hz
4th Order Enclosure Specs
Sealed Side: 0.75 cu ft
Ported Side: 2.25 cu ft
Port Area: 45 sq in
Port Length: 8″
UPC: 810111135351
