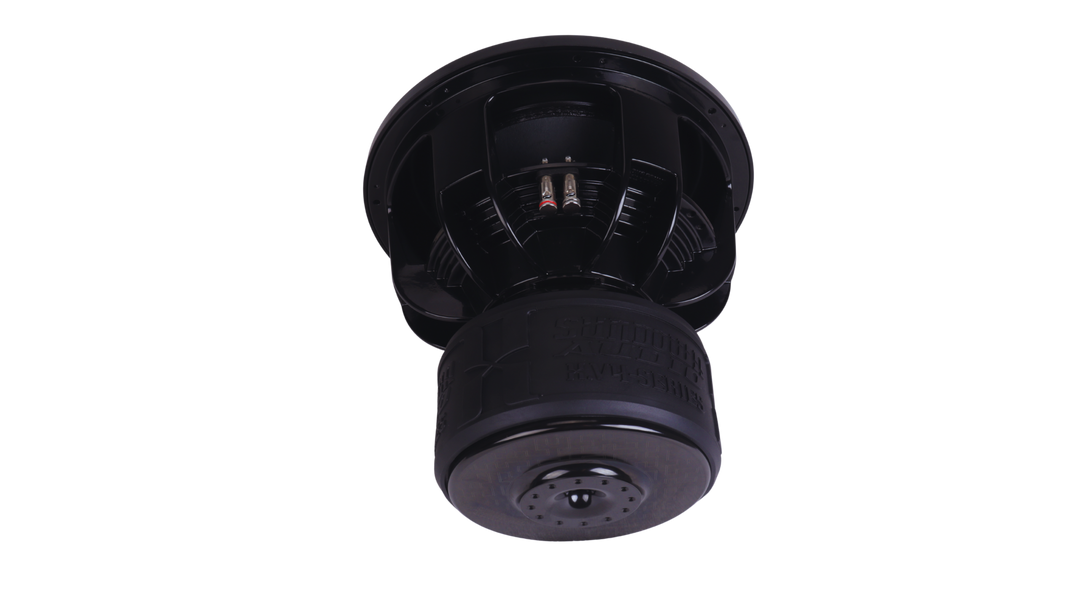

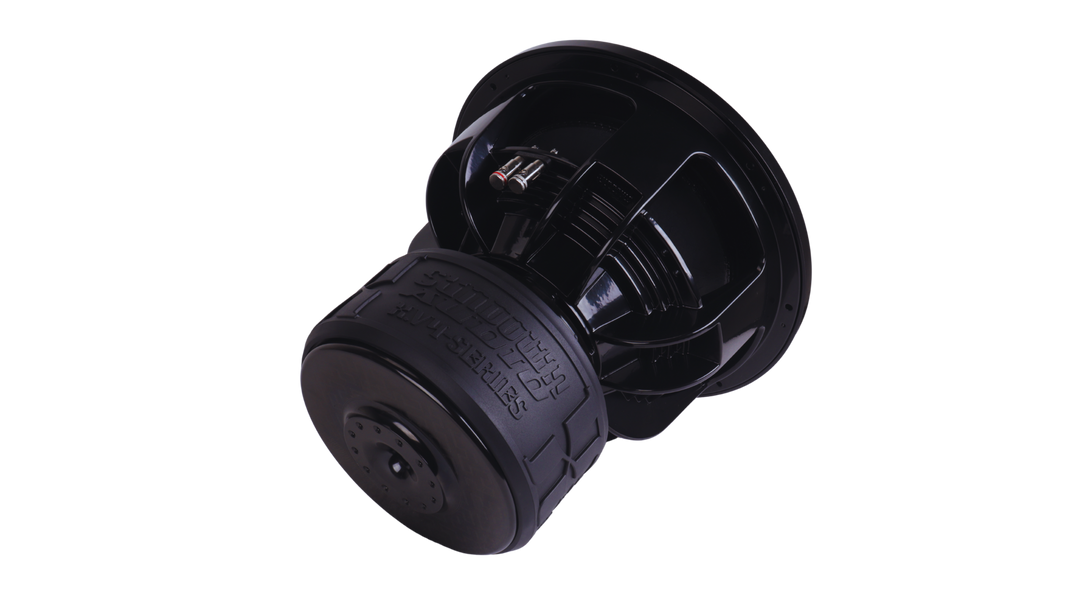

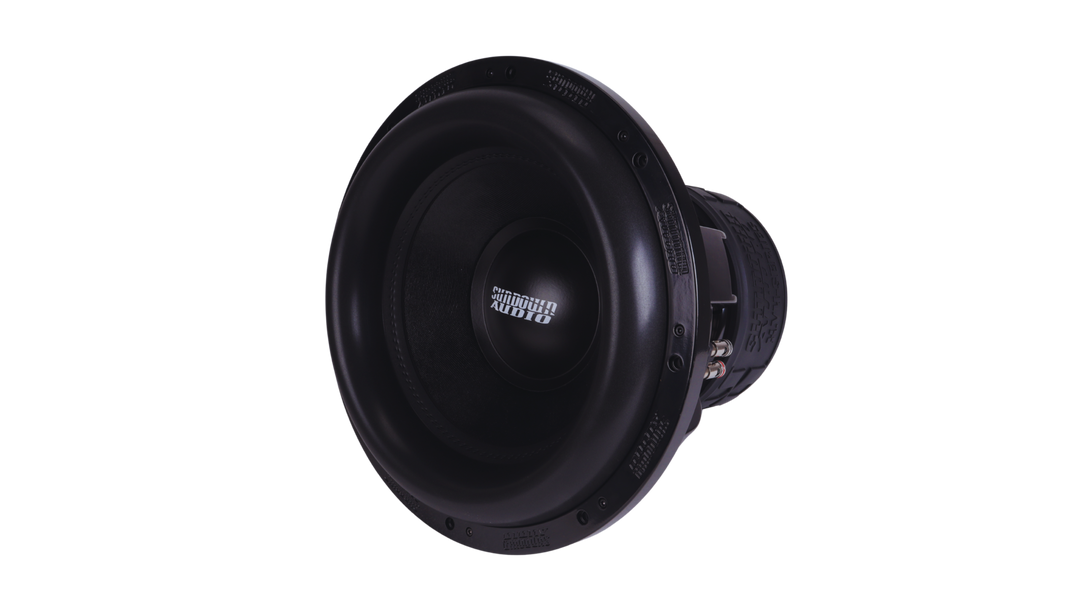

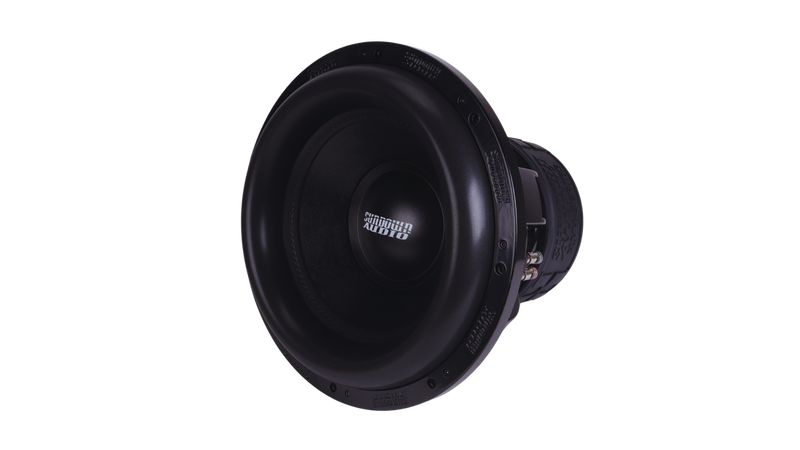

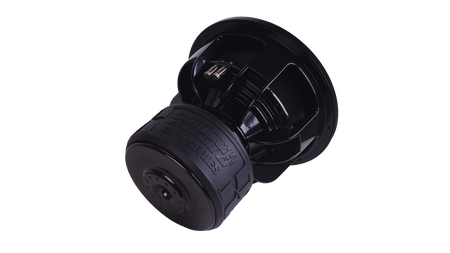

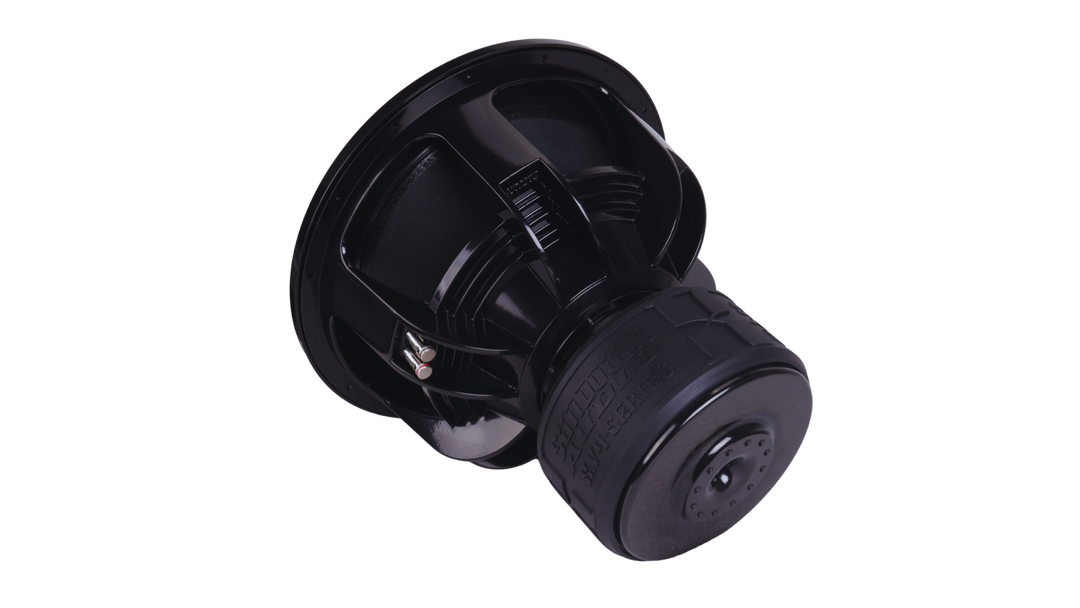

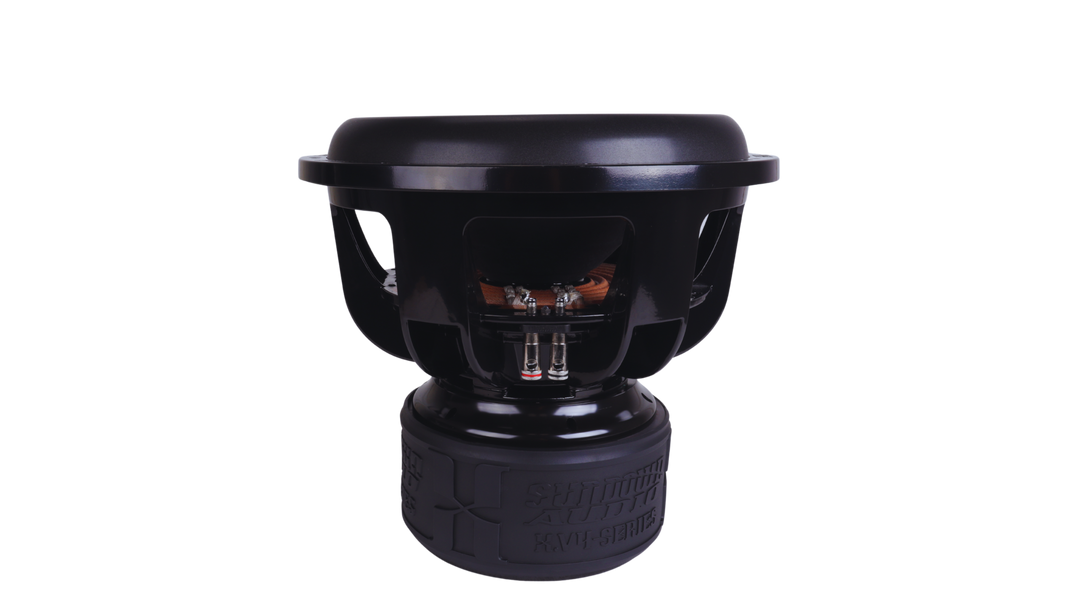

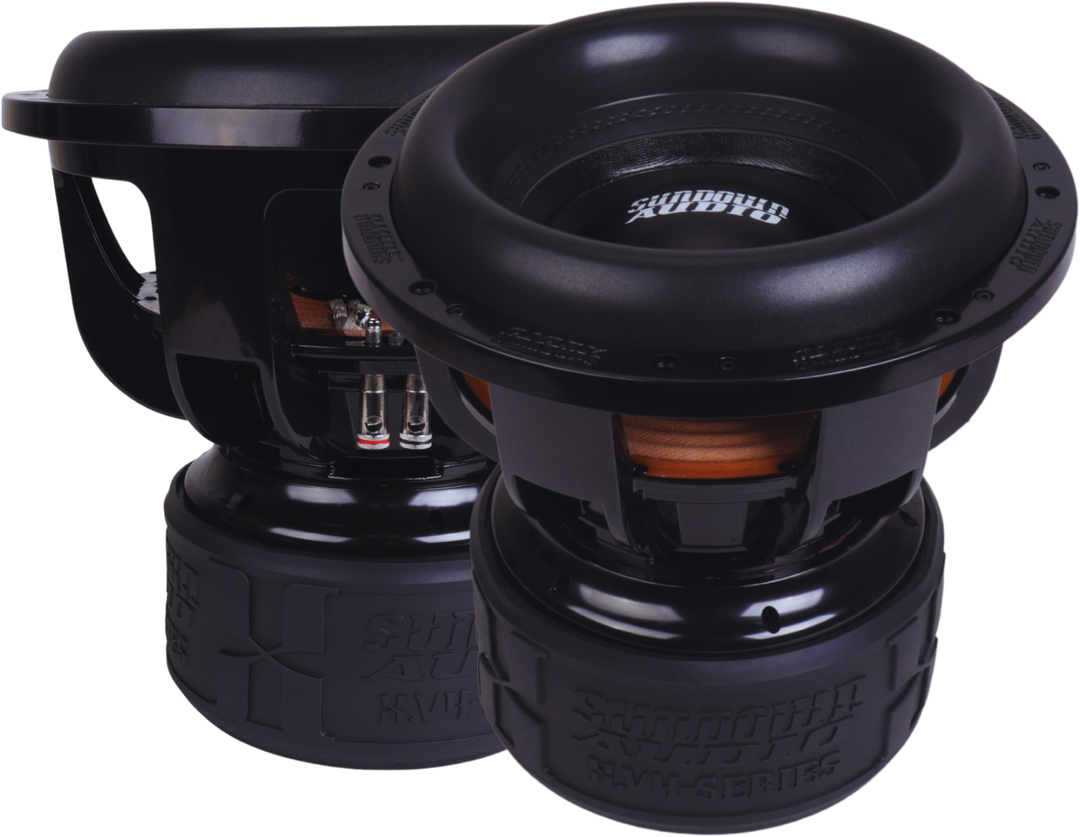

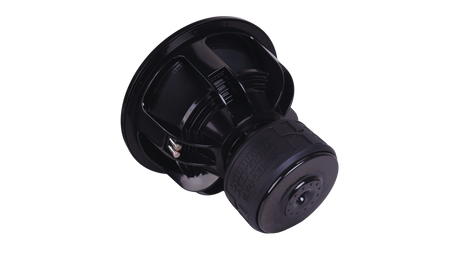

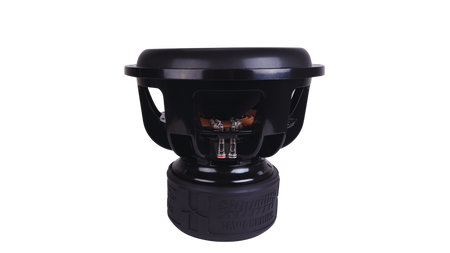

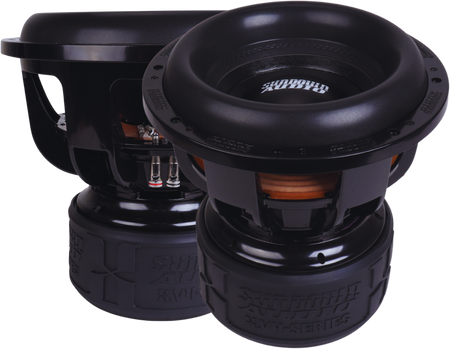

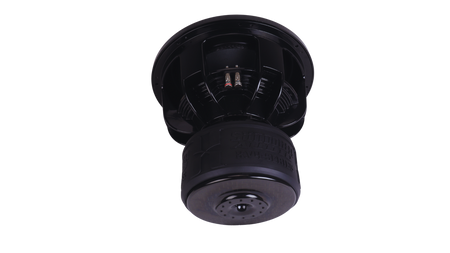

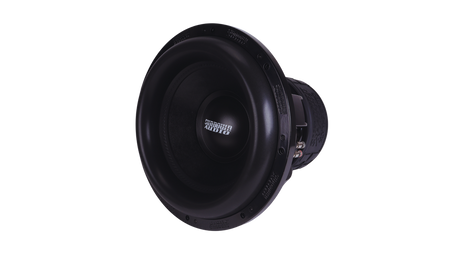

Sundown Audio SUN-XV415D1 X-Series XV4 15″ 3000W RMS 1-Ohm Dual Voice Coil Subwoofer – High-Power
Unleash powerful, clean bass with the Sundown Audio XV4 15″ Subwoofer. With 3000W RMS, 6000W peak, advanced X v.4 coil design, and a durable motor, it delivers deep, distortion-free lows. Perfect for ported or 4th-order enclosures, engineered for audiophiles and bass competitors seeking maximum performance.
Features:
- 15″ high-performance subwoofer with advanced X v.4 coils
- 3000W RMS / 6000W peak power handling
- 30mm Xmax for strong, linear cone excursion
- Optimized 9.25″ motor design for maximum efficiency
- Recommended ported enclosure: 4.25 cu ft tuned to 32 Hz
- Robust cone engineered for high-SPL output
- Ideal for competitive and high-end car audio systems
Specifications:
Dual 1-Ohm T/S Specs (D1)
RMS Power: 3000W
Peak Power: 6000W
Re-Ohms: 3.2Ω
Fs: 29.91 Hz
Vas: 31.43 L
Qes: 0.55
Qms: 4.87
Qts: 0.49
Le: 2.57 mH
BL: 22.32 N/A
Mms: 457.51 g
Cms: 61.87 μM/N
Sensitivity: 85.29 dB @ 1W/1m
Xmax: 30mm
Subwoofer Measurements
Displacement: 0.26 cu ft
Depth: 12.95″
Cutout: 13.93″
Motor Diameter: 9.25″
Ported Enclosure Specs
Recommended Size: 4.25 cu ft
Recommended Port Area: 68 sq in
Recommended Port Tuning: 32 Hz
4th Order Enclosure Specs
Sealed Side: 2.0 cu ft
Ported Side: 6.0 cu ft
Port Area: 120 sq in
Port Length: 8″
UPC: 810111135399
