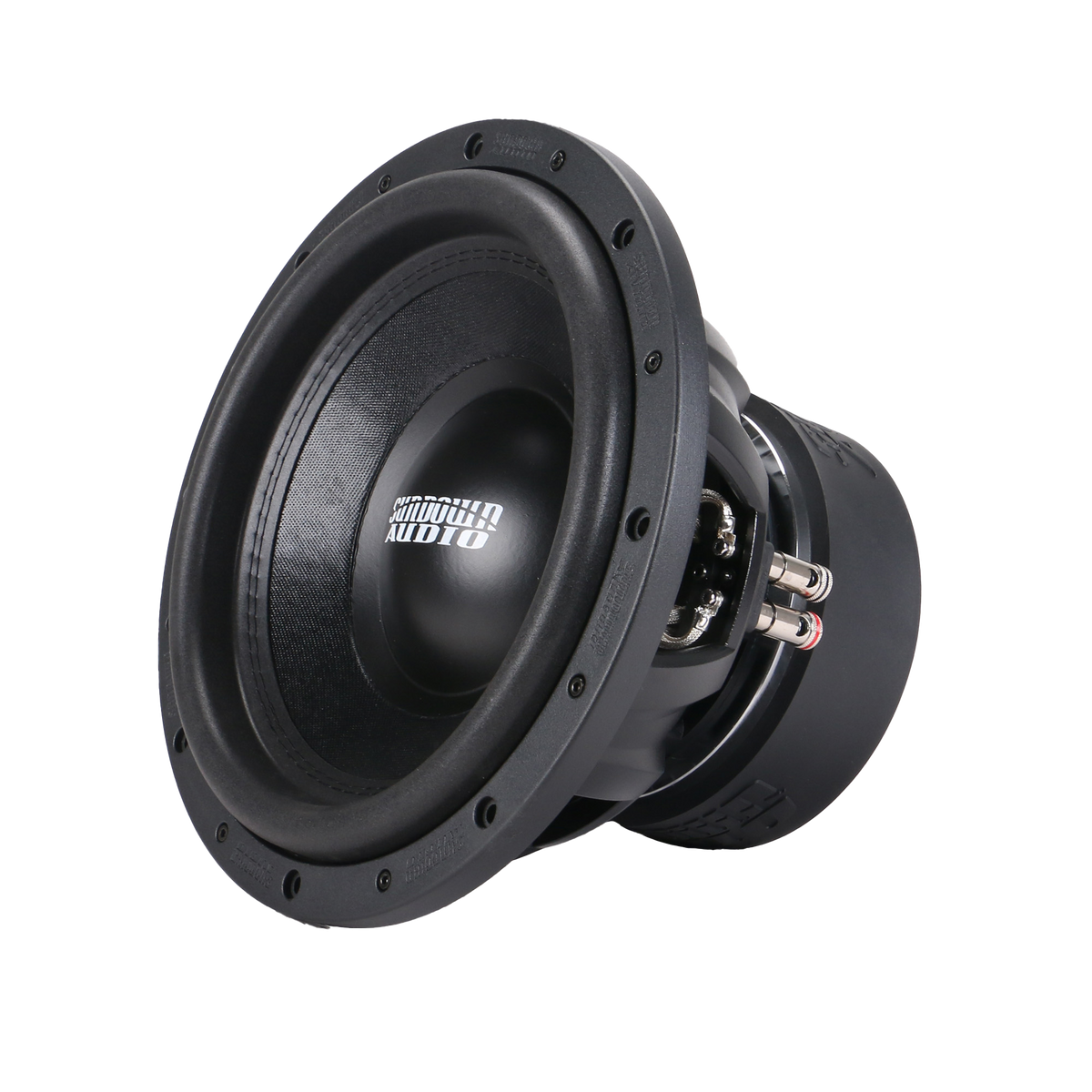

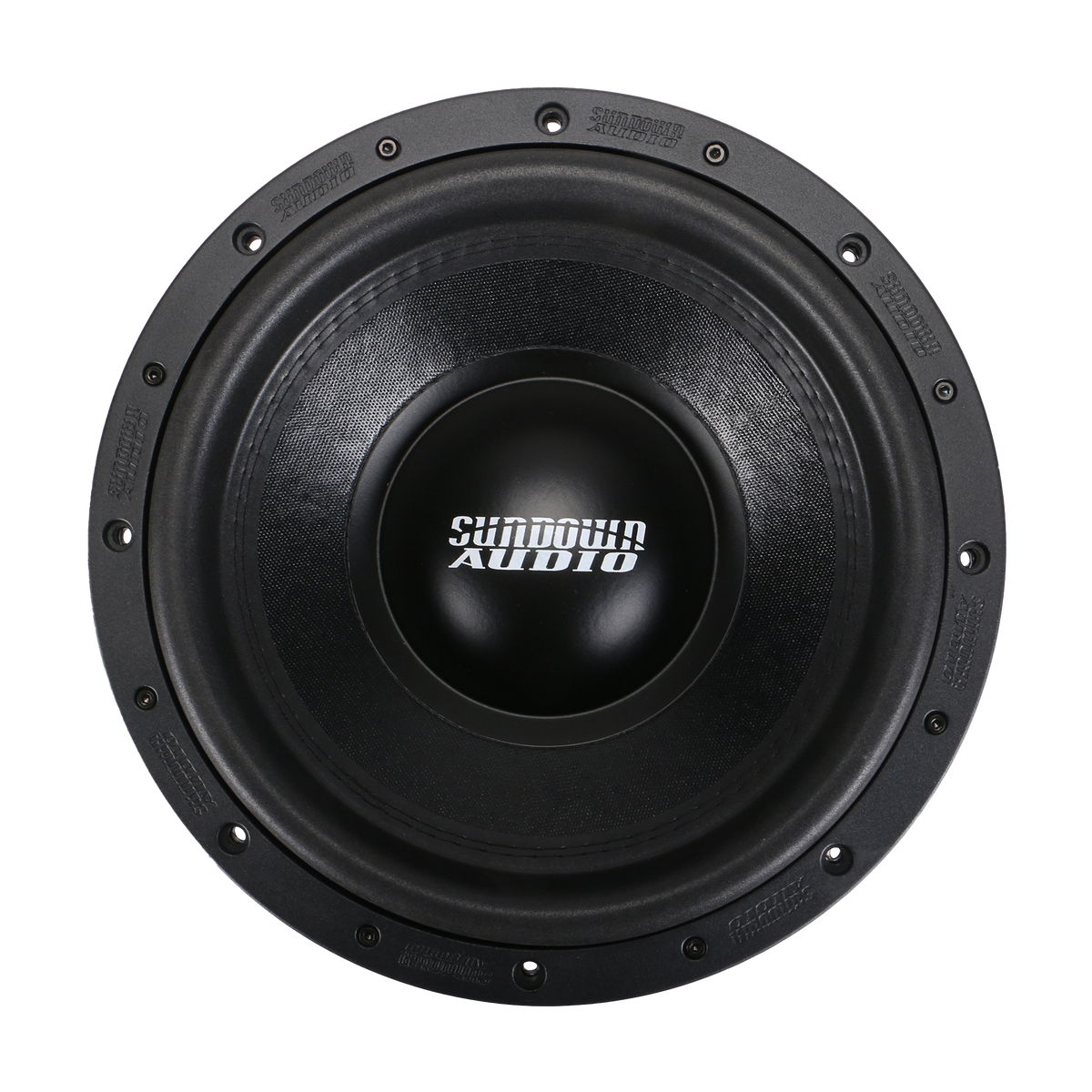

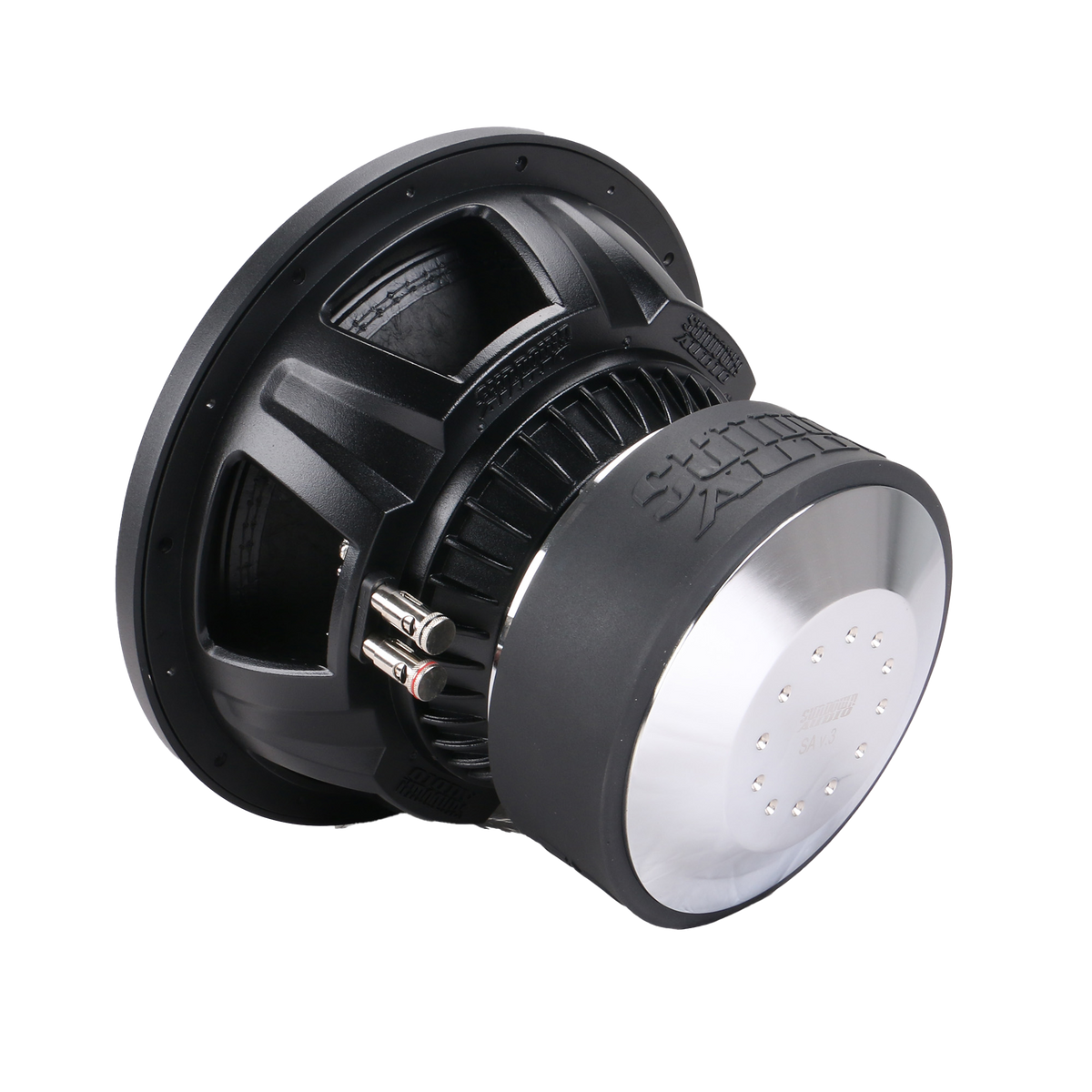

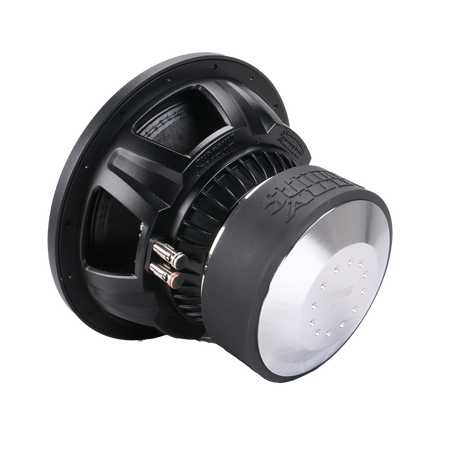

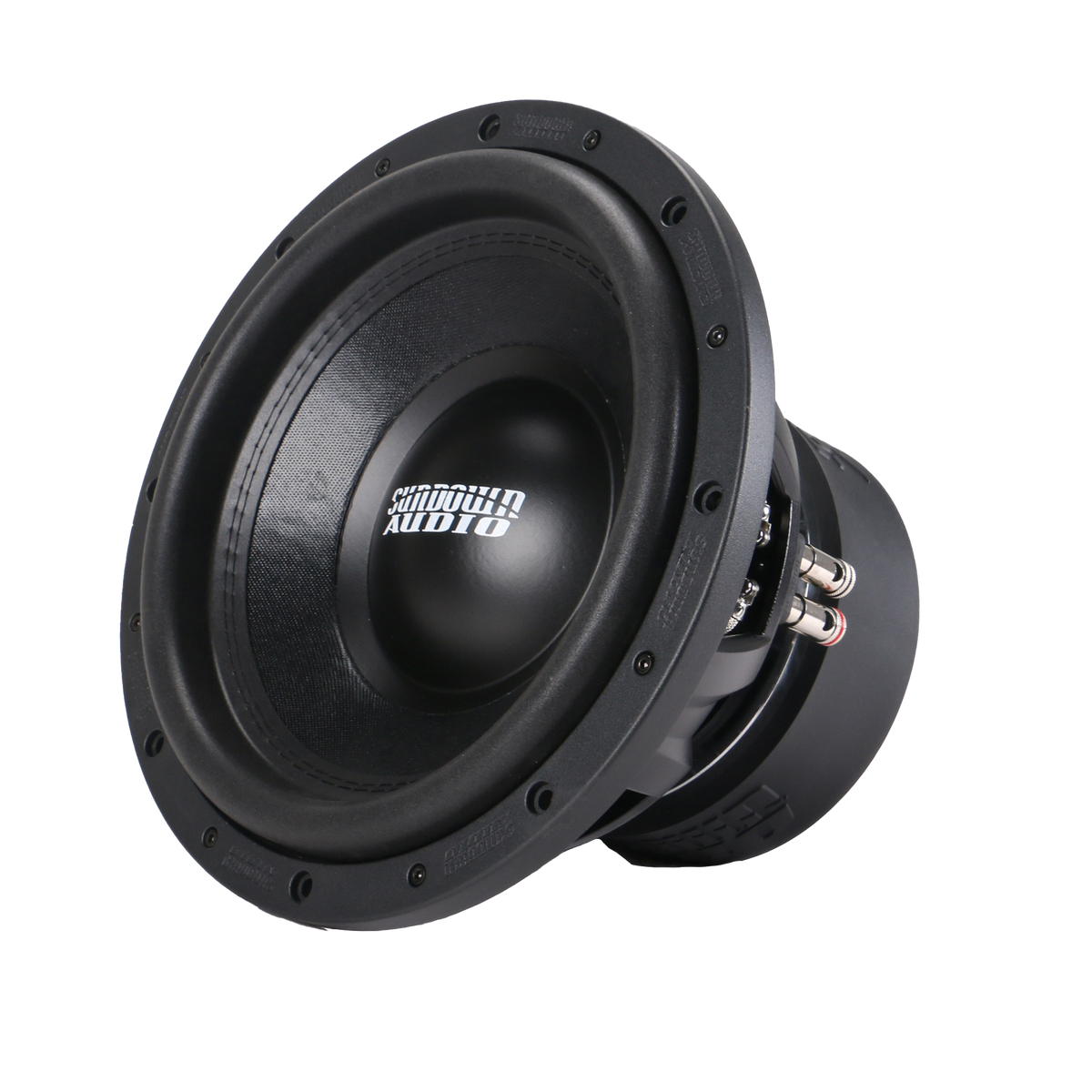

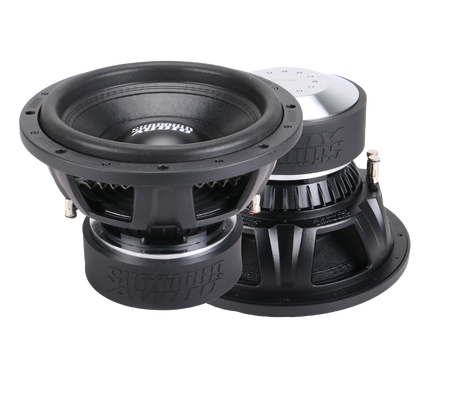

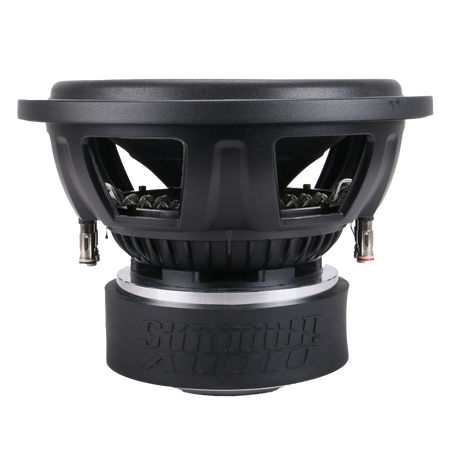

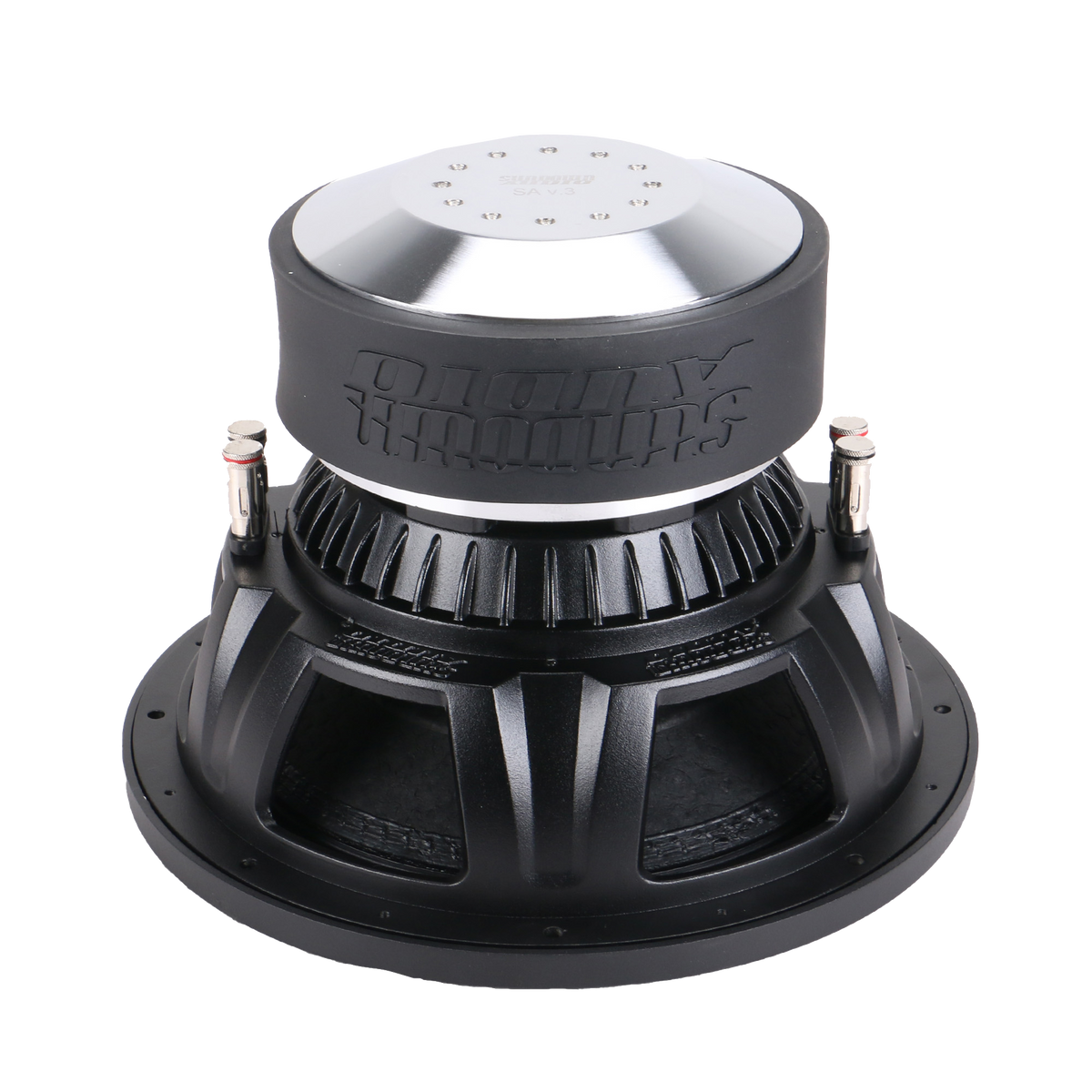

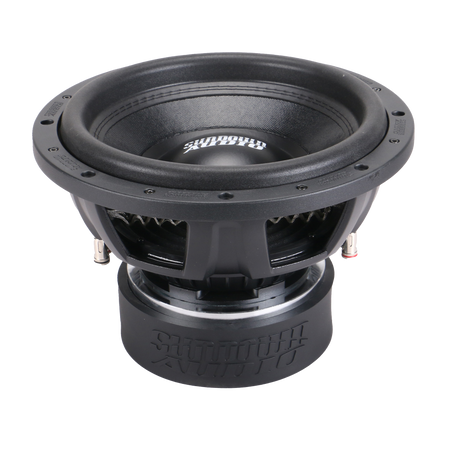

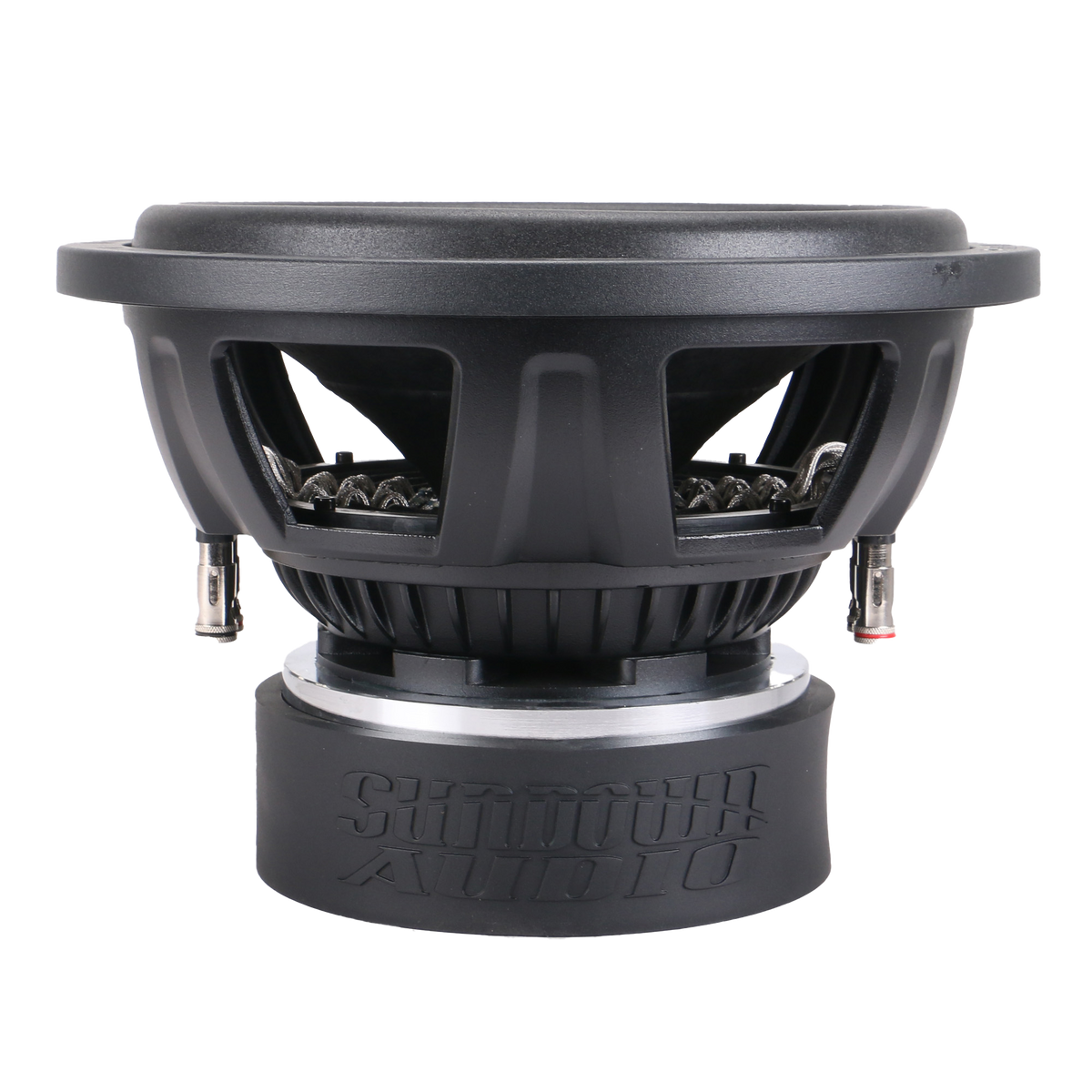

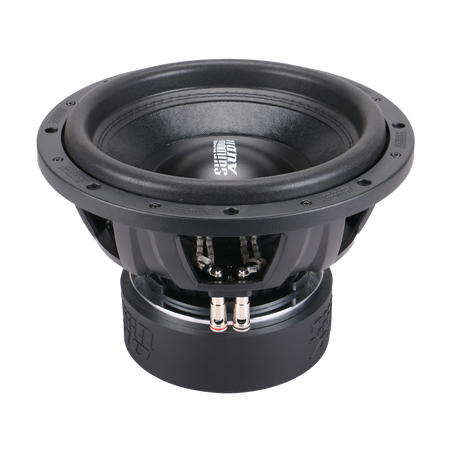

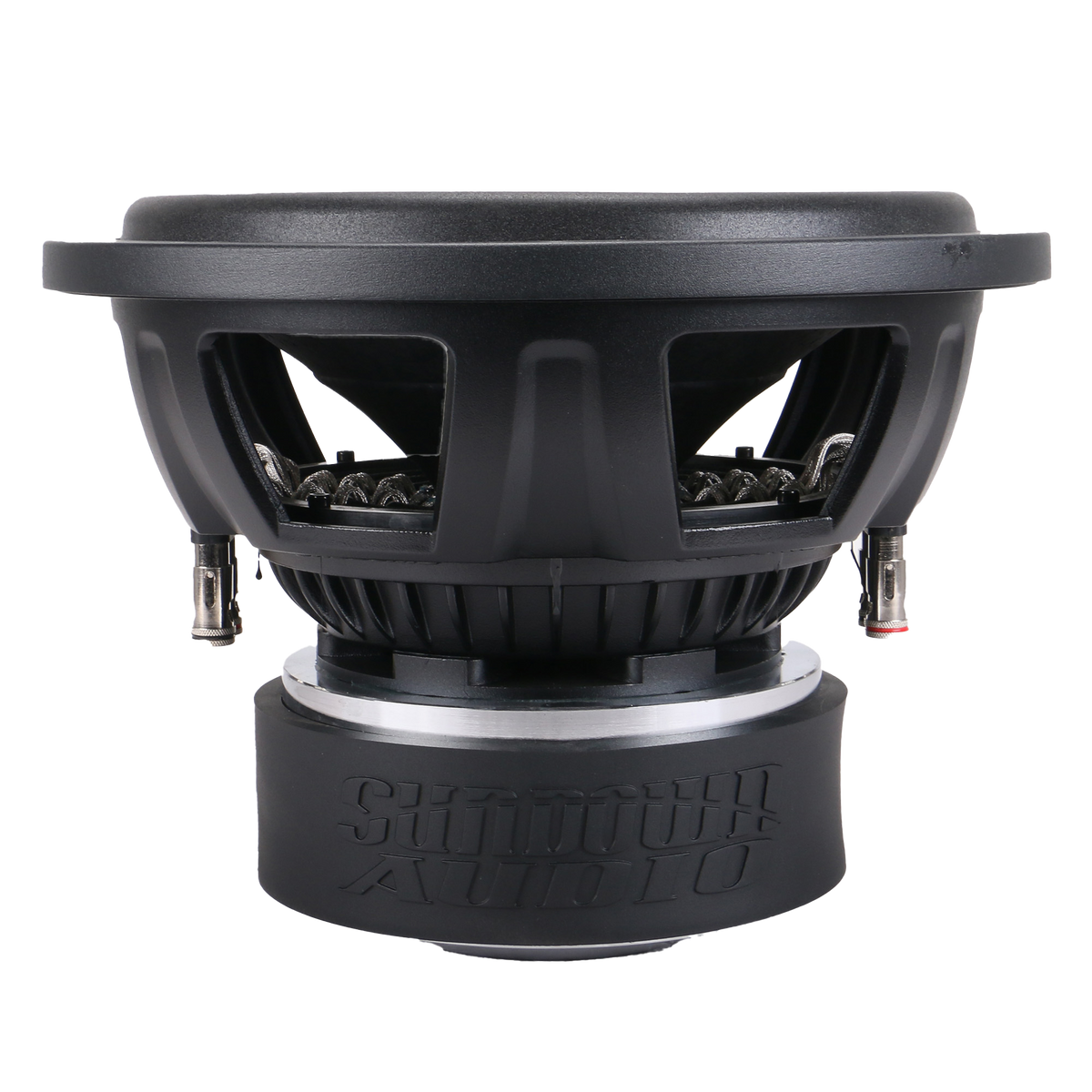

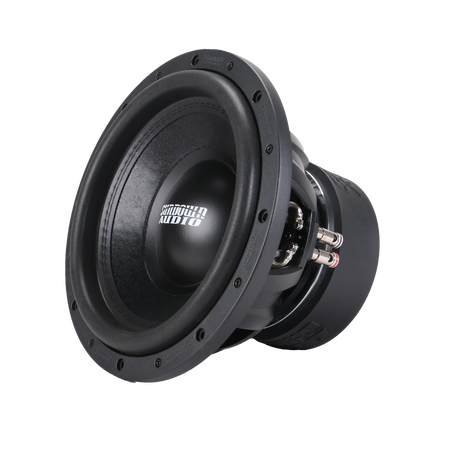

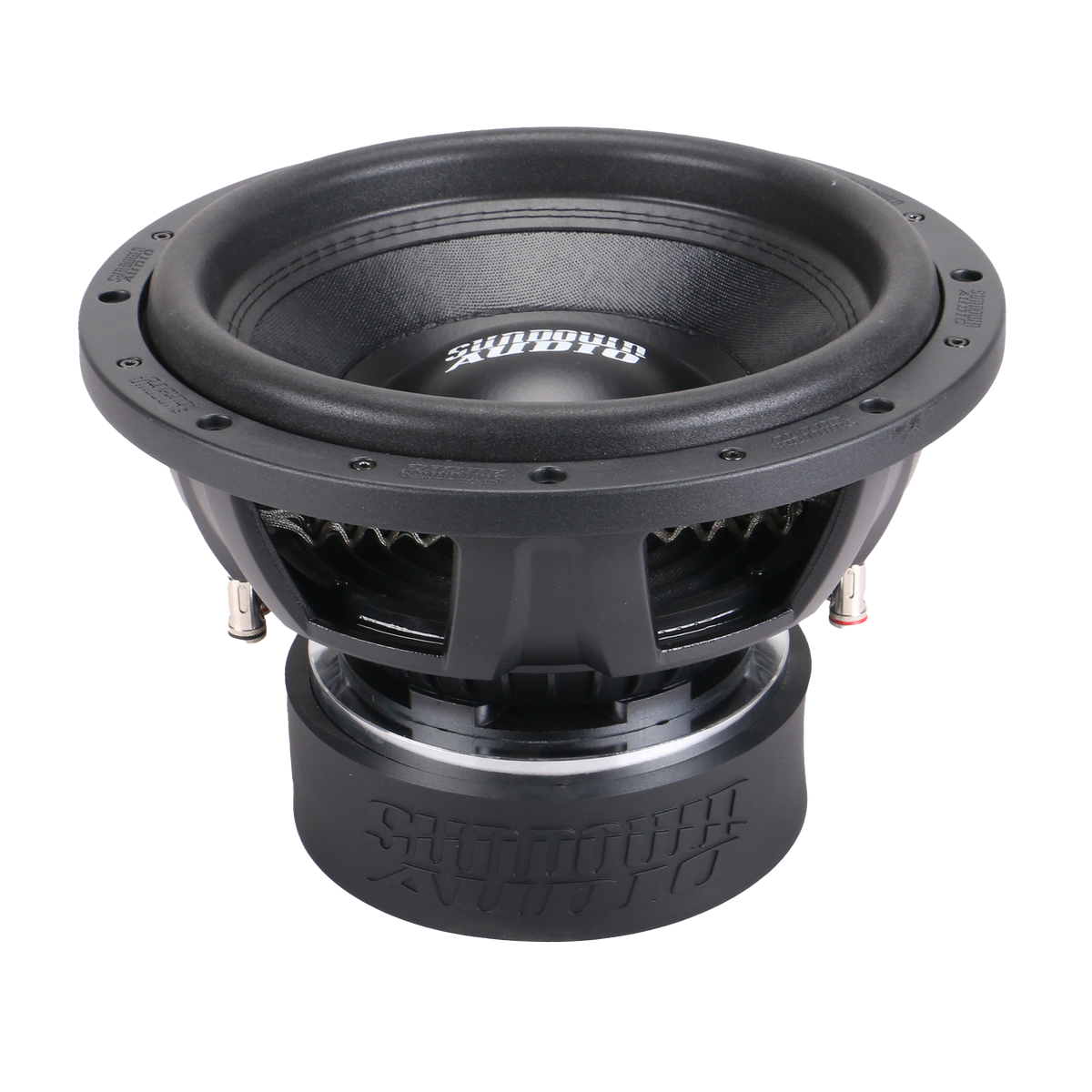

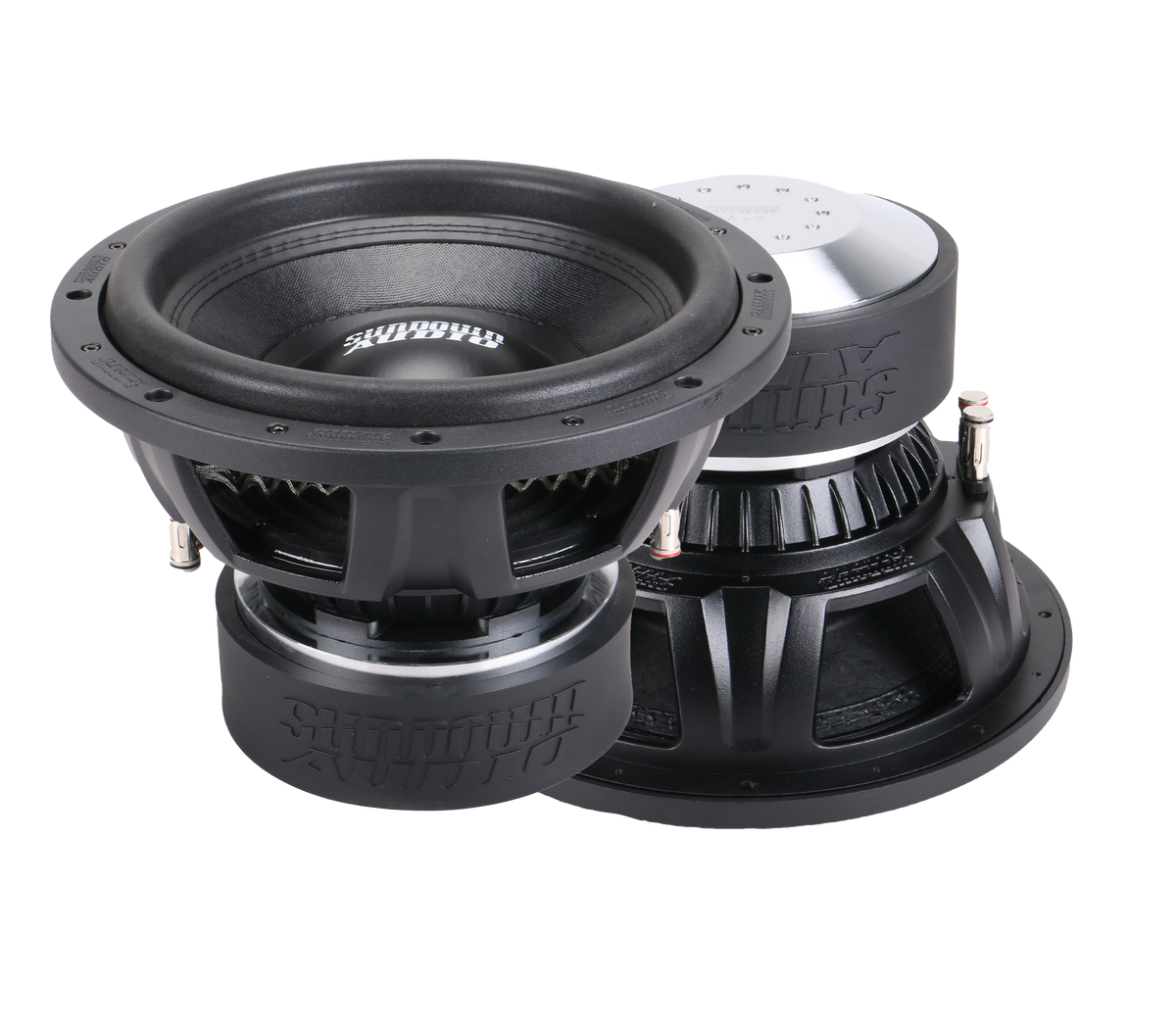

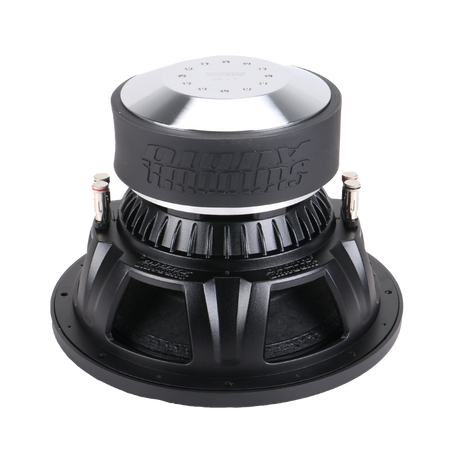

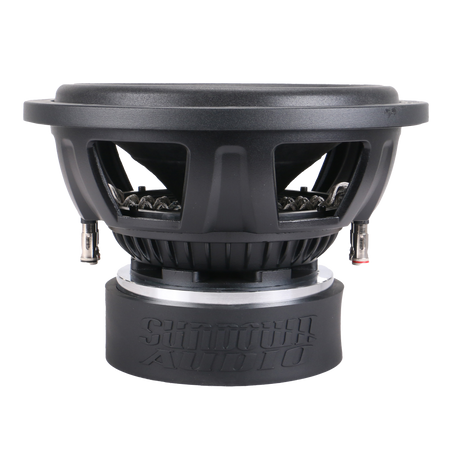

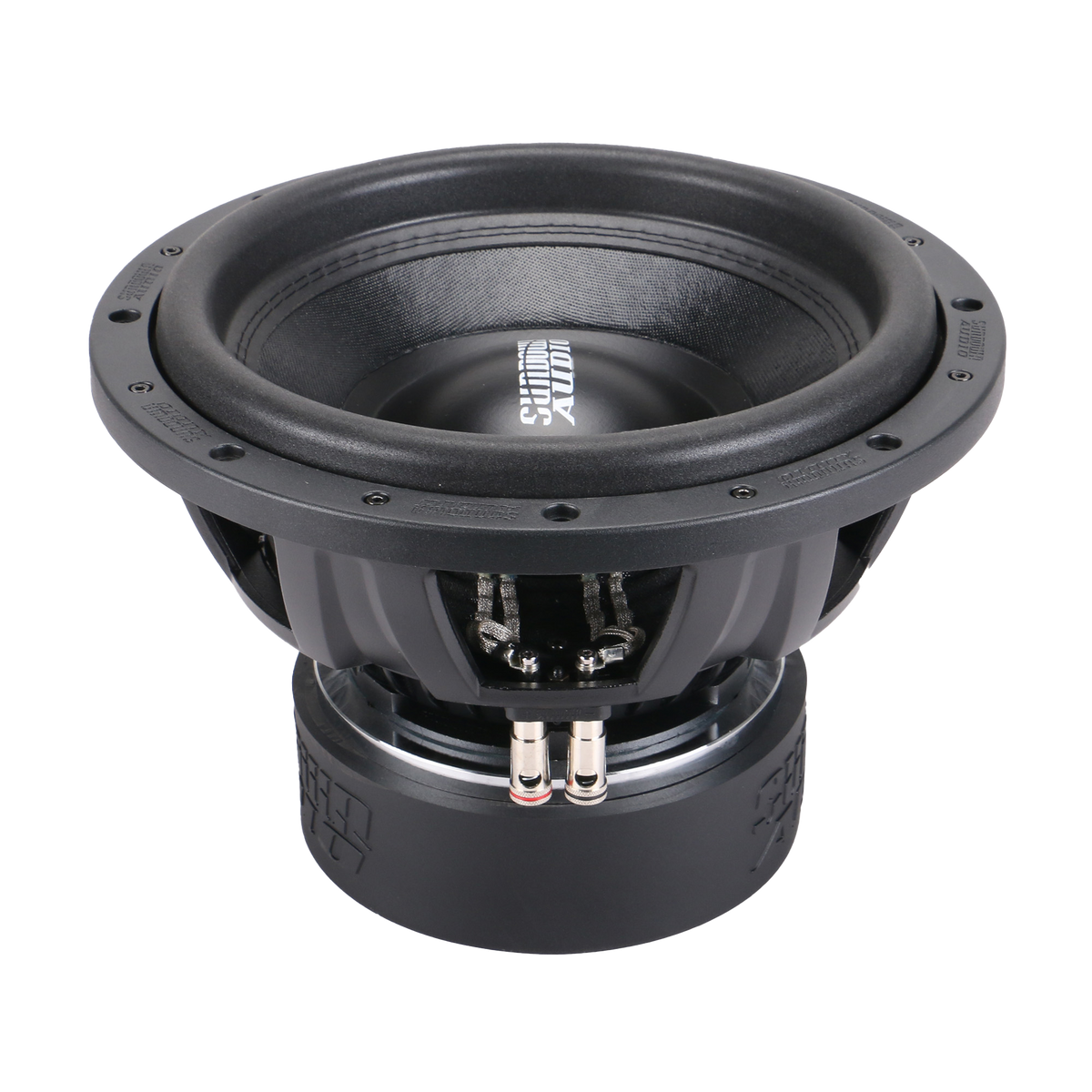

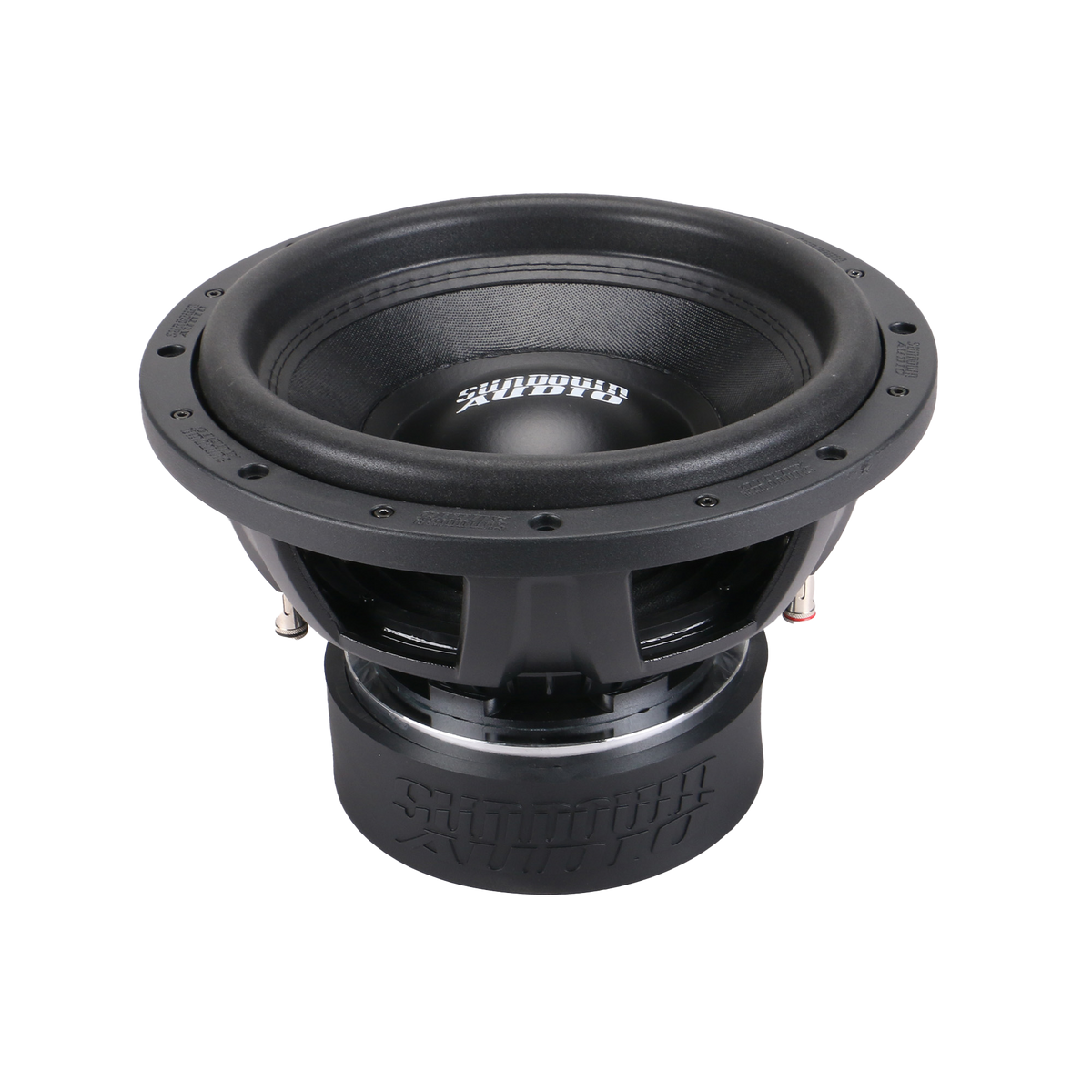

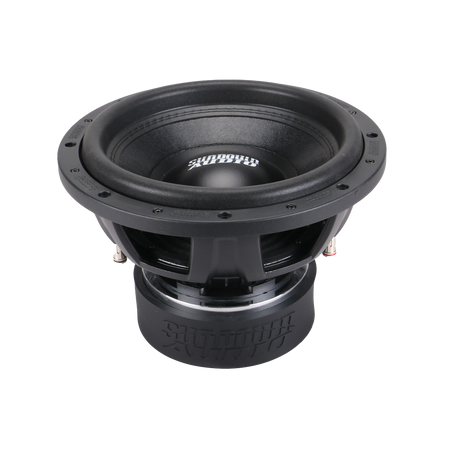

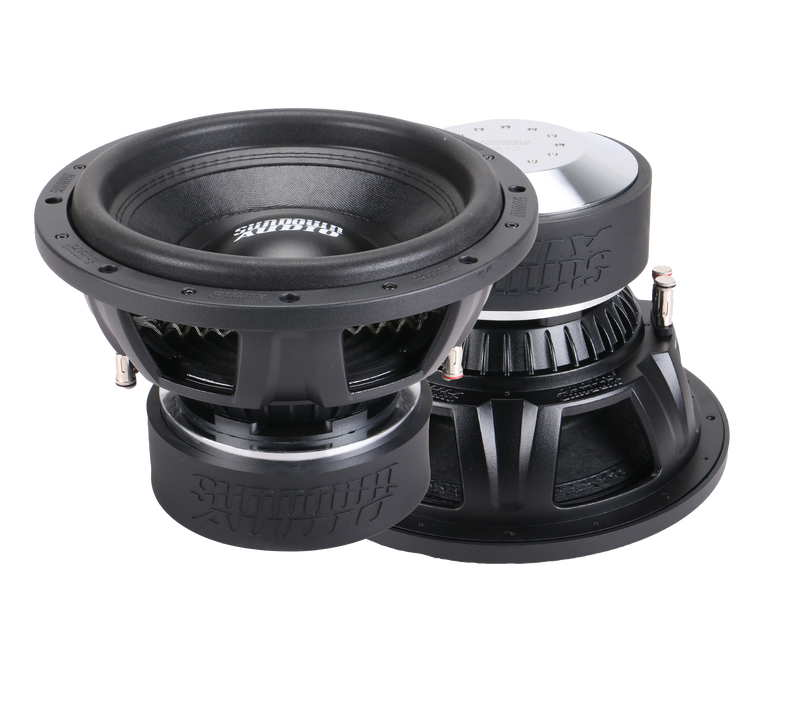

Sundown Audio SAV315D4 SA-Series v.3 15" Subwoofer - 1500W / 3000W Peak, Dual 4-Ohm Voice Coils
The Sundown Audio SAV315D4 is the 15-inch, dual 4-ohm version of the SA-Series v.3 subwoofer. It is rated at 1500 watts with 3000 watts peak.
Sundown recommends a 2.0 cu ft sealed box or a 3.0 cu ft ported box tuned to 35 Hz with 44 sq in of port area. Mounting depth is 8.65 inches, the outside diameter is 15.59 inches and the cut-out is 14.01 inches.
HIGHLIGHTS:
- 15-inch SA-Series v.3 subwoofer
- 1500W / 3000W peak power handling
- Dual 4-ohm voice coils
- Works in 2.0 cu ft sealed or 3.0 cu ft ported boxes
- 8.65-inch mounting depth
GREAT FOR:
- Sealed or ported 15-inch box builds
- Deep bass in cars, trucks and SUVs
SPECIFICATIONS:
| SERIES | SA-Series v.3 |
| SIZE | 15 Inch |
| POWER | 1500 Watts |
| PEAK POWER | 3000 Watts |
| IMPEDANCE | Dual 4 Ohm (DVC) |
| SEALED ENCLOSURE | 2.0 cu ft |
| PORTED ENCLOSURE | 3.0 cu ft |
| RECOMMENDED TUNING | 35 Hz |
| RECOMMENDED PORT AREA | 44 sq in |
| MOUNTING DEPTH | 8.65 Inch |
| OUTSIDE DIAMETER | 15.59 Inch |
| CUT-OUT | 14.01 Inch |
| SOLD AS | Each |
| BRAND | Sundown Audio |
| UPC | 810111133876 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
