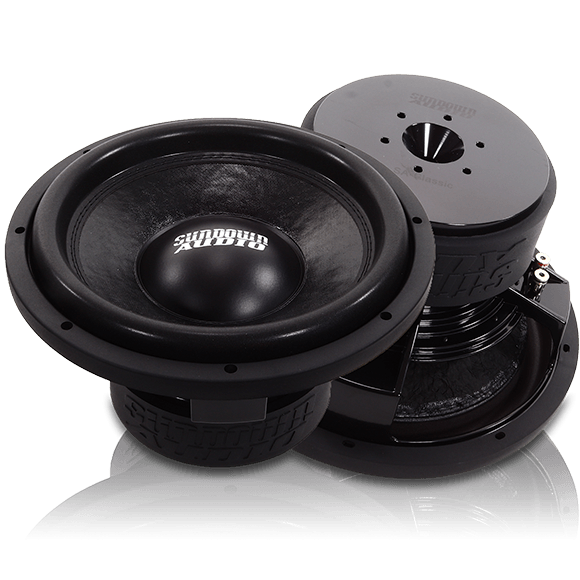

Sundown Audio SACL12D2 SA-Classic 12" 750W Black Motor Subwoofer 2 Ohm
The Sundown Audio SA Classic 12 D2 is a 12-inch high-performance subwoofer built for deep, accurate bass and long-term reliability. Rated at 750 Watts RMS, this dual 2-ohm subwoofer features a high-temperature 2.5-inch aluminum voice coil, cast aluminum basket, vented motor, and a large aluminum Faraday ring to reduce distortion while improving cooling and efficiency. With 19mm of one-way Xmax, durable stitched XL tinsel leads, and optimized performance in sealed, ported, or bandpass enclosures, the SA Classic 12 delivers the powerful low-frequency output that has made the Sundown Audio SA Series a favorite among daily drivers and SPL enthusiasts alike.
Key Features
-
750W RMS Power Handling: Designed for powerful, clean bass in high-performance car audio systems.
-
Dual 2-Ohm Voice Coil: Offers flexible wiring options for a variety of amplifier configurations.
-
19mm One-Way Xmax: Provides impressive cone excursion for deep, controlled bass response.
-
2.5" Black Aluminum Voice Coil Former: Improves heat dissipation for reliable high-power performance.
-
High-Temperature Copper Voice Coil: Built to withstand demanding listening conditions.
-
Large Aluminum Faraday Ring: Helps reduce distortion and improves motor linearity.
-
Vented Motor Structure: Optimized airflow keeps the voice coil cooler during extended use.
-
Cast Aluminum Basket: Strong, lightweight frame that minimizes unwanted flex.
-
Stitched XL Tinsel Leads: Reinforced for improved durability under high excursion.
-
Spring-Loaded Speaker Terminals: Provide secure and convenient wiring connections.
-
Versatile Enclosure Compatibility: Performs well in sealed, ported, and bandpass enclosures.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Sundown Audio |
| Model | SA Classic 12 D2 (SACL12D2) |
| Speaker Size | 12 Inch |
| Voice Coil Configuration | Dual 2 Ohm |
| RMS Power | 750 Watts |
| Xmax | 19mm One-Way |
| Voice Coil | 2.5" Black Aluminum Former |
| Voice Coil Wire | High-Temperature Copper |
| Frame | Cast Aluminum |
| Magnet Cooling | Vented Magnetic Gap |
| Pole Vent | High-Velocity Optimized |
| Faraday Ring | Large Aluminum |
| Speaker Terminals | Spring Loaded |
Thiele/Small Parameters (Dual 2 Ohm)
| Parameter | Value |
|---|---|
| Re | 4.57 Ω |
| Fs | 33.71 Hz |
| Vas | 21.21 L |
| Qes | 0.58 |
| Qms | 5.34 |
| Qts | 0.52 |
| Le | 3.40 mH |
| BL | 21.64 NA |
| Mms | 280 g |
| Cms | 79.43 uM/N |
| Sensitivity | 83.21 dB |
Recommended Enclosure
| Specification | Recommendation |
|---|---|
| Sealed Box | 1.0 cu ft |
| Ported Box | 1.75 cu ft |
| Recommended Tuning | 35 Hz |
| Recommended Port Area | 26 sq in |
| Driver Displacement | 0.14 cu ft |
Mounting Dimensions
| Measurement | Size |
|---|---|
| Mounting Depth | 6.5" |
| Overall Diameter | 12.625" |
| Cutout Diameter | 11.125" |
UPC: 810111130776
Why Choose the Sundown Audio SA Classic 12 D2?
The SA Classic 12 D2 retains the legendary performance that made the Sundown Audio SA Series one of the most respected names in car audio while adding a bolted motor assembly for enhanced durability. With its efficient cooling system, high-excursion suspension, premium motor design, and flexible enclosure compatibility, it's an excellent choice for anyone building a reliable daily bass system or a serious high-output installation.
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
