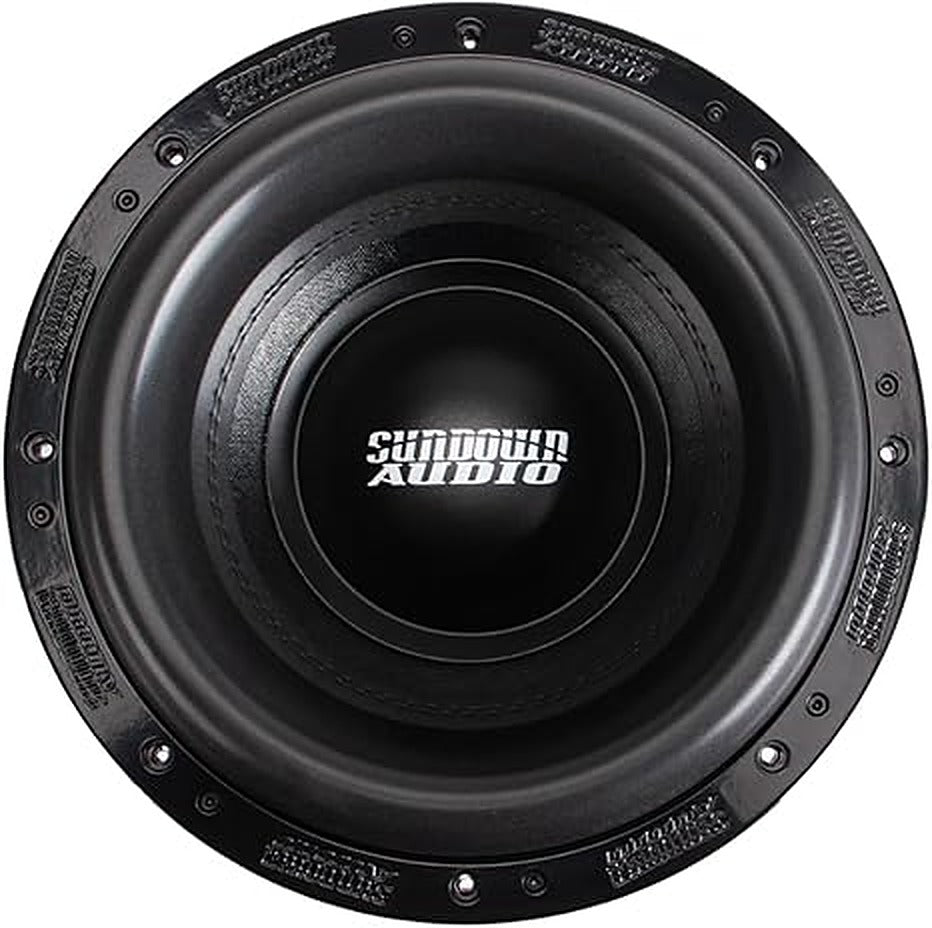

Sundown Audio M12D1 – 12" M-Series Subwoofer | 2000W RMS | Dual 1-Ohm
Built for serious bass enthusiasts, the Sundown Audio M12D1 delivers thunderous low-end performance with precision and durability. Featuring a 2000W RMS power rating, dual 1-ohm voice coils, and a high-excursion suspension system, this 12" subwoofer is engineered to handle extreme power while maintaining clean, distortion-free output. Its quad-stacked motor, Mega-Roll surround, and vented cast aluminum frame ensure long-lasting performance in even the most demanding setups.
Features:
- Power Handling: Premium car subwoofer capable of handling up to 2000W/4000W PEAK of power for deep, powerful bass performance an
- Construction: Robust etched black backplate
- Design Features: 12-inch cone diameter with MEGA ROLL surround for optimal sound reproduction and minimal distortion
- Performance: Advanced motor structure with optimized voice coil design delivers precise, responsive bass output
- Installation: Available in Dual 1 Ohm and Dual 2 Ohm Configurations
Specifications;
| Specification | Details |
|---|---|
| Product Name | Sundown Audio M12D1 12″ Subwoofer (Dual 1 Ω) – M‑Series |
| UPC | 810111135290 |
| Size | 12″ / 305 mm |
| Power Handling | 2000 W RMS / 4000 W Peak |
| Impedance | Dual 1 Ω voice coils (also available in Dual 2 Ω) |
| Sensitivity | ~84.4 dB @ 1 W/1 m |
| Xmax | 35 mm one-way |
| Voice Coil Diameter | 3″ aluminum round-wire, 4 layers |
| Motor & Cooling | Quad-stack magnet, mega-roll surround, vented cast-aluminum frame with vented pole/backplate |
| T/S Parameters | Re = 2.22 Ω; Fs = 31.93 Hz; Vas = 39.31 L; Qts = 0.606; Le = 1.946 mH |
| Dimensions | Mount Depth: 10.88″; OD: 12.67″; Cut-out: 11.09″ |
| Recommended Enclosure | Ported only: ~2.5 ft³ tuned to 32 Hz; sealed not recommended |
| Construction Highlights | Etched black backplate, cast aluminum basket, mega-roll surround, quad magnet design |
| Country of Manufacture | Designed and built in the USA by Sundown Audio |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
