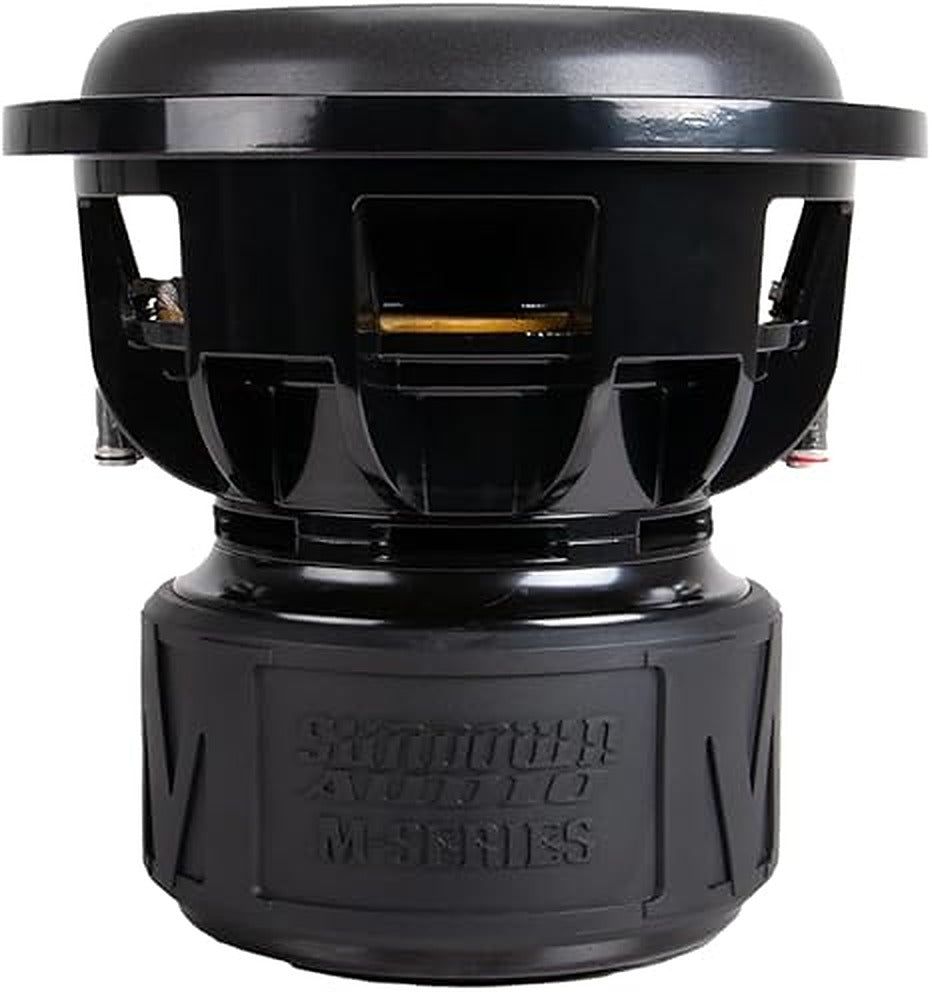

Sundown Audio M10D2 10" M-Series Subwoofer – 2000W Dual 2-Ohm | High-Performance Bass
The Sundown M-Series M10D2 is a 10" subwoofer rated at 2000W. It features a quad-stacked 200mm motor, 88mm magnet stack, and 20mm thick top plate. With up to 4.68" peak-to-peak excursion, it delivers deep, clean bass. Built with a patented frame and Mega-Roll surround, it’s a powerful entry into Sundown’s high-performance Mega line.
Features:
- Powerful Performance: Delivers 2000W RMS and 4000W peak power, built for deep, low-distortion bass in compact enclosures
- Advanced Design: Features a quad-stack magnet structure, Mega-Roll surround, and a laser-etched backplate for both performance and aesthetics
- High Excursion Capability: Equipped with a 3" 4-layer aluminum voice coil and 35mm one-way linear excursion for extreme bass output
- Design Features: 10-inch cone diameter with MEGA ROLL surround for optimal sound reproduction and minimal distortion
- Installation: Available in Dual 1 Ohm and Dual 2 Ohm Configurations
Specifications:
| Specification | Details |
|---|---|
| Product Name | Sundown Audio M10D2 10″ Subwoofer (Dual 2 Ω) – M‑Series |
| UPC | 810111135283 |
| Power Handling | 2,000 W RMS / 4,000 W Peak |
| Impedance | Dual 2 Ω voice coils; also available in Dual 1 Ω |
| Voice Coil Diameter | 3″ aluminum, 4 layers |
| Motor & Surround | Quad-stack 200 mm motor, 88 mm magnet stack, Mega-Roll surround, vented cast aluminum frame |
| Xmax | 35 mm one-way linear excursion |
| Sensitivity | ~79.14 dB @ 1 W/1 m |
| T/S Parameters (M10D2) | Re = 4.19 Ω; Fs = 37.74 Hz; Vas = 7.79 L; Qes = 0.761; Qms = 4.847; Qts = 0.658; Le = 3.682 mH; BL = 23.82 N/A; Mms = 434.5 g; Cms = 40.9μm/N |
| Dimensions | Mounting Depth: ~10.09″; OD: ~11.65″; Cut-out: ~10.01″ |
| Recommended Enclosure | Ported enclosure (~1.5 ft³ tuned to ~32 Hz); sealed not recommended |
| Construction Highlights | Laser-etched black backplate, cast aluminum basket, mega-roll surround, quad-stack magnet design |
| Country of Manufacture | USA (designed & built by Sundown Audio) |
