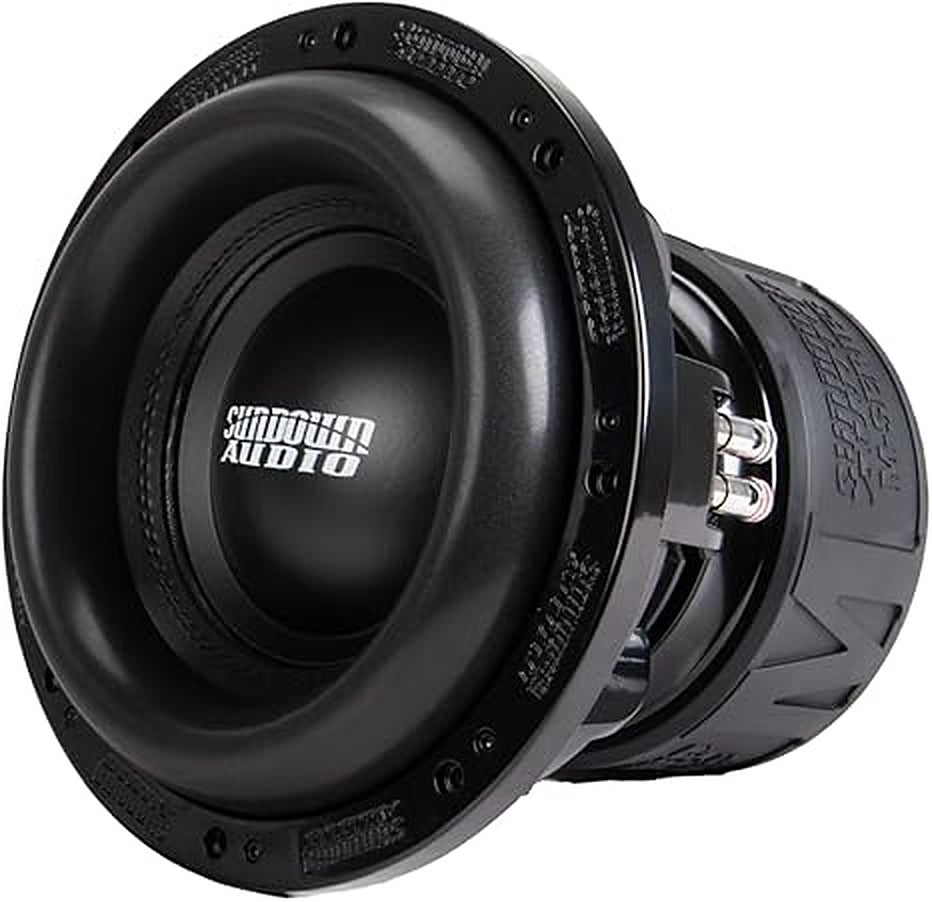

Sundown Audio M10D1 10" M-Series Subwoofer – 2000W Dual 1-Ohm | High-Performance Bass
Experience powerful, precision bass with the M10D1. This 10" subwoofer delivers 2000W RMS through dual 1-ohm voice coils, built for high-output systems. Its quad-stacked motor, high-excursion suspension, and Mega-Roll surround ensure deep, clean bass and long-lasting performance.
Features:
- Massive Power Handling: Delivers 2000W RMS and 4000W peak for extreme bass output.
- Construction: Robust etched black backplate
- Design Features: 10-inch cone diameter with MEGA ROLL surround for optimal sound reproduction and minimal distortion
- Performance: Advanced motor structure with optimized voice coil design delivers precise, responsive bass output
- Installation: Available in Dual 1 Ohm and Dual 2 Ohm Configurations
Specifications:
| Specification | Details |
|---|---|
| Product Name | Sundown Audio M10D1 10″ Subwoofer (Dual 1 Ω) – M‑Series |
| UPC | 810111135276 |
| Power Handling | 2000 W RMS / 4000 W Peak |
| Impedance | Dual 1 Ω voice coils; also available in Dual 2 Ω |
| Voice Coil Diameter | 3″ (4-layer aluminum, high-temp) |
| Motor / Surround | Quad-stack magnet; Mega-Roll surround; vented cast aluminum frame |
| Xmax | 35 mm one-way excursion |
| Sensitivity | 78.95 dB @ 1W/1m |
| T/S Parameters | Re = 2.27 Ω; Fs = 37.83 Hz; Vas = 7.67 L; Qts = 0.68 |
| Mounting Depth / Diameter | Depth: 10.09″; OD: 11.65″; Cut-out: 10.01″ |
| Recommended Enclosure | Ported enclosure (~1.5 cu ft tuned to 32 Hz); sealed not recommended |
| Country of Manufacture | USA (designed & built by Sundown Audio) |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
