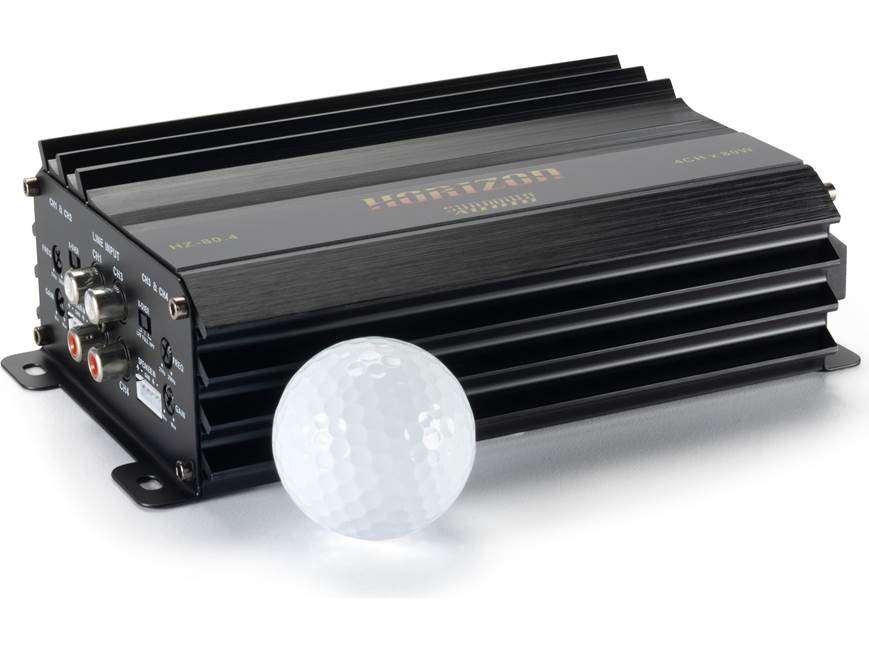

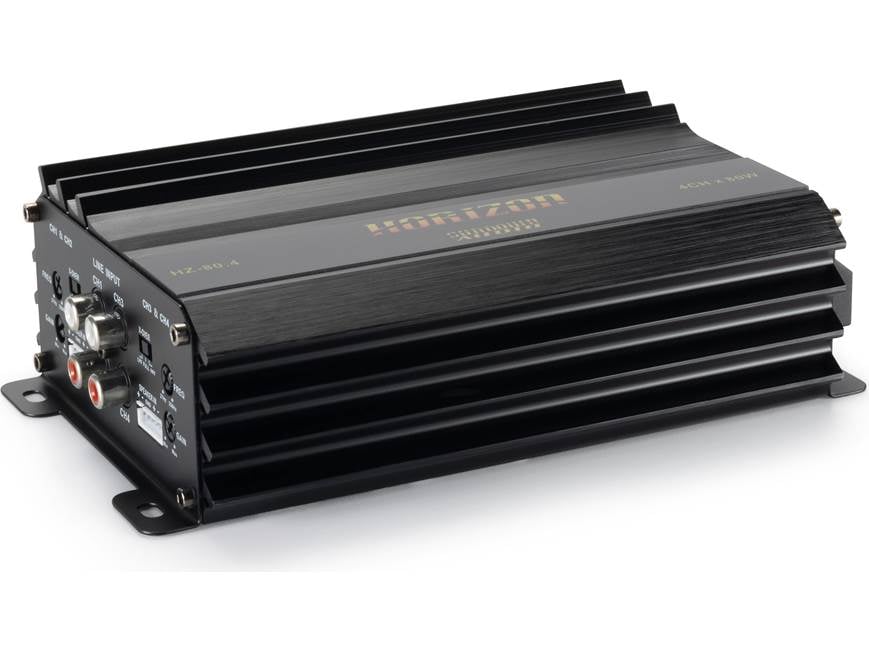

Sundown Audio HZ-80.4 Horizon Series 4-Channel Amplifier — 80 Watts RMS x 4
The Sundown Audio HZ-80.4 from the Horizon Series is a compact 4-channel full-range amplifier designed to deliver clean, controlled power in tight spaces. Its Class D efficiency and heavy-duty aluminum heat sink keep the amp cool and stable even during high-output sessions. Perfect for car audio enthusiasts who want reliable performance without sacrificing space.
Features:
- 4-channel car amplifier
- 80W RMS x 4 @ 4Ω
- 130W RMS x 4 @ 2Ω
- 260W RMS x 2 @ 4Ω (bridged)

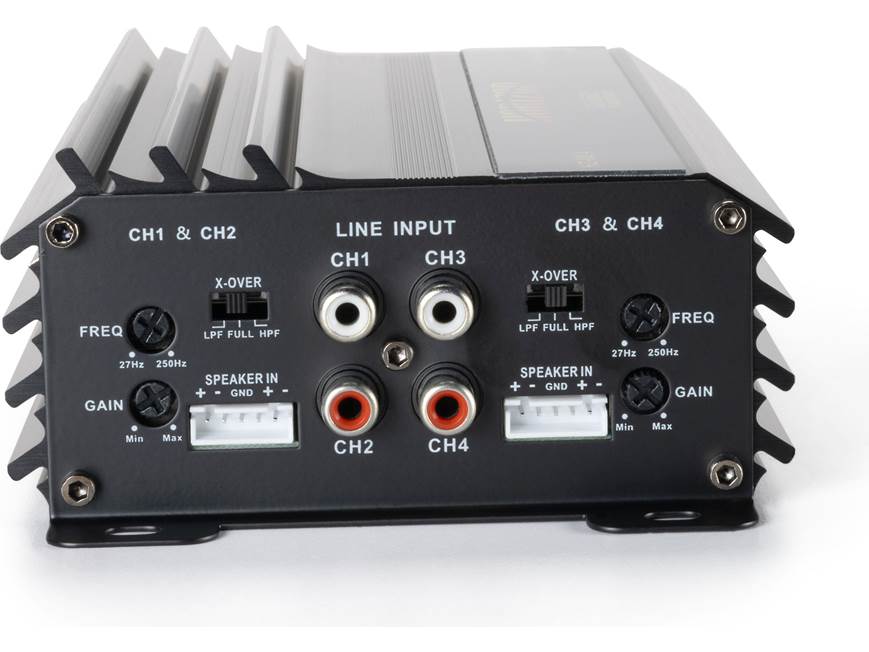

- Variable high- and low-pass filters: 27–250 Hz (12 dB/octave)
- Class D amplifier technology
- Heavy-duty aluminum heat sink
- Preamp and speaker-level inputs

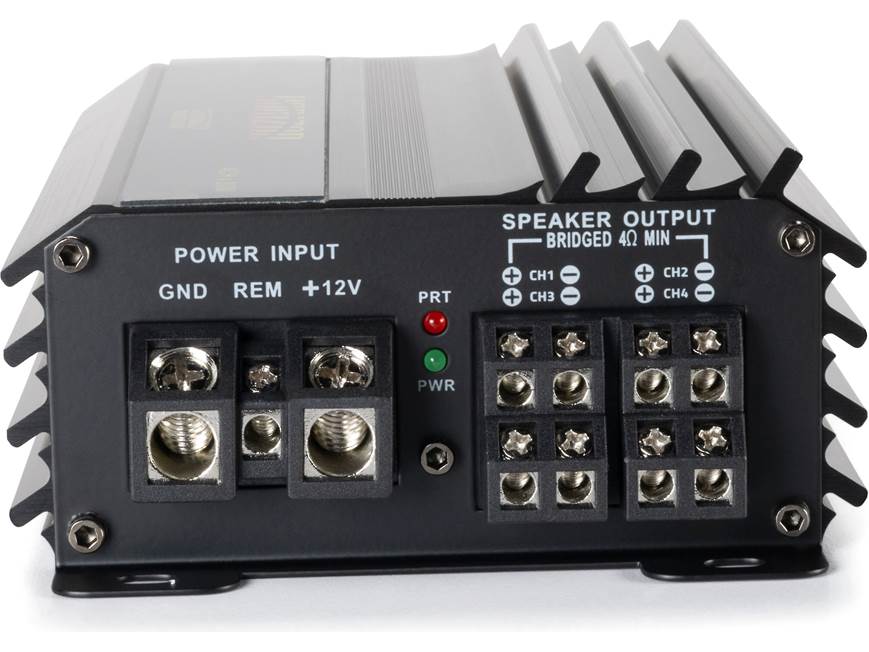

- Set-screw speaker terminals accept up to 10 AWG wire
- Requires 8 AWG power/ground leads and 50A fuse (not included)
- Wiring and hardware not included
Specifications:
RMS Power Output: 80 W x 4 channels
Power at 2 Ohms: 130 W x 4 channels
Bridged Power: 260 W x 2 channels
Minimum Impedance (Bridged): 4 Ω
Minimum Impedance (Unbridged): 2 Ω
Signal-to-Noise Ratio: 95 dB
Input Voltage: 14.4 V
Amplifier Class: D
Built-in DSP: No
Remote Control: No
Low-Pass Crossover Frequency: 27–250 Hz
Low-Pass Slope: 12 dB/oct
High-Pass Crossover Frequency: 27–250 Hz
High-Pass Slope: 12 dB/oct
Bass Boost: No
Fan Cooled: No
Fuse Rating: 50 A
Speaker Level Inputs: Yes
Preamp Outputs: No
Width: 7-7/16 in
Height: 2-1/4 in
Depth: 4-5/8 in
UPC: 810111135528
