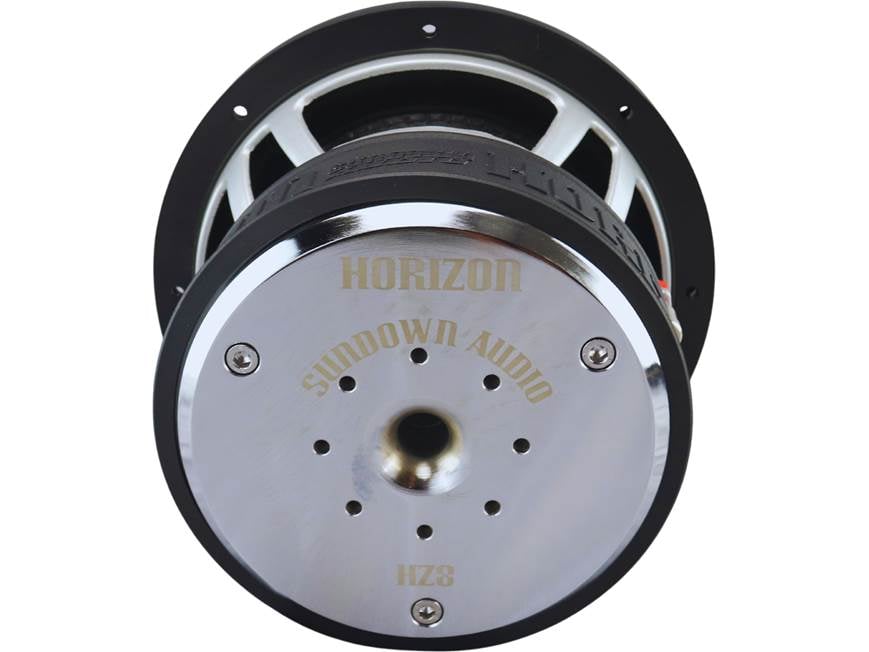

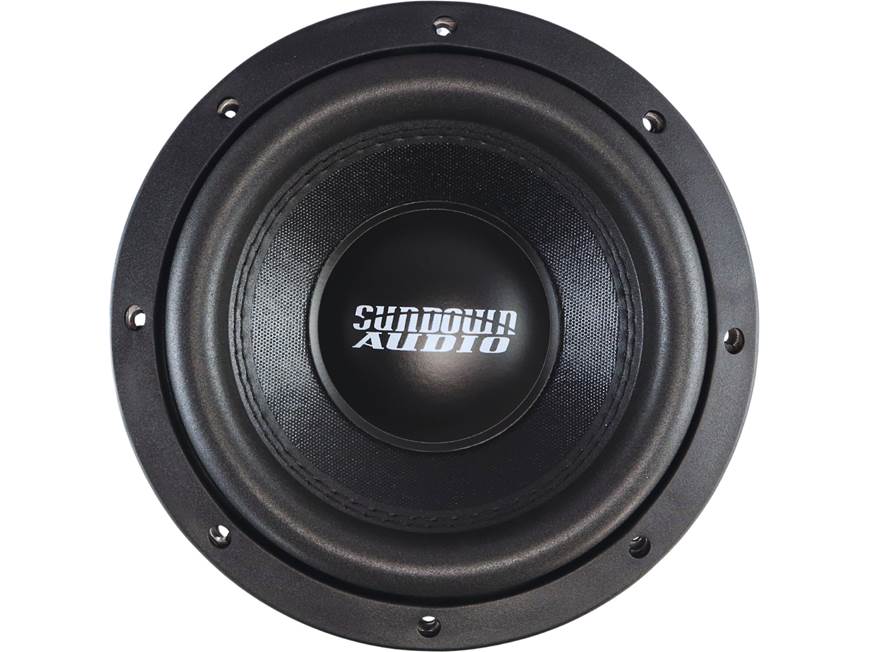

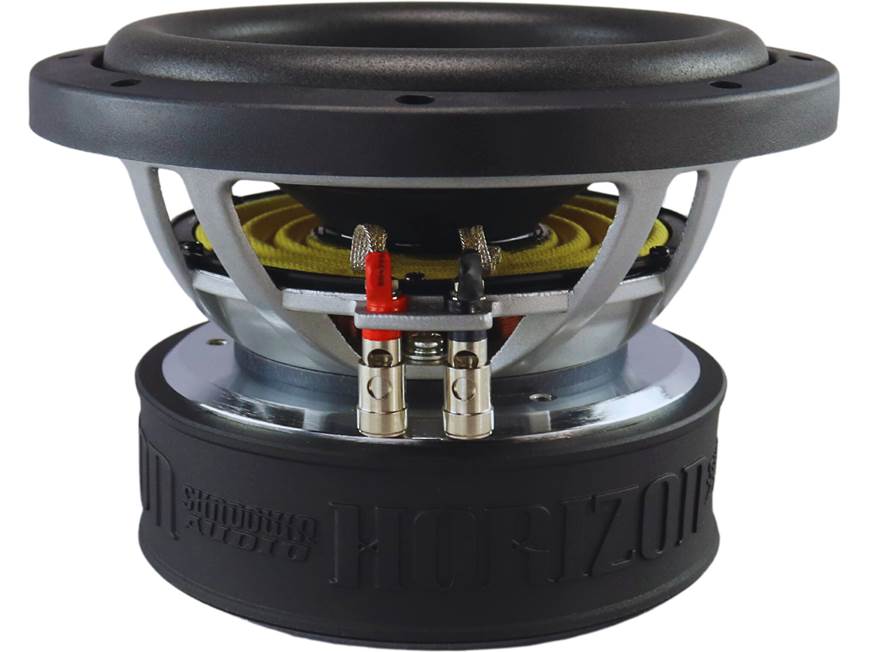

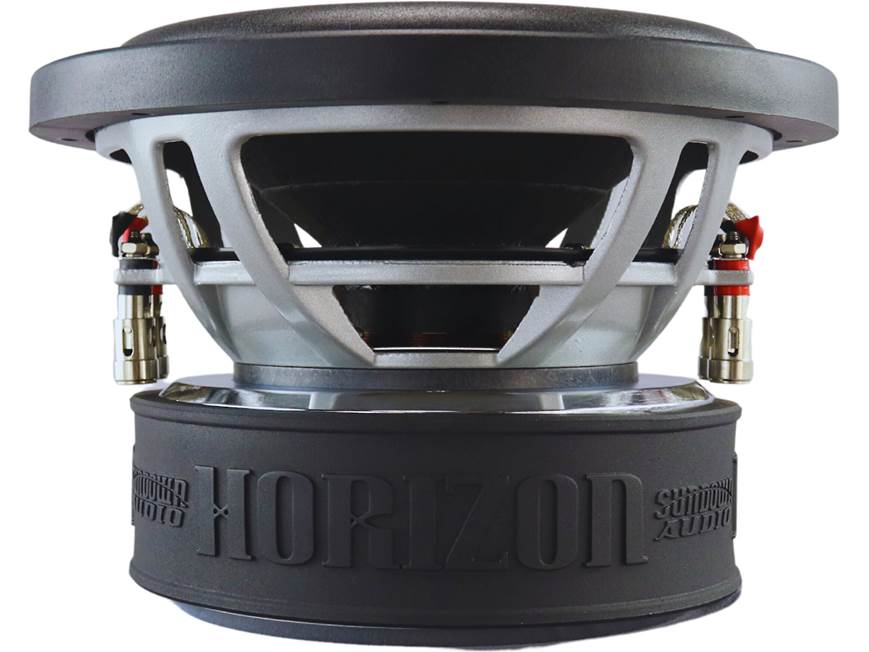

Sundown Audio HZ8D4 Horizon Series 8" Subwoofer with Dual 4-Ohm Voice Coils
The Sundown Audio HZ-8 8" subwoofer handles 500W RMS (1000W peak) for powerful, accurate bass. Dual 4-ohm voice coils offer flexible wiring options, while the reinforced pressed paper pulp cone and high-roll foam surround ensure durability and deep excursion. Perfect for sealed or ported enclosures.
Features:
- 8" component subwoofer
- Dual 4-ohm voice coils
- Hard-reinforced pressed paper pulp cone with layered pressed foam surround
- Cast aluminum basket
- Power handling: 500W RMS / 1000W peak
- Frequency response: 20–200 Hz
- Sensitivity: 81.7 dB
- Top-mount depth: 5.28"
- Cutout diameter: 7.25"
- Sealed box volume: 0.25 cu. ft.
- Ported box volume: 0.5 cu. ft.
- Grill not included
Specifications:
Size: 8-inch
Impedance: 2Ω or 8Ω
Cone Material: Pressed paper pulp
Surround Material: Pressed foam
Basket Material: Aluminum
Grill: Not included
Free-Air Use: No
Dual Voice Coil: Yes
Sensitivity: 81.7 dB @ 1W
Frequency Response: 20–200 Hz
Max RMS Power Handling: 500 W
Peak Power Handling: 1000 W
Top Mount Depth: 5-5/16"
Cutout Diameter: 7-1/4"
Frame Width: 7.13"
Frame Length: 7.13"
Vas: 7.529 L
Fs: 41.323 Hz
Qts: 0.464
Xmax: 14 mm
UPC: 636644892222
Box Requirements:
Ideal Sealed Volume: 0.25 cu. ft.
Min Sealed Volume: 0.2 cu. ft.
Max Sealed Volume: 0.4 cu. ft.
Ideal Ported Volume: 0.5 cu. ft.
Min Ported Volume: 0.5 cu. ft.
Max Ported Volume: 0.75 cu. ft.
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
