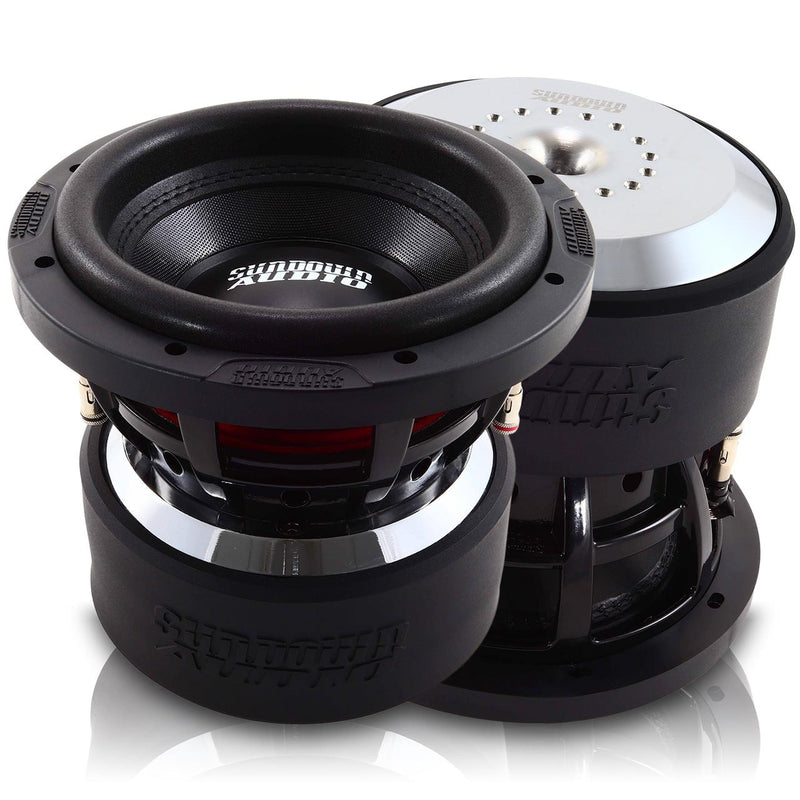

Sundown Audio XV38D4 X Series v.3 8" 800-watts -DVC-4OHM

Sundown Audio X-8 v.3 8” subwoofer, one of the most popular 8-inch models in production, built on a custom-tooled frame with FEA-optimized spider and surround for improved suspension performance. Features 800W RMS power handling, ~20mm one-way linear X-max, ~2.4” peak-to-peak excursion, aluminum magnet ID shorting ring for reduced inductive distortion, and advanced design elements for low distortion and high output performance.

Features:

• High Power Handling: 800W RMS 8” subwoofer designed for extreme output and daily bass performance
• Advanced Motor Design: Features upgraded motor and coil system delivering ~19mm Xmax for deep, controlled excursion
• Optimized Suspension: FEA-optimized spider and surround design for improved linearity, stability, and low distortion
• DVC 4-Ohm Configuration: Dual 4-ohm voice coils for flexible wiring options and compatibility with high-performance audio systems

Specifications:

RE (Ohms): 6.0

FS (Hz): 49.6

VAS (L): 3.2

Qes: 0.40

Qms: 3.32

Qts: 0.36

Le (mH): 3.41

BL (NA): 30.7

Mms (g): 203.5

Cms (µM/N): 0.05

Sensitivity (dB @ 1W/1m): 81.8

Xmax: 19mm

Enclosure Specifications:

Sealed Enclosure Volume: 0.30 – 0.40 cu ft

Ported Enclosure Volume: 0.75 – 1.00 cu ft

Recommended Tuning: 32 Hz

Recommended Port Area: 12 – 16 sq in

Subwoofer Displacement: 0.13 cu ft

Mounting Depth: 6.8”

Outside Diameter: 8.70”

Cutout Diameter: 7.36”
